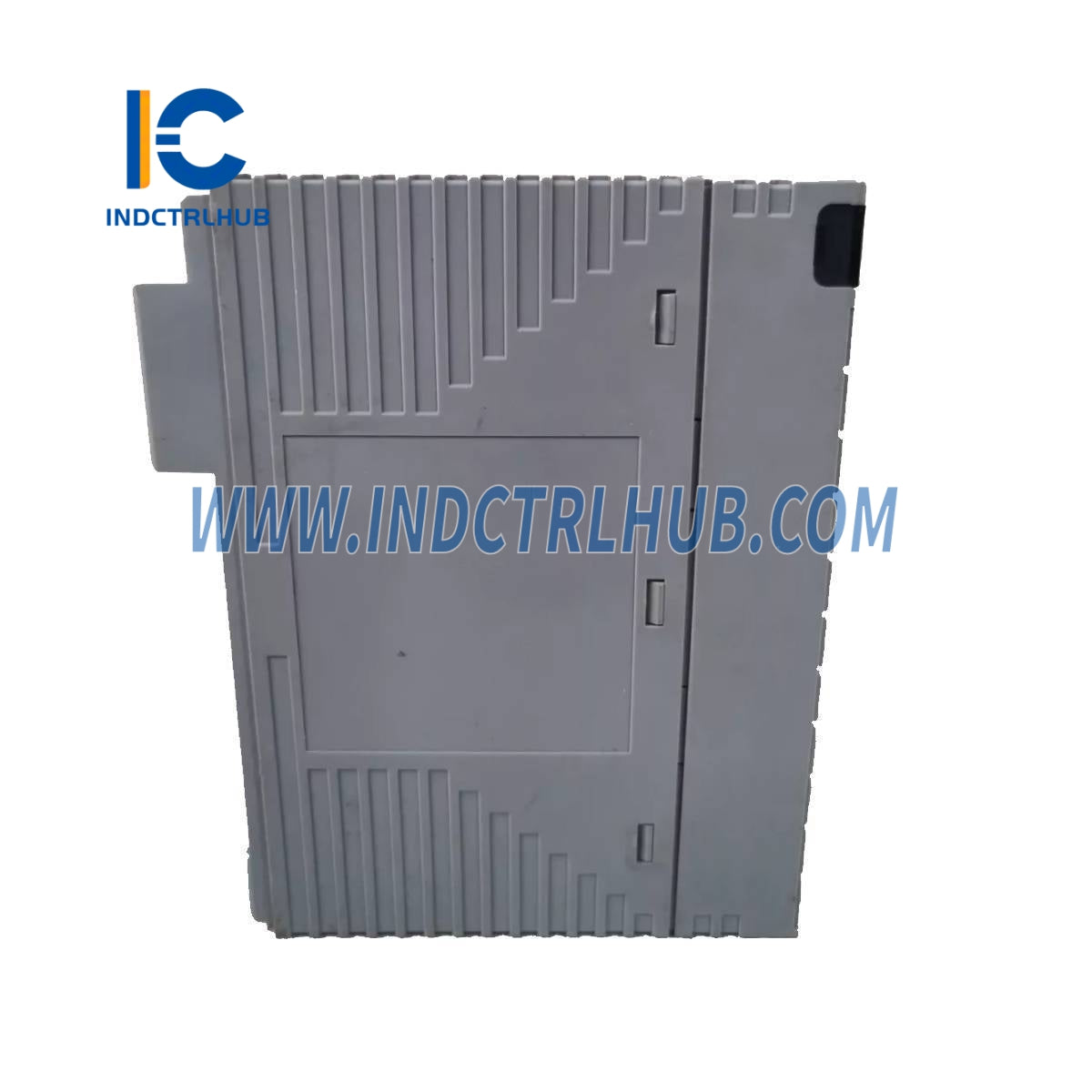

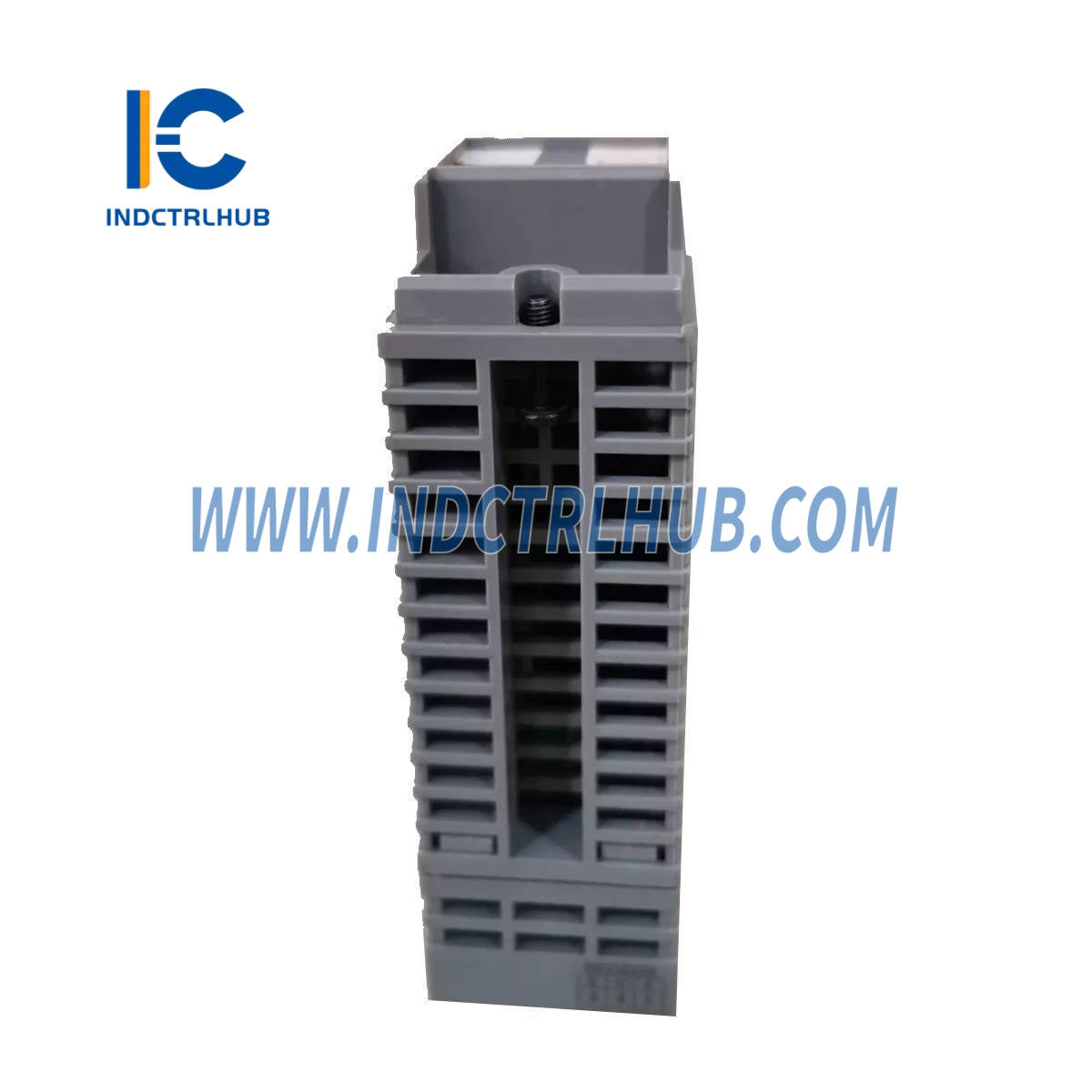

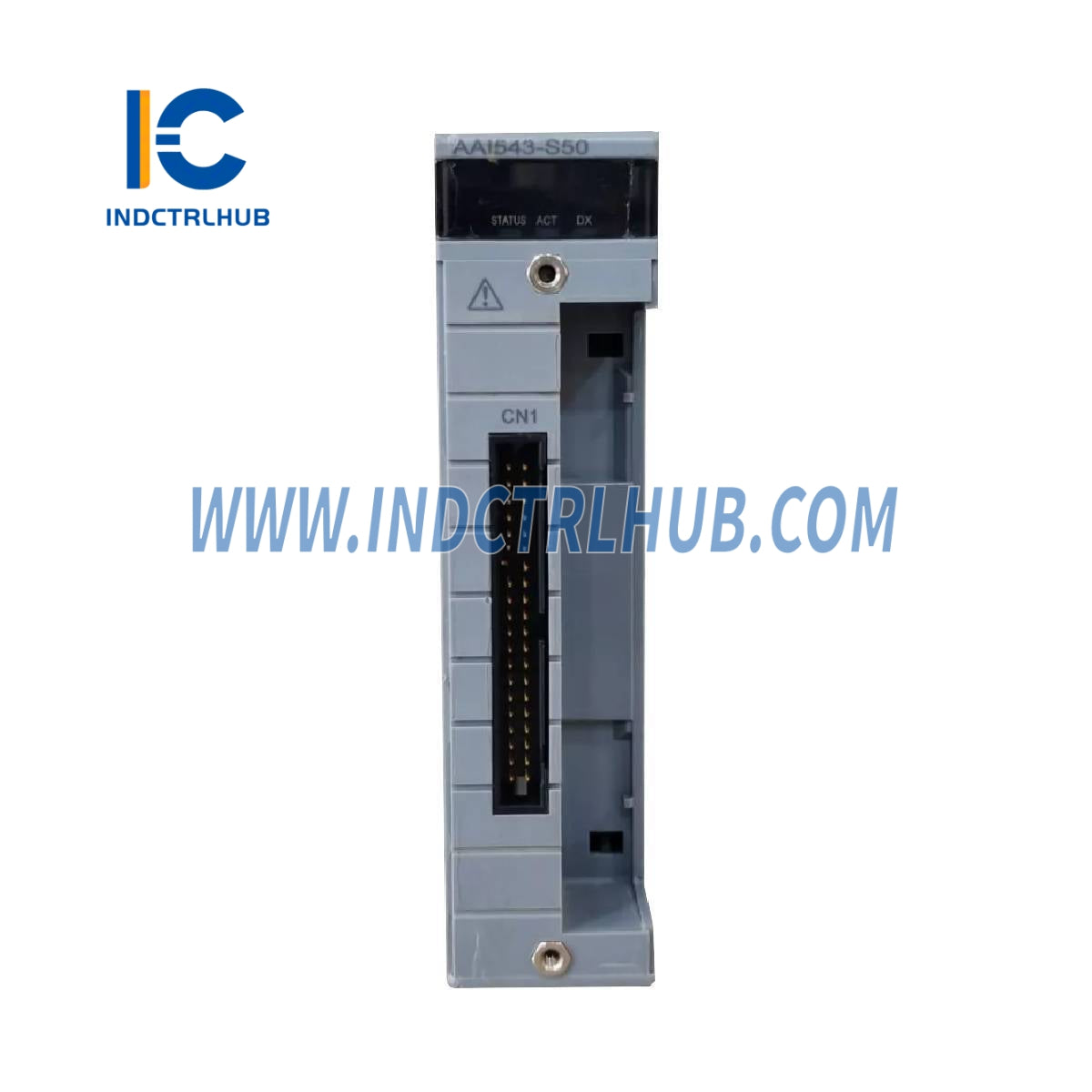

Yokogawa AAI543-S50/A4S00 Analog Output Module
Yokogawa AAI543-S50/A4S00 Analog Output Module
Manufacturer: Yokogawa
Product No.: AAI543-S50/A4S00
Condition:1000 in stock
Product Type: Analog Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAI543-S50/A4S00 |
|
Description |
Analog Output Module (4_20 mA, 16-Channel, Isolated, Redundant Capable) |
_
_
__ Description
The_AAI543-S50/A4S00_is a 16-channel_isolated analog output module_delivering_4_20 mA_signals. It is built for applications that may require_dual-redundant configuration_and is equipped with a_pressure clamp terminal block_for easy wiring. The suffix and option codes define it as a_standard model_with_basic configuration_and_no HART communication.
_
_
__ Technical Specifications
|
Specification |
Details |
|---|---|
|
Model Base |
AAI543 |
|
Output Channels |
16, isolated |
|
Redundancy Type |
Standard switch-over response in redundant configuration |
|
Output Signal |
4 to 20 mA |
|
Withstanding Voltage |
1500 V AC between output and system (1 minute) |
|
Allowable Load Resistance |
0 to 750 _ |
|
Circuit-Open Detection |
Less than 0.65 mA |
|
Accuracy |
±48 µA |
|
Data Update Period |
10 ms |
|
Temperature Drift |
±16 µA per 10 _C |
|
Max Current Consumption |
230 mA (5 V DC), 540 mA (24 V DC) |
|
Weight |
0.4 kg |
|
External Communication |
Pressure clamp terminal, MIL connector, dedicated KS1 cable |
|
HART Communication |
Not available in this variant |
_
_
__ Model & Option Code Breakdown
|
Code |
Meaning |
|---|---|
|
-S |
Standard type (no HART protocol) |
|
5 |
Standard switch-over response in redundant configuration (no explosion protection) |
|
0 |
Basic type |
|
/A4S00 |
With Pressure Clamp Terminal Block [Model: ATA4S-00] |
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | PW701 Power Supply Module for DCS Systems | 1000_2000 | 760 | PW701 Power Supply Module |
| YOKOGAWA | AMC80/ZCT Analog Multiplexer Module for Signal Processing | 500_1500 | 590 | AMC80/ZCT Analog Multiplexer Module |
| YOKOGAWA | SAI533-H33 S1 Analog Output Module for 4-20mA Signals | 715_1715 | 410 | SAI533-H33 S1 Analog Output Module |
| YOKOGAWA | AAR145-S50 S1 RTD/Pot Input Module for Temperature Measurement | 1643_2643 | 680 | AAR145-S50 S1 RTD Input Module |
| YOKOGAWA | ALP121-S00 PROFIBUS-DP Communication Module for DCS | 5555_6555 | 330 | ALP121-S00 PROFIBUS-DP Module |
| YOKOGAWA | NFA1543-S50/A4S00 Analog Input Module for Current Signals | 786_1786 | 780 | NFA1543-S50/A4S00 Analog Input Module |
| YOKOGAWA | SNT401-53 Optical ESB Bus Repeater Module for Long-Distance Communication | 2143_3143 | 460 | SNT401-53 Optical Repeater Module |
