Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Yokogawa |
|
Model/Part Number |

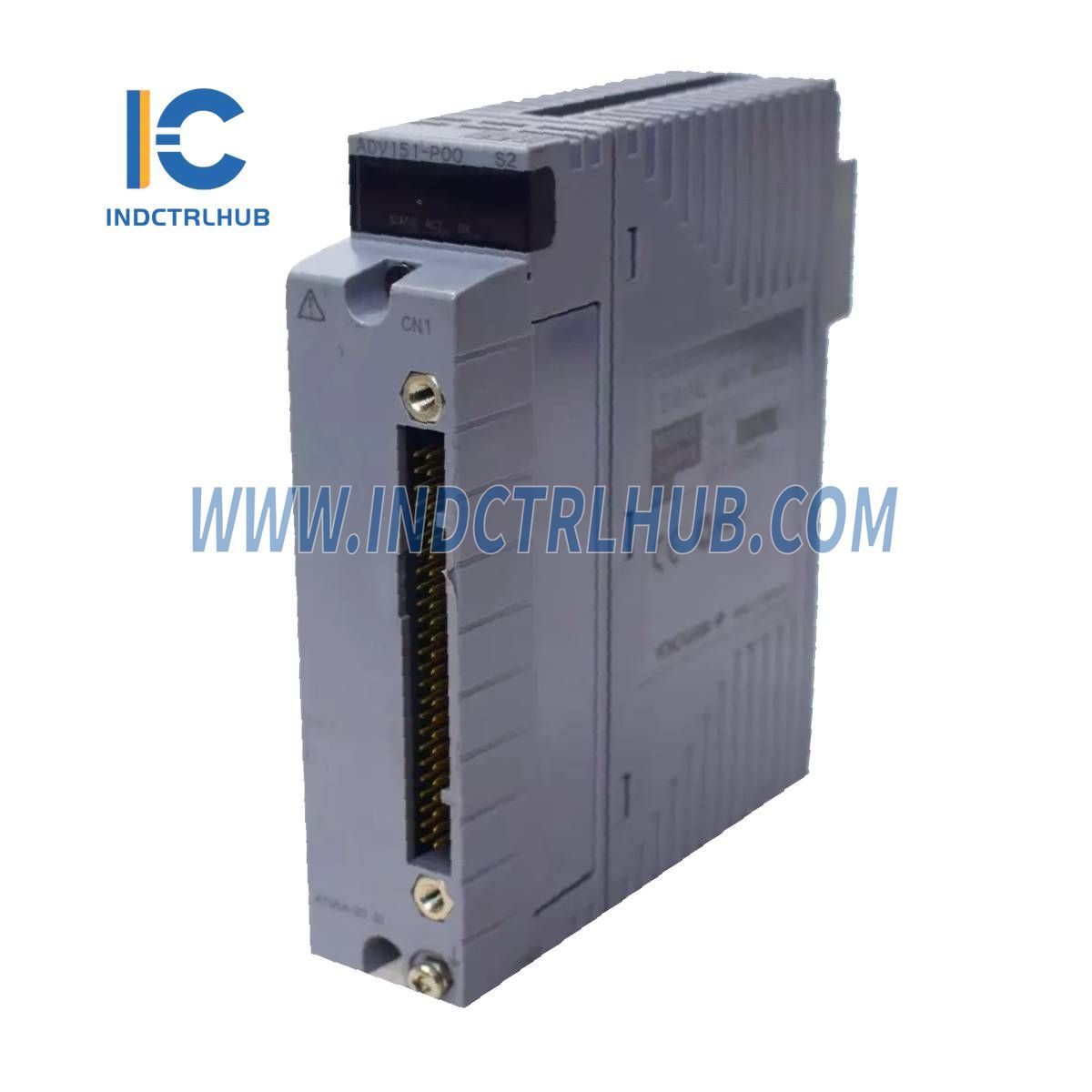

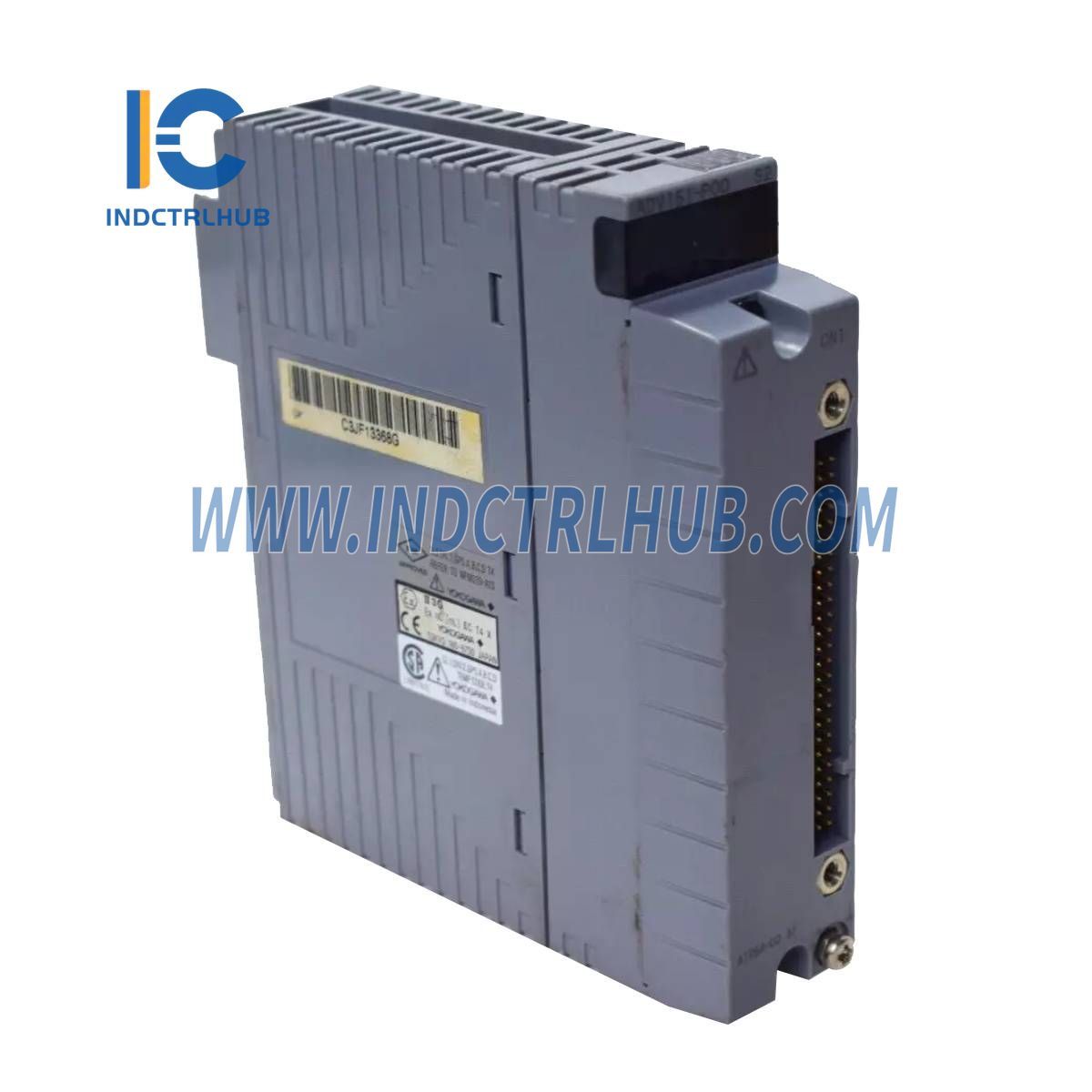

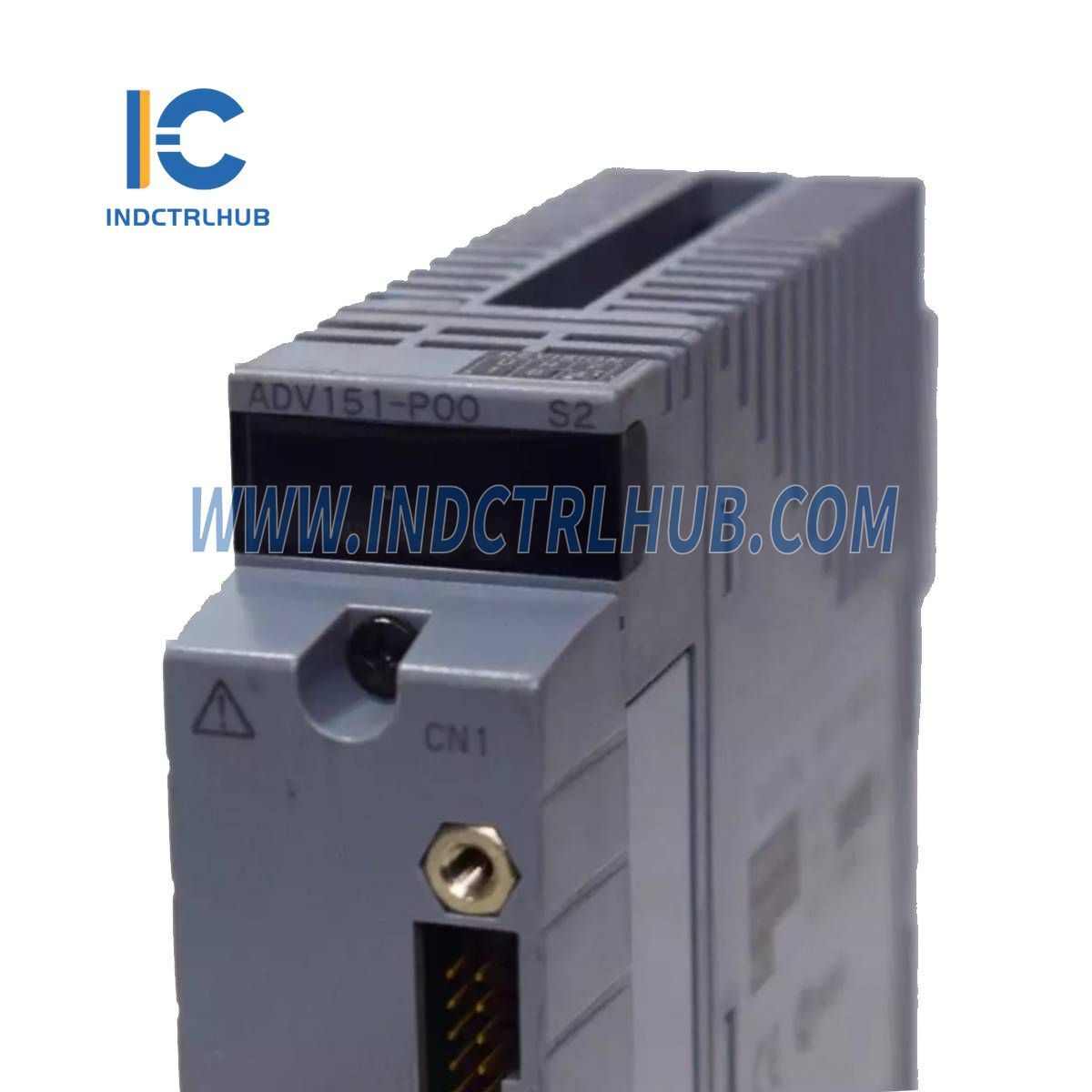

ADV151-P00 |
|
Product Description |
Digital Input Module (32-channel, 24 V DC, Isolated) |
Technical Specifications
|
Parameter |
ADV151-P/ADV151-E |
|---|---|
|
Number of Input Channels |
32 |
|
Rated Input Voltage |
24 V DC (sink/source) |
|
Input ON Voltage |
18 to 26.4 V DC |
|
Input OFF Voltage |
5.0 V DC or less |
|
Input Current (at Rated Input Voltage) |
4.1 mA ±20% per channel |
|
Maximum Allowable Input Voltage |
30.0 V DC |
|
Withstand Voltage |
Between input signal and system: 2 kV AC (1 min) Between commons: 500 V AC (1 min, common every 16-channel) |
|
Functions |
Status input, Pushbutton input, SOE input (ADV151-E only) |
|
Input Response Time |
8 ms or less (for status input) |
|
Minimum ON Detection Time |
20 ms (for pushbutton input) |
|
Maximum ON/OFF Cycle |
25 Hz (for pushbutton input) |
|
Maximum Current Consumption |
500 mA (5 V DC) |
|
Weight |
Approx. 0.30 kg |
|
External Connection |
Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
Model and Suffix Codes
|
Suffix Code |
Description |
|---|---|
|
-P |
With pushbutton input |
|
-E |
With SOE capture (*1) |
|
5 |
Without status display; with no explosion protection |
|
6 |
With status display; with no explosion protection |
|
E |
Without status display; with explosion protection |
|
F |
With status display; with explosion protection |
|
0 |
Basic type |
|
3 |
With ISA Standard G3 and temperature (-20 to 70 °C) |
Option Codes
|
Option Code |
Description |
|---|---|
|
/D5A00 |
With KS Cable Interface Adapter for 32-channel digital [Model: ATD5A-00] |
|
/B5S00 |
With Pressure Clamp Terminal Block for Digital Input [Model: ATB5S-00] |
|
/B5S10 |
With Pressure Clamp Terminal Block for Digital Input (surge absorber) [Model: ATB5S-10] |
|
/B5D00 |
With Dual Pressure Clamp Terminal Block for Digital Input [Model: ATB5D-00] |
|
/B5D10 |
With Dual Pressure Clamp Terminal Block for Digital Input (surge absorber) [Model: ATB5D-10] |
|
/CCC01 |
With Connector Cover for MIL Cable [Model: ACCC01] |
