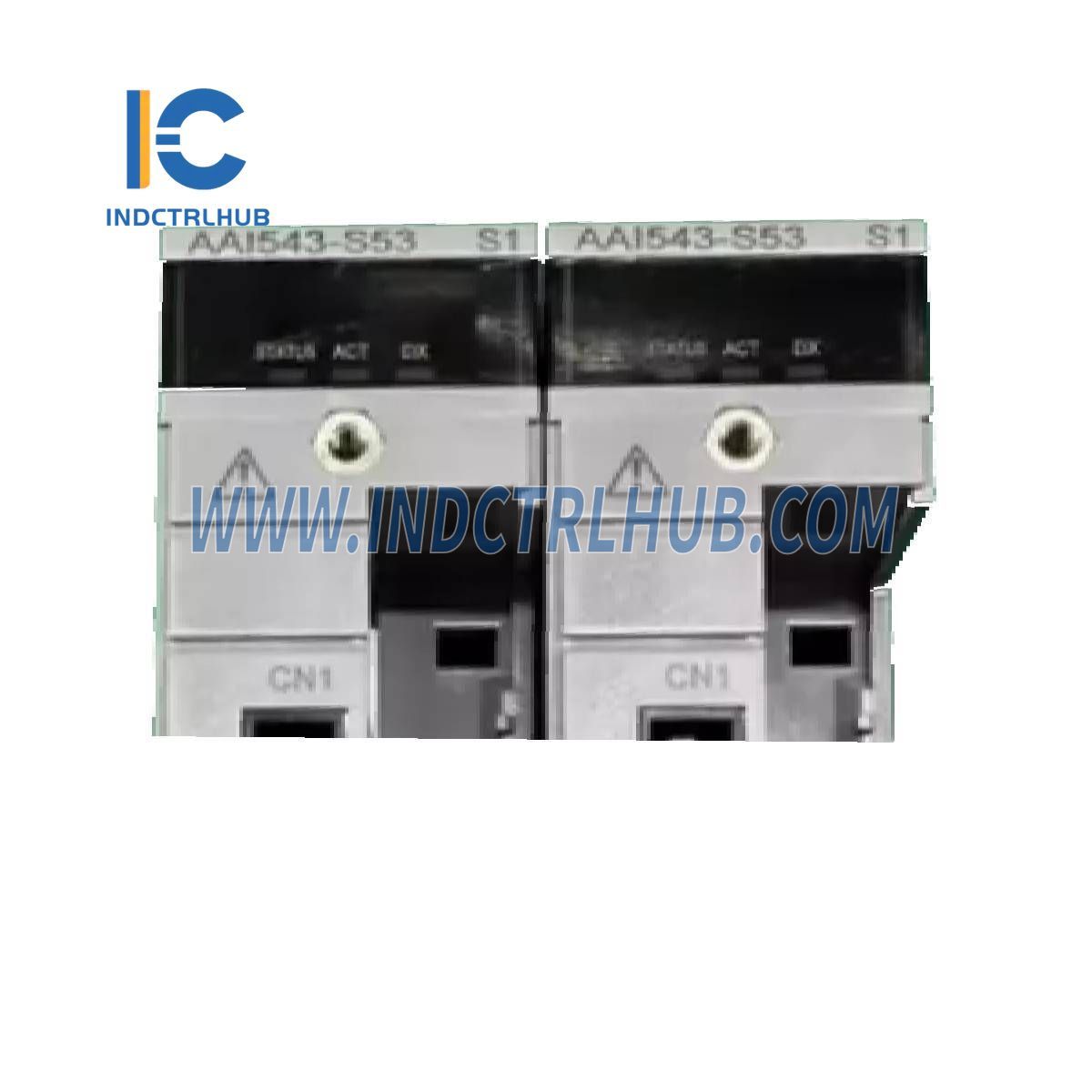

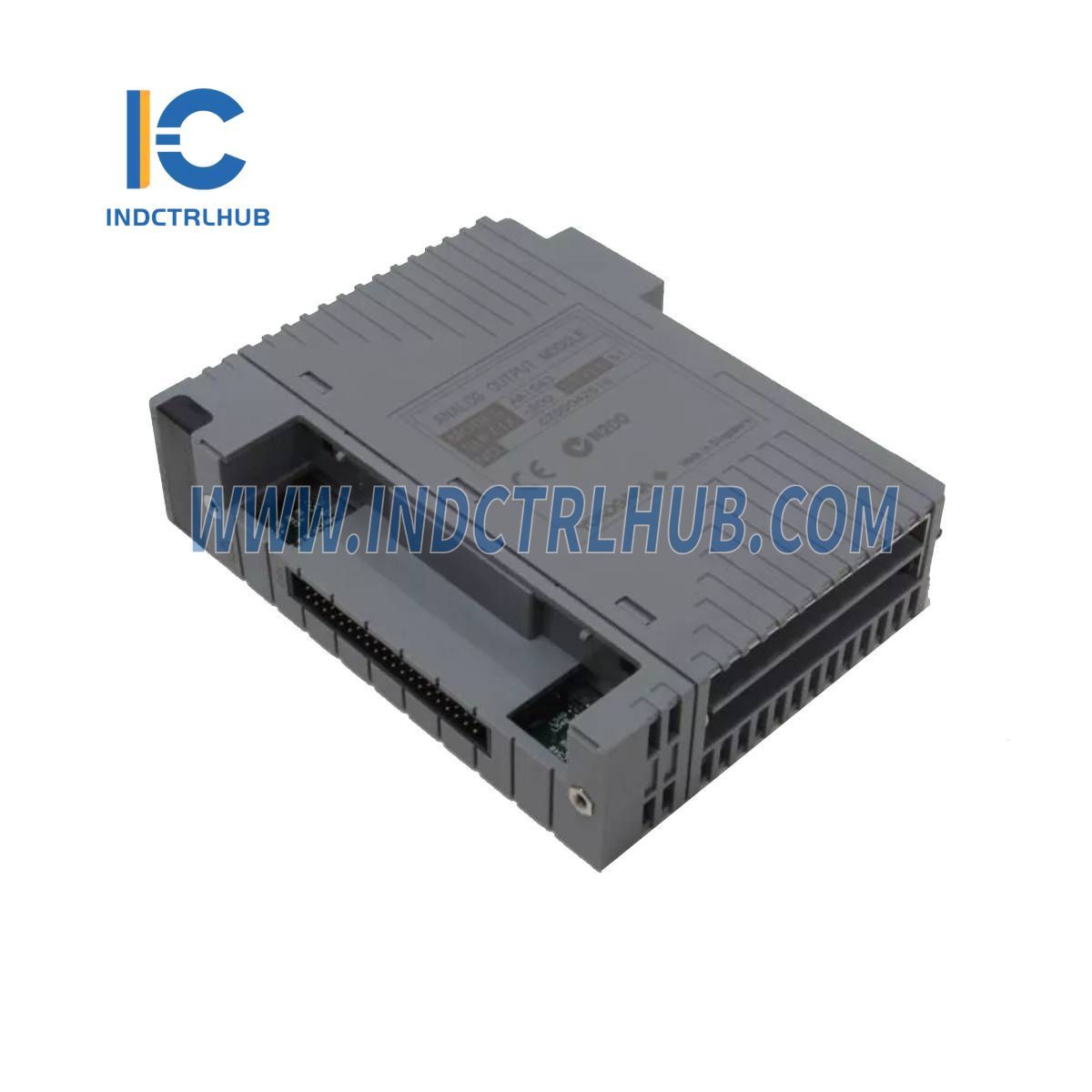

Yokogawa AAI543-S53 Analog Output Module (Current Output)
Yokogawa AAI543-S53 Analog Output Module (Current Output)
Manufacturer: Yokogawa
Product No.: AAI543-S53
Condition:1000 in stock
Product Type: Analog Output Module (Current Output)
Product Origin: Japan
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Yokogawa |
|
Model/Part Number |
AAI543-S53 |
|
Product Description |
Analog Output Module (Current Output, 16-channel, Isolated)_designed for dual-redundant configurations. |
Specifications
Output Characteristics
|
Parameter |
Value |
|---|---|
|
Number of Output Channels |
16, isolated |
|
Output Signal |
4 to 20 mA |
|
Allowable Load Resistance |
0 to 750 _ |
|
Circuit-Open Detection |
Less than 0.65 mA |
|
Accuracy |
±48 µA |
|
Drift due to Ambient Temperature Change |
±16 µA per 10°C |
|
Data Update Period |
10 ms |
|
Withstanding Voltage |
1500 V AC_(between output and system) for 1 minute |
Electrical & Communication
|
Parameter |
Value |
|---|---|
|
Maximum Current Consumption |
230 mA (5V DC), 540 mA (24V DC) |
|
External Communication |
Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
|
HART Communication |
Available |
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Weight |
0.4 kg |
