Product Description

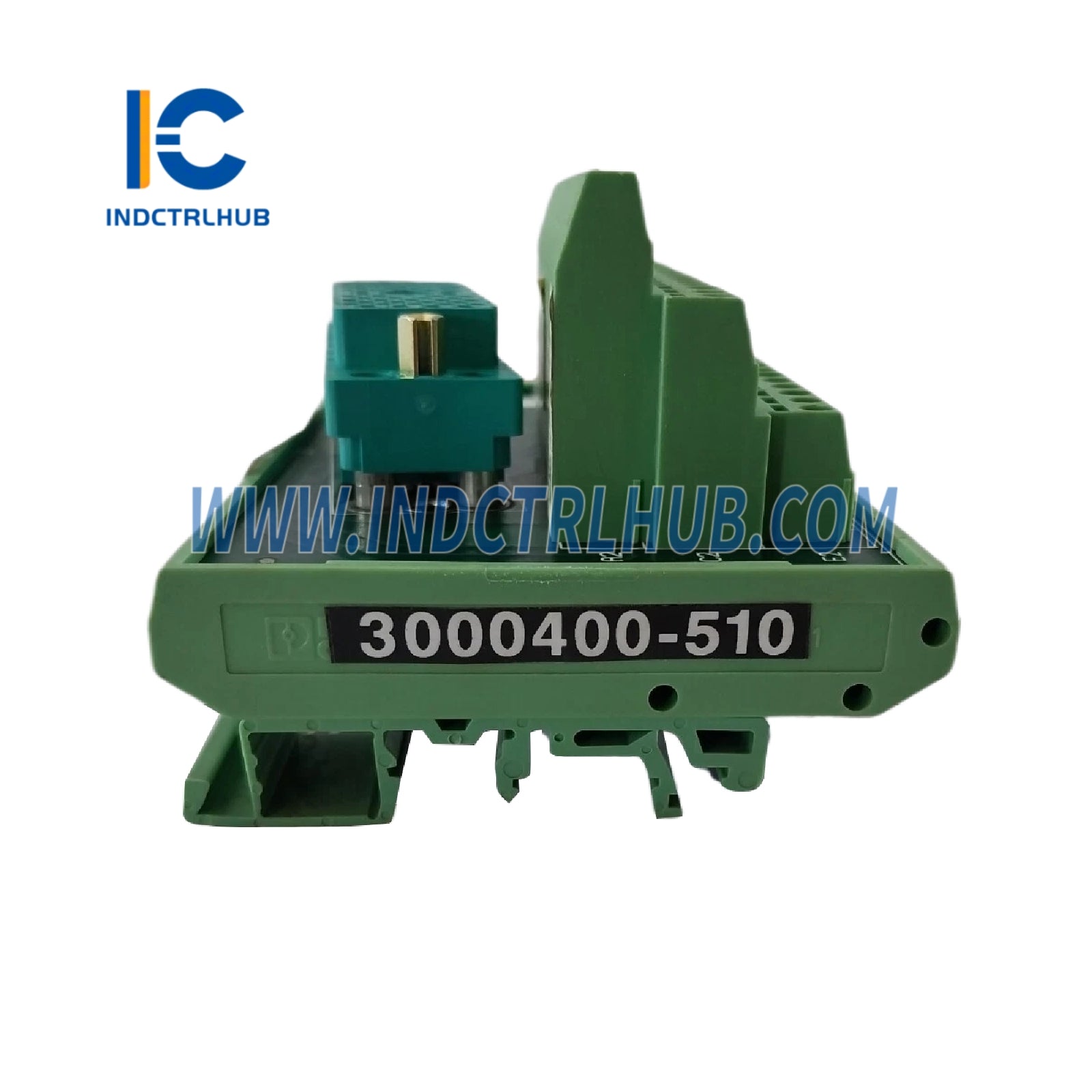

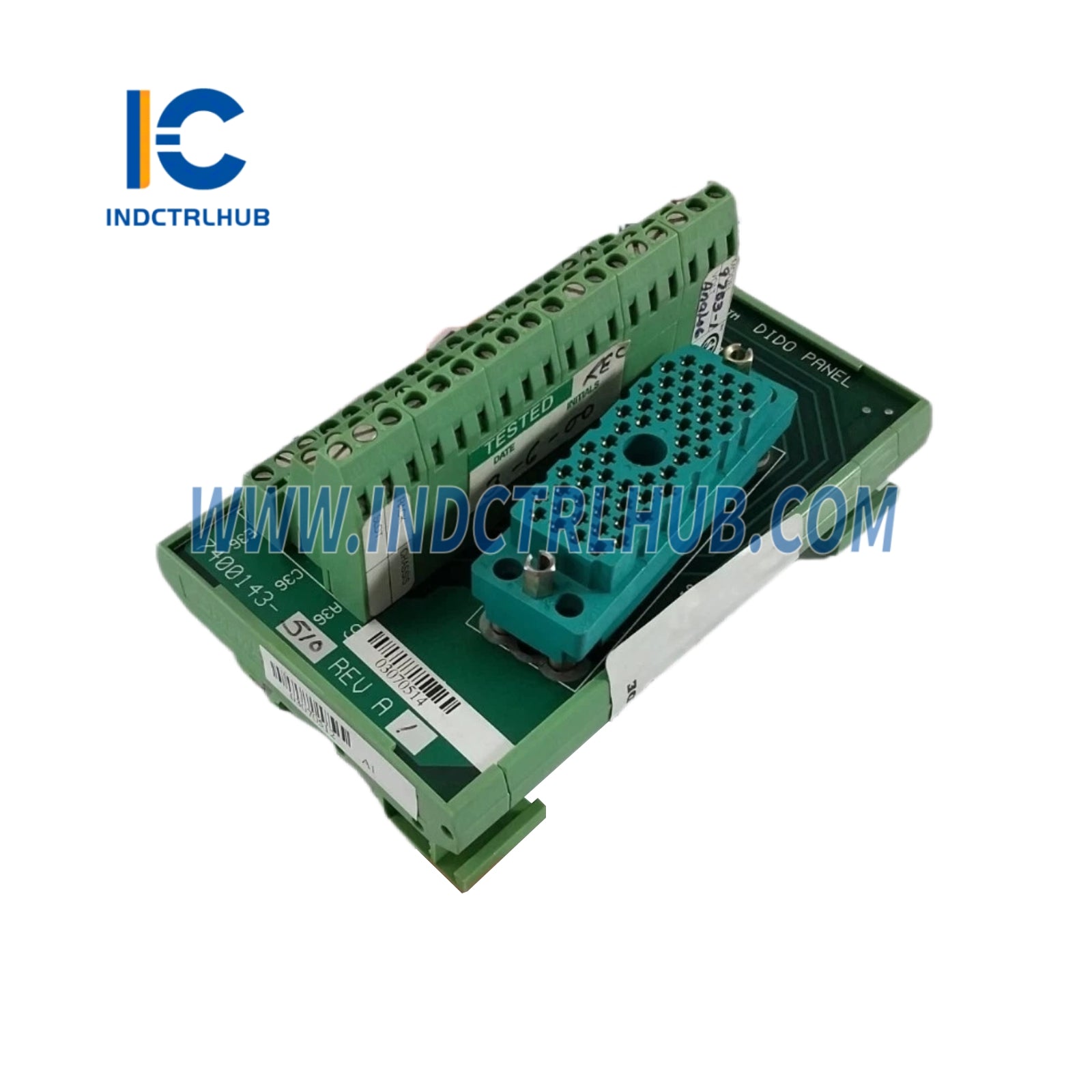

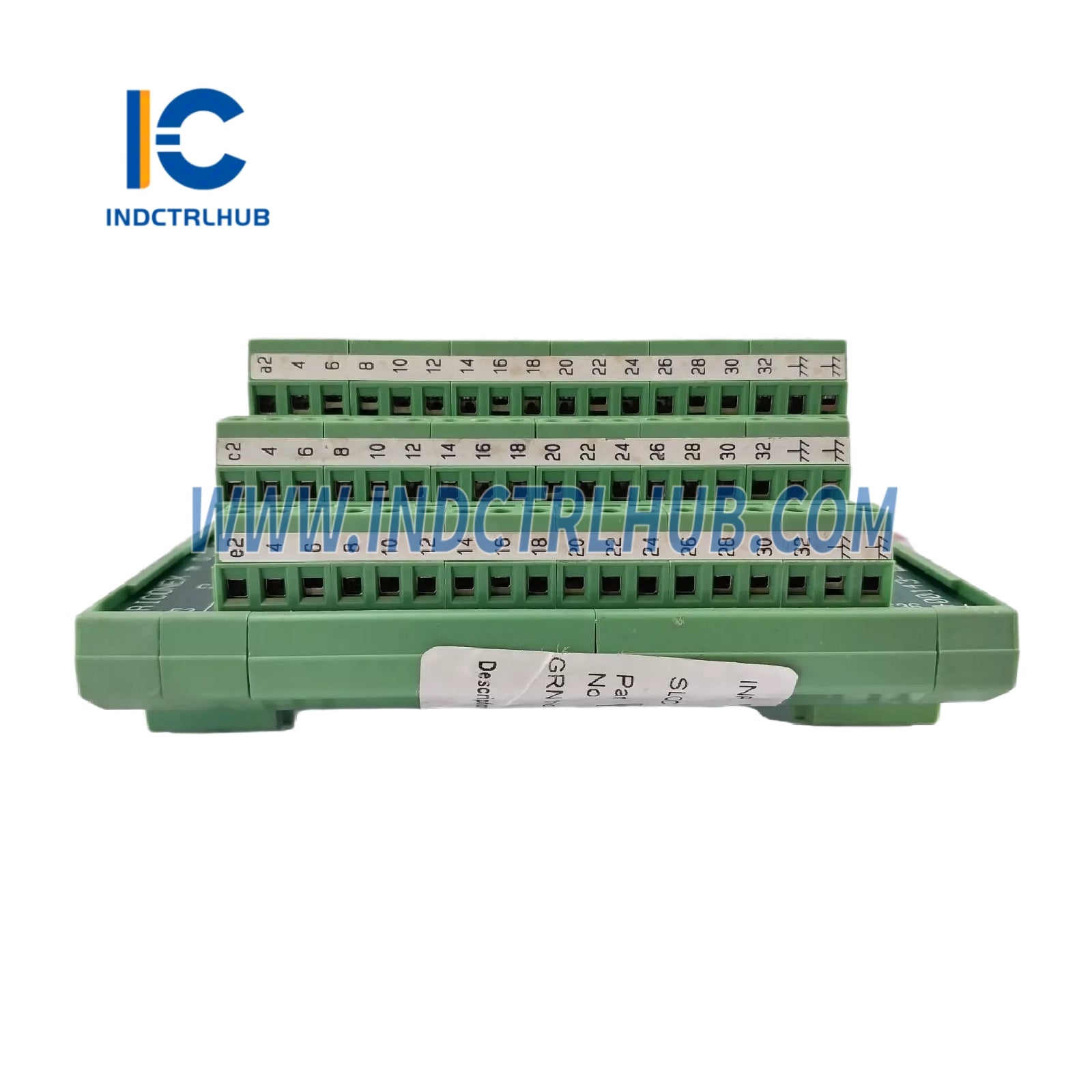

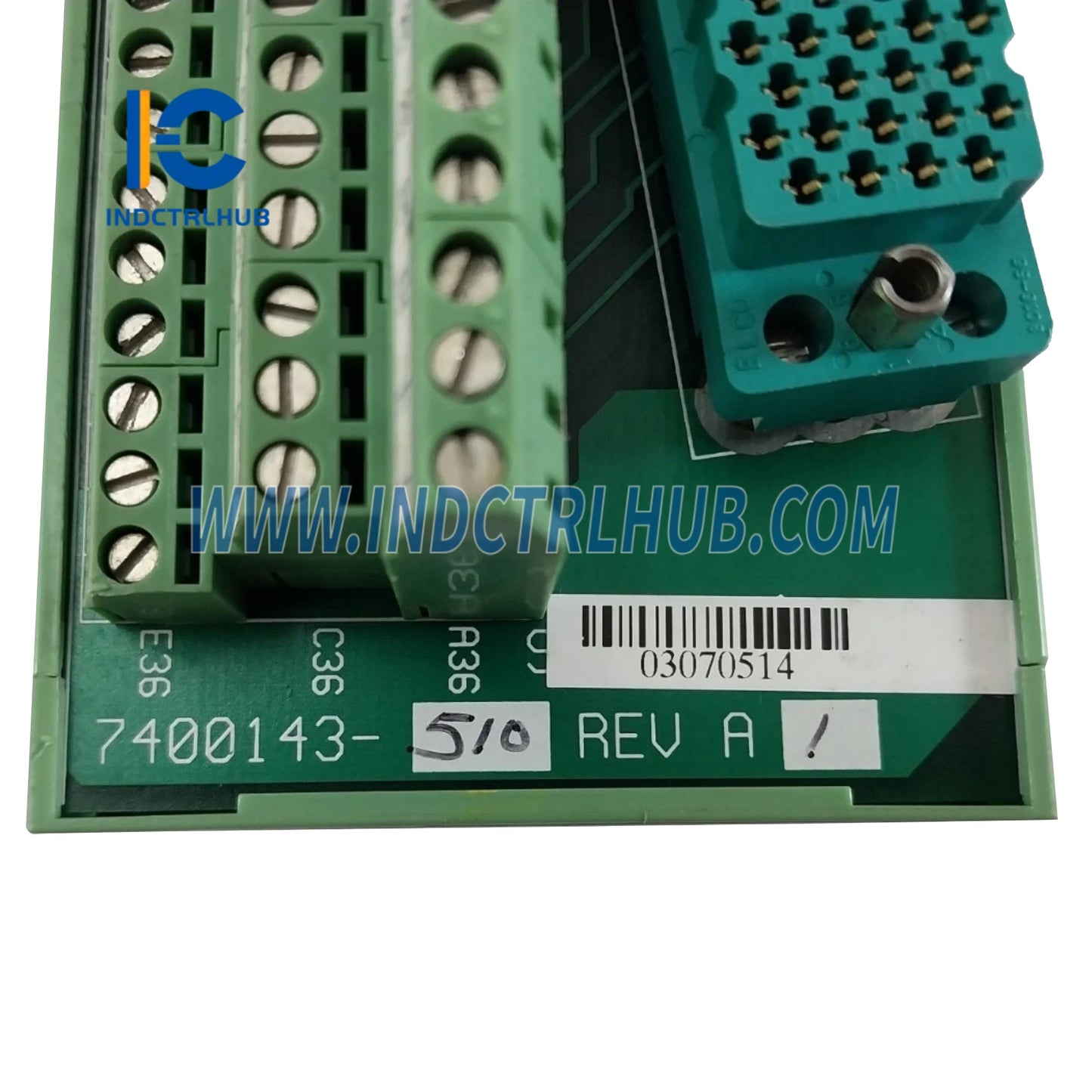

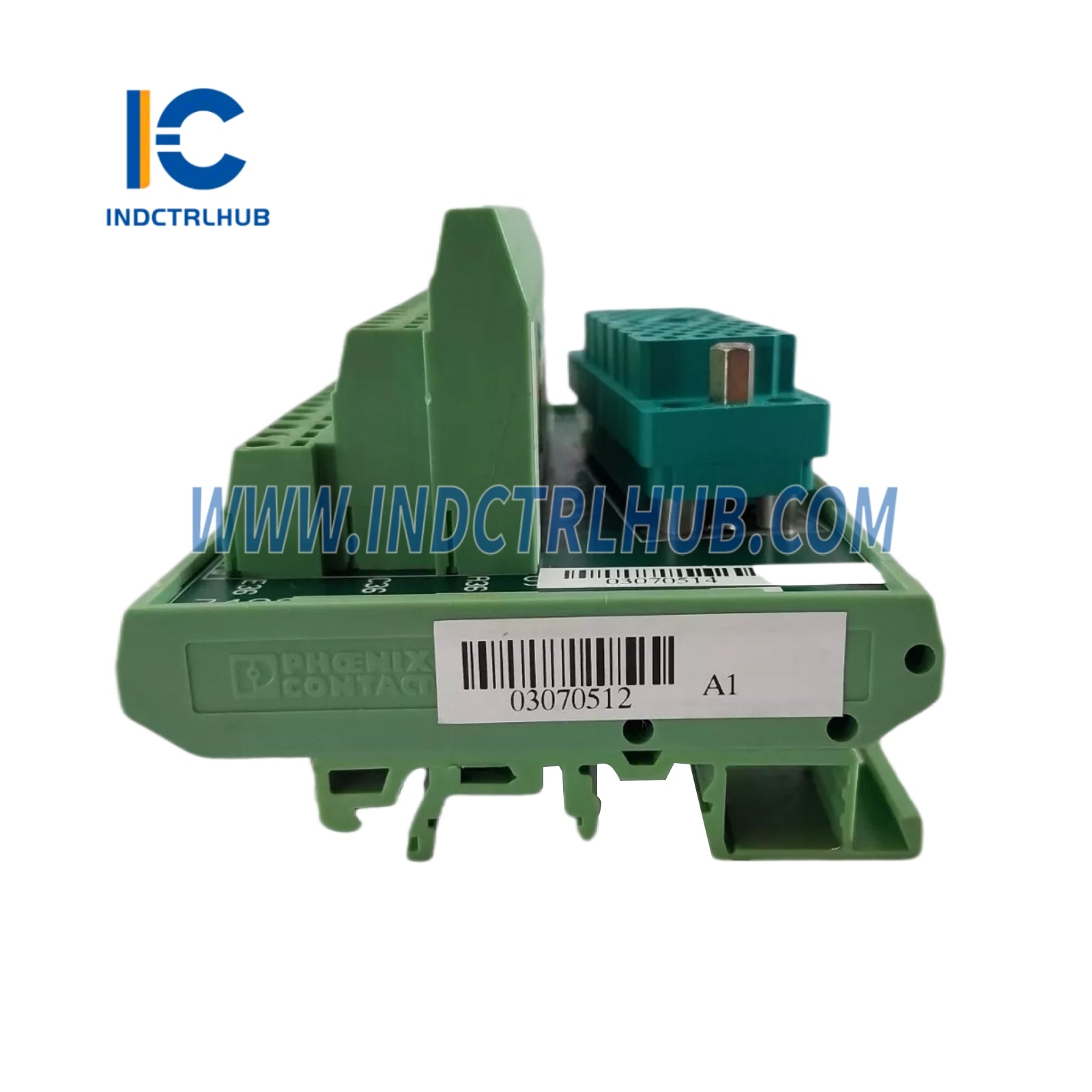

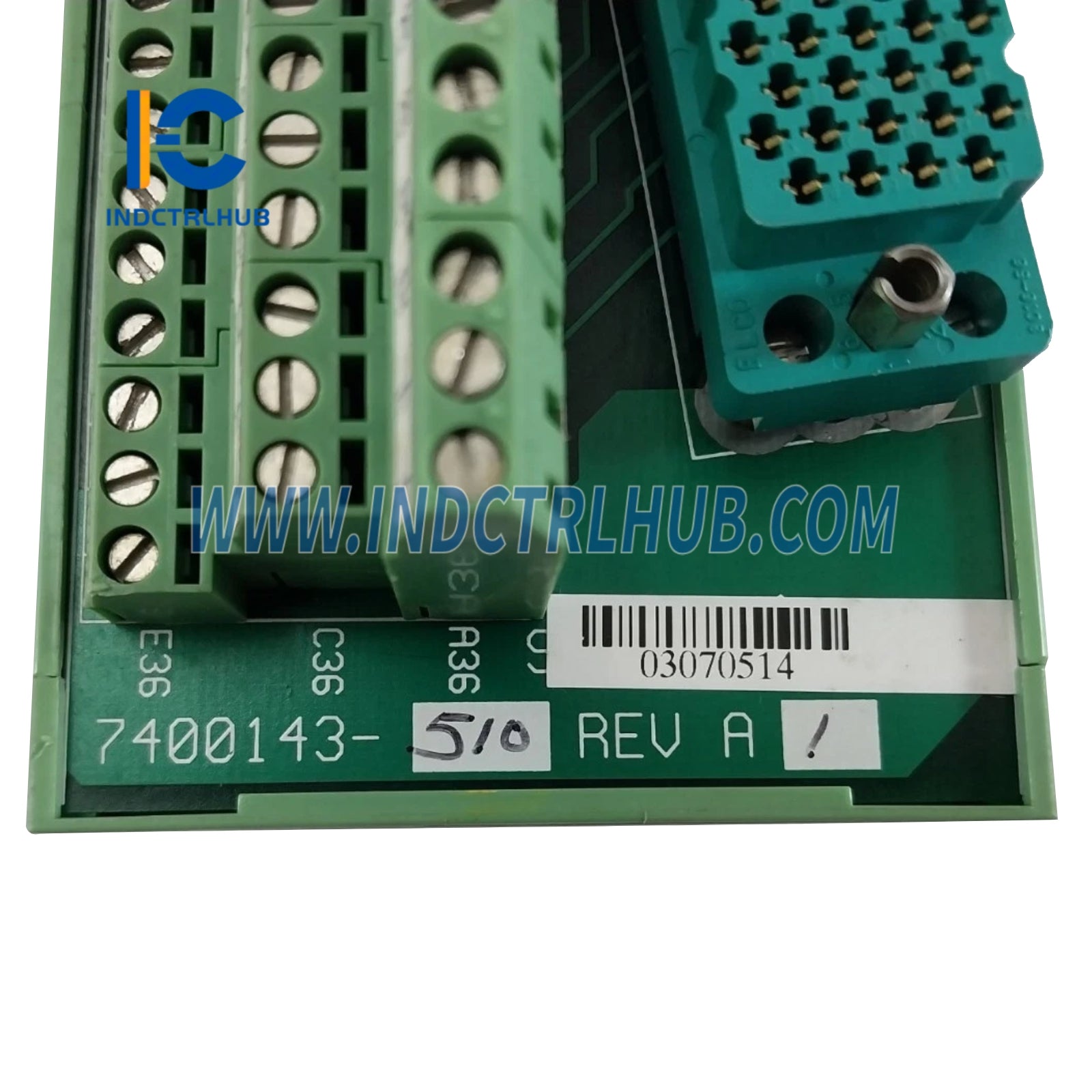

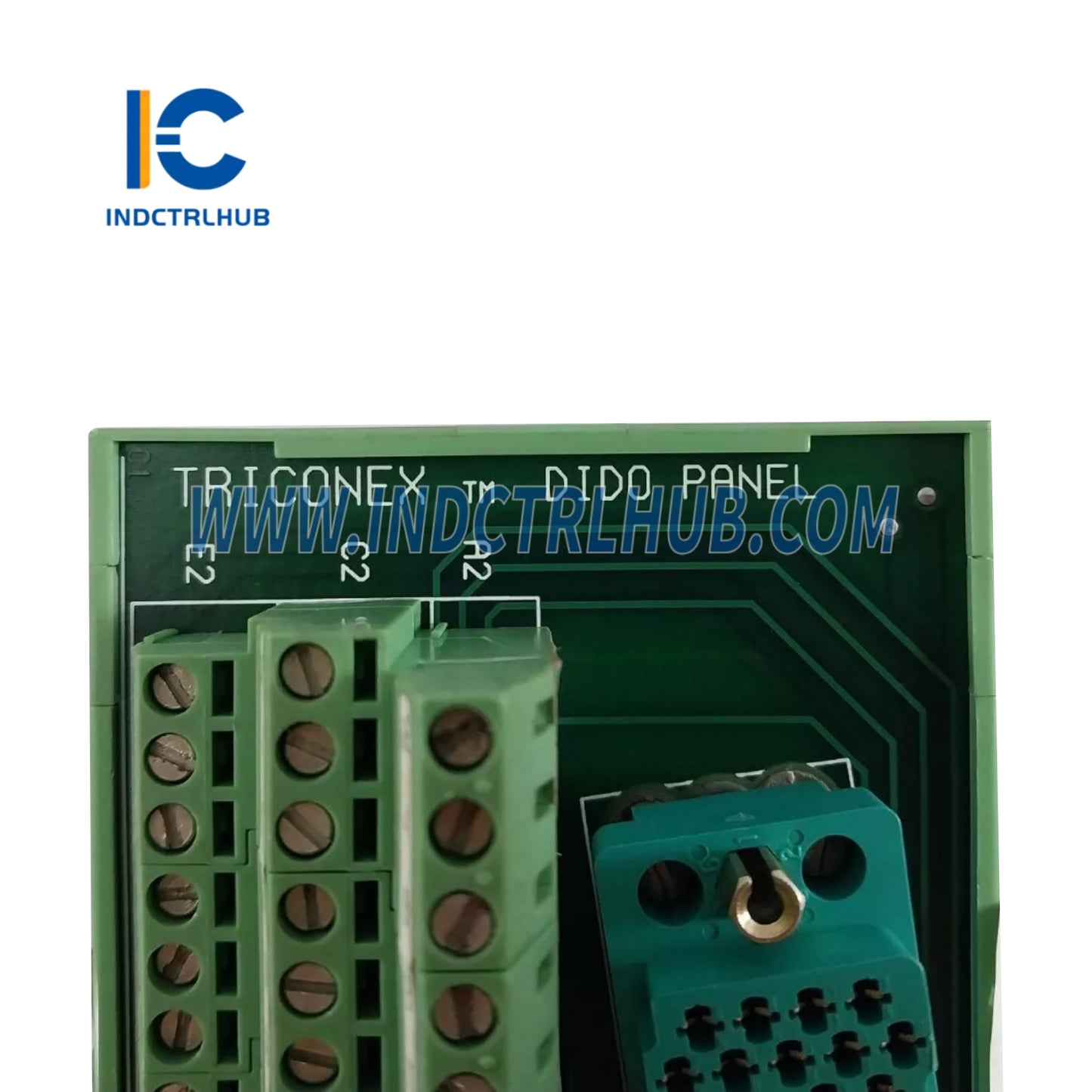

Triconex UMK-SE11,25-1 Safety Shutdown Module
Product Overview
- The Triconex UMK-SE11,25-1 is a Safety Shutdown Module designed for Triconex safety instrumented systems (SIS) by Schneider Electric. Belonging to the Triconex Other Modules series, this module monitors critical process parameters and initiates safe shutdown sequences when predefined safety limits are exceeded, ensuring reliable operation in triple modular redundant (TMR) architectures. It is used in safety-critical applications in industries such as oil and gas, petrochemicals, and power generation. The UMK-SE11,25-1 integrates a Phoenix Contact side element for modular assembly, enhancing its compatibility with standard industrial setups.
Technical Specifications
- The UMK-SE11,25-1 has the following specifications based on industry documentation and Phoenix Contact UMK-SE11,25-1 component details:
| Specification | Details |
|---|---|
| Model/Part Number | UMK-SE11,25-1 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Safety Shutdown Module |
| Series | Triconex Other Modules |
| Input Type | Analog and Digital Inputs (configurable) |
| Output Type | Digital Outputs for shutdown control |
| Operating Voltage | 24 VDC |
| Dimensions | 10.2 in x 6.3 in x 3.1 in (25.9 cm x 16.0 cm x 7.9 cm) |
| Weight | Approx. 2.2 lbs (1 kg) |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Mounting | DIN rail via Phoenix Contact UMK-SE11,25-1 side element |
Additional Details
- The UMK-SE11,25-1 includes the following additional information based on its standard use and documentation:
- Function: Continuously monitors process variables (e.g., pressure, temperature) against predefined safety thresholds; triggers a safe shutdown sequence when parameters exceed limits, ensuring compliance with safety instrumented system (SIS) requirements in TMR configurations.
- Compatibility: Compatible with Triconex Tricon and Tricon CX systems; integrates with analog input modules (e.g., T8431C), digital input modules (e.g., T8800), and termination panels (e.g., 9771-2XX); leverages Phoenix Contact UMK-SE11,25-1 side element for modular DIN rail mounting.
