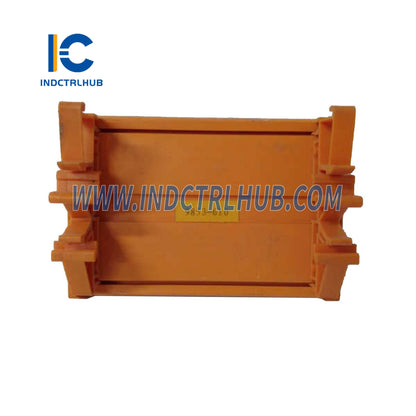

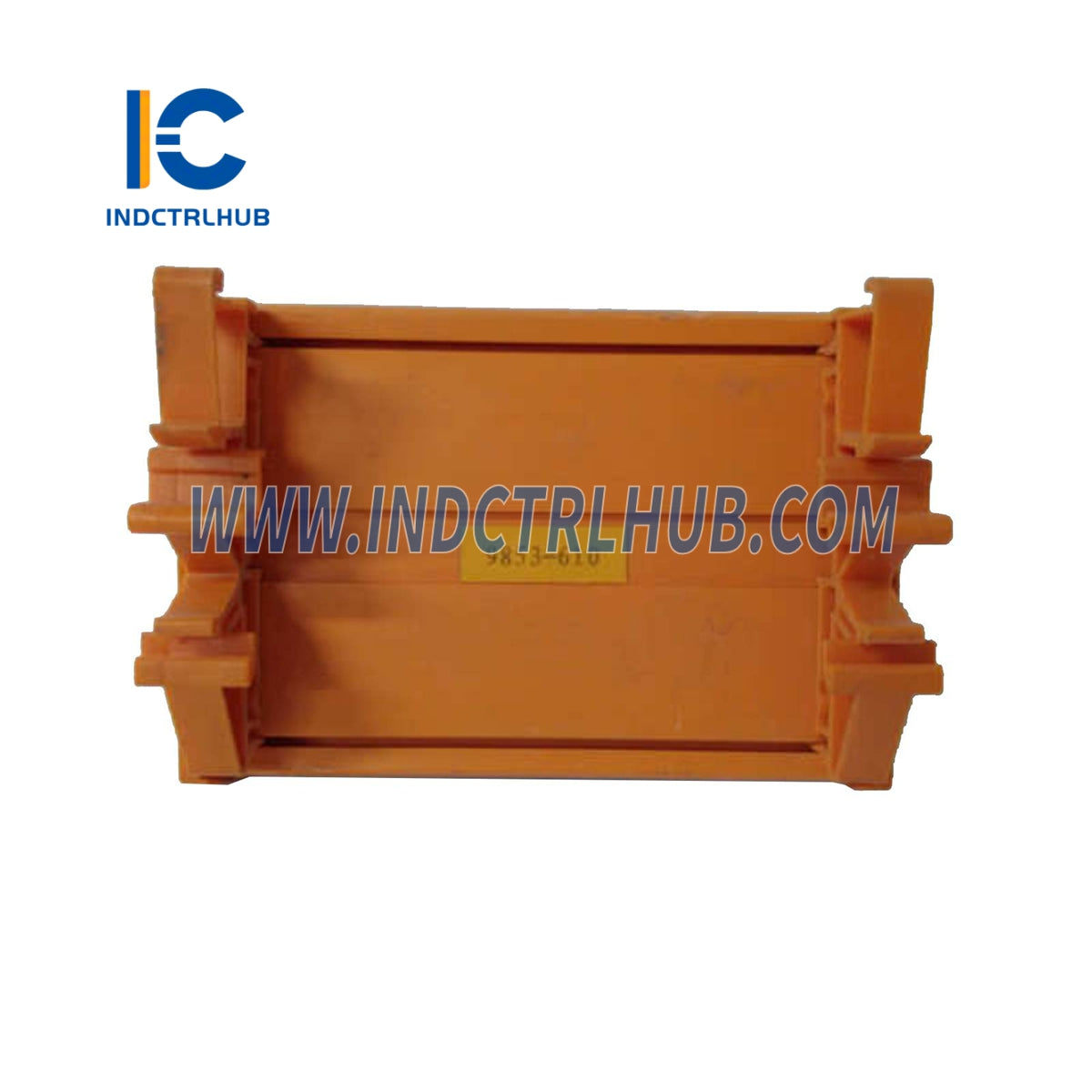

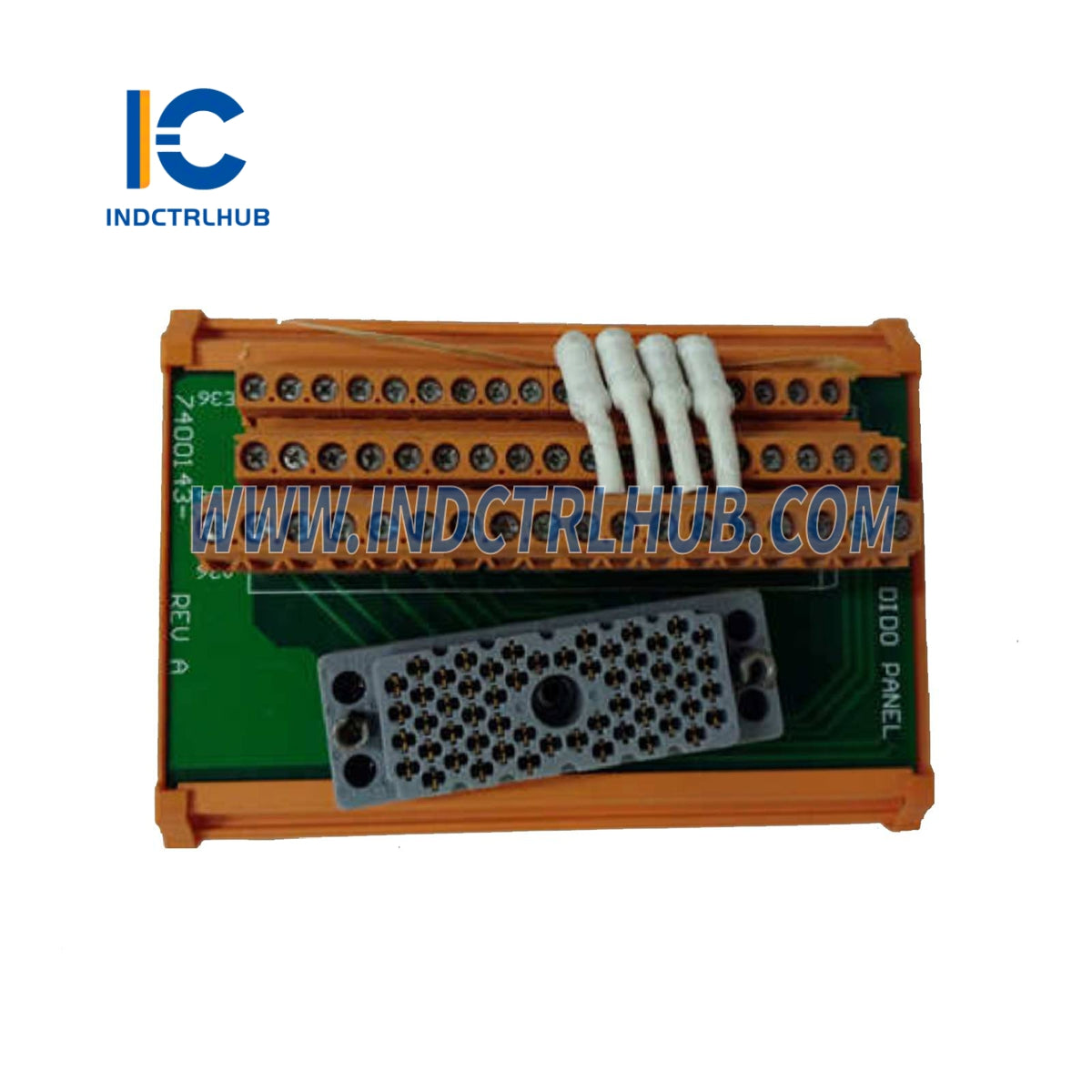

Triconex 9853-610 Analog current output termination panel
Triconex 9853-610 Analog current output termination panel
Manufacturer: Triconex
Product No.: 9853-610
Condition:1000 in stock
Product Type: Analog current output termination panel
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Triconex (Schneider Electric) |
|
Model/Part Number |
9853-610 |
|
Description |
Analog current output termination panel with 8 current output points, compatible with 4_20 mA and HART analog output modules. |
_
_
Key Features
_
-
Panel Type: Current output, basic
-
Number of Points: 8
-
Designed for_4_20 mA_output modules and_HART analog output interface modules
-
Each panel includes:
_
-
8_current output terminals (OUT)
-
8_current return terminals (RTN)
-
Terminals for_redundant 24 VDC power supplies
-
Built-in voltage-to-current converters for analog signal conversion
-
Ideal for applications requiring_stable, isolated current outputs_with high input impedance
_
_
Voltage-to-Current Converter Specifications
|
Feature |
Specification |
|---|---|
|
Voltage |
24 VDC nominal (range: 20_28 VDC) |
|
Quiescent Current |
20 mA (Vsupply = 24 V, Vin = 0, RL = 0, Is = 4 mA) |
|
Input Impedance |
1 MΩ (Differential), 850 kΩ (Common Mode) |
|
Input Voltage Range |
0_20 V for 4_20 mA output |
|
Max Input Voltage |
±100 V continuous; ±200 V pulsed (0.5 sec, 2% duty) |
|
Output Range |
4_20 mA (for 0_20 V input) |
|
Max Load Resistance |
750 Ω (at 24 V supply) |
|
Offset & Linearity |
±0.1 mA max over full range |
|
Power Supply Sensitivity |
±0.1 mA output variation into 500 Ω, 20_28 VDC |
|
Differential Frequency Response |
_6 dB/octave (1_8 kHz), _12 dB/octave (>8 kHz) |
|
Common Mode Frequency Response |
_12 dB/octave (>8 kHz) |
_
_
Termination Panel Specifications
|
Specification |
Details |
|---|---|
|
Panel Type |
Current output, basic |
|
Number of Points |
8 |
_
_
Compatible Modules
|
Module Part Number |
Points per Module |
Module Description |
|---|---|---|
|
2870H |
8 |
HART analog output interface module |
|
3805E/H |
8 |
4_20 mA analog output module, commoned-return, DC-coupled, TMR |
_
_
