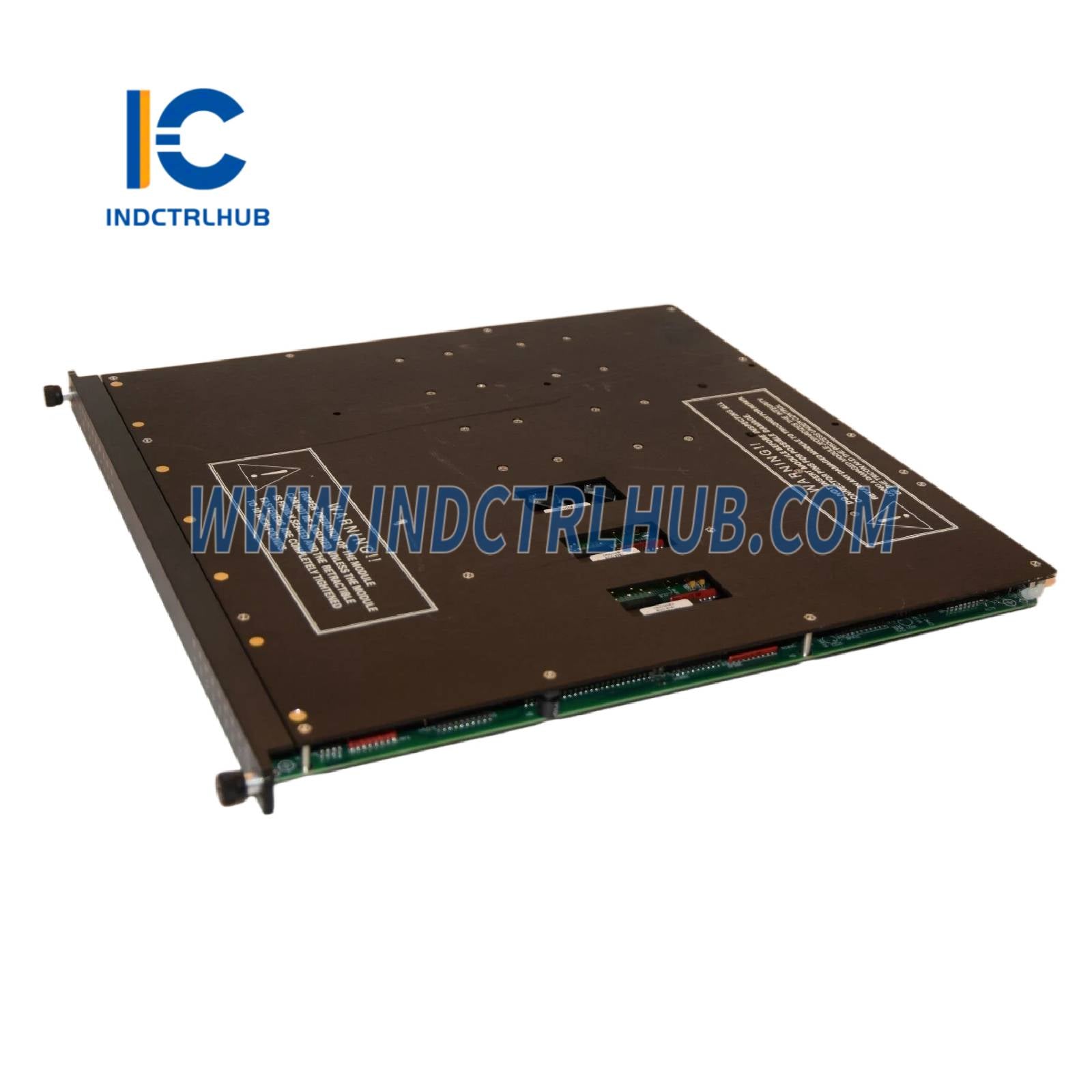

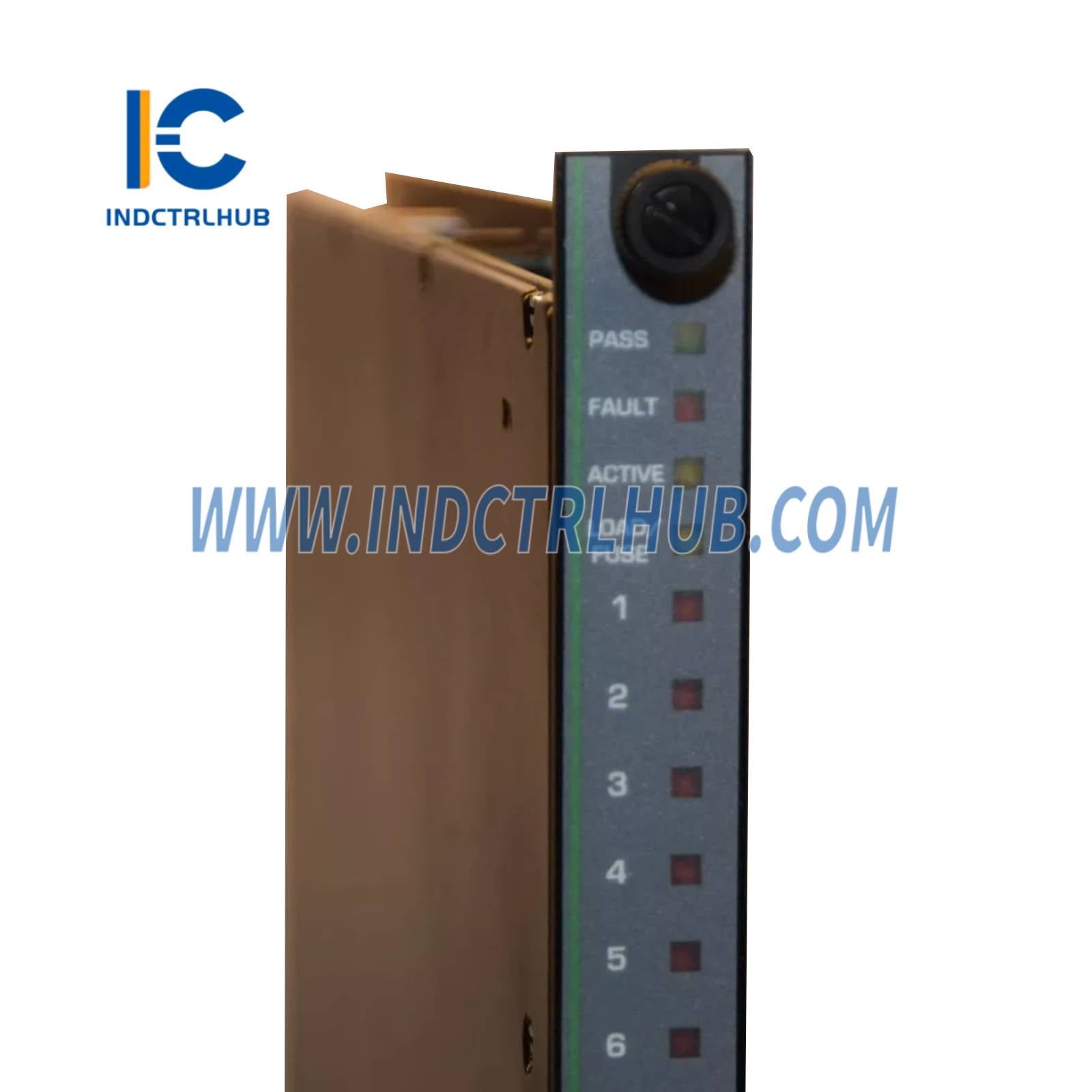

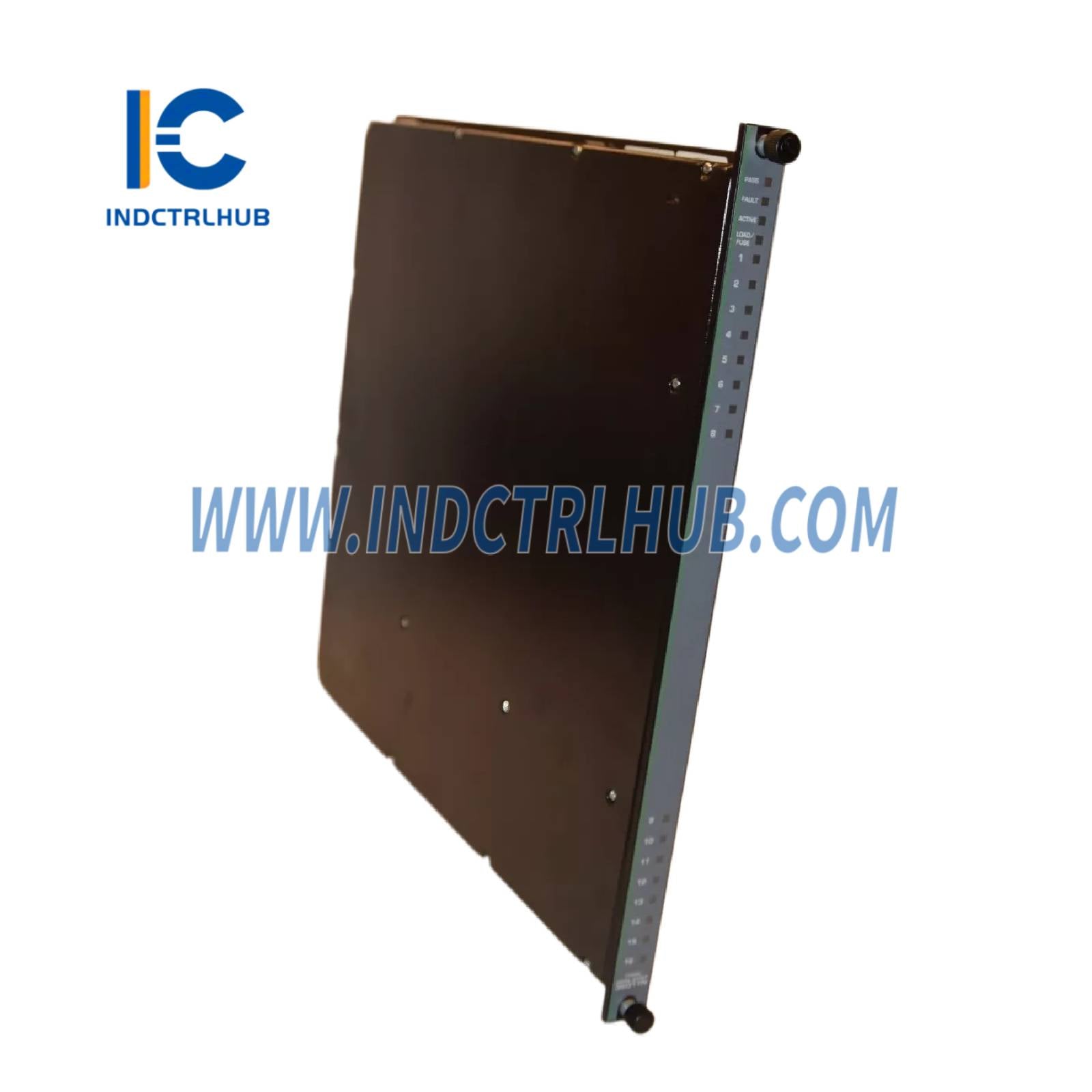

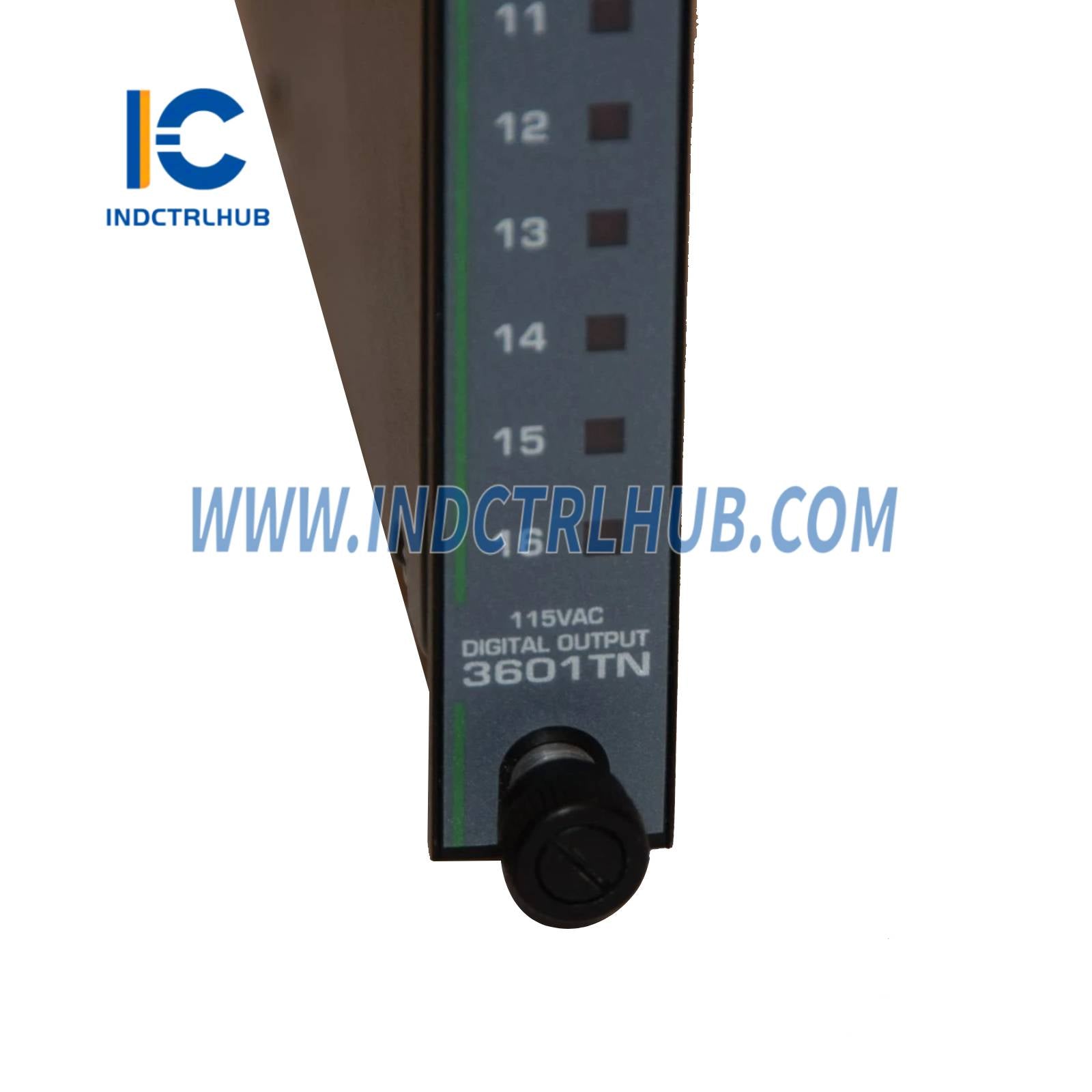

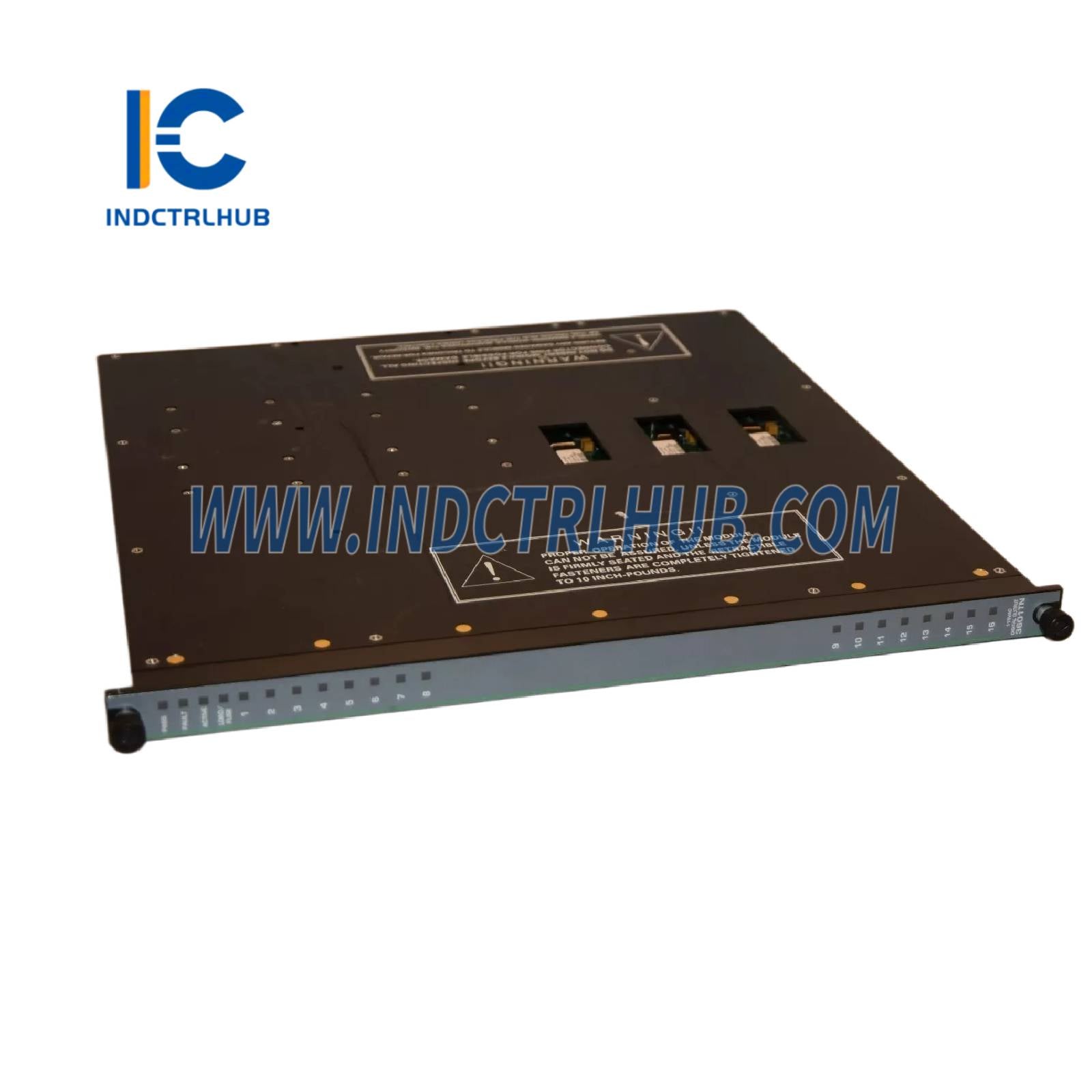

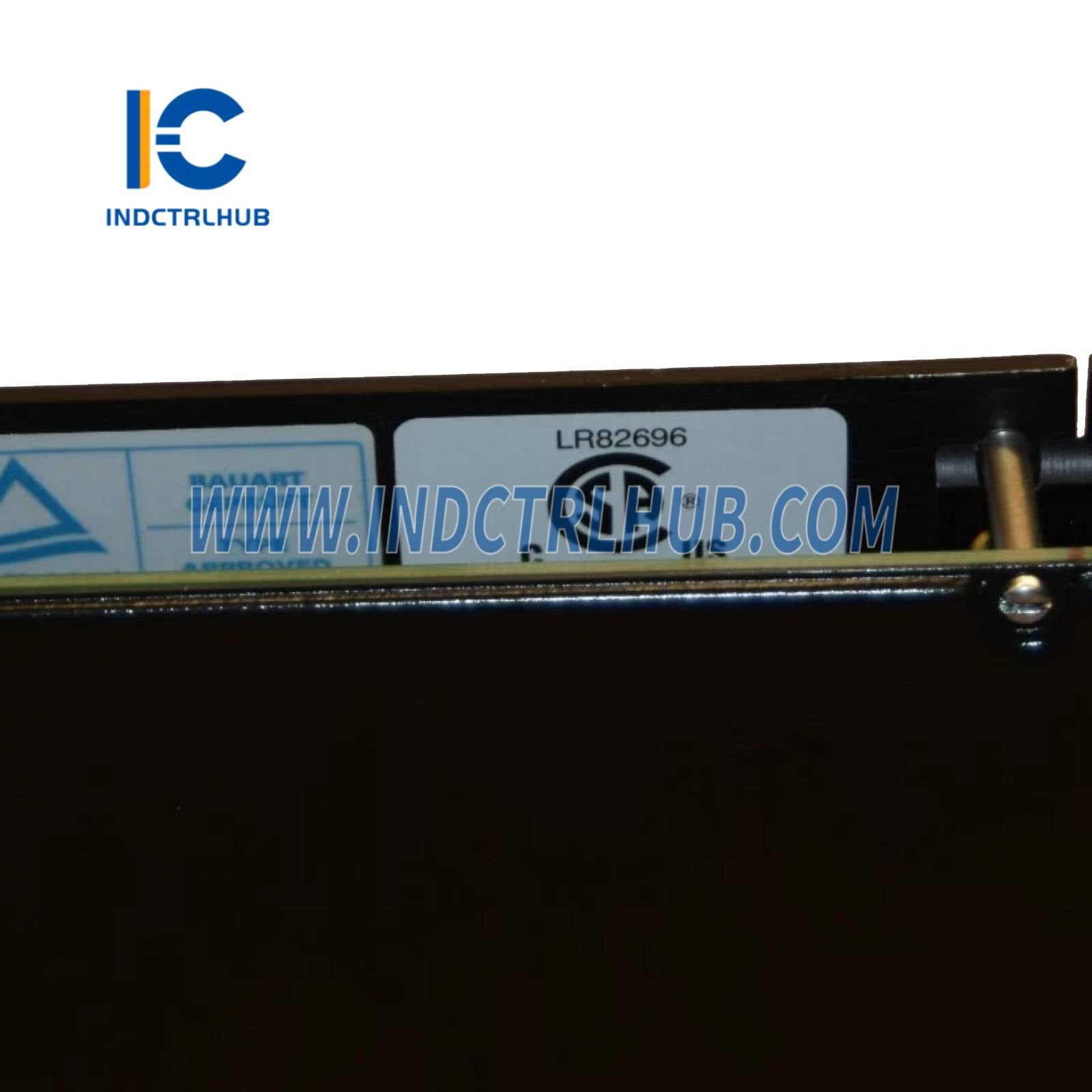

Triconex 3601TN Digital Output Module
Product Overview
- The Triconex 3601TN is a Digital Output Module designed for the Triconex Safety Instrumented System (SIS), part of Schneider Electric’s EcoStruxure Tricon platform. It provides reliable control of digital outputs for safety-critical applications, supporting the Triple Modular Redundant (TMR) architecture to ensure fault tolerance and high availability. Used in industries like oil and gas, chemical, and power generation, the 3601TN meets Safety Integrity Level 3 (SIL3) requirements. It is typically used for controlling actuators in applications such as emergency shutdown (ESD) and fire and gas systems.
Technical Specifications
- The 3601TN has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 3601TN |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Digital Output Module, 115V AC |
| Series | Tricon Safety System |
| Output Channels | 16 opto-isolated, non-commoned outputs |
| Output Type | 115V AC, supervised |
| Voltage Range | 90-155V AC, 47-63 Hz |
| Current Rating | 2 A per channel, 6 A surge for 100 ms |
| Isolation | 2500 Vrms channel-to-channel |
| Power Consumption | Approx. 10 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 1 kg |
Additional Details
- The 3601TN includes the following additional information based on its standard use and documentation:
- Function: Converts digital signals from the Triconex SIS into 115V AC outputs to control field devices like relays, solenoids, and valves in safety applications such as ESD, fire and gas detection, and process control. Ensures fault-tolerant operation via TMR architecture.
