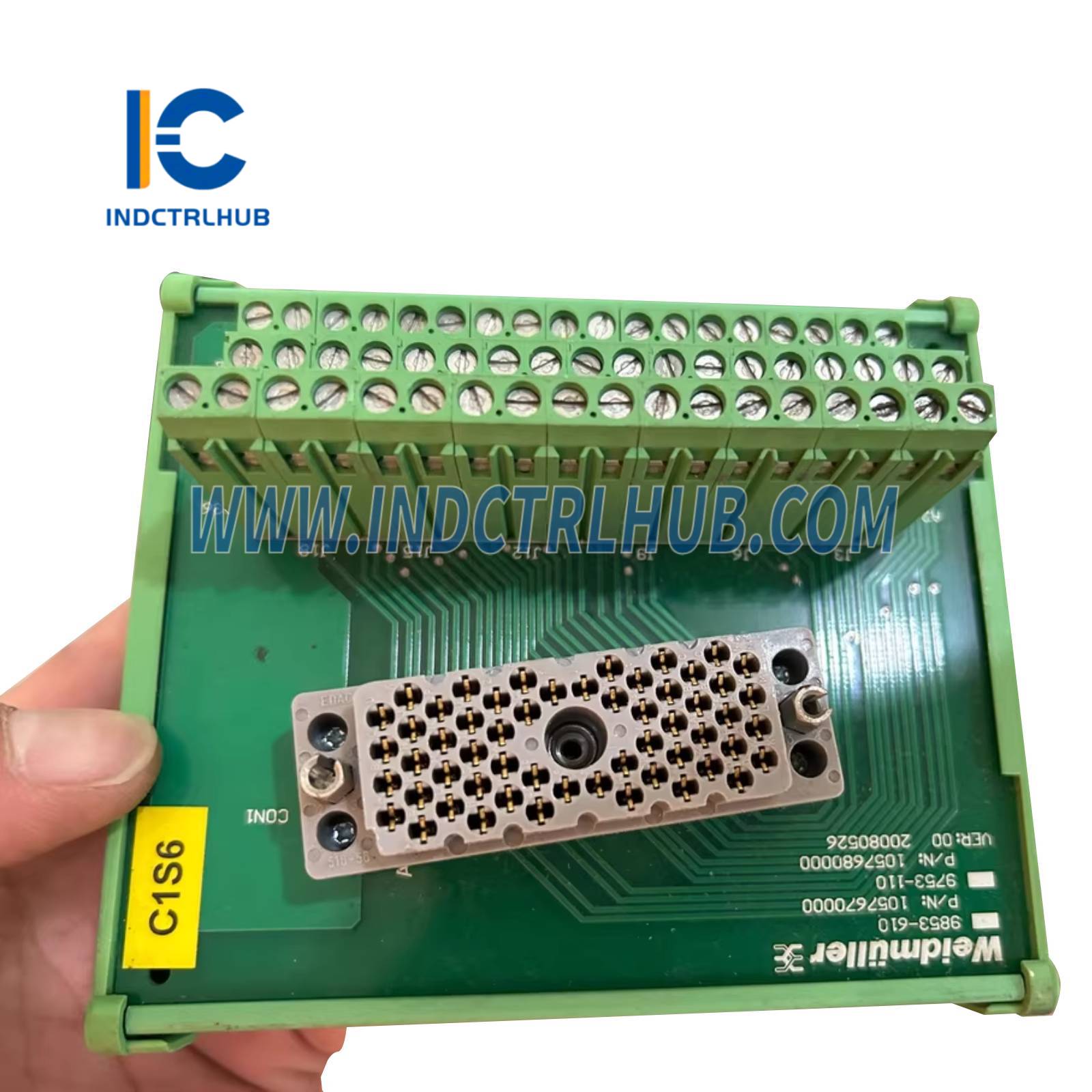

Triconex 9753-110F Voltage Input Termination Panel (Fanned-Out Cable)
Product Overview
- The Triconex 9753-110F is a Voltage Input Termination Panel with a fanned-out cable design, developed for Triconex safety instrumented systems (SIS) by Schneider Electric. Belonging to the Triconex Other Modules series, this panel connects voltage input field devices, such as 0-5 VDC or 0-10 VDC sensors, to Triconex analog input modules, ensuring reliable signal transmission in triple modular redundant (TMR) architectures. The “F” suffix indicates a fanned-out cable configuration, offering a cost-effective alternative to traditional termination panels. It is used in safety-critical applications in industries like oil and gas, chemical, and power generation.
Technical Specifications
- The 9753-110F has the following specifications based on standard characteristics for the 9753-110 series:
| Specification | Details |
|---|---|
| Model/Part Number | 9753-110F |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Voltage Input Termination Panel (Fanned-Out Cable) |
| Series | Triconex Other Modules |
| Signal Type | Analog Voltage Input, 0-5 VDC or 0-10 VDC |
| Channel Capacity | 16 points |
| Connector Type | Multi-pin connector to individual wire terminals |
| Length | 10 feet (3 meters, customizable in 10-foot increments) |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Weight | Approx. 0.5 kg |
Additional Details
- The 9753-110F includes the following additional information based on its standard use and documentation for the 9753-110 series:
- Function: Interfaces voltage input field devices with Triconex analog input modules (e.g., 3515 Pulse Totalizer Input Module), transmitting 0-5 VDC or 0-10 VDC signals for safety monitoring in TMR systems.
