Product Description

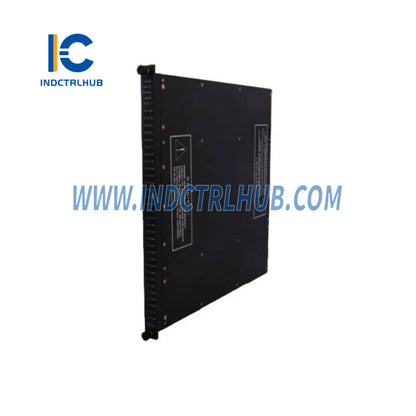

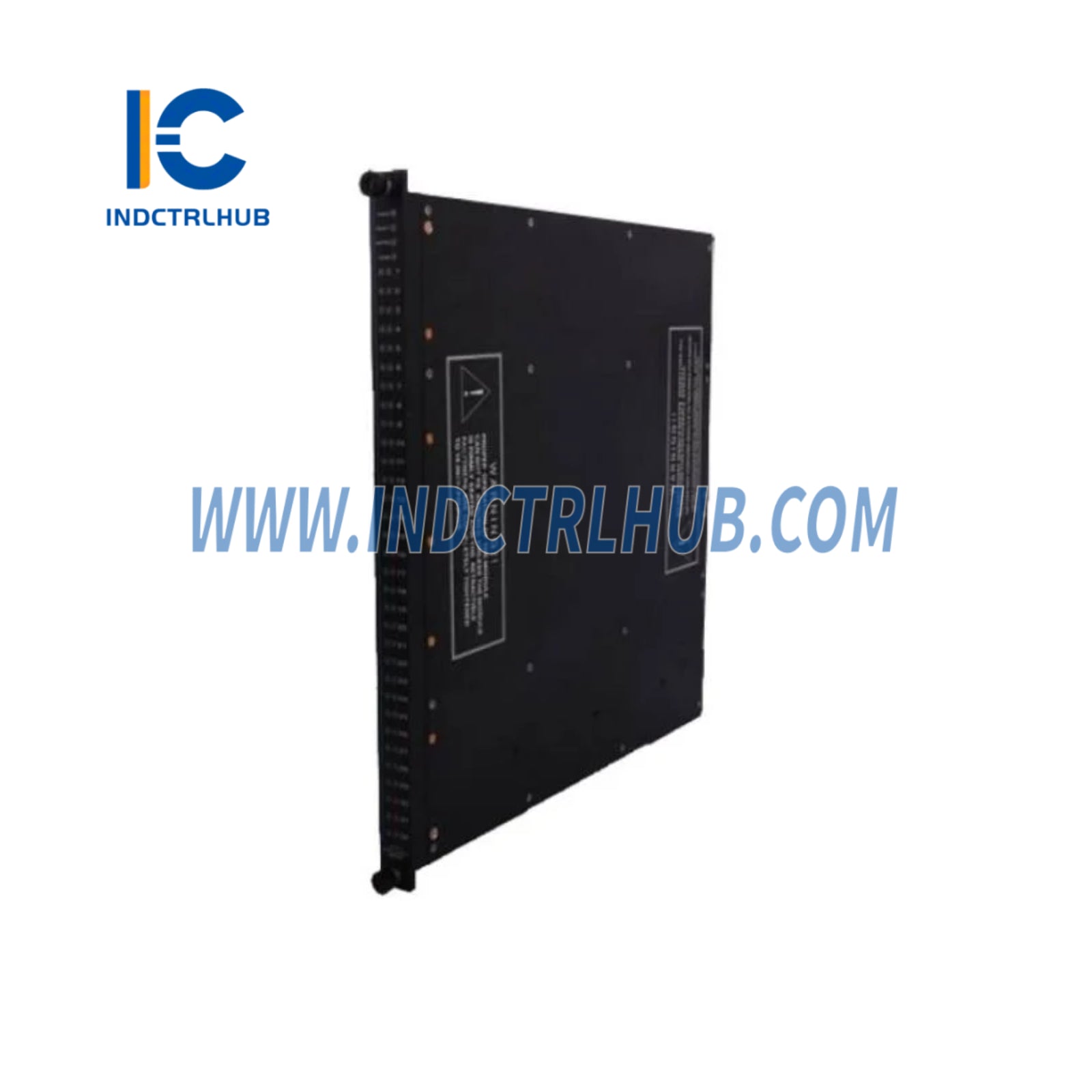

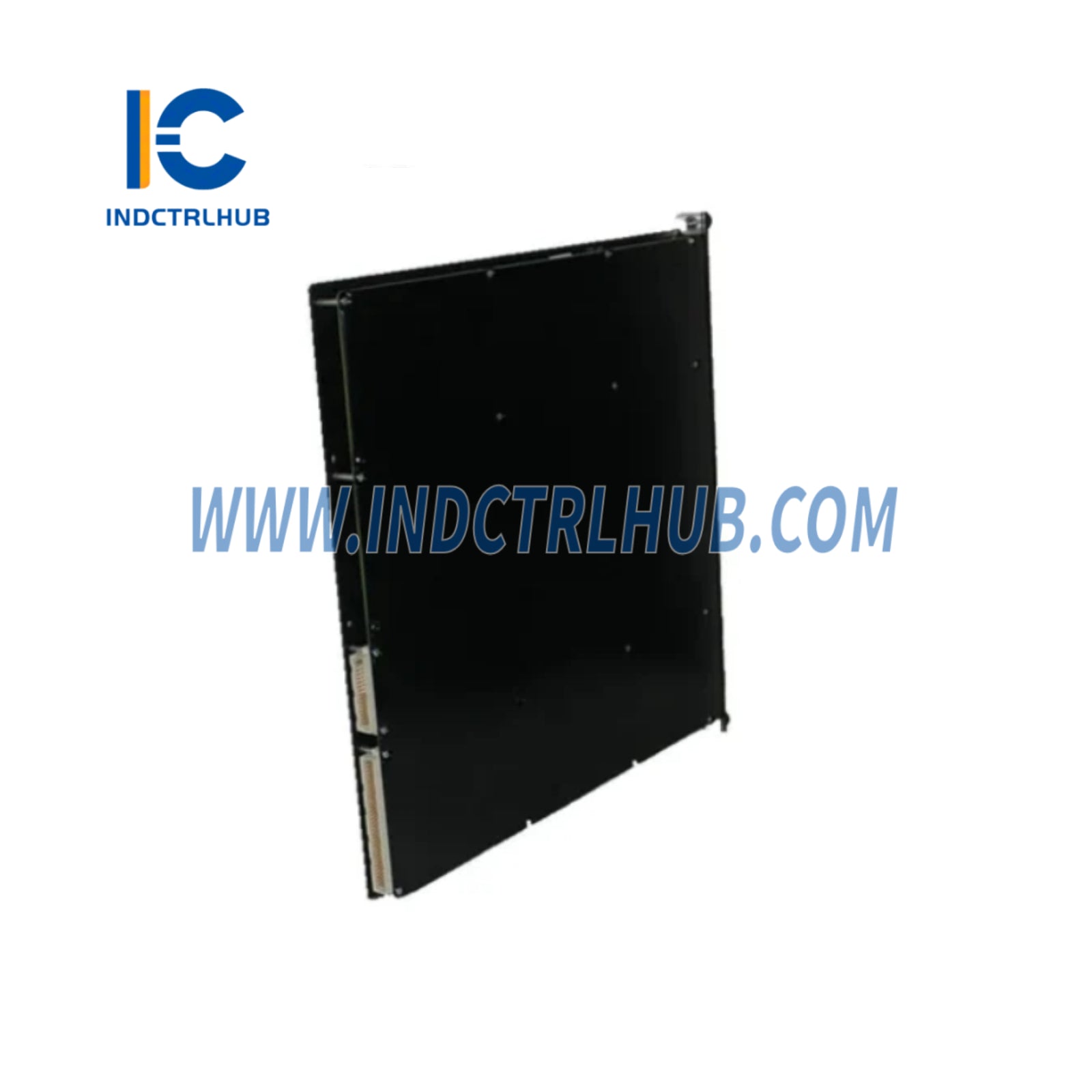

Triconex 4201RXM Remote Extender Module
- Manufacturer: Triconex
- Model/Part Number: 4201RXM
- Description: Remote Extender Module (RXM)
Overview
- The Triconex 4201RXM Remote Extender Module enables I/O modules to be located several kilometers from the main chassis. RXM sets, consisting of three identical modules, serve as repeaters and extenders of the Tricon I/O bus while providing ground loop isolation. A primary RXM set supports three remote locations by connecting to three remote RXM sets housed in a remote chassis.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 4201RXM |
| Series | Tricon |
| Type | Remote Extender Module |
| Description | Extends I/O bus for remote connectivity with ground loop isolation |
| Weight | 0.5 kg |
| Chassis Location | Primary or Remote |
| Cable Type | Multi-mode fiber optic |
| Cable Length Limit | 1.2 miles (2 kilometers) |
| Connectors | 6 per remote site, fiber optic with ST connectors |
| Communication Rate | 375 kilobits per second |
| Remote Sites Supported | 3 |
| Diagnostic Indicators | PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3 |
Additional Information
- Functionality: The 4201RXM supports safety instrumented systems for critical control applications, including emergency shutdown, fire and gas detection, and critical process control. It ensures high reliability and safety with minimal system failures.
- Environmental Durability: The module uses robust materials for durability in harsh industrial environments, ensuring uninterrupted operation under extreme conditions.
- Integration: The modular design enables seamless integration into existing industrial networks and supports various communication protocols to enhance system flexibility.
