Product Description

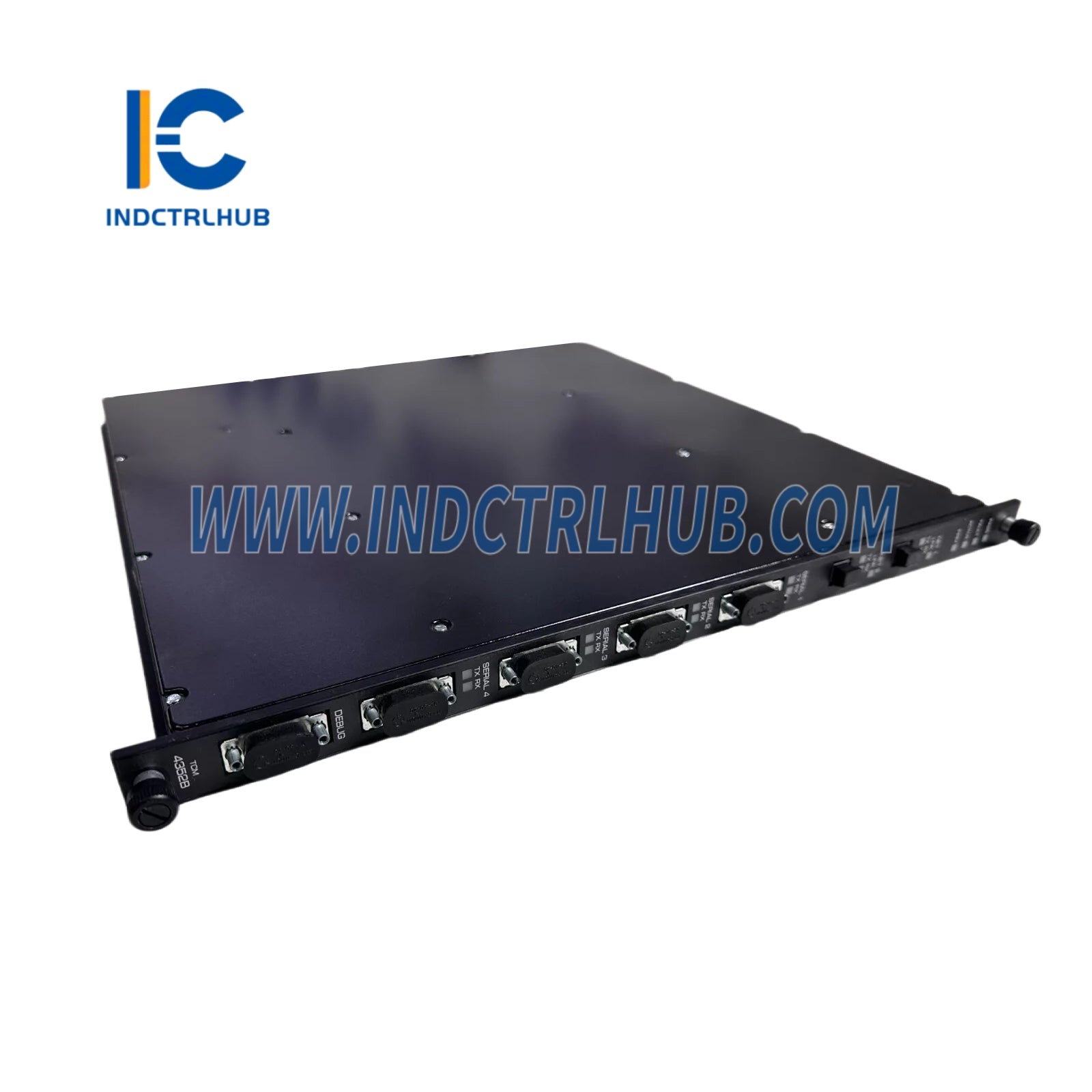

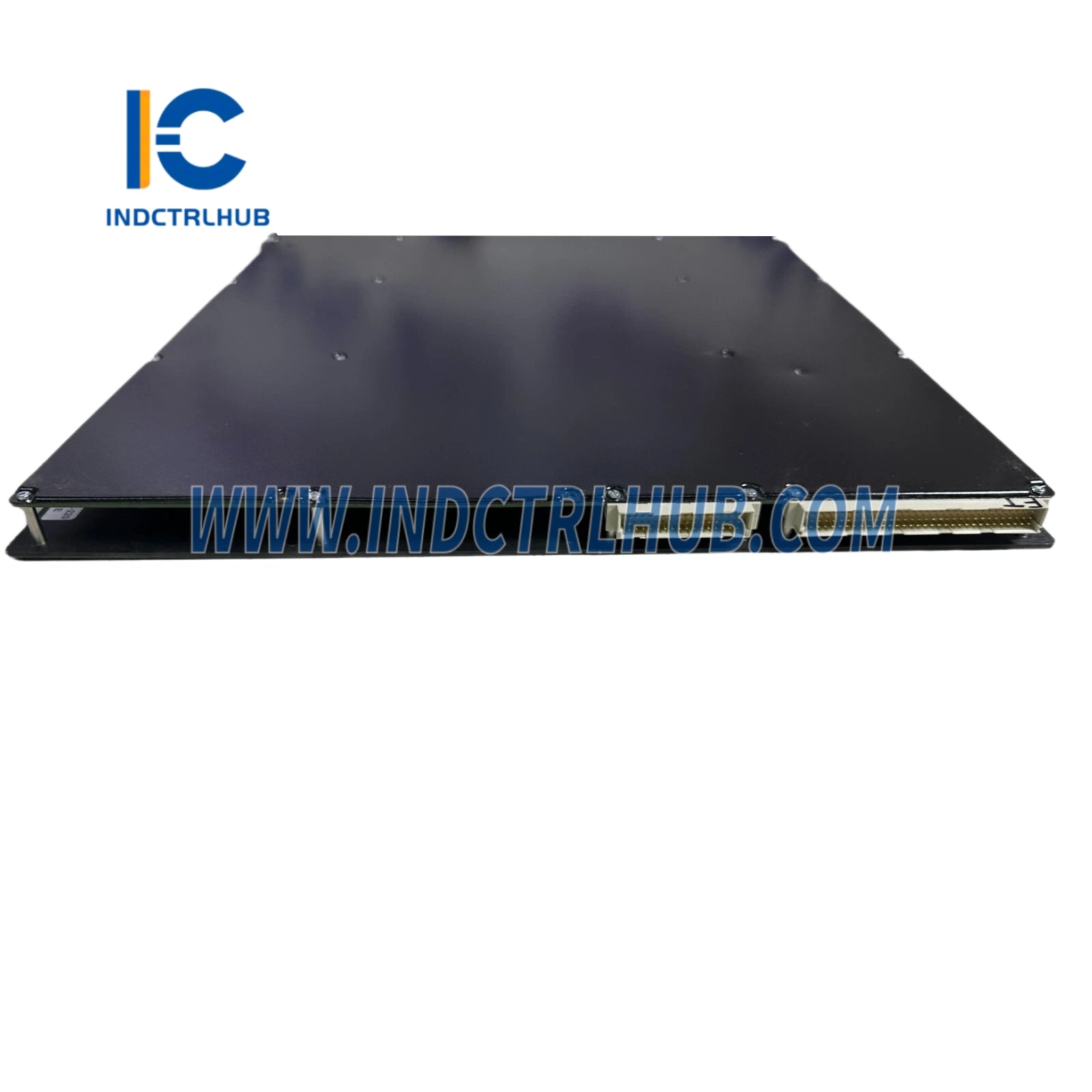

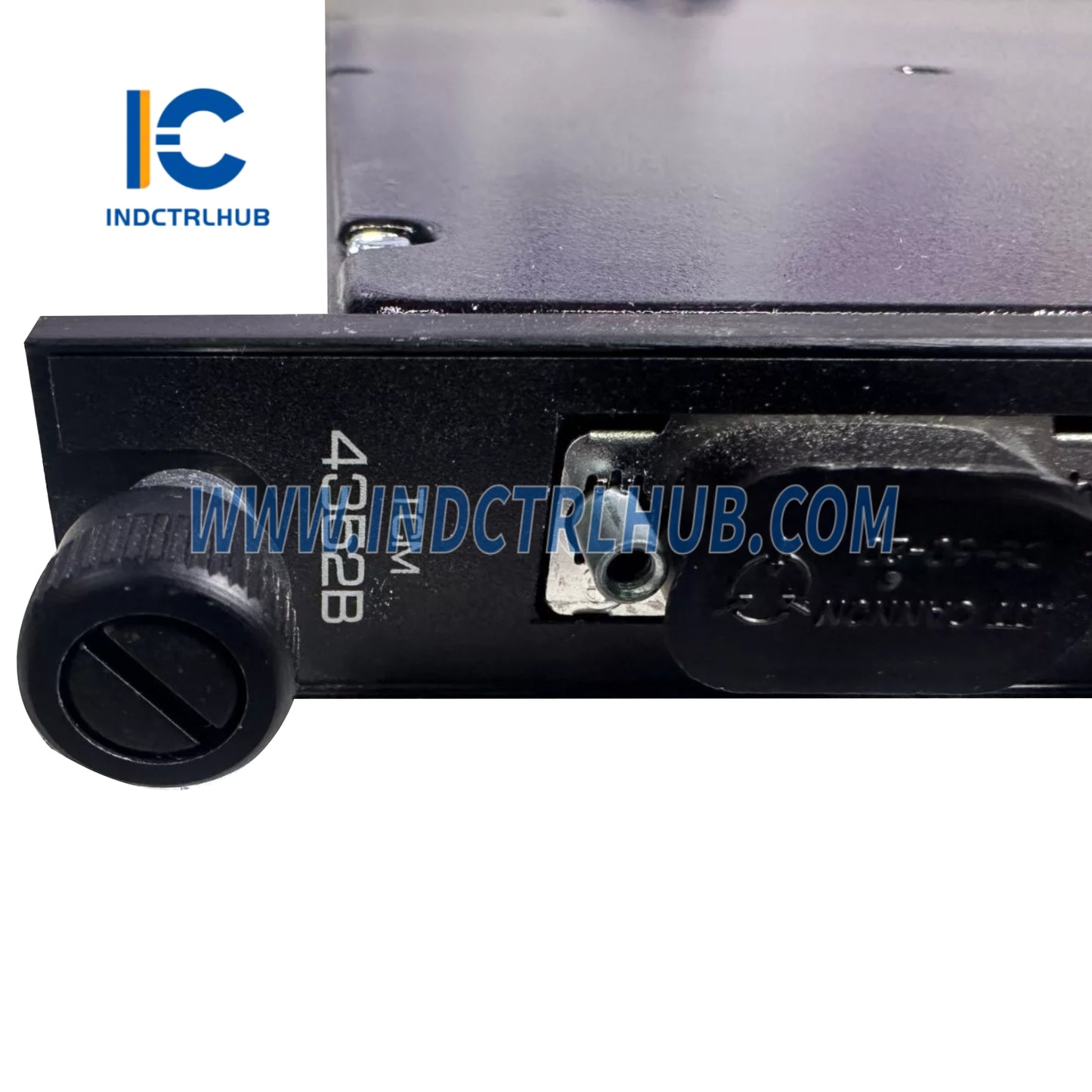

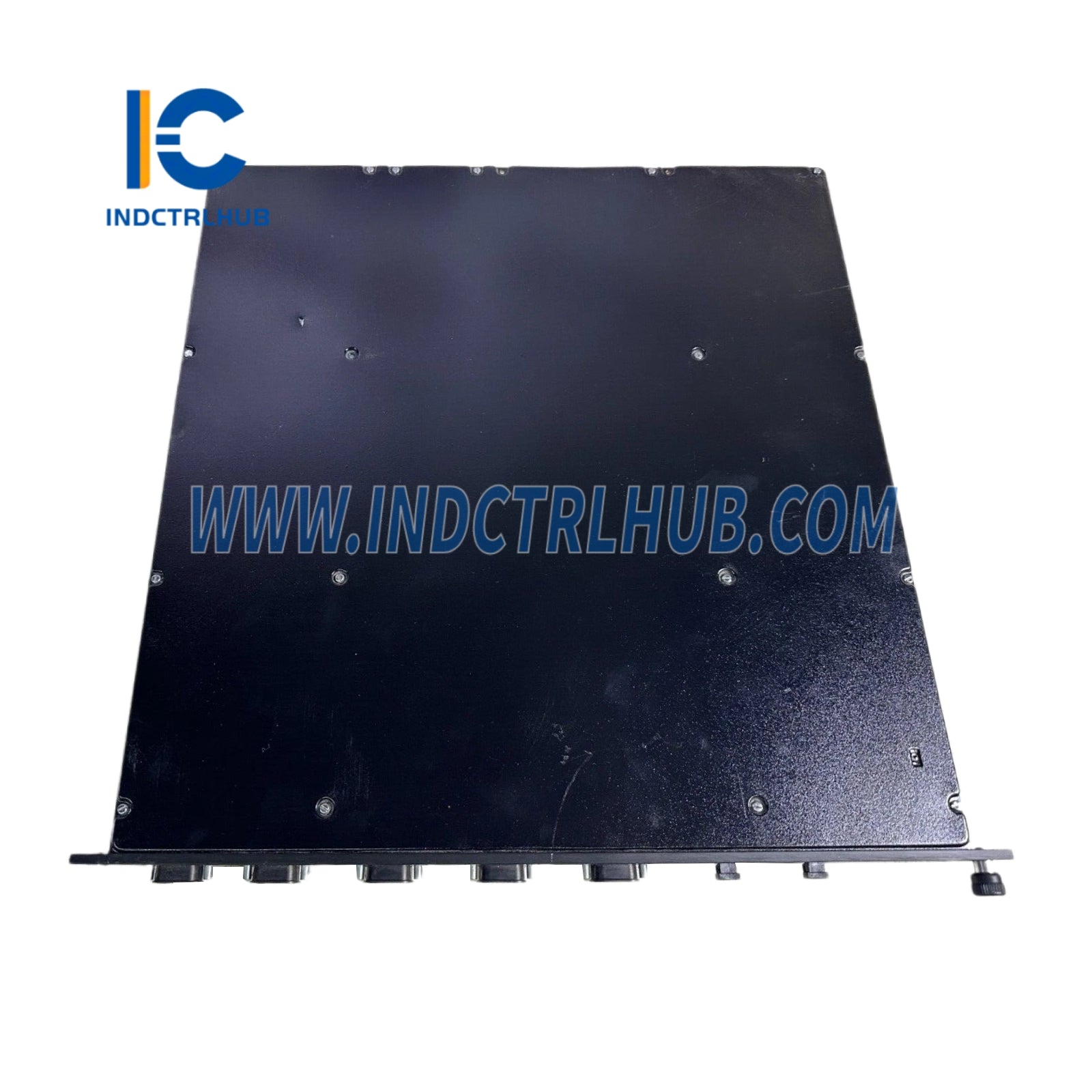

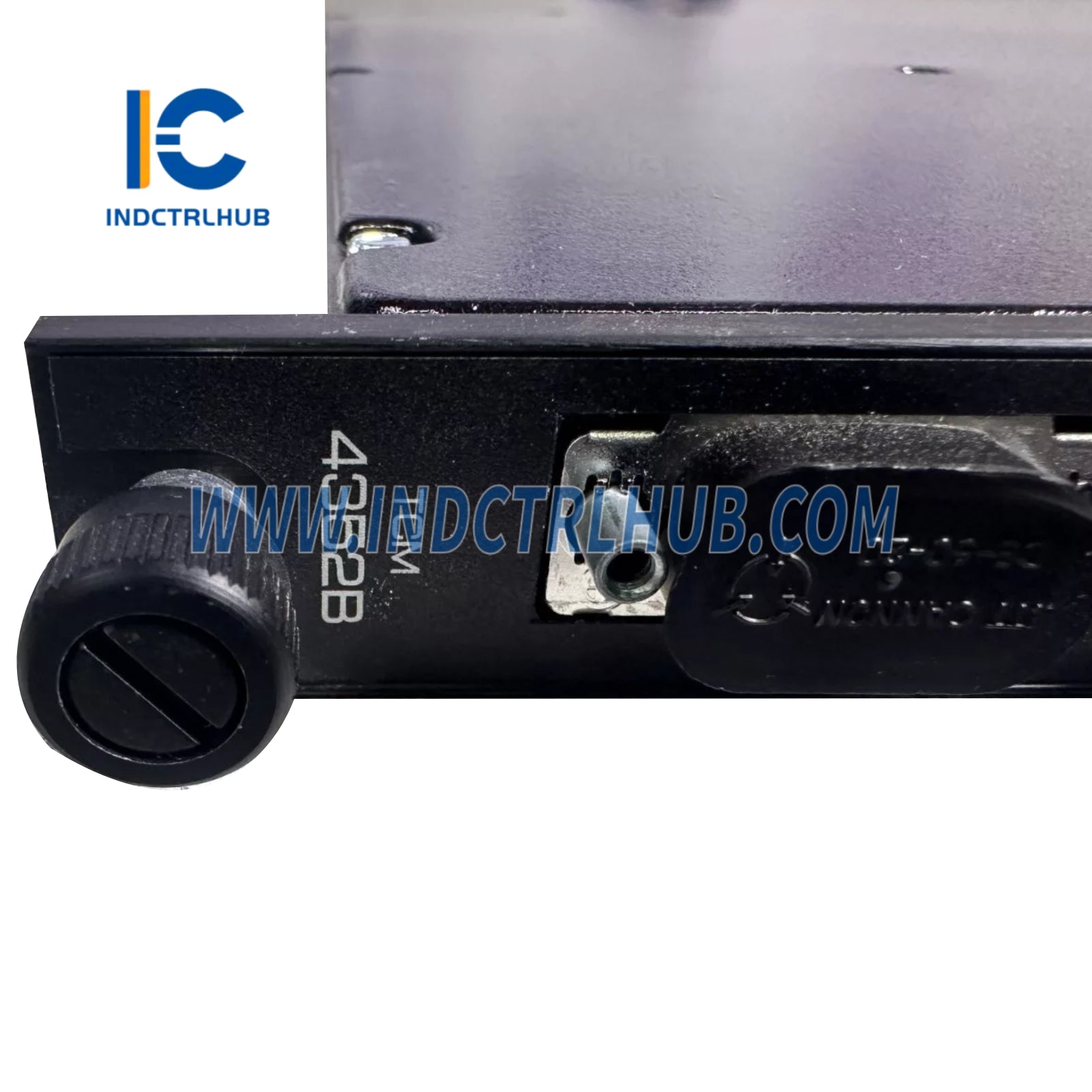

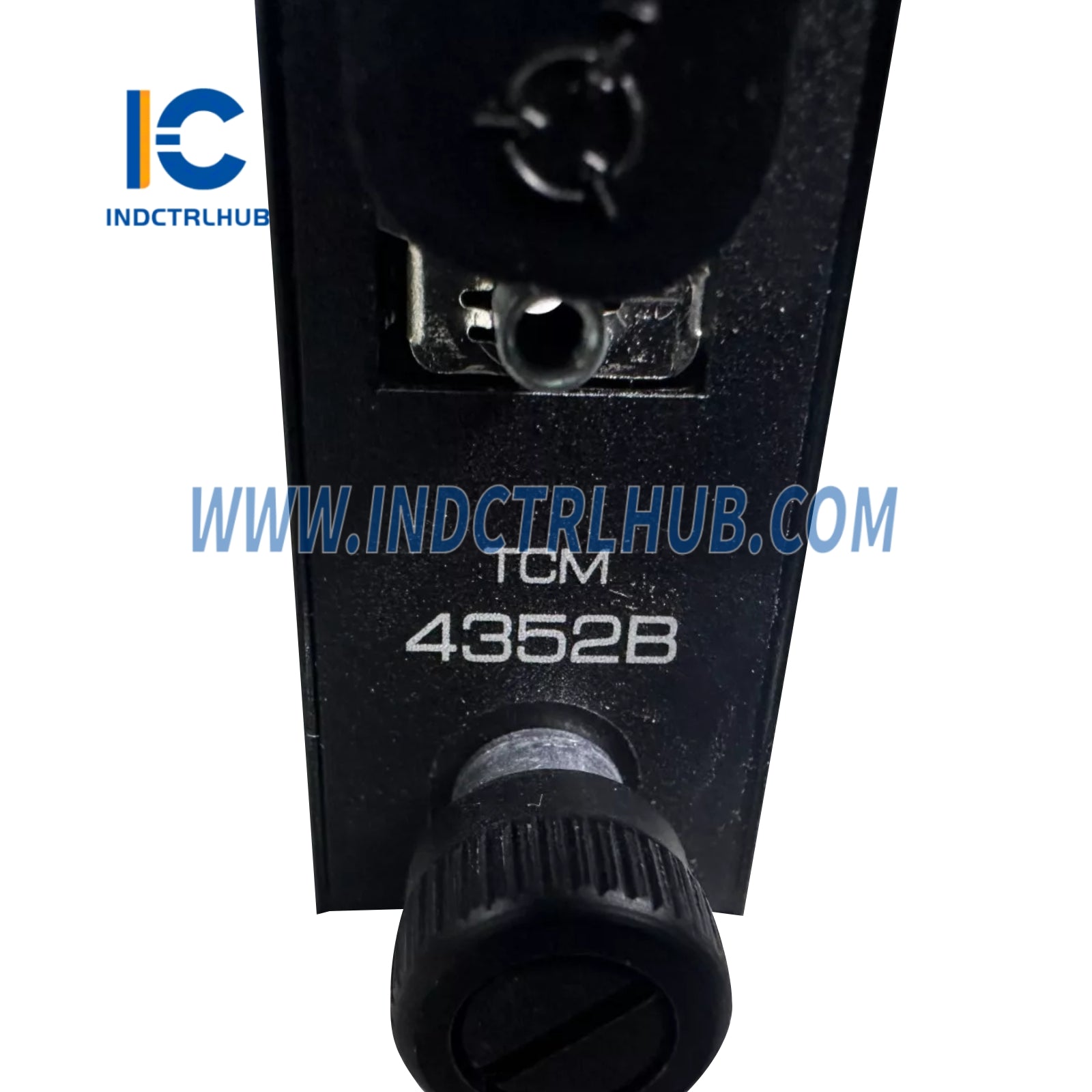

Triconex 4352B Communication Module
- Manufacturer: Triconex
- Model/Part Number: 4352B
- Description: Tricon Communication Module (TCM)
Overview
- The Triconex 4352B Tricon Communication Module enhances connectivity within Triconex safety instrumented systems. It supports communication with external devices and networks, including HMIs, SCADA systems, and remote I/O, ensuring seamless integration in critical applications such as emergency shutdown, fire and gas detection, and process control. The module employs a Triple Modular Redundancy (TMR) architecture for high reliability and fault tolerance.
Technical Specifications
| Specification | Details | |
|---|---|---|
| Model | 4352B | |
| Series | Triconex Other Modules | |
| Type | Communication Module | |
| Description | Facilitates communication with TMR for high reliability | |
| Weight | 3.18 kg | |
| Serial Ports | 4 RS-232/RS-485 ports, DB-9 connectors | |
| Network Ports | 2 fiber-optic Ethernet ports, MT-RJ connectors with 62.5/125 µm fiber cables | |
| Port Isolation | 500 VDC | |
| Protocols | TriStation, Modbus, TCP/IP, ICMP, SNTP, TSAA, Peer-to-Peer (UDP/IP), Peer-to-Peer Time Synchronization, Jet Direct | |
| Communication Speed | Fiber Ethernet ports: 100 Mbps Serial ports: up to 115.2 Kbps per port |
|

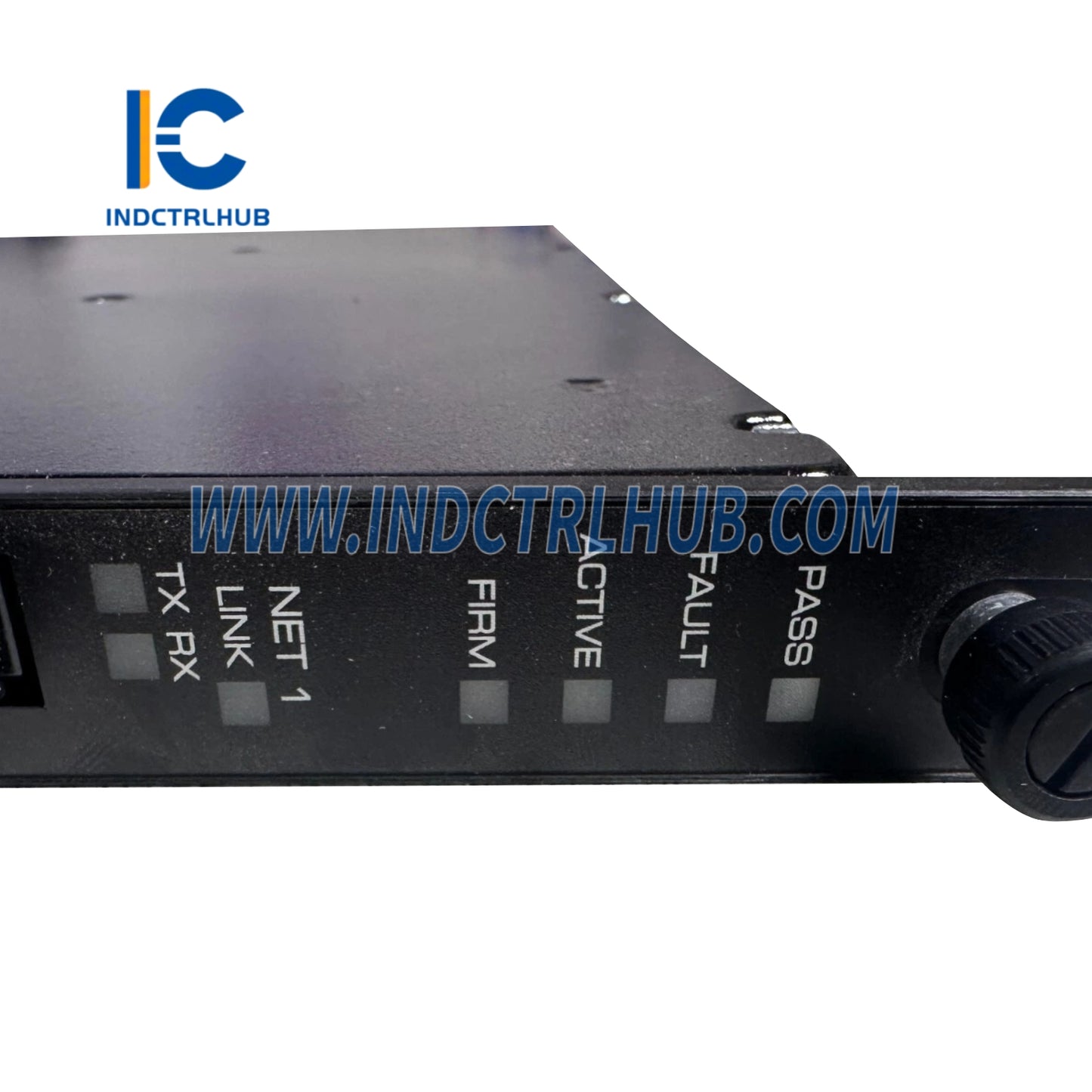

| Status Indicators | PASS, FAULT, ACTIVE, FIRM, LINK (1 per network port), TX (Transmit, 1 per port), RX (Receive, 1 per port) |
Additional Information
- Functionality: The 4352B supports communication with TriStation, Modbus devices, and external hosts via fiber-optic Ethernet. It handles an aggregate data rate of 460.8 Kbps across all four serial ports, ensuring efficient data transfer in safety-critical systems.
- Environmental Durability: The module uses robust materials to ensure reliable operation in harsh industrial environments.
- Integration: The module integrates seamlessly into Triconex systems, supporting various communication protocols for enhanced system flexibility.
