Product Description

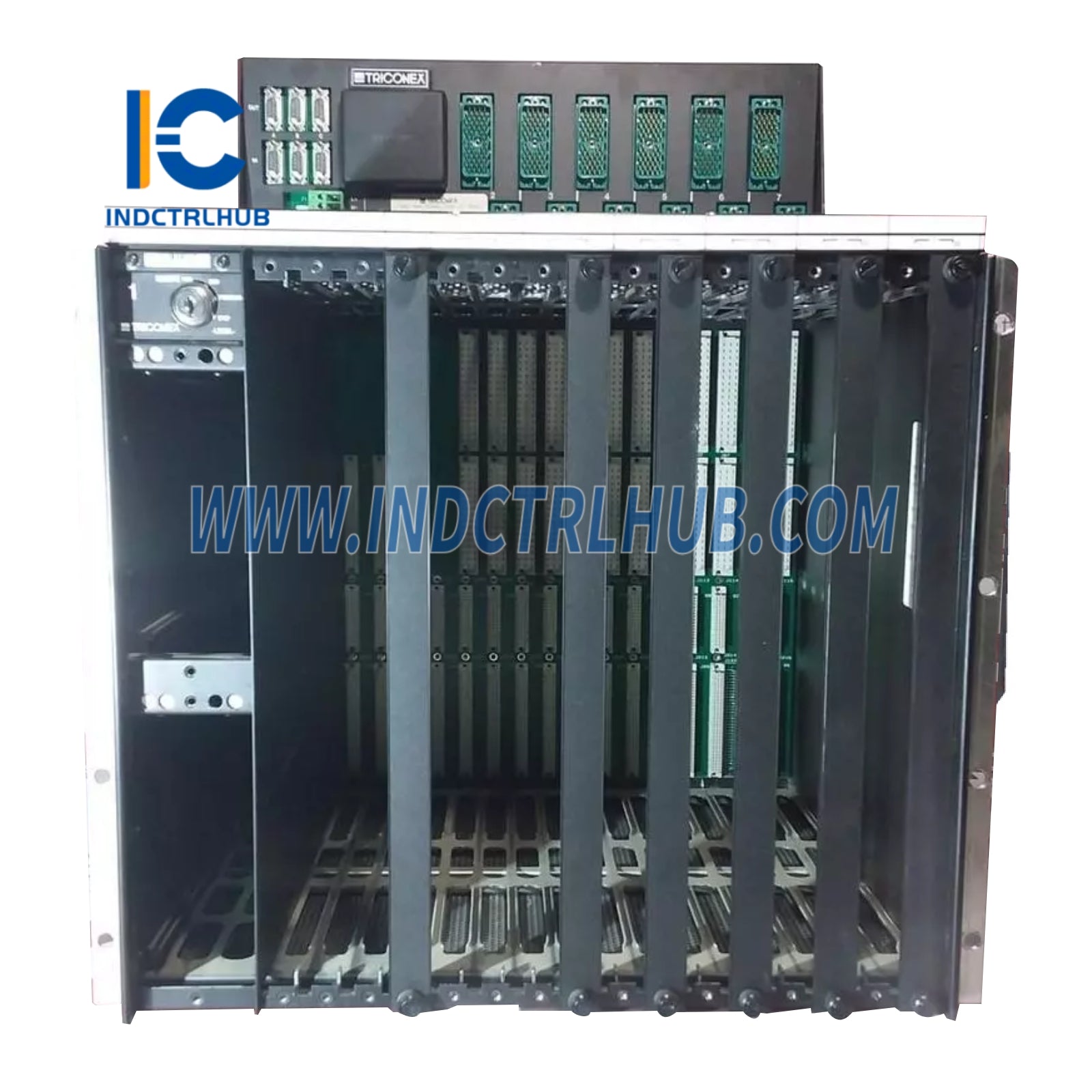

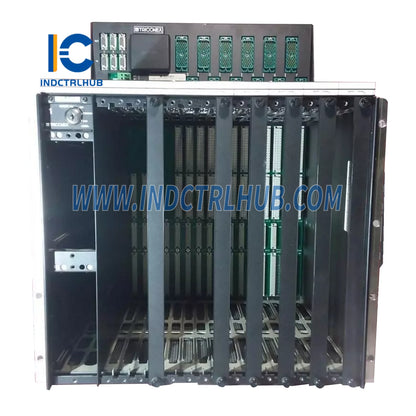

Triconex 8110 High Density Main Chassis
Product Overview
- The Triconex 8110 is a High Density Main Chassis designed for the Triconex Safety Instrumented System (SIS), part of Schneider Electric’s EcoStruxure Tricon platform. It serves as the core component for housing critical modules, including Main Processors, I/O modules, and communication modules, in safety-critical applications. Engineered for industries like oil and gas, chemical, and power generation, the 8110 ensures high reliability and fault tolerance through its Triple Modular Redundant (TMR) architecture, meeting Safety Integrity Level 3 (SIL3) requirements.
Technical Specifications
- The 8110 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 8110 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | High Density Main Chassis |
| Series | Tricon Safety System |
| Slot Configuration | 10 slots (6 for I/O and communication modules, 3 for Main Processors, 1 for communication) |
| Power Supply | Redundant, 24 VDC or 120/230 VAC |
| Communication Bus | TriBus, 25 Mbps (with Model 3008/3009 MPs) or 4 Mbps (with Model 3006/3007 MPs) |
| Dimensions | 46.5 x 57.8 x 33.3 cm (18.31 x 22.75 x 13.12 inches) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 20 kg (fully loaded) |
