Product Description
Product Overview

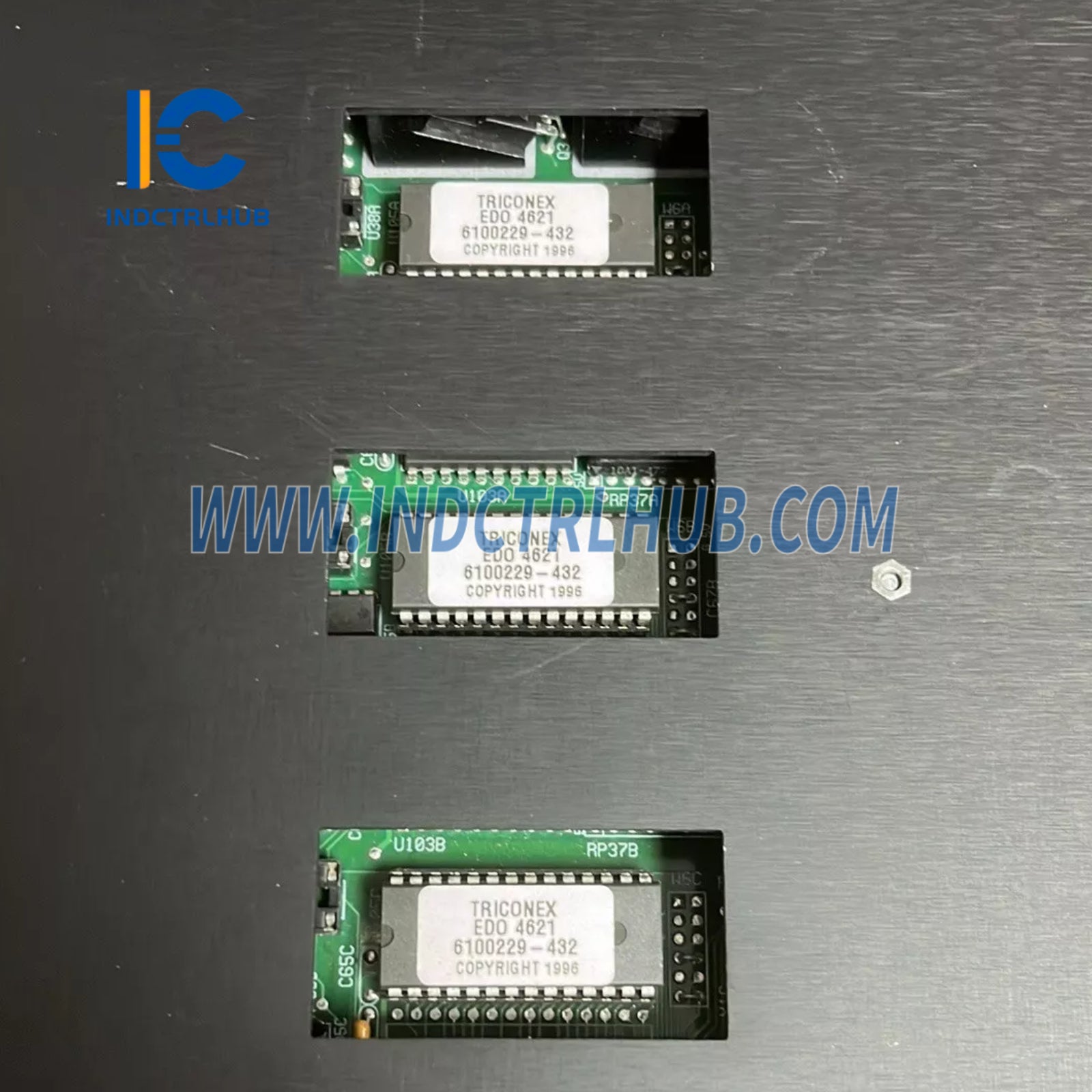

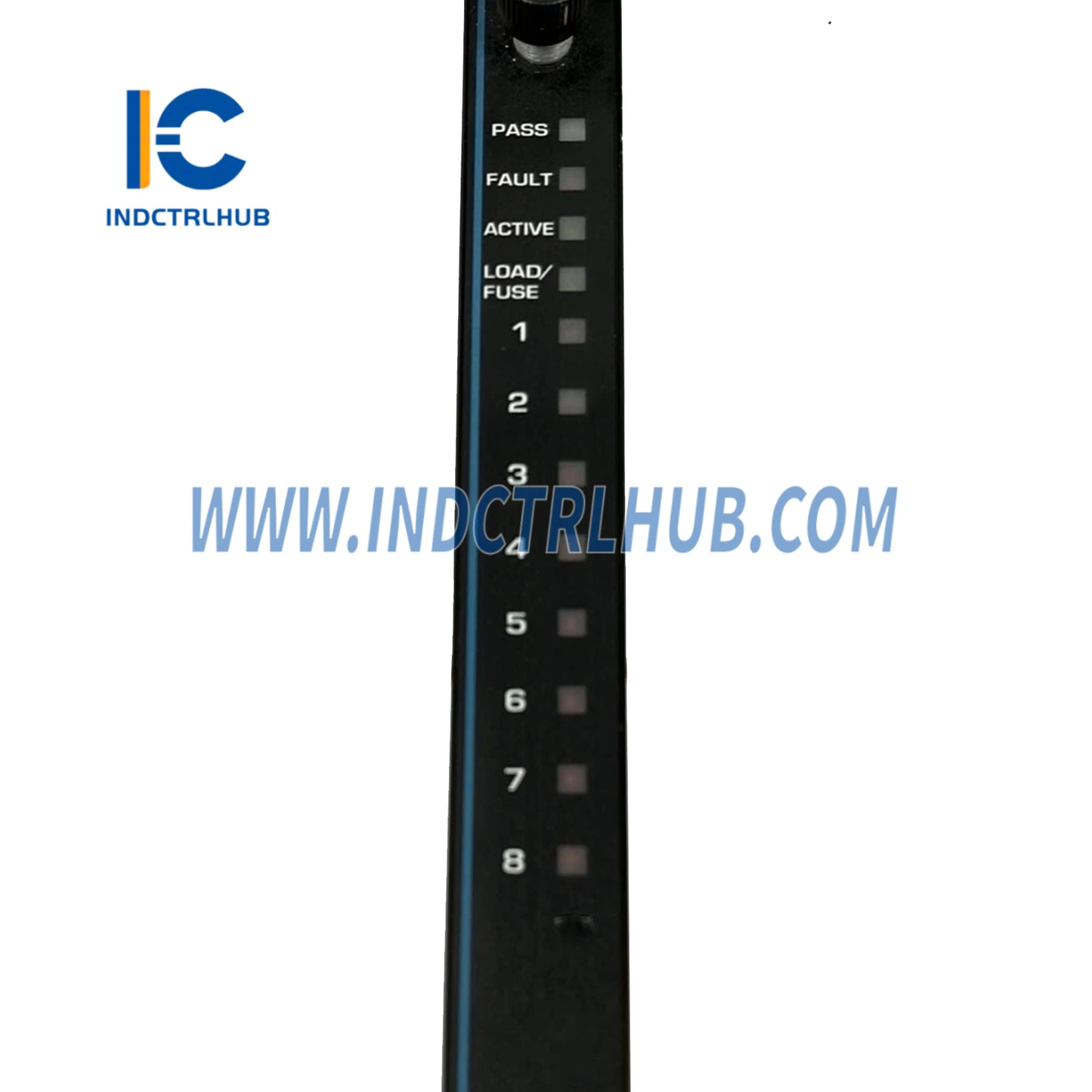

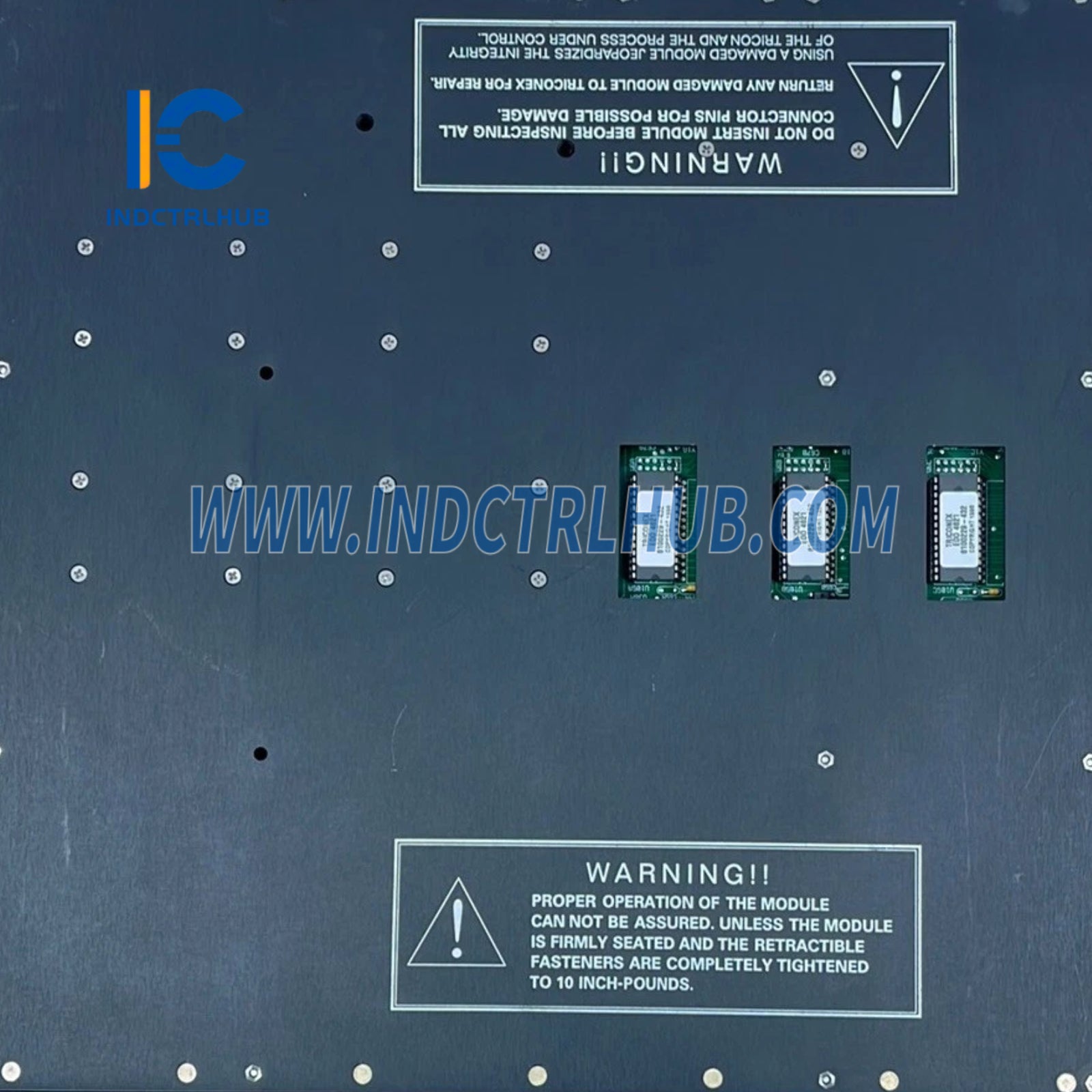

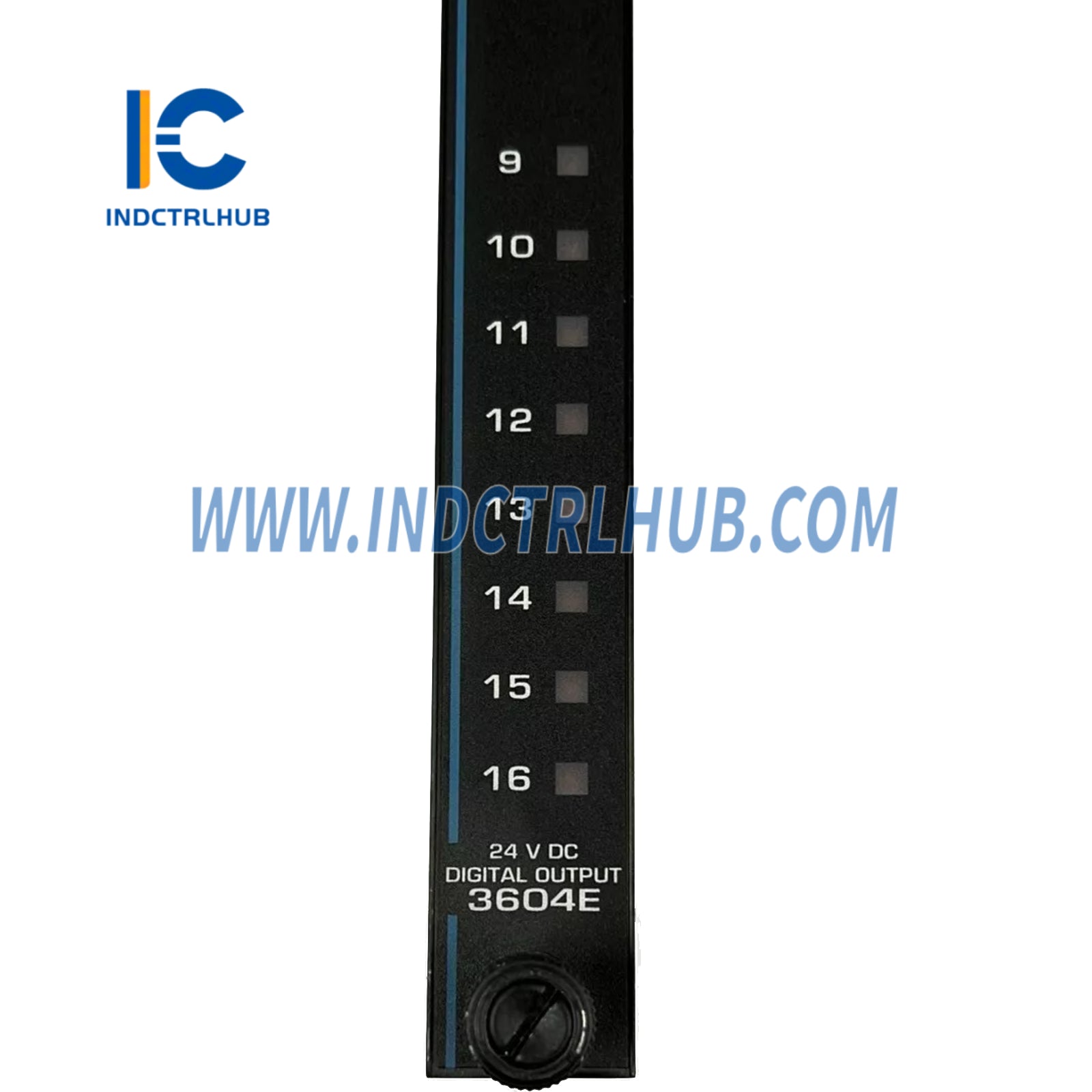

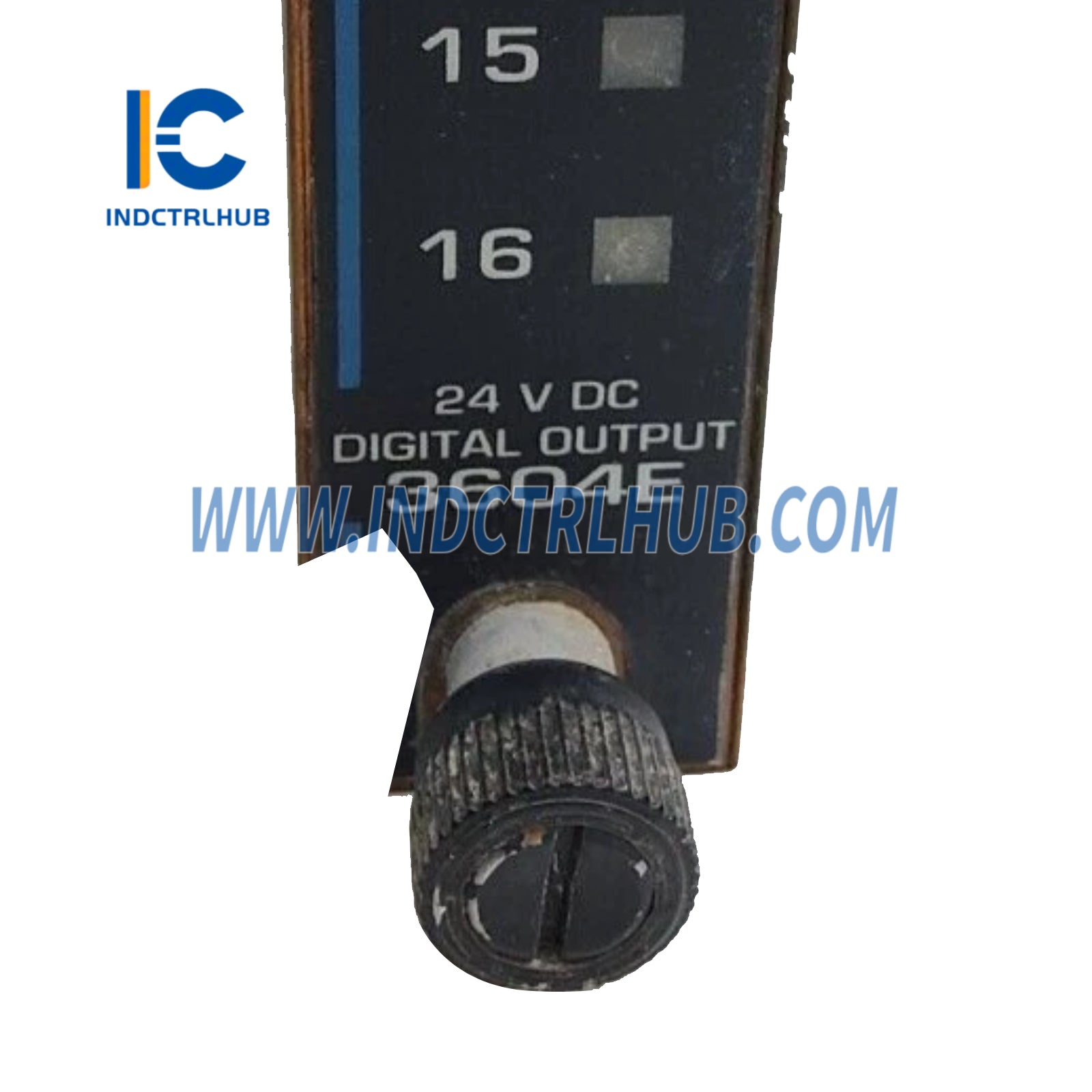

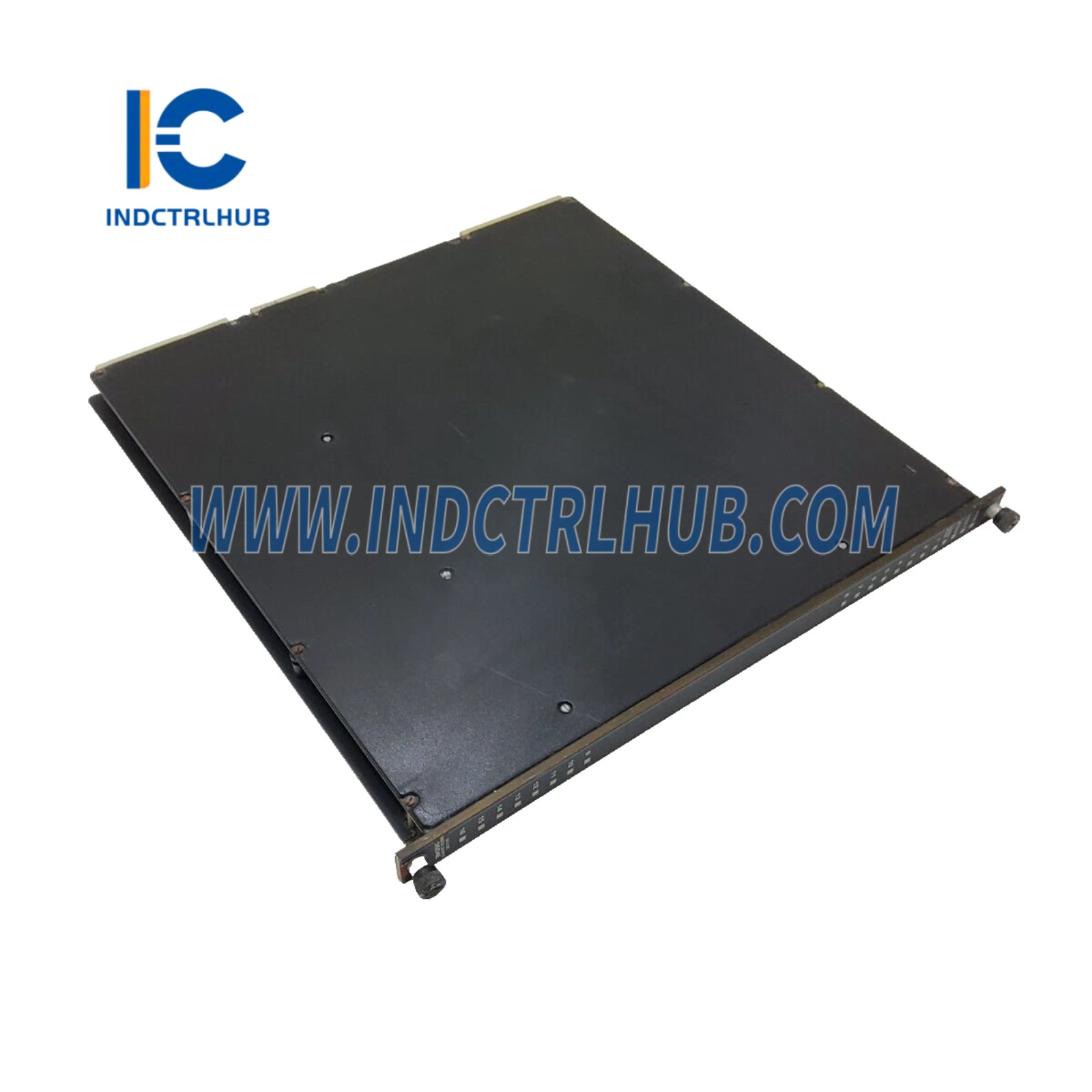

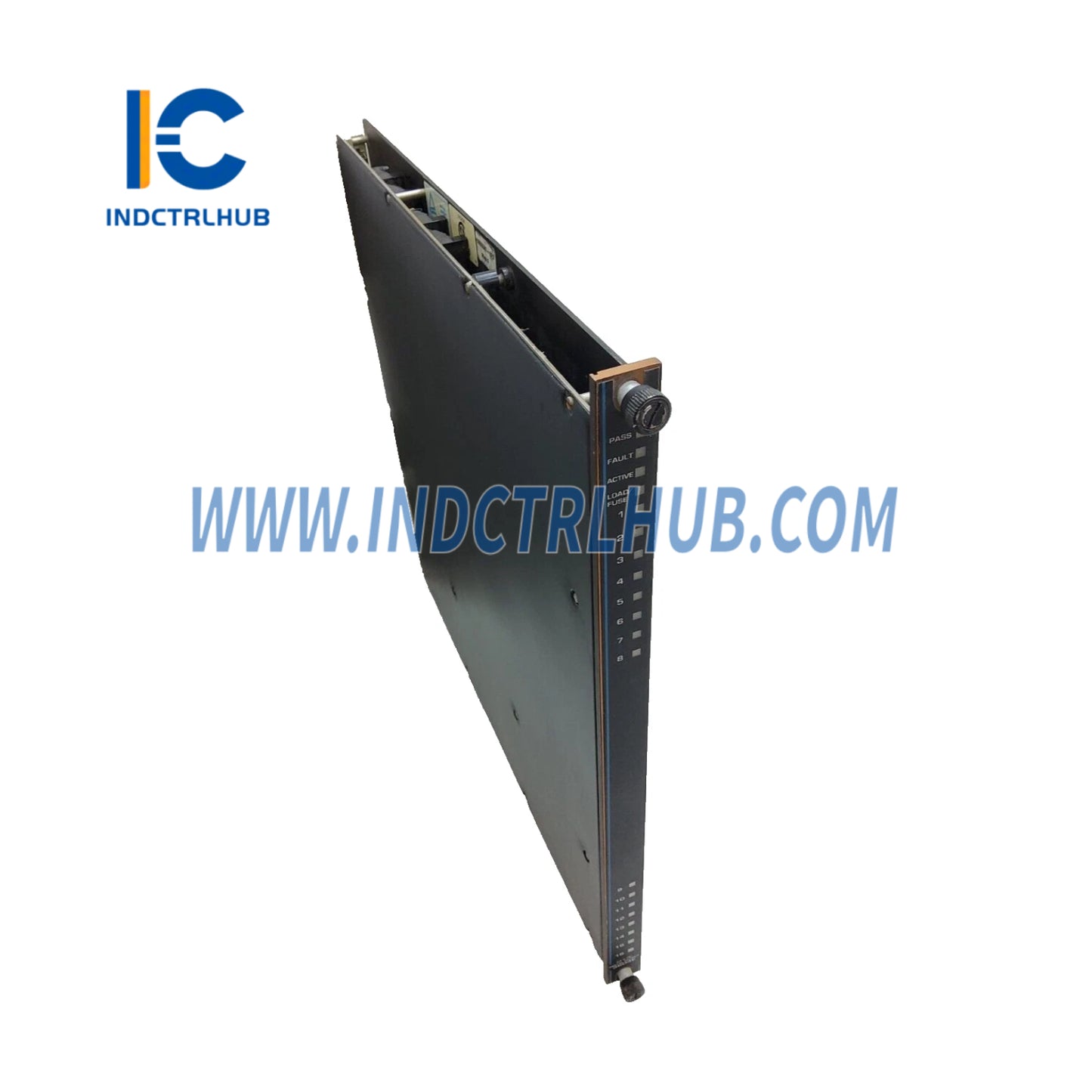

The Triconex 3604E is a Digital Output Module designed for use within the Tricon safety instrumented system (SIS) by Triconex, a brand under Schneider Electric (formerly Invensys). This module provides 16 non-commoned digital output channels to control field devices such as solenoids, relays, and actuators. It supports the Triple Modular Redundant (TMR) architecture, ensuring fault-tolerant operation with comprehensive diagnostics for safety-critical applications in industries like oil & gas, petrochemical, and power generation.
Technical Specifications
The 3604E has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 3604E |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Digital Output Module, 24 VDC, 16 Points, Non-Commoned |
| Series | Tricon SIS |
| Output Channels | 16 digital outputs |
| Output Voltage | 24 VDC nominal |
| Voltage Range | 16-32 VDC |
| Current Rating | 1 A per point, 4 A surge (10 ms) |
| Power Supply | 24 VDC (via Tricon chassis backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 1.1 kg |
Additional Details
The 3604E includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Controls 16 digital output devices with supervision |
| Mounting | Installs in Tricon chassis (e.g., Model 8110 or 8111) |
| Compatibility | Tricon Main Processors (e.g., 3008, 3009), external termination panels (e.g., 4000093-310) |
| Features | TMR fault tolerance, loop-powered diagnostics, hot-swappable |
| Certifications | Meets IEC 61508 SIL 3, UL, and CE standards |
| Part Type | New, surplus, or refurbished |
