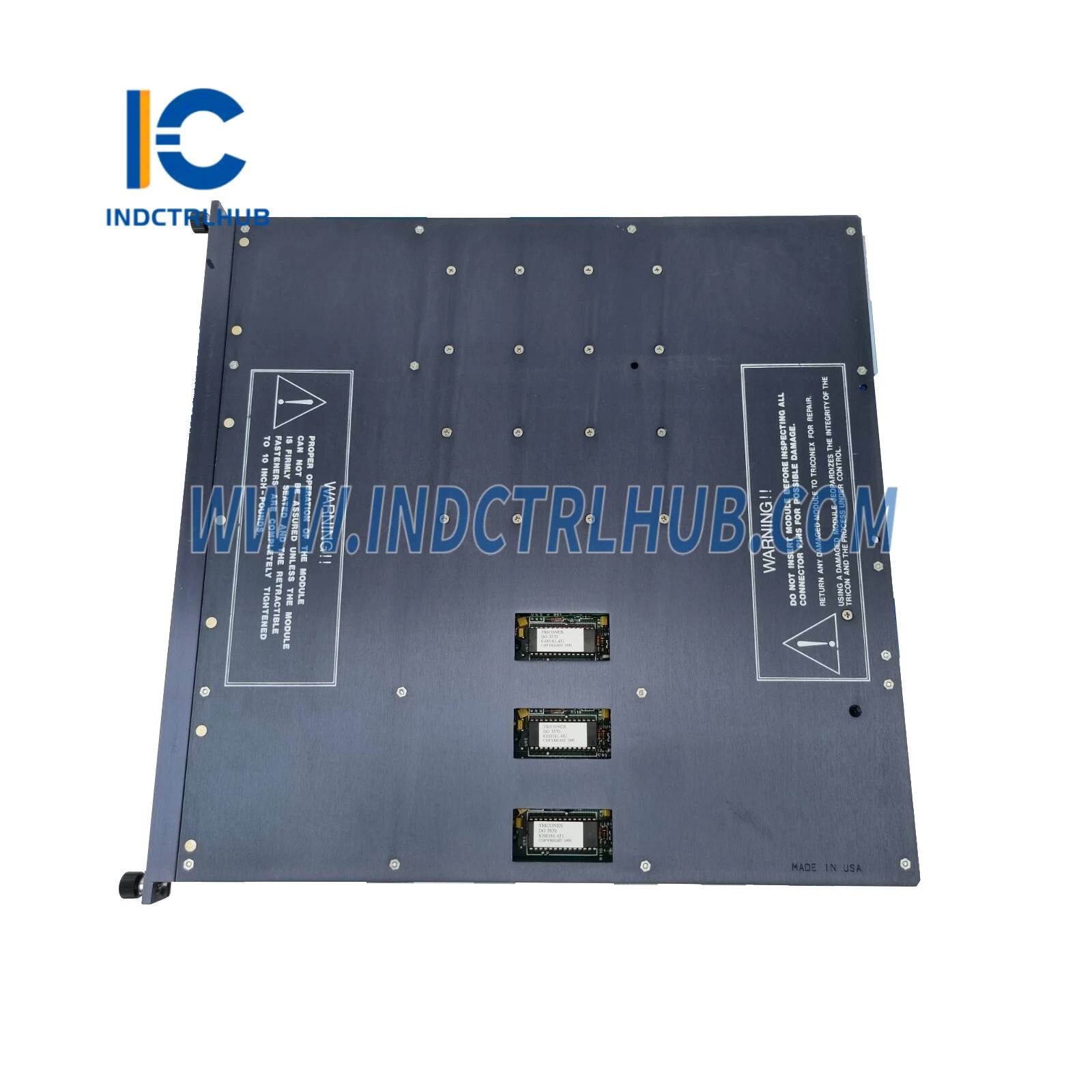

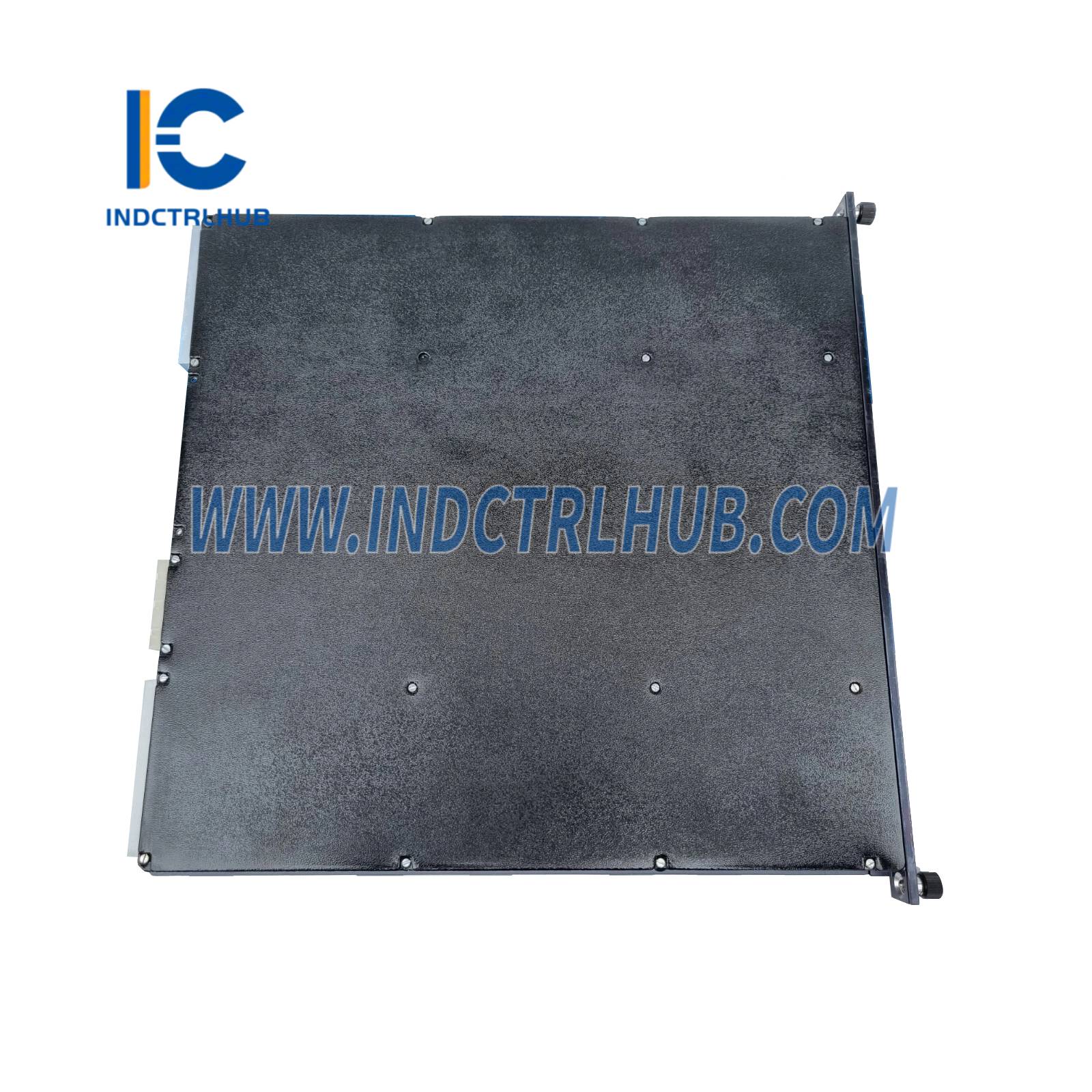

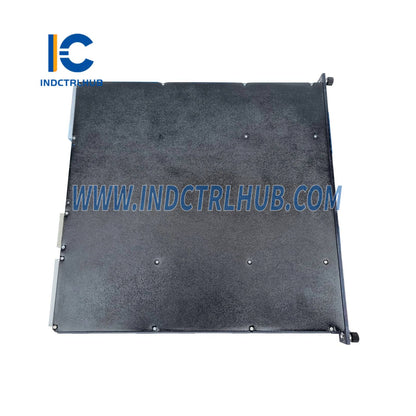

Triconex 3617E Digital Output Module
Triconex 3617E Digital Output Module
Manufacturer: Triconex
Product No.: 3617E
Condition:1000 in stock
Product Type: Digital Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
___
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
3617E |
|
Model Type |
Digital Output Module (Supervised) |
|
System Type |
TMR (Triple Modular Redundant) |
|
Nominal Voltage |
48 VDC |
|
Number of Outputs |
8, commoned |
_
_
___
Technical Specifications _ Triconex 3617E
|
Specification |
Details |
|---|---|
|
Voltage Range |
36_72 VDC |
|
Max Switching Power |
150 W (resistive load) |
|
Max Output Current per Point |
1 A |
|
Surge Current |
5 A for 10 ms |
|
Minimum Required Load |
100 mA |
|
ON-State Voltage Drop |
< 2 V typical |
|
Load Leakage Current |
_ 4 mA |
|
Point Isolation |
1500 VDC minimum |
|
Secondary Power Supply |
5.00 VDC ± 0.25 VDC |
|
Frequency Range |
Not applicable (DC module) |
|
Fuses (Field Termination) |
1 per output, 1.25 A fast-acting |
_
_
__

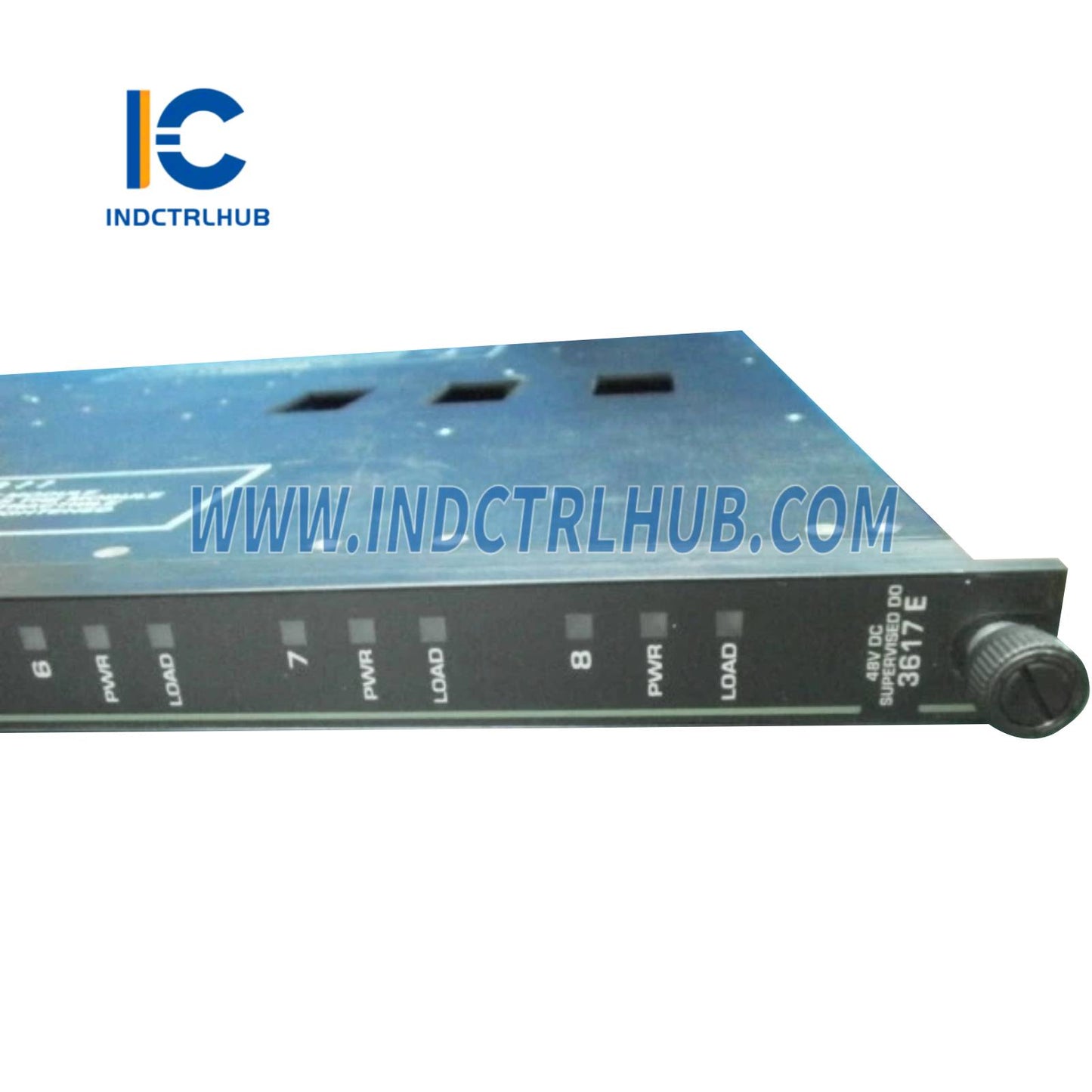

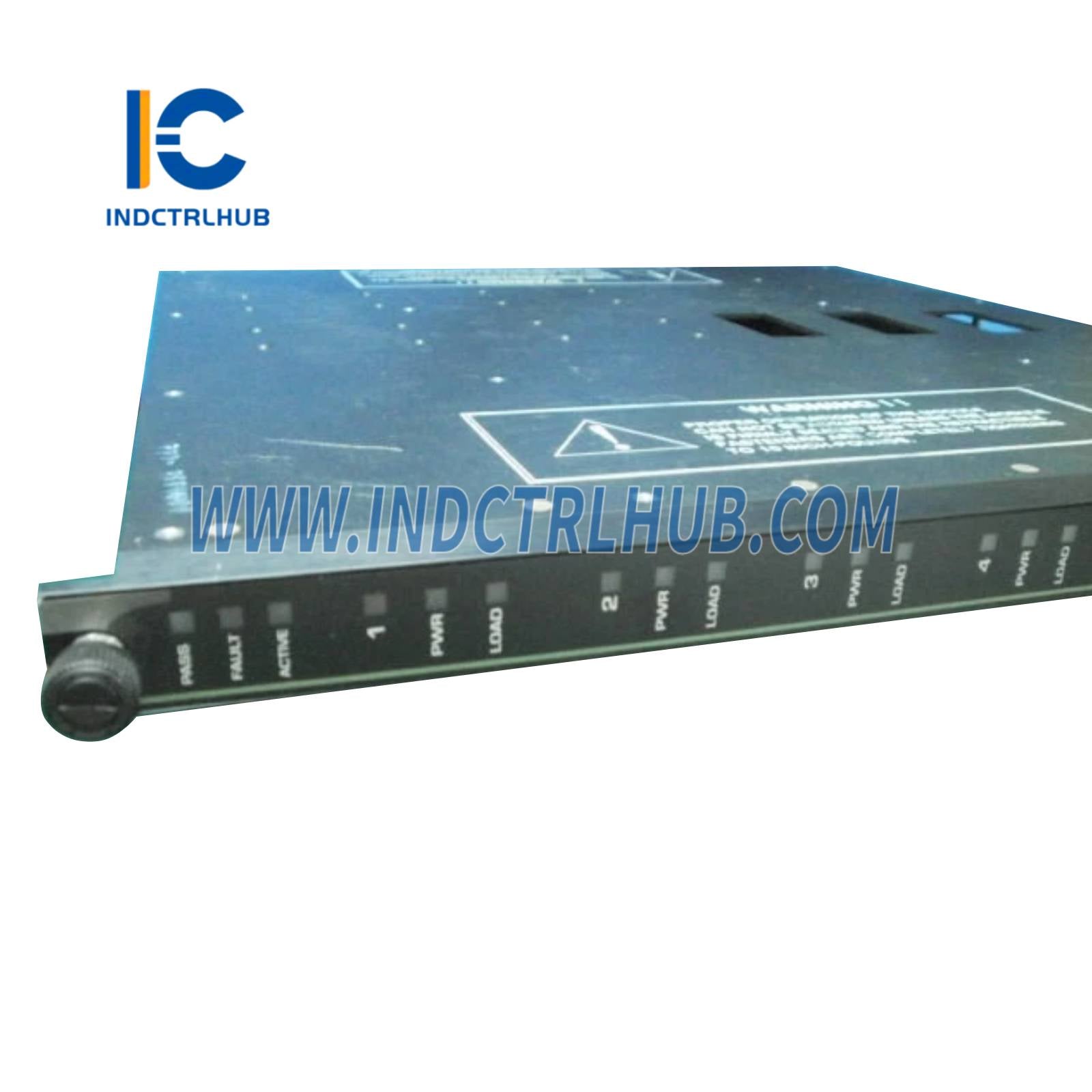

Diagnostics & Indicators
|
Indicator Type |
Details |
|---|---|
|
Channel Status |
POINT, PWR, LOAD |
|
Module Status LEDs |
PASS, FAULT, ACTIVE |
_
_
__
Additional Information
|
Attribute |
Details |
|---|---|
|
Color Code |
Mint Green |
|
Output Configuration |
Commoned outputs |
_
