Product Description
Triconex 7400172-110 9668-110NJ External Termination Panel
Product Overview
- The Triconex 7400172-110 9668-110NJ is an External Termination Panel (ETP) designed for Triconex safety instrumented systems (SIS) by Schneider Electric. Belonging to the Triconex Other Modules series, this panel provides a secure interface for connecting field devices to Triconex I/O modules, ensuring reliable signal transmission in triple modular redundant (TMR) architectures. It is critical for safety applications in industries such as oil and gas, chemical, and power generation.
Technical Specifications
- The 7400172-110 9668-110NJ has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 7400172-110 9668-110NJ |
| Manufacturer | Triconex (Schneider Electric) |
| Description | External Termination Panel |
| Series | Triconex Other Modules |
| Channel Capacity | 16 points |
| Signal Type | Digital Output, 24 VDC |
| Connector Type | Terminal blocks for field wiring, multi-pin connector for I/O module |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Weight | Approx. 1.5 kg |
Additional Details
- The 7400172-110 9668-110NJ includes the following additional information based on its standard use and documentation:
- Function: Interfaces field devices with Triconex I/O modules, transmitting digital output signals for safety and control functions in TMR systems.
- Compatibility: Compatible with Triconex Tricon and Tricon CX systems, typically used with digital output modules and corresponding cables like 4000094-310.

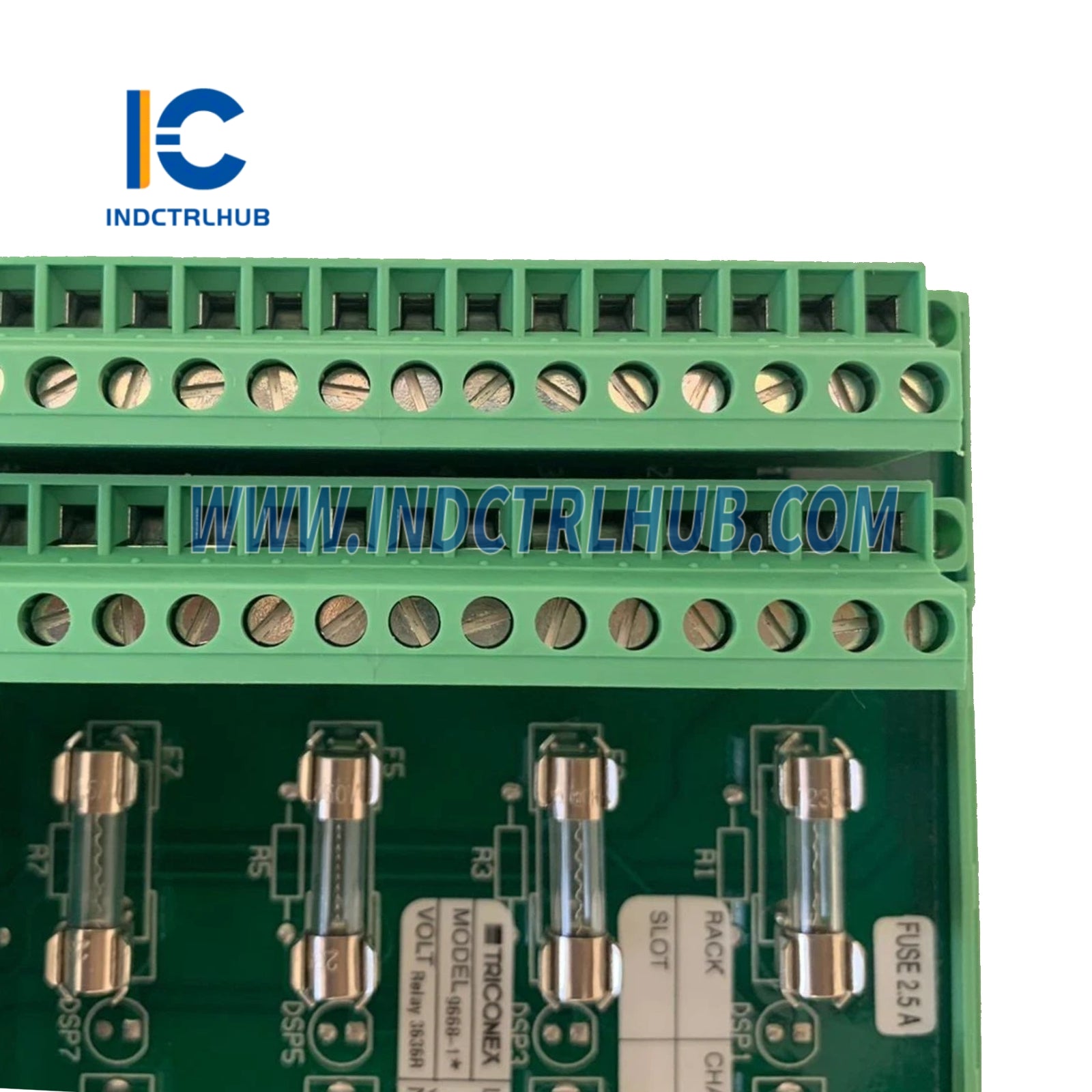

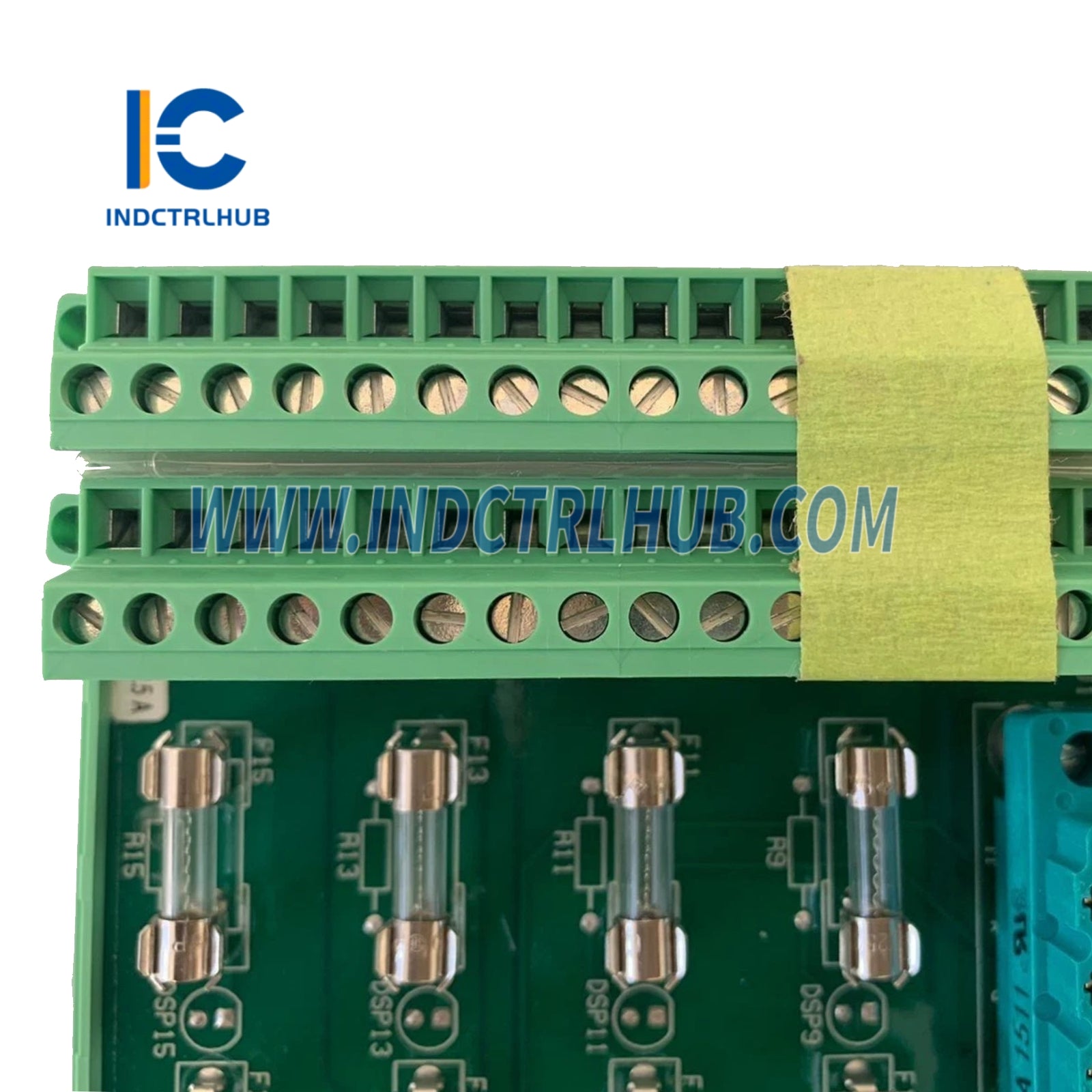

- Configuration: Equipped with terminal blocks for secure field wiring and a multi-pin connector for reliable connection to I/O modules; designed for TMR fault tolerance.
- Certifications: Meets CE, UL, and industrial standards for safety and performance in hazardous environments.
