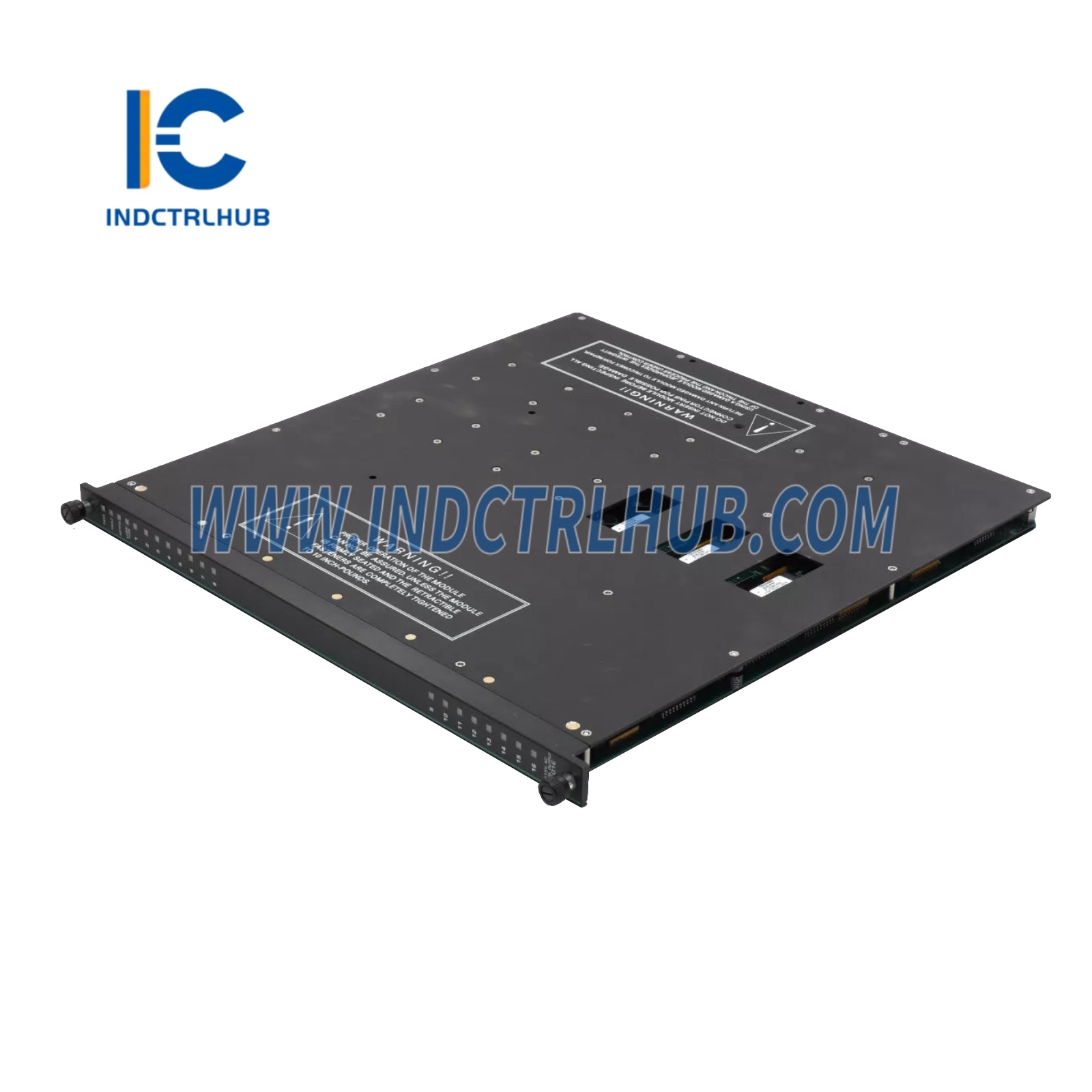

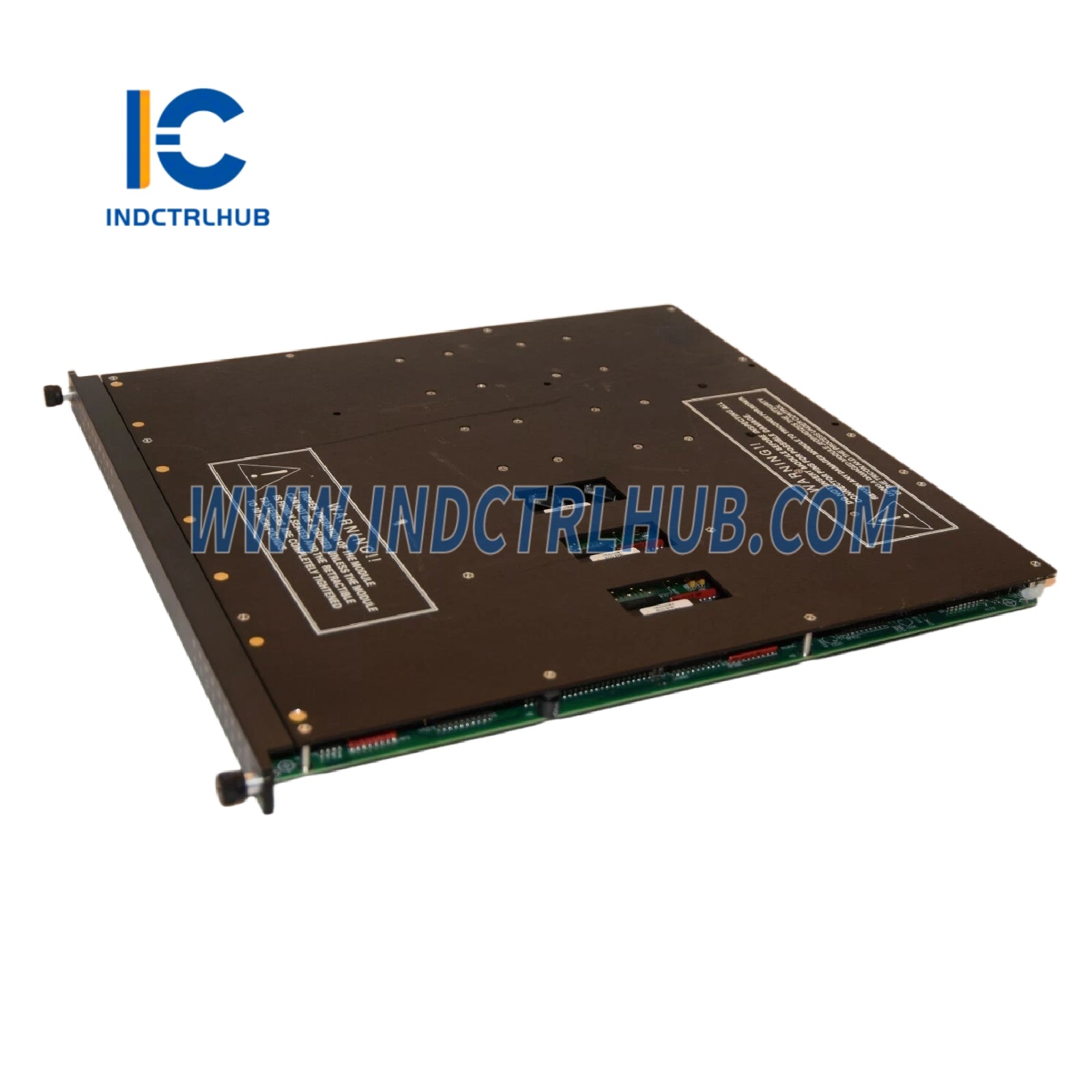

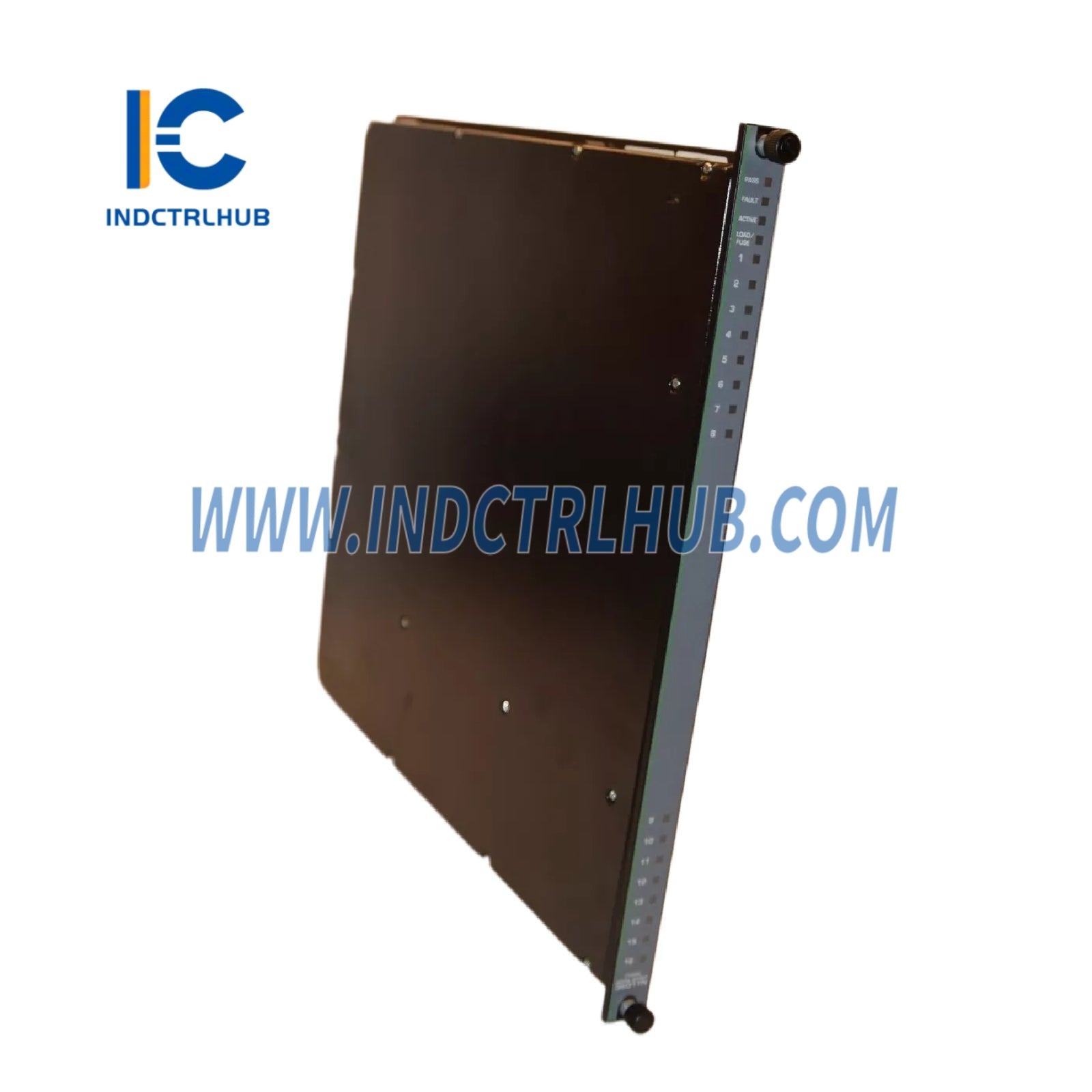

Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
3601E |
|
Description |
115 VAC Digital Output Module |
|
Type |
TMR (Triple Modular Redundant) |
|
Output Signals |
16, non-commoned |
⚙️
Technical Specifications – Triconex 3601E
|
Attribute |
Specification |
|---|---|
|
Nominal Voltage |
115 VAC |
|
Voltage Range |
80–155 VAC |
|
Frequency Range |
47–63 Hz |
|
Voltage Drop |
< 3V (typical) |
|
Max. Output Current |
2 A per point |
|
Surge Current Rating |
12 A per cycle |
|
Load Leakage Current |
≤ 2 mA @ 60 Hz |
|
Chassis Leakage Current |
≤ 4 mA @ 60 Hz |
|
Point Isolation Voltage |
1500 VDC / 2500 VDC (3601T only) |
|
Fuses (on Field Termination) |
3 A fast-acting (1 per output) |
🔎
Diagnostics & Indicators
|
Feature |
Details |
|---|---|
|

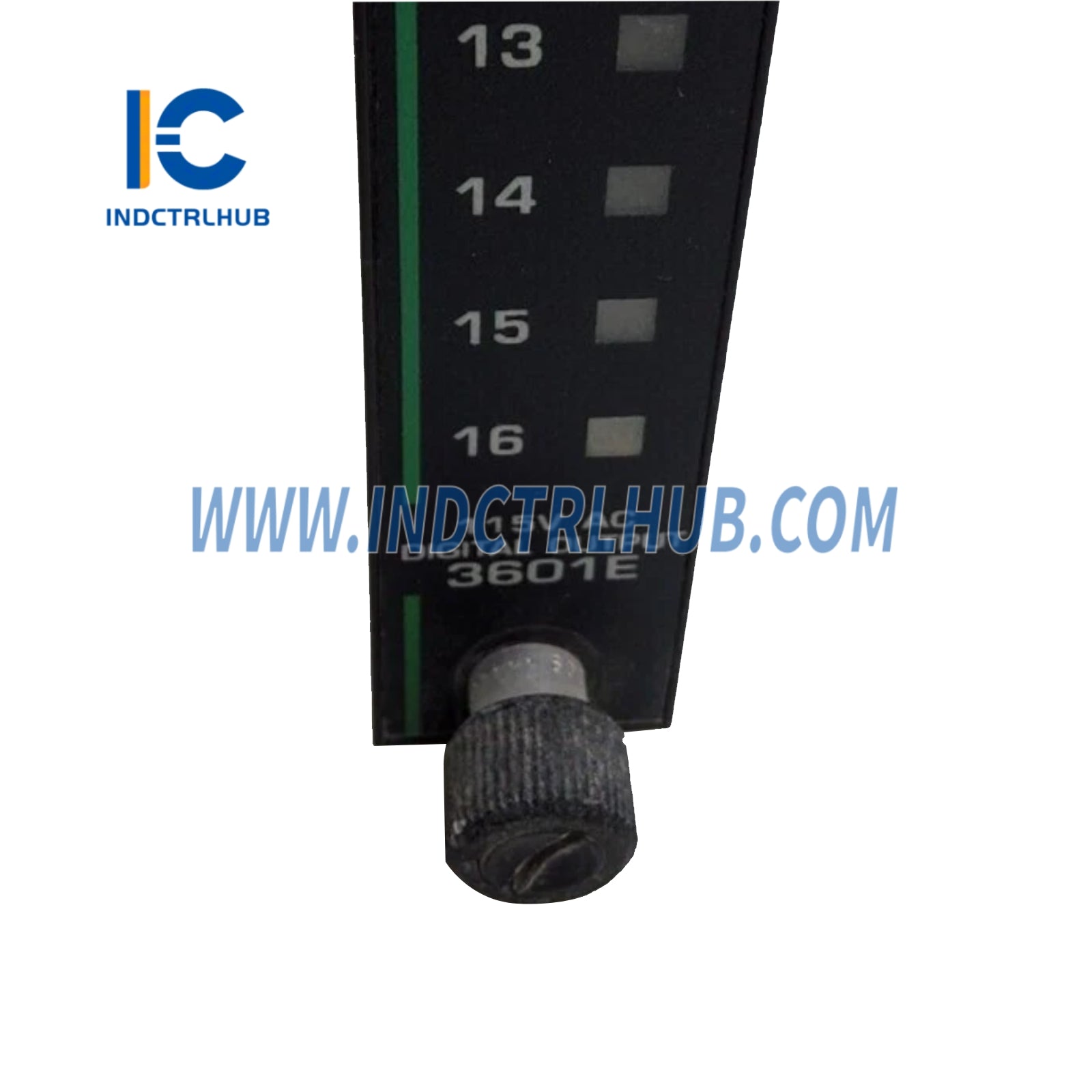

Status Indicators |
ON/OFF state per point |
|
Module Status LEDs |

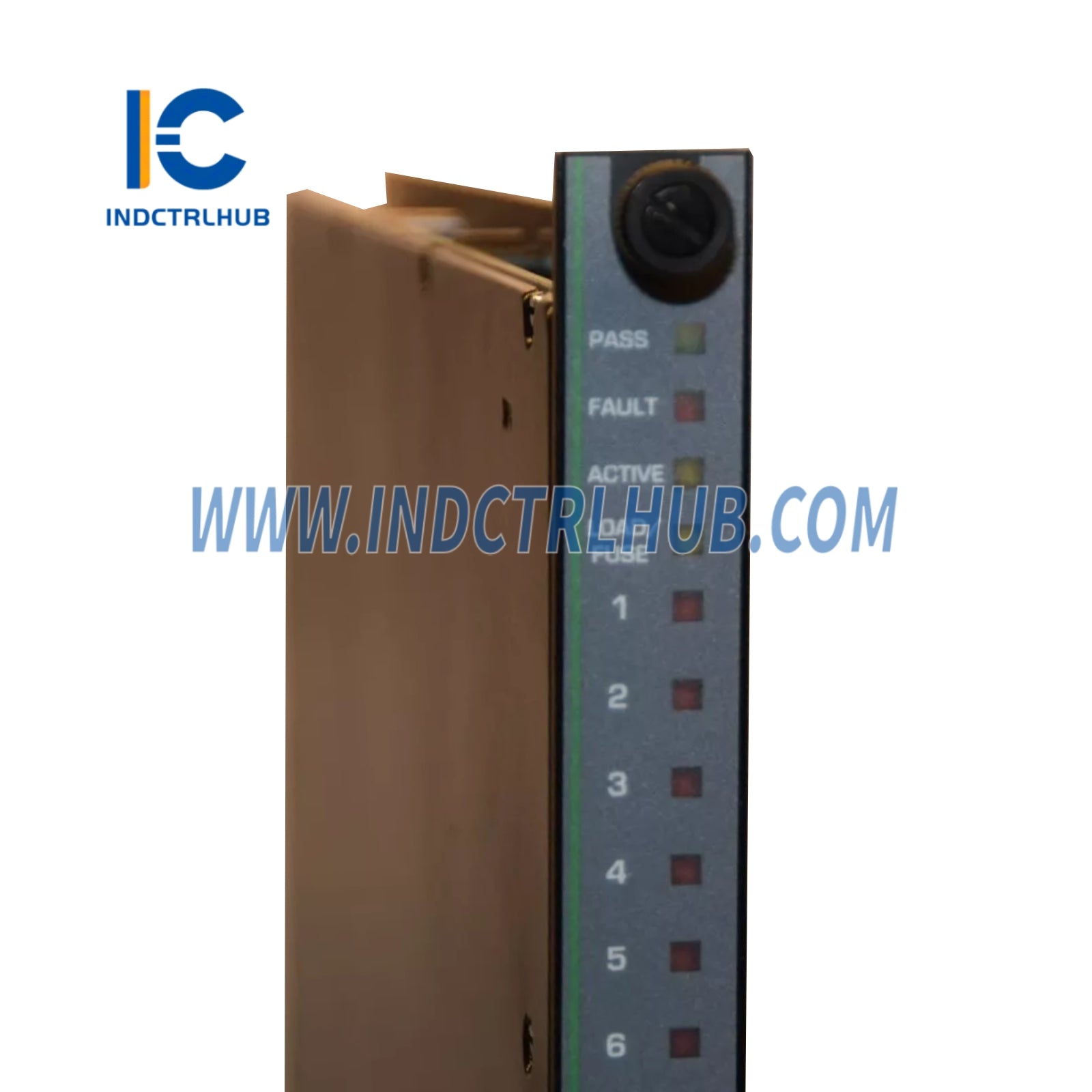

PASS, FAULT, ACTIVE |
|
Field Alarm LEDs |
LOAD/FUSE (per channel) |
🎨
Additional Info
|
Attribute |
Details |
|---|---|
|
Color Code |
Green |
|
Output Configuration |
Non-commoned |
|
Module Category |
AC Output Module |
