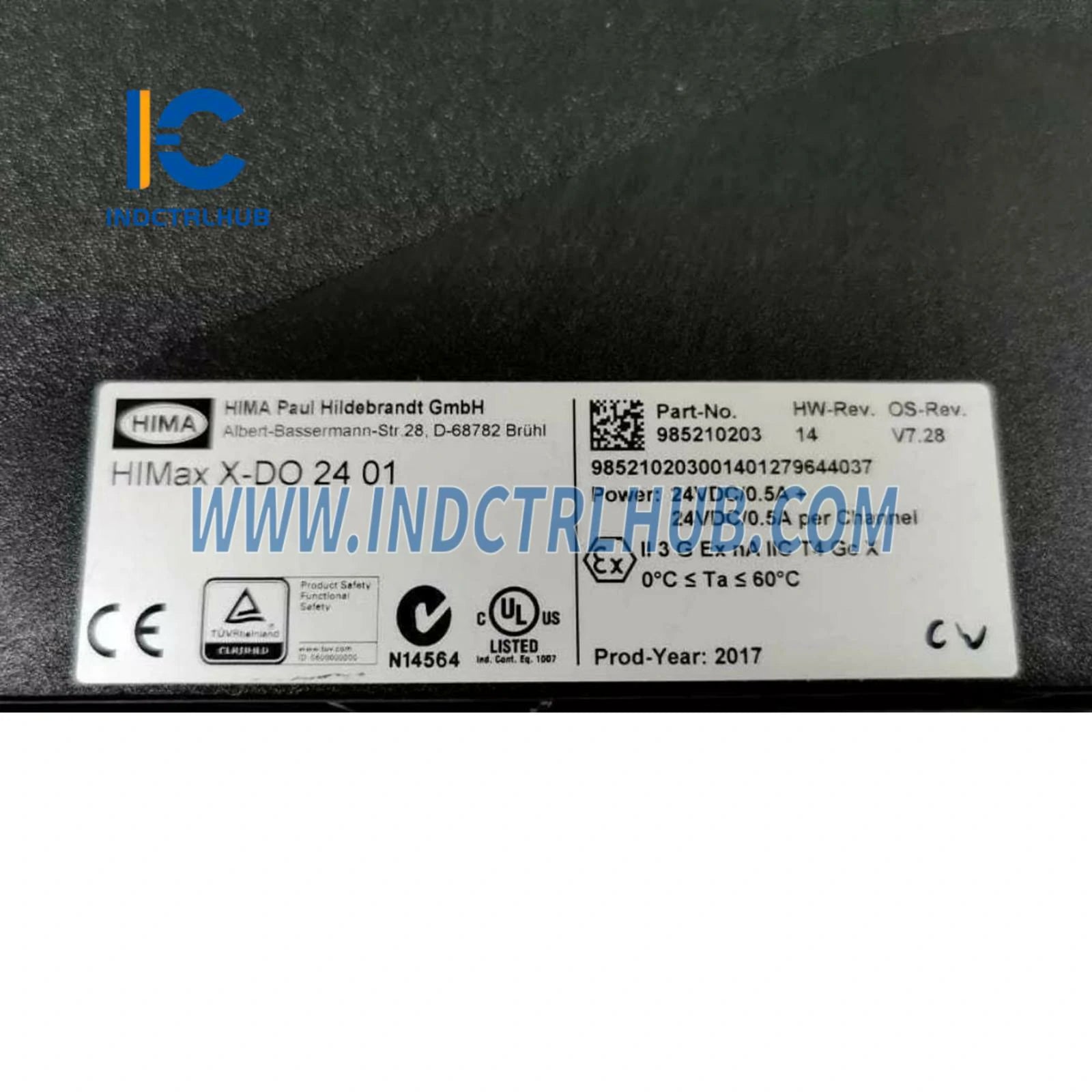

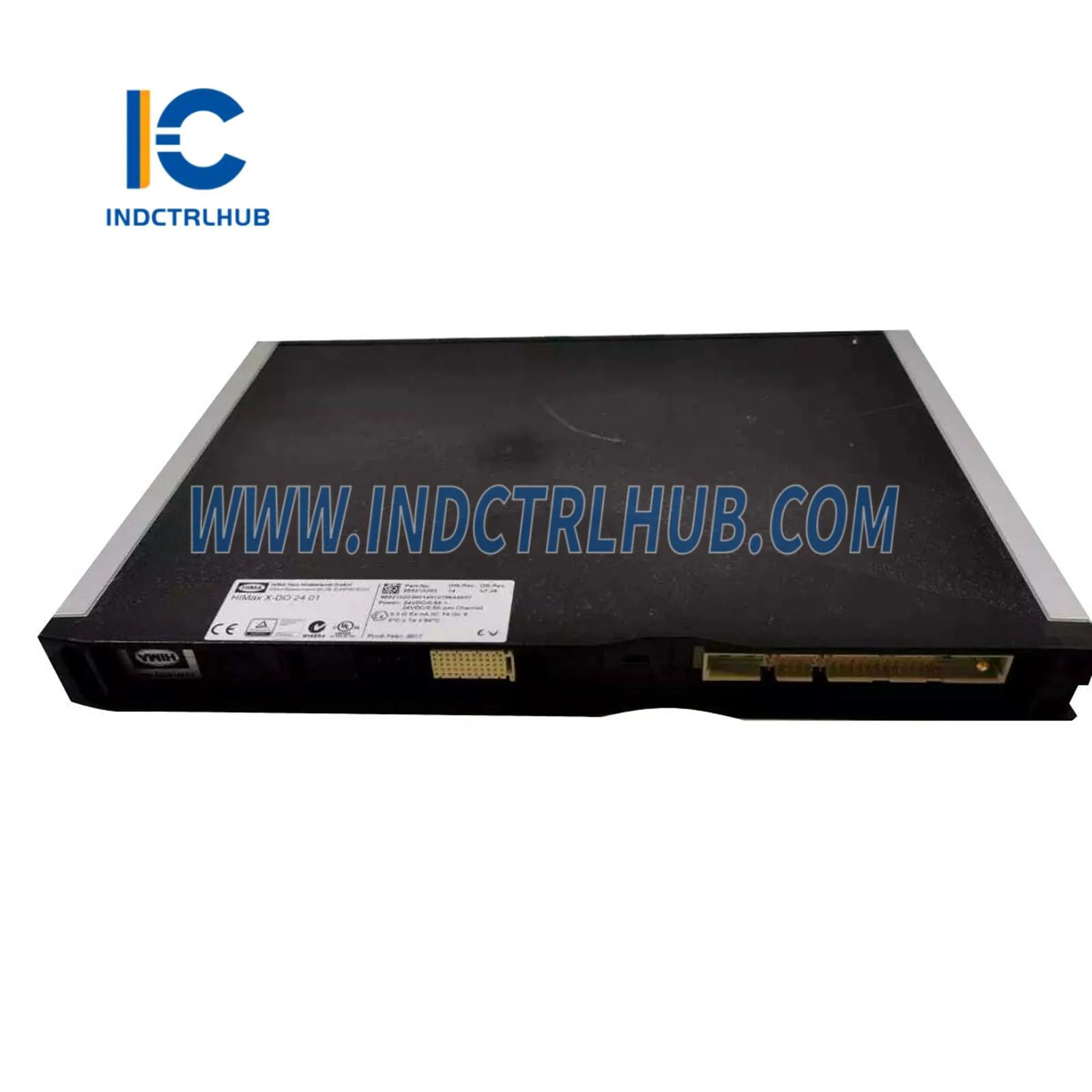

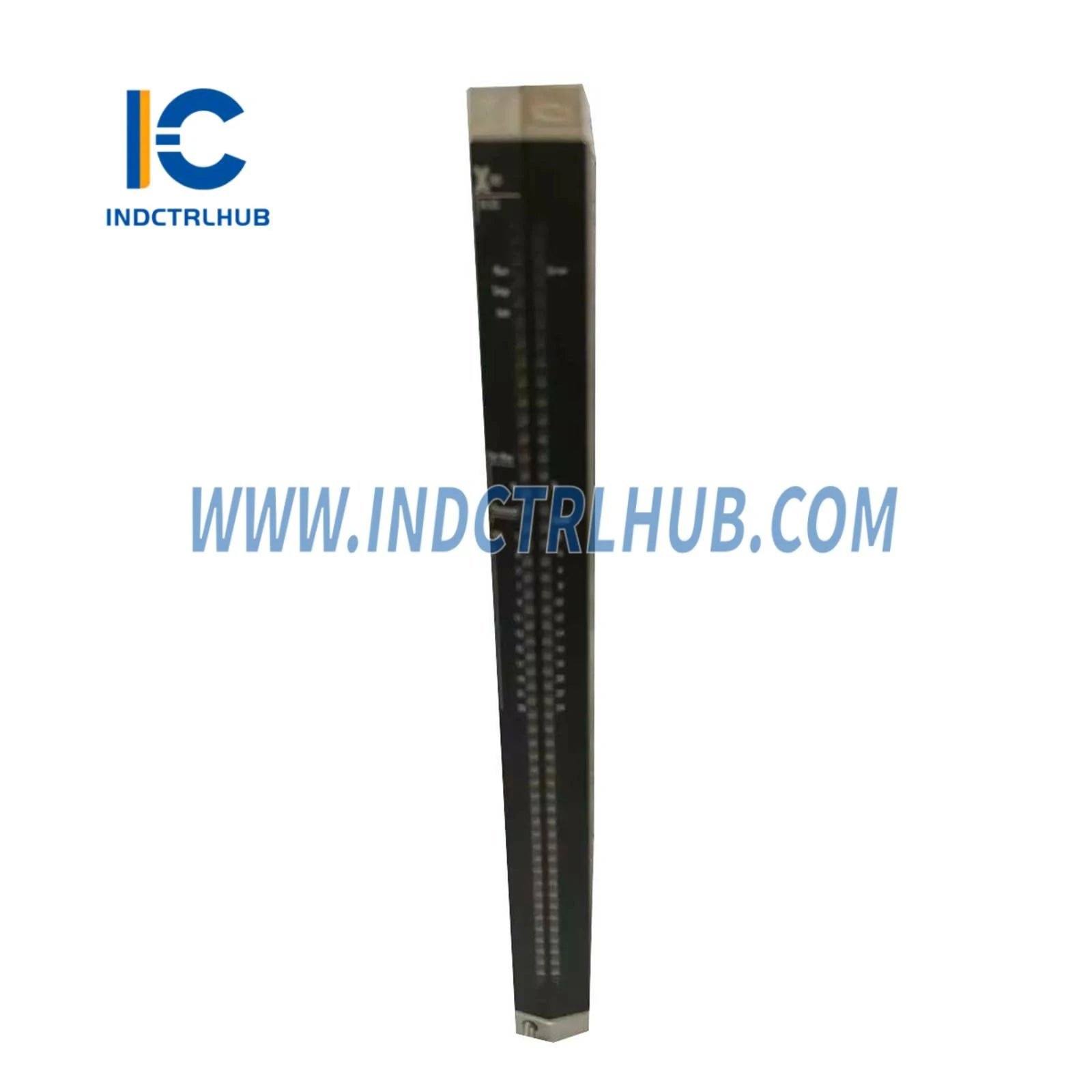

HIMA X-DO 24 01 digital output module

Model/Part Number

X-DO 24 01

Description

Digital Output Module

Supply Voltage

24 VDC (-15% to +20%), rp _ 5%, PELV, SELV

Current Input (Idle)

Min. 0.5 A

Continuous Load

Max. 12 A at 24 VDC

Electrical Isolation

No

Operating Temperature

0 to +60 °C

Storage Temperature

-40 to +85 °C

Humidity

Max. 95% relative humidity, non-condensing

Protection Type

IP20

Dimensions (H x W x D)

310 x 29.2 x 230 mm

Weight

Approx. 1.0 kg

Number of Outputs (Channels)

24 (Non-electrically isolated)

Output Voltage

_ L+ minus internal voltage drop

Voltage Drop (High Level)

0.8 V at 0.75 A output current

Nominal Rated Current (High Level)

0.5 A (Range: 0.01 _ 0.6 A)

Total Current (Module Limit)

12 A

Leakage Current (Low Level)

< 500 µA

Overcurrent Interruption

I > 0.75 A

Current Limiting (Short Circuit)

2 A

Overcurrent/Short Circuit Behavior

Affected output is switched off and cyclically reactivated

Ohmic Load

Up to nominal rated current (0.5 A)

Inductive Load

Max. 50 H

Lamp Load (24V Lamps)

Max. 4 W

Capacitive Load

Max. 100 µF

Line Monitoring (OC Limit)

_ 5 mA

Short Circuit Limit (SC Limit)

0.75 A (Range: 0.75 _ 0.8 A)

Transient Overvoltage Protection

33 V (Max. 43 V)

Switching Time (Ohmic Load)

_ 100 µs

Test Impulse (Ohmic Load)

Typ. 200 µs
