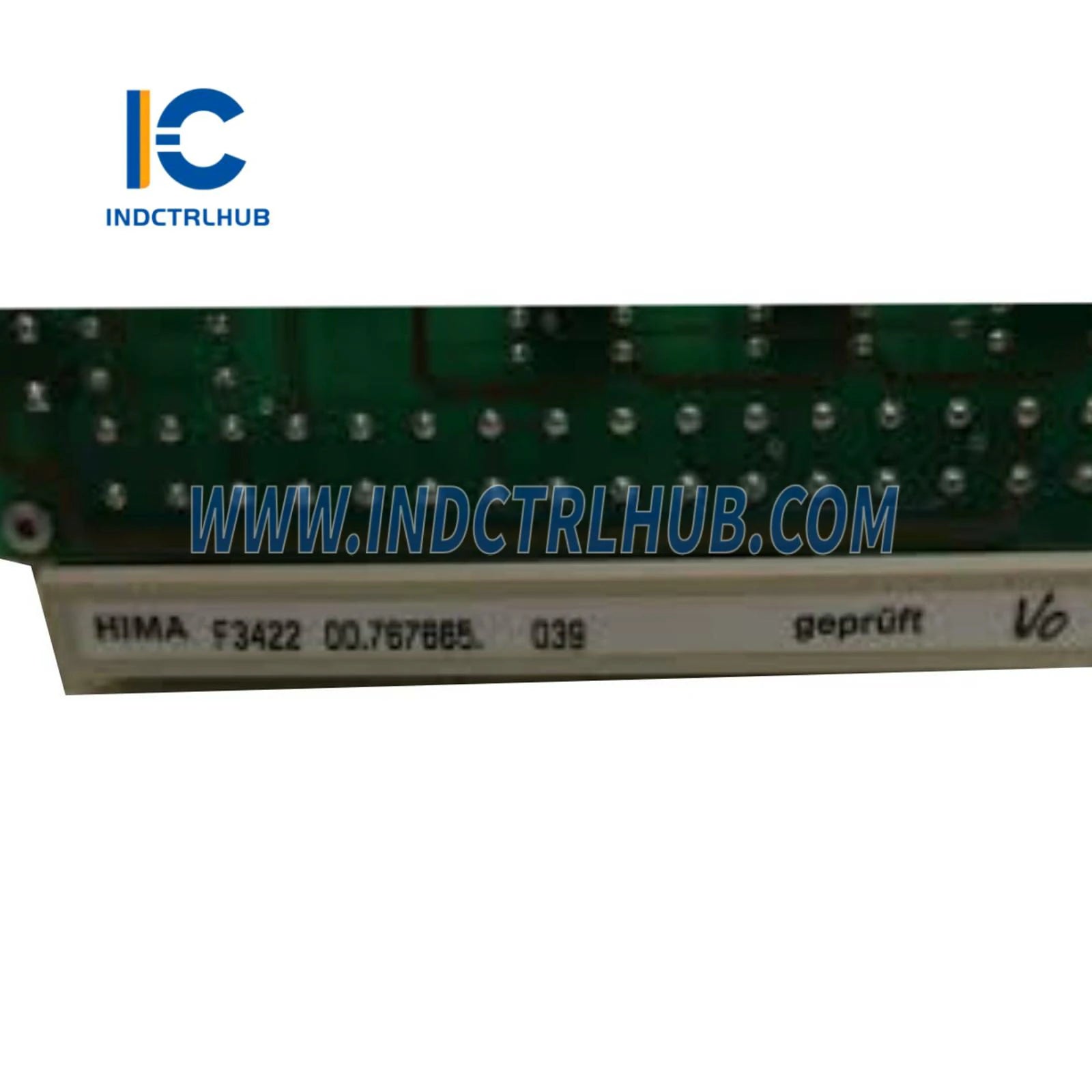

HIMA F3422 Digital Output Module, 8-channel
HIMA F3422 Digital Output Module, 8-channel
Manufacturer: HIMA
Product No.: F3422
Condition:1000 in stock
Product Type: Digital Output Module, 8-channel
Product Origin: Germany
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
The HIMA F3422 is an 8-channel Digital Output Module designed for use in HIMA safety-related control systems, such as the HIQuad series (e.g., H41q/H51q). This module provides eight digital outputs to control field devices like relays, solenoids, or actuators in safety-critical applications. It is typically deployed in industrial environments such as oil & gas, chemical processing, and power generation, where reliable and safe output control is essential for achieving safety integrity levels up to SIL 3.
Technical Specifications
The F3422 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | F3422 |
| Manufacturer | HIMA |
| Description | Digital Output Module, 8-channel |
| Series | HIQuad |
| Number of Outputs | 8 |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A per channel (resistive or inductive load) |
| Power Supply | 24 V DC (via system backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 0.3 kg (0.66 lbs) |
Additional Details
The F3422 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Controls field devices with digital output signals |
| Mounting | Plugs into HIQuad system rack |
| Compatibility | HIMA HIQuad systems (e.g., H41q/H51q), integrates with central modules |
| Features | Line monitoring, safety isolation, supports resistive/inductive loads |
| Certifications | Suitable for SIL 3 applications per IEC 61508 |
| Part Type | New, surplus, or refurbished_ |
