Product Description
Product Overview

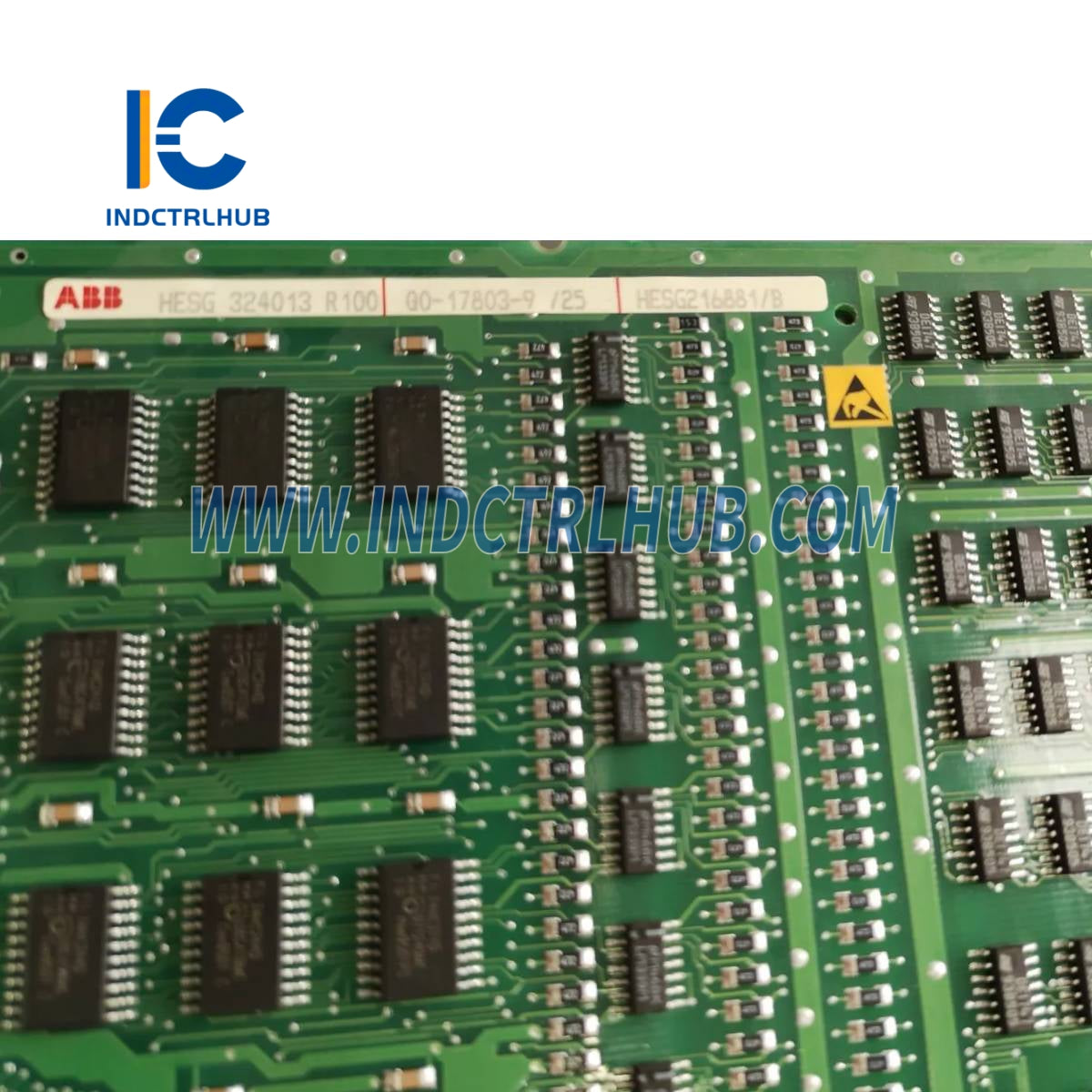

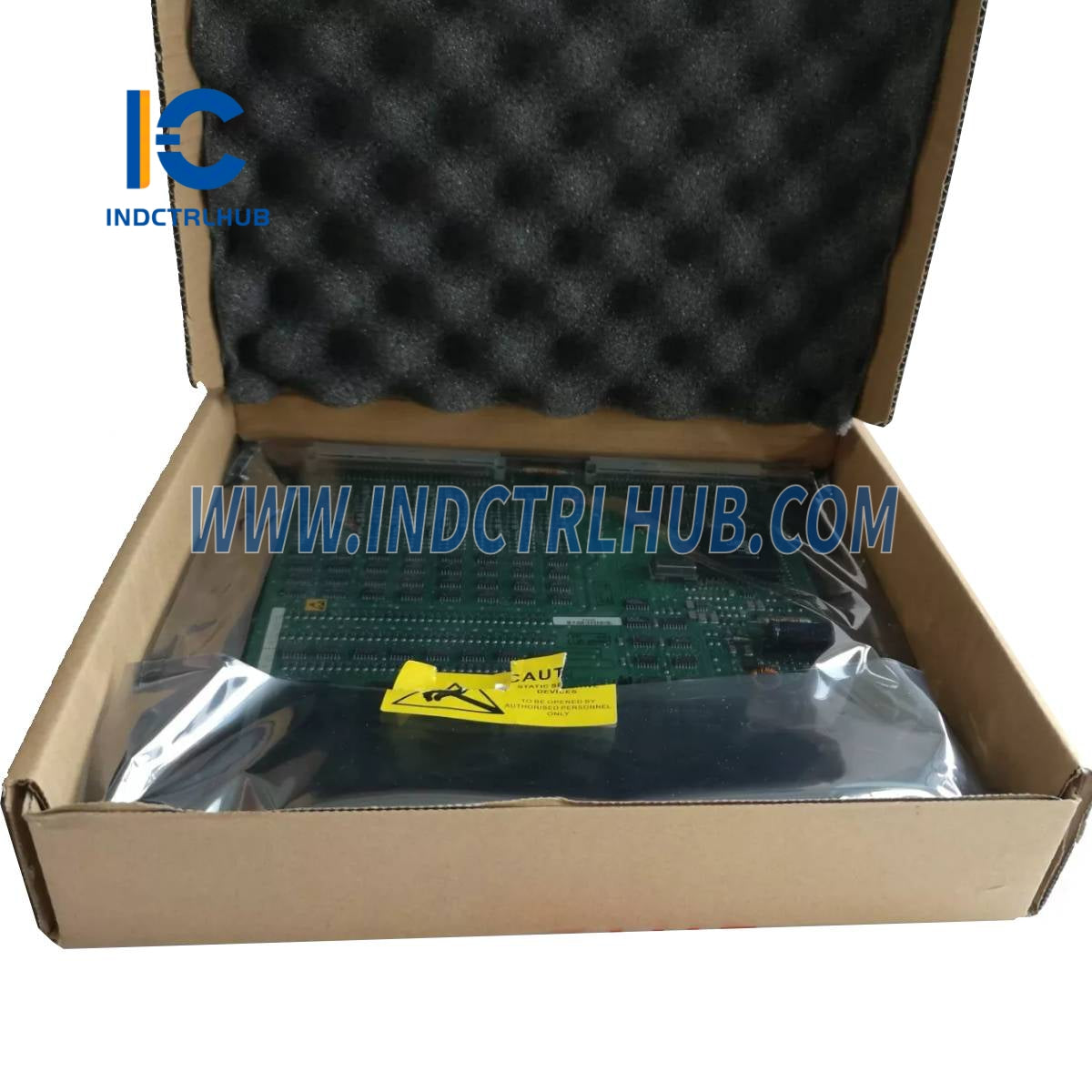

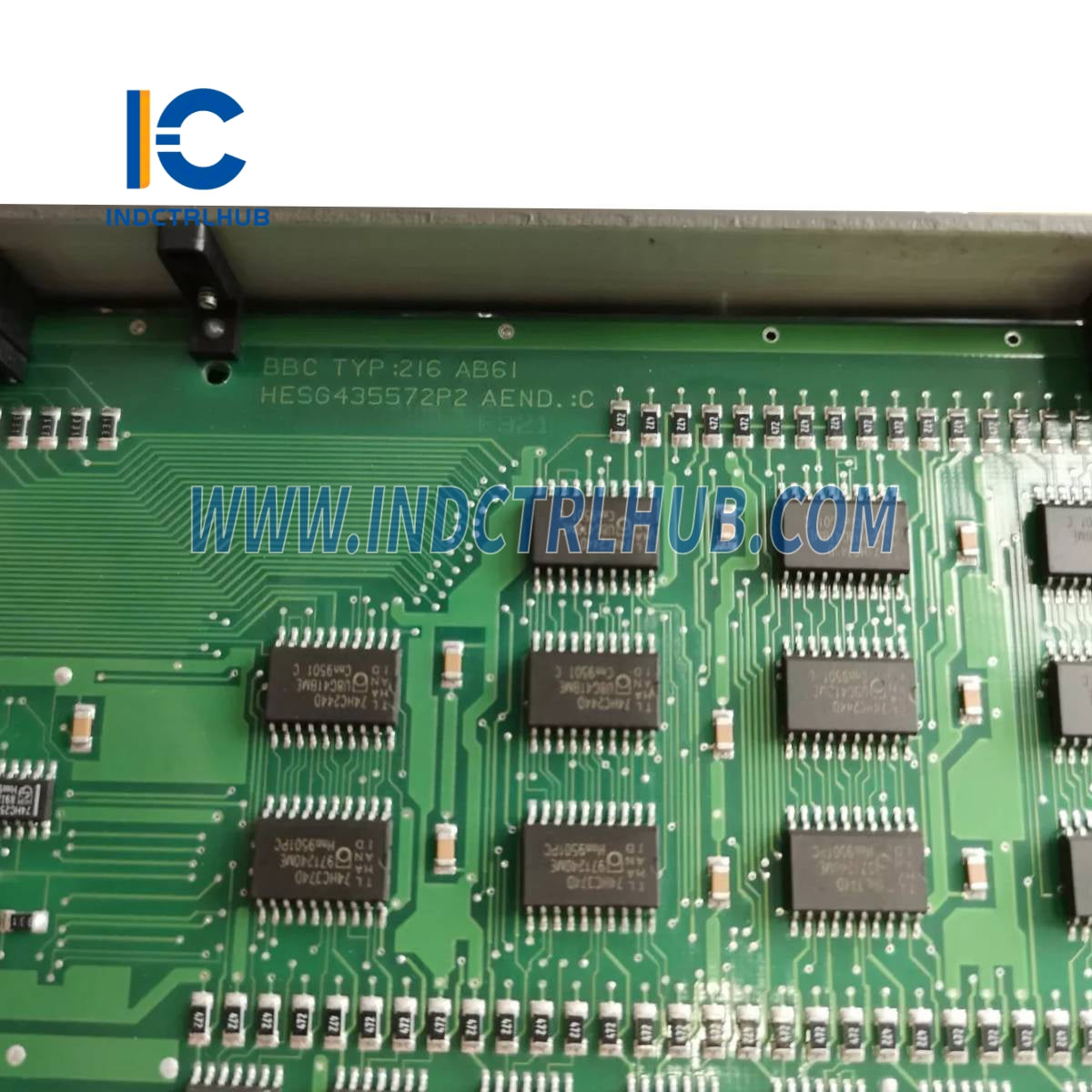

The ABB HESG324013R100 216AB61 is a Binary Output Module designed for use in ABB’s industrial automation systems, specifically within the Advant OCS (Open Control System) or Procontrol series. Manufactured by ABB, this module is engineered to provide reliable on/off control signals for actuators, relays, or other binary devices in industrial applications such as power generation, oil & gas, and manufacturing. It is known for its advanced technology, compact design, and compatibility with various control systems, making it a versatile solution for automation needs. The “216AB61” is the specific model designation, while “HESG324013R100” is the catalog part number, reflecting its configuration.
Technical Specifications
The HESG324013R100 216AB61 has the following specifications based on supplier data and inferred characteristics from similar ABB modules:
| Item | Specification |
|---|---|
| Model/Part Number | HESG324013R100 216AB61 |
| Manufacturer | ABB |
| Description | Binary Output Module |
| Series | Advant OCS / Procontrol |
| Power Supply | 24 V DC |
| Output Channels | 16 (typical for binary output modules) |
| Output Type | Digital (on/off), 24 V DC, 0.5 A per channel (assumed) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | Approximately 0.8 kg (1.76 lbs) |
Additional Details
The HESG324013R100 216AB61 includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Provides binary output signals for controlling field devices |
| Mounting | Plugs into ABB control system rack or backplane |
| Connectivity | Terminal blocks for field wiring, bus connection to controller |
| Features | High reliability, compact design, intelligent control capabilities |
| Certifications | Designed for industrial standards (e.g., CE) |
