Product Description
Product Overview

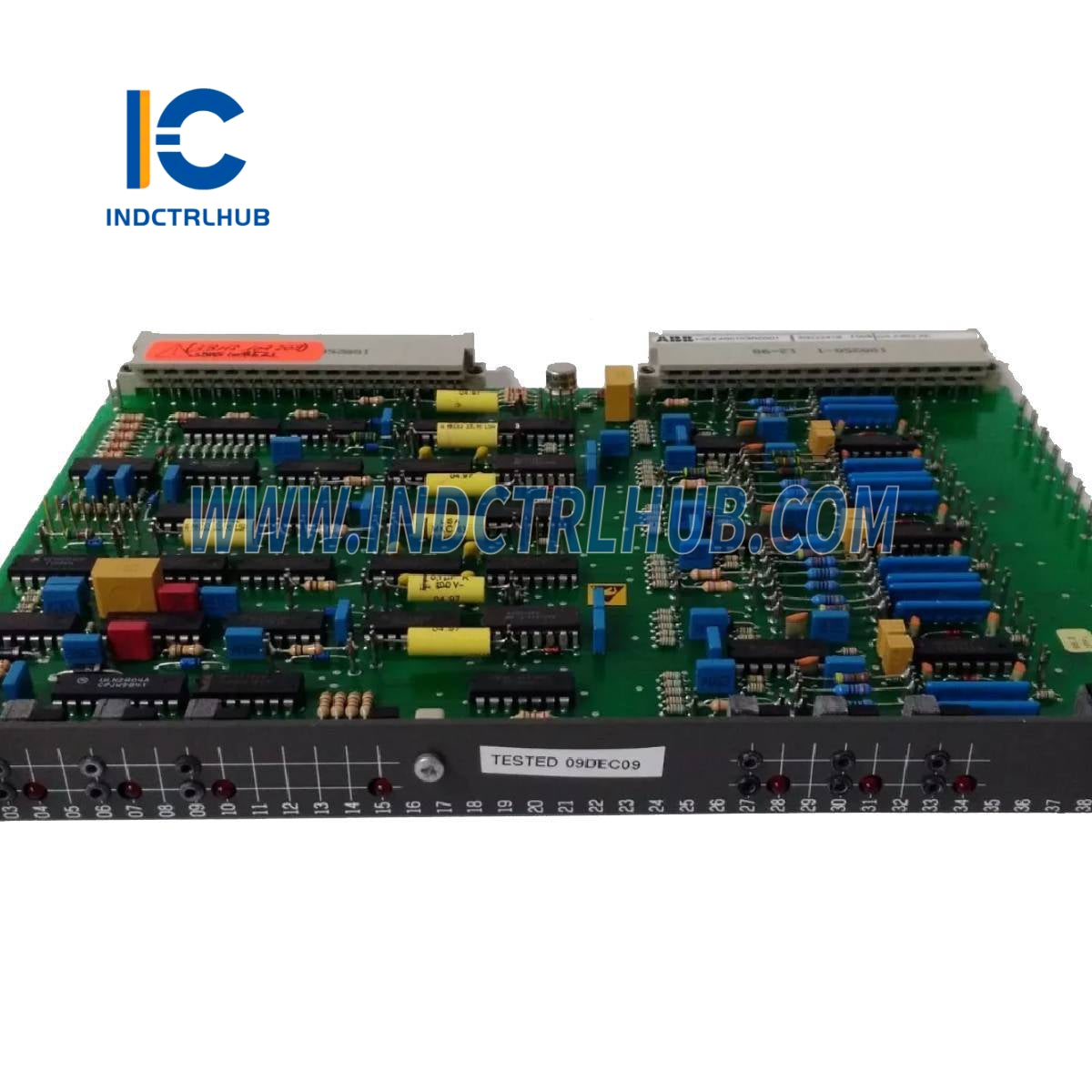

The ABB HIEE400106R0001 CSA464AE1 is a Rack Control Module designed for use in ABB’s industrial automation systems, specifically within the Advant OCS (Open Control System) or a related platform such as Procontrol P13/P14. Manufactured by ABB, this module is engineered to serve as a central control or interface unit within a rack-based system, managing communication, signal processing, and coordination between various I/O modules. It is commonly deployed in industrial applications like power generation, oil & gas, and process automation, where reliability and system integration are critical. The “CSA464AE1” is the specific model designation, while “HIEE400106R0001” is the catalog part number, reflecting its unique configuration.
Technical Specifications
The HIEE400106R0001 CSA464AE1 has the following specifications based on inferred characteristics from similar ABB control modules and limited supplier data:
| Item | Specification |
|---|---|
| Model/Part Number | HIEE400106R0001 CSA464AE1 |
| Manufacturer | ABB |
| Description | Rack Control Module |
| Series | Advant OCS / Procontrol |
| Power Supply | 24 V DC (typical for rack modules) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | Approximately 0.5 kg (1.1 lbs, estimated) |
Additional Details
The HIEE400106R0001 CSA464AE1 includes the following additional information based on its standard use and inferred documentation:
| Category | Details |
|---|---|
| Function | Manages communication and control within a rack system |
| Mounting | Plugs into ABB control system rack or backplane |
| Connectivity | Bus connections to I/O modules, terminal interfaces |
| Features | High reliability, system diagnostics, modular integration |
| Certifications | Designed for industrial standards (e.g., CE) |
