Product Description
Product Details

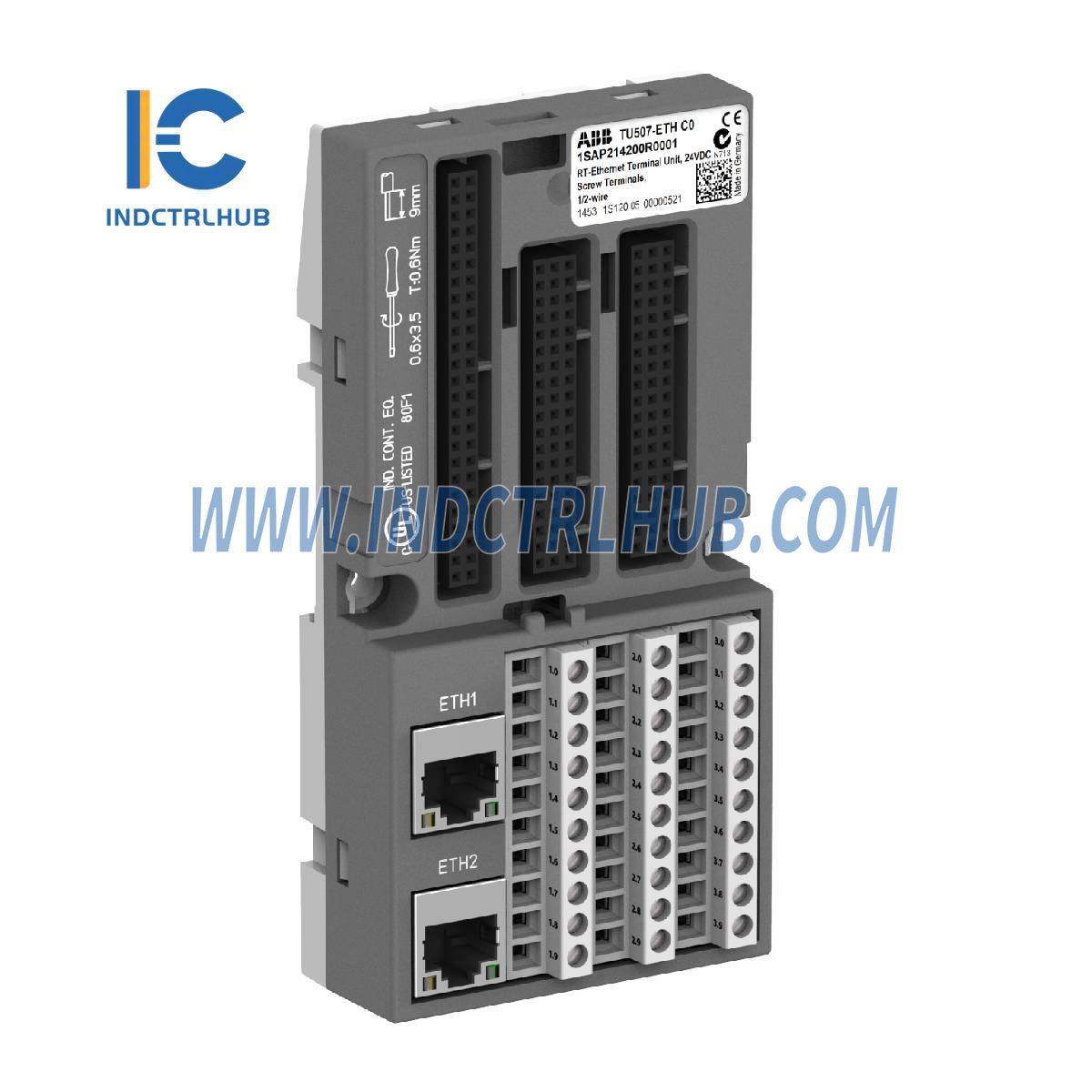

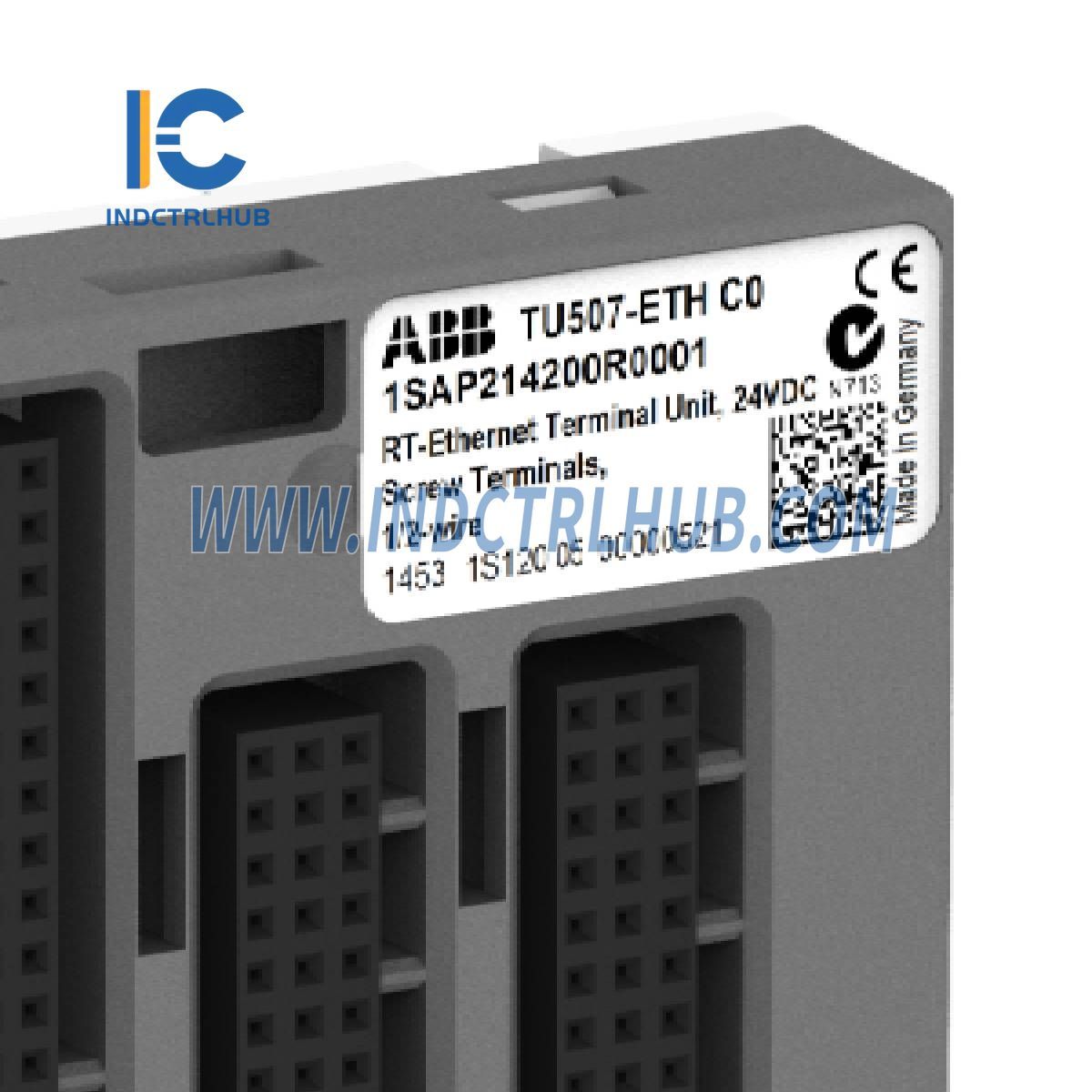

- Manufacturer: ABB
- Model/Part Number: TU507-ETH (1SAP214200R0001)
- Description: Interface Terminal Unit for Ethernet Protocols
General Information
| Attribute | Details |
|---|---|
| Extended Product Type | TU507-ETH |
| Product ID | 1SAP214200R0001 |
| ABB Type Designation | TU507-ETH |
| EAN | 4016779649216 |
| Catalog Description | Interface Terminal Unit for Ethernet Protocols, Screw Terminals |
| Long Description | TU507-ETH: S500 Interface Terminal Unit for Ethernet Protocols, Screw Terminals, 2 RJ45 Connectors |
| Product Main Type | TU507 |
| Product Name | Distributed Automation I/Os |
Ordering Information
| Attribute | Details |
|---|---|
| CN8 (Customs Tariff Number) | 85389091 |
| Invoice Description | Interface Terminal Unit for Ethernet Protocols, Screw Terminals (TU507-ETH) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | Piece |
Technical & Physical Specifications
| Attribute | Details |
|---|---|
| Function | For Ethernet Protocols, Screw Terminals |
| Degree of Protection | IP20 |
| Supply Voltage | 24 V DC |
| Ambient Air Temperature (Operation) | 0 … +60 °C |
| Ambient Air Temperature (Storage) | -40 … +70 °C |
| Product Net Weight | 0.223 kg |
| Gross Weight | 0.256 kg |
| Product Net Depth / Length | 28 mm |
| Product Net Height | 135 mm |
| Product Net Width | 67.5 mm |
| Package Level 1 Units | 1 carton |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Width | 78 mm |
External Classifications and Standards
| Attribute | Details |
|---|---|
| eClass | 27-24-22-92 |
| ETIM 8 | EC000810 - PLC Mounting Rack |
| ETIM 9 | EC000810 - PLC Mounting Rack |
| ETIM 10 | EC000810 - PLC Mounting Rack |
| UNSPSC | 32151703 |
Environmental Compliance
| Attribute | Details |
|---|---|
| SCIP | fd57bbb7-ce16-4ef8-9dba-83720ed19276 (Germany) |
| WEEE B2C / B2B | Business to Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Product Category & Application
| Category | Details |
|---|---|
| Product Type | PLC Automation |
| Product Group | Programmable Logic Controllers (PLCs) |
| Product Sub-Group | AC500 Communication Interface Modules |
