Product Description
Product Overview

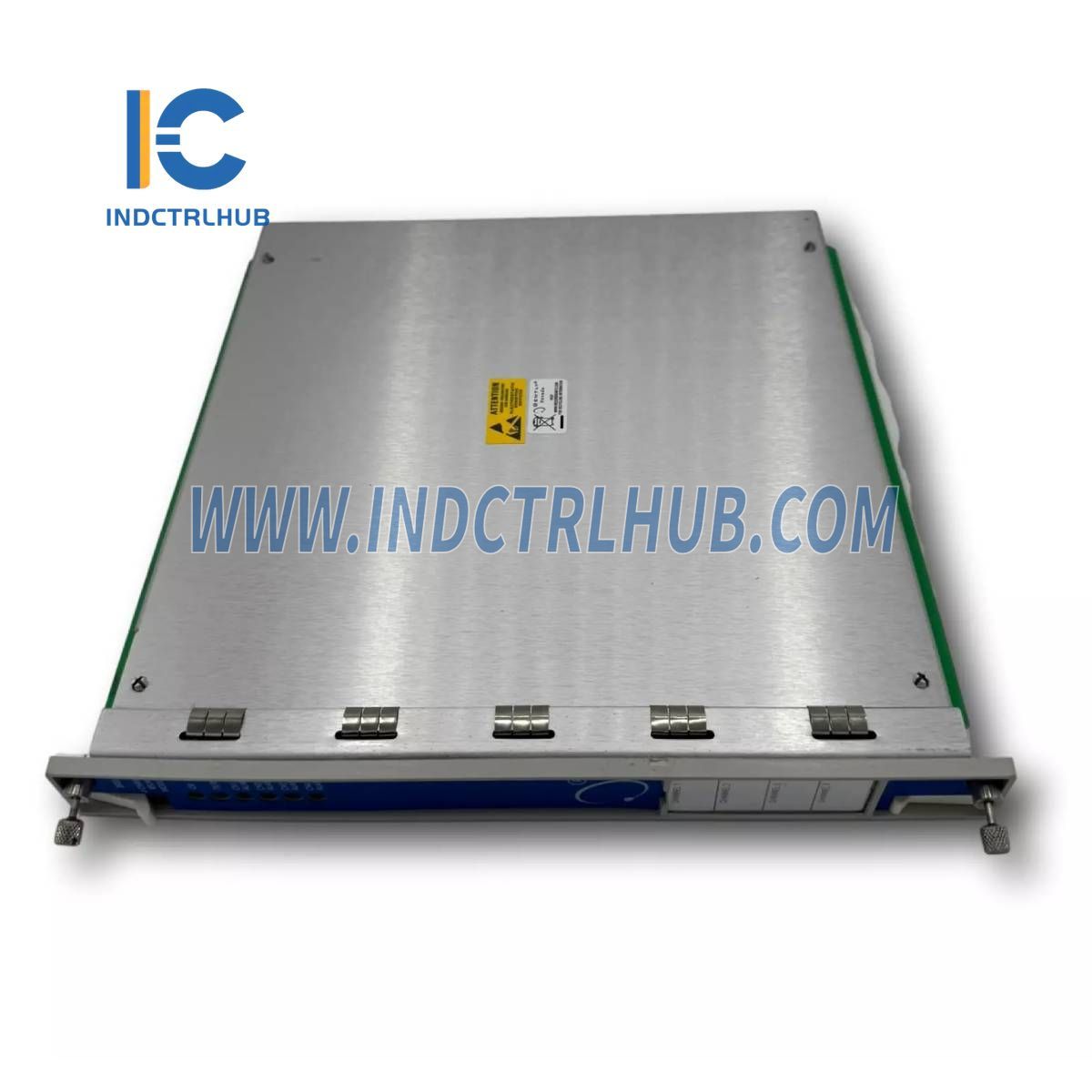

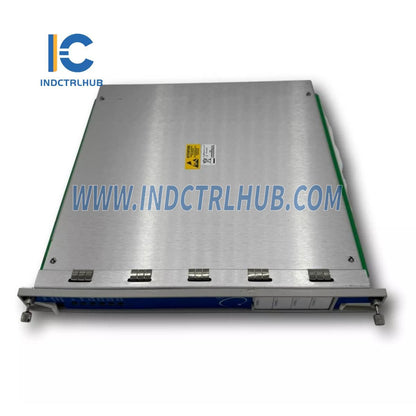

The Bently Nevada 3500/32-01-00 is a 4-Channel Relay Module from the 3500/32 series, designed as a full-height module providing four programmable relay outputs. This module, comprising the main module (125712-01) and the relay output module (125720-01), can be installed in any slot to the right of the Transient Data Interface Module within a 3500 rack system. Each of its four outputs can be independently configured to perform voting logic, offering flexibility for alarm and control applications in industrial monitoring setups.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500/32 |
| Model/Part Number | 3500/32-01-00 (125712-01 + 125720-01) |
| Model Type | 4-Channel Relay Module |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Main Module Dimensions (HxWxD) | 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in) |
| Main Module Weight | 0.7 kg (1.6 lb) |
| I/O Module Dimensions (HxWxD) | 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| I/O Module Weight | 0.4 kg (1.0 lb) |
Spares

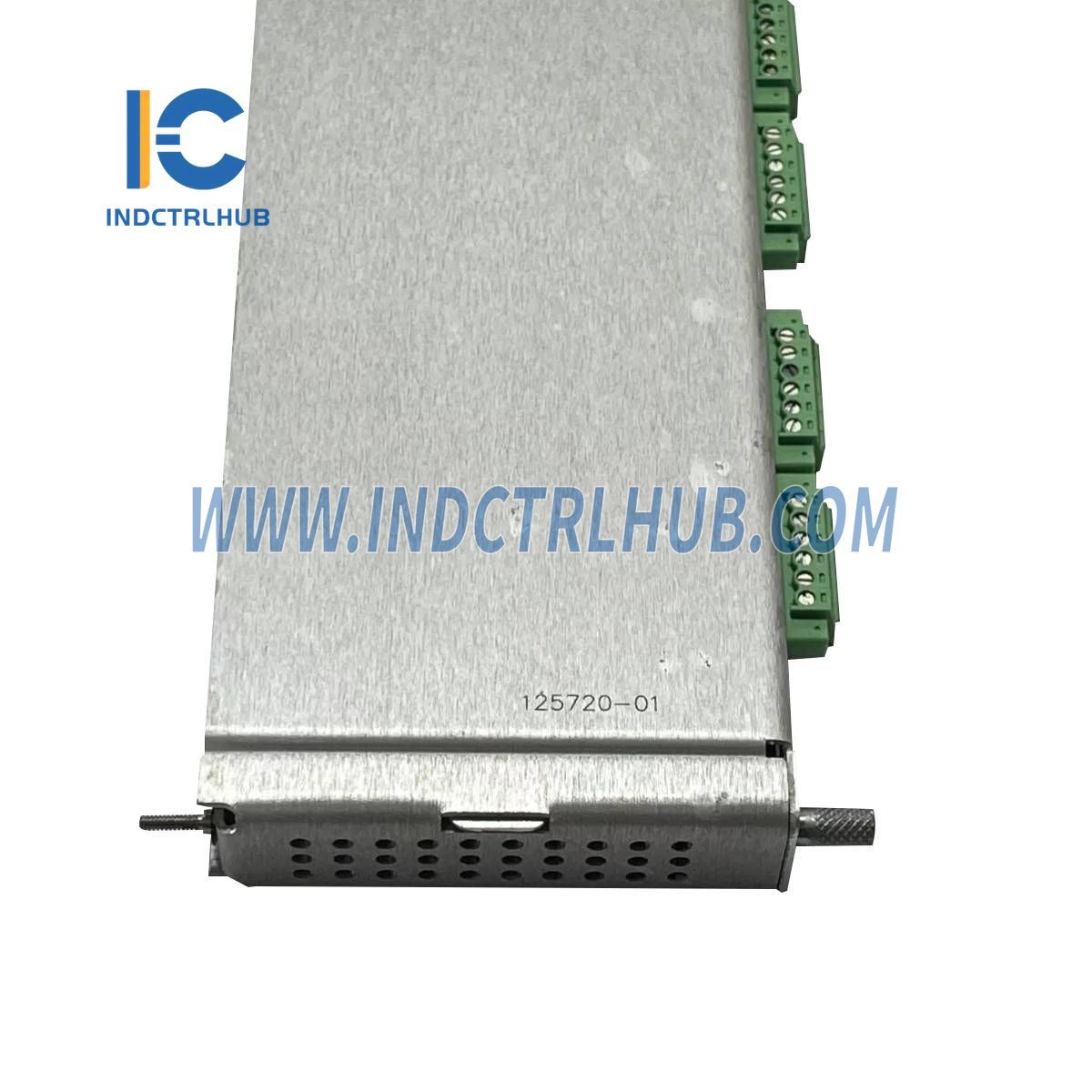

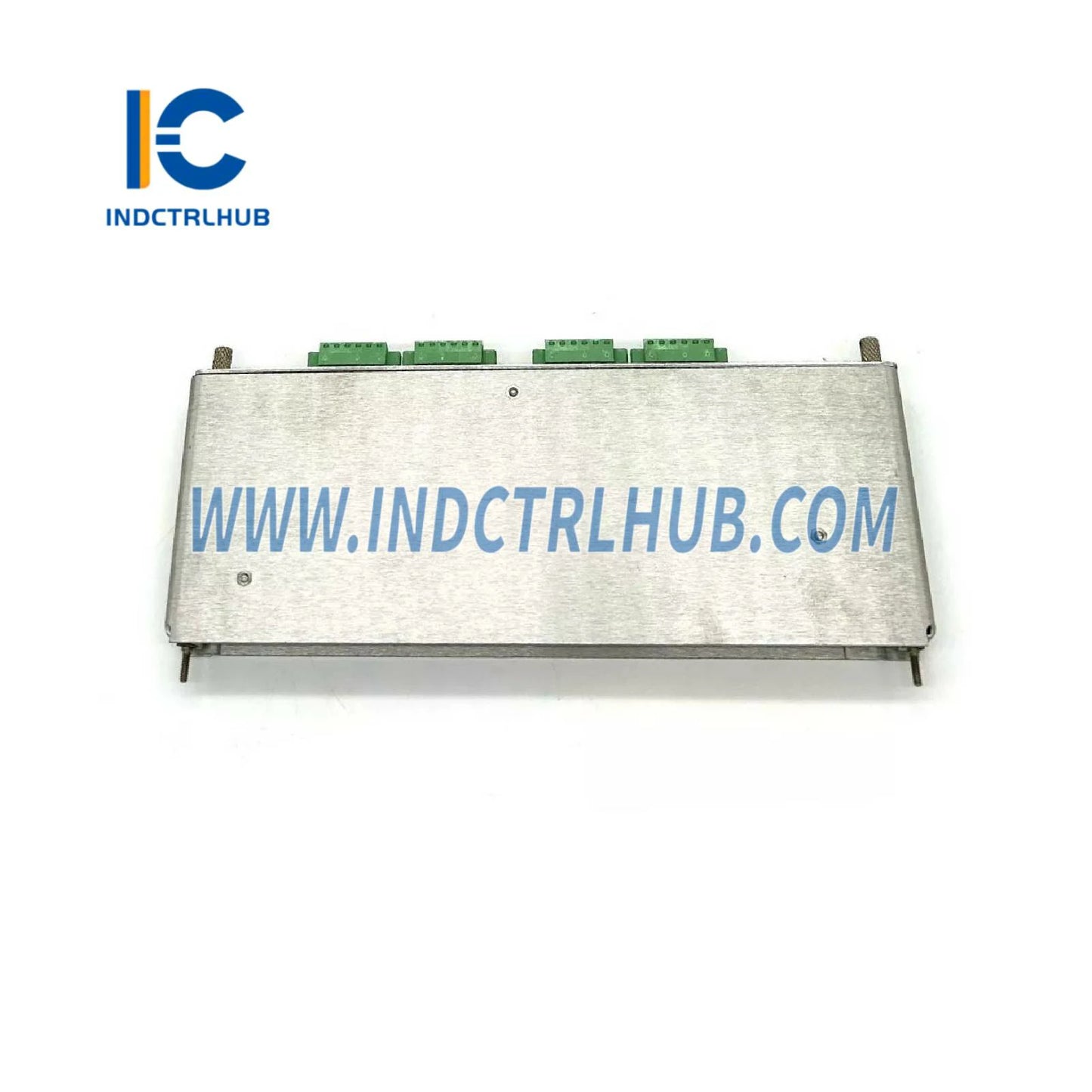

- 125720-01: Spare 4-Channel Relay Output Module (available for repair only)

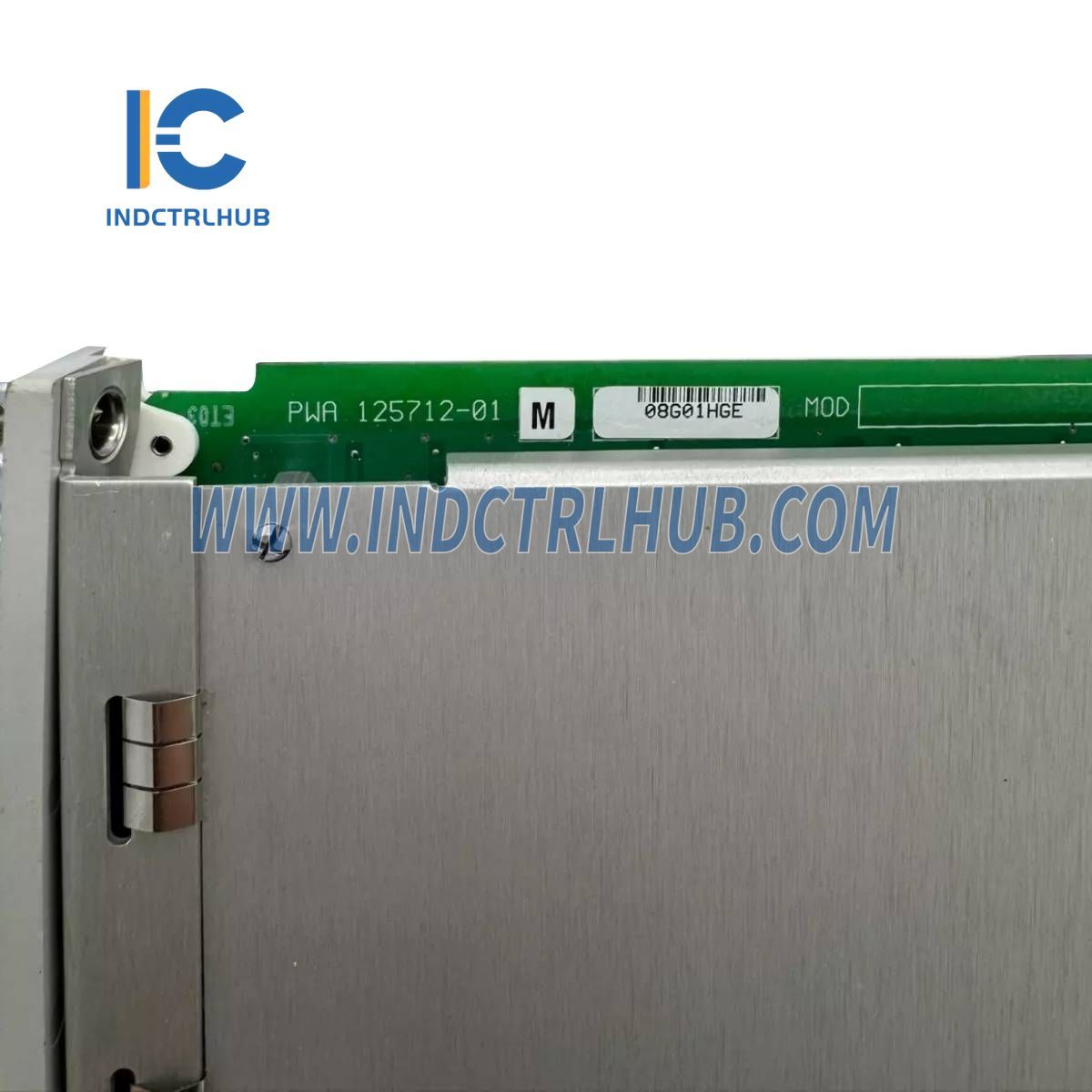

- 125712-01: Spare Main Module
Ordering Information
- Model: 3500/32 4-Channel Relay Module
- Ordering Format: 3500/32-AA-BB
- Options:
- A: Output Module
- 01: 4-Channel Relay Output Module
- B: Agency Approval Option
- 00: None
- 01: cNRTLus (Class I, Div 2)
- 02: ATEX/IECEx/CSA (Class I, Zone 2)
- A: Output Module
Specific Configuration
- Model/Part Number: 3500/32-01-00 (125712-01 + 125720-01)
- Configuration Details:
- -01: 4-Channel Relay Output Module
- -00: No agency approval
- 125712-01: Main Module
- 125720-01: 4-Channel Relay Output Module
