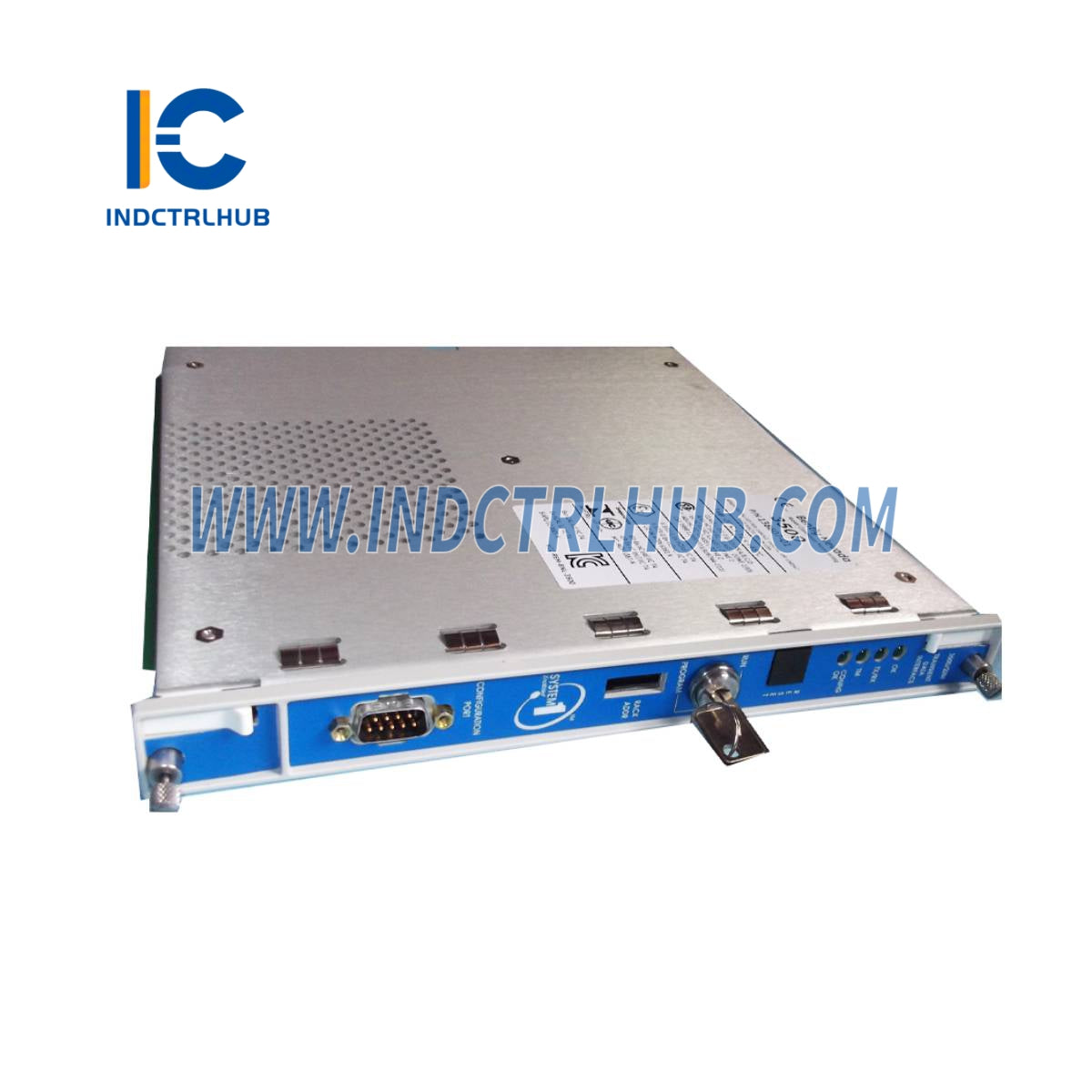

Bently Nevada 3500/22M-01-01-00 3500/22M TDI Module and I/O
Bently Nevada 3500/22M-01-01-00 3500/22M TDI Module and I/O
Manufacturer: Bently Nevada
Product No.: 3500/22M-01-01-00
Condition:1000 in stock
Product Type: 3500/22M TDI Module and I/O
Product Origin: USA
Payment: T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
3500/22M |
|
Model/Part Number |
3500/22M-01-01-00 |
Description
The_3500/22M Transient Data Interface (TDI)_serves as the interface between the_3500 monitoring system_and compatible software such as_System 1 Condition Monitoring and Diagnostic Software_and_3500 System Configuration Software. It integrates the functionality of the_3500/20 Rack Interface Module (RIM)_with the data collection capabilities of a_communication processor_like TDXnet.
Environmental Limits
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
|
Battery Life (Powered TDI) |
38 years @ 50°C (122°F) |
|
Battery Life (Unpowered TDI) |
12 years @ 50°C (122°F) |
Physical Characteristics
TDI Module
|
Parameter |
Specification |
|---|---|
|
Dimensions (H x W x D) |
241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
|
Weight |
0.91 kg (2.0 lbs) |
I/O Modules
|
Parameter |
Specification |
|---|---|
|
Dimensions (H x W x D) |
241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
|
Weight |
0.20 kg (0.44 lbs) |
Ordering Information
3500/22M TDI Module and I/O Ordering Format:
3500/22-AA-BB-CC
|
Code |
Option |
Description |
|---|---|---|
|
A: Transient Data Interface Type |
01 |
Standard (use for standard monitoring applications) |
|
B: I/O Module Type |
01 |
10Base-T/100Base-TX Ethernet |
|
02 |
100Base-FX (Fiber Optic) Ethernet |
|
|
03 |
10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts |
|
|
04 |
100Base-FX (Fiber Optic) Ethernet with gold-plated OK Relay contacts |
|
|
C: Agency Approval |
00 |
None |
|
01 |
CSA/NRTL/C (Class 1, Division 2) |
|
|
02 |
Multi (CSA, ATEX, IECEx) |
Selected Configuration: 3500/22M-01-01-00
__Transient Data Interface Type:_Standard (01)
__I/O Module Type:_10Base-T/100Base-TX Ethernet (01)
__Agency Approval:_None (00)
_
_
Check below popular items for more information in_Industrial Control Hub
|
Brand |
Model |
Description |
Link |
|---|---|---|---|
|
Bently Nevada |
3500/22M 288055-01 + 146031-01 |
TDI Module with I/O Module |
|
|
Bently Nevada |
3500/22M 288055-01 |
Transient Data Interface Module |
|
|
Bently Nevada |
3500/22 146031-01 |
Tx I/O Module |
|
|
Bently Nevada |
3500/22-01-01-01 (138607-01) |
TDI Module + I/O Module |
|
|
Bently Nevada |
3500/22M 138607-01 + 146031-01 |
Transient Data Interface Module with I/O |
|
|
Bently Nevada |
3500/22-01-01-01 (138607-01 + 146031-01) |
TDI + I/O Combination Module |
|
|
Bently Nevada |
3500/22-01-01-02 |
TDI Module and I/O |
|
|
Bently Nevada |
3500/22M-01-01-00 |
TDI Module and I/O |
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| Bently Nevada | 3500/15 Power Supply Module (127610-01 + 125840-01) | _653-1653_ | 300 | Power Supply Module |
| Bently Nevada | 3500/40M Proximitor Monitor (140734-01) | _620-1620_ | 400 | Proximitor Monitor |
| Bently Nevada | 3500/04 Earthing I/O Module (136719-01) | _571-1571_ | 500 | Earthing I/O Module |
| Bently Nevada | 3500/25 Enhanced Keyphasor Module (125792-01) | _556-1556_ | 600 | Enhanced Keyphasor Module |
| Bently Nevada | 3500/45 Position Monitor Module (140072-04) | _538-1538_ | 700 | Position Monitor Module |
| Bently Nevada | 3300/55 Dual Velocity Monitor (01-13-13-00-01) | _489-1489_ | 200 | Dual Velocity Monitor |
Product Description
General Information
|
Manufacturer |
