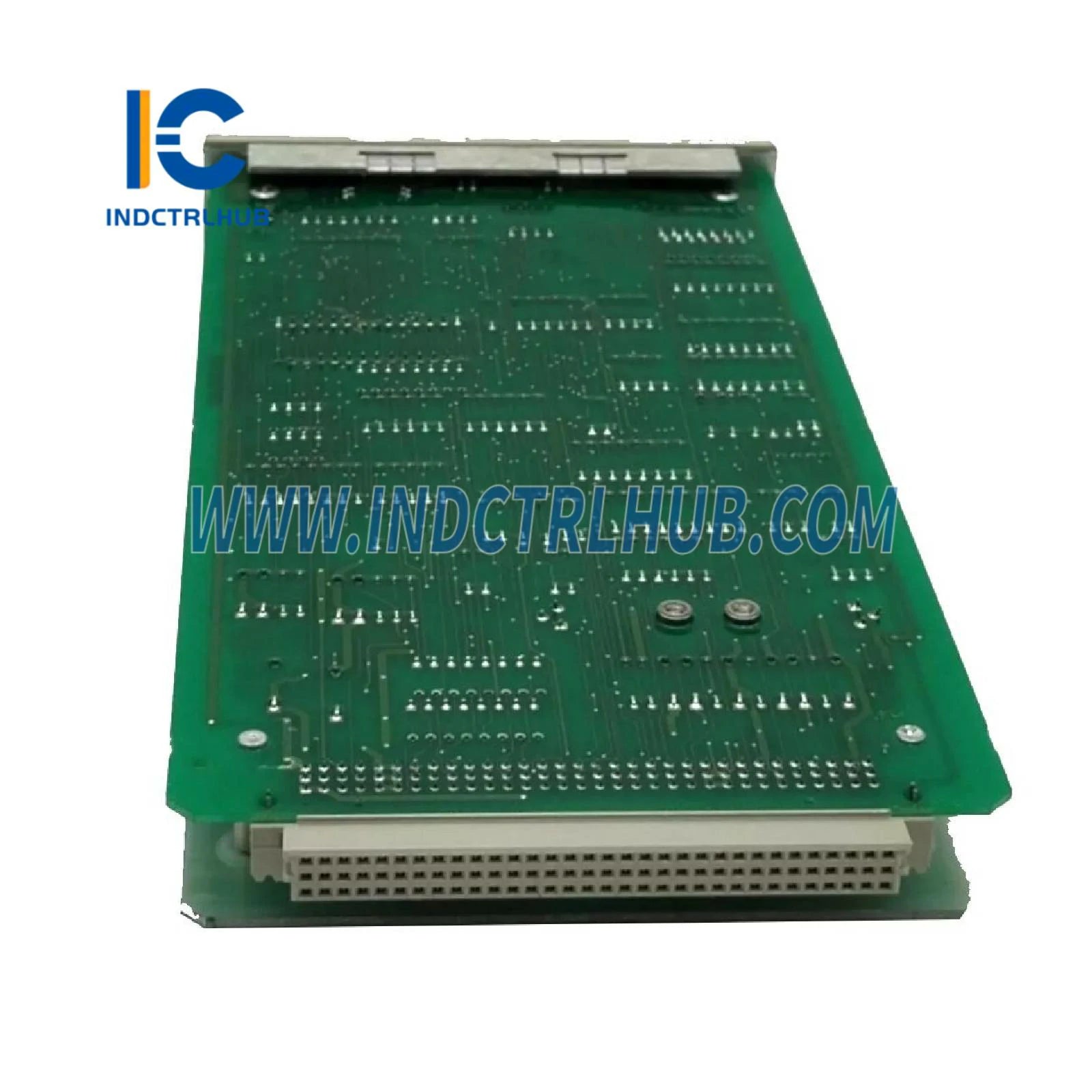

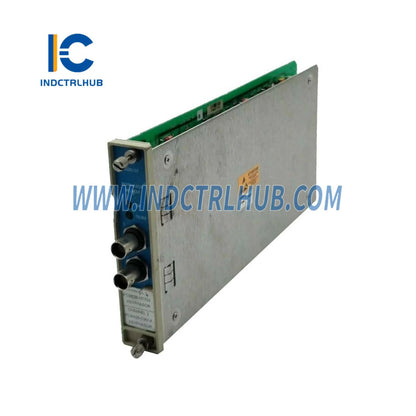

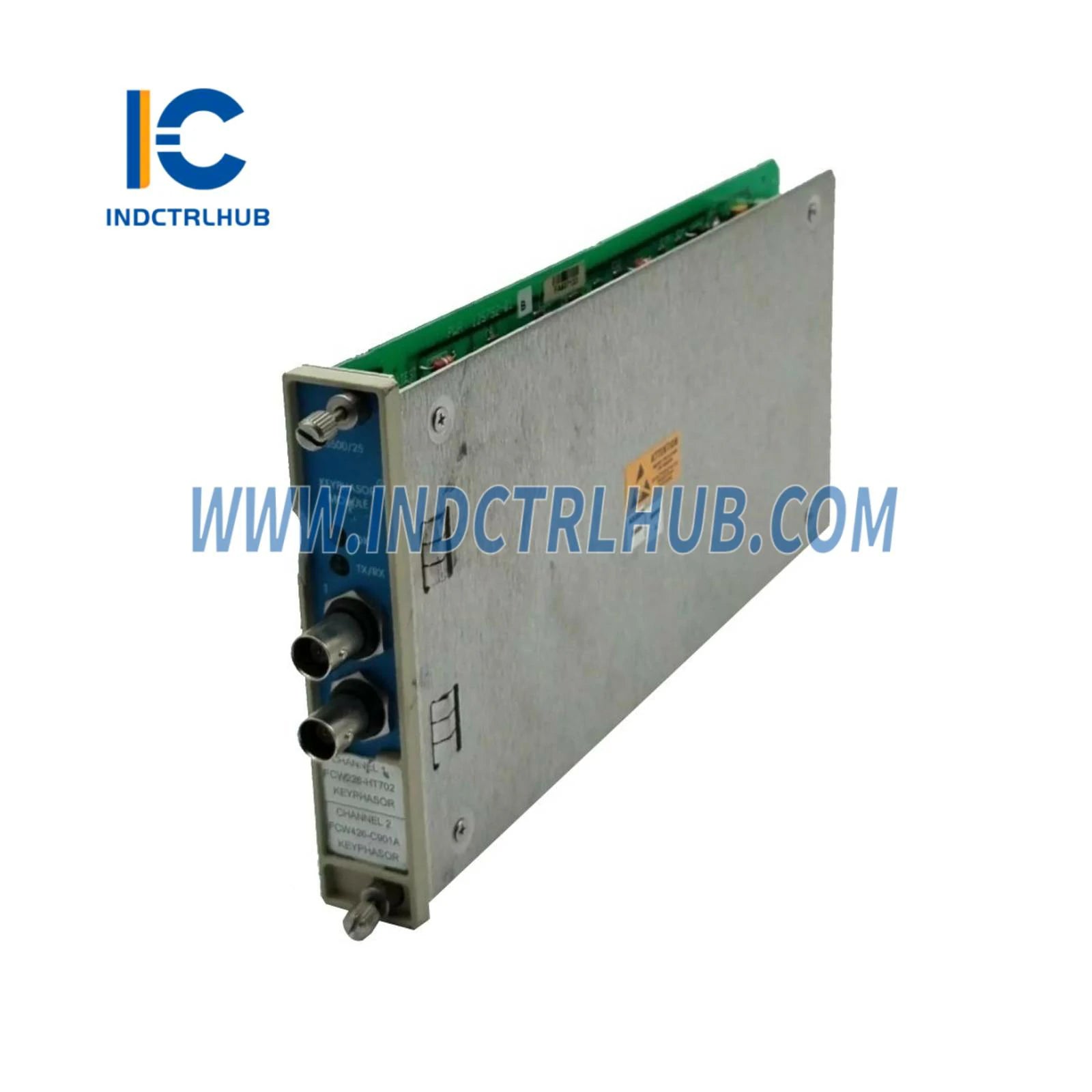

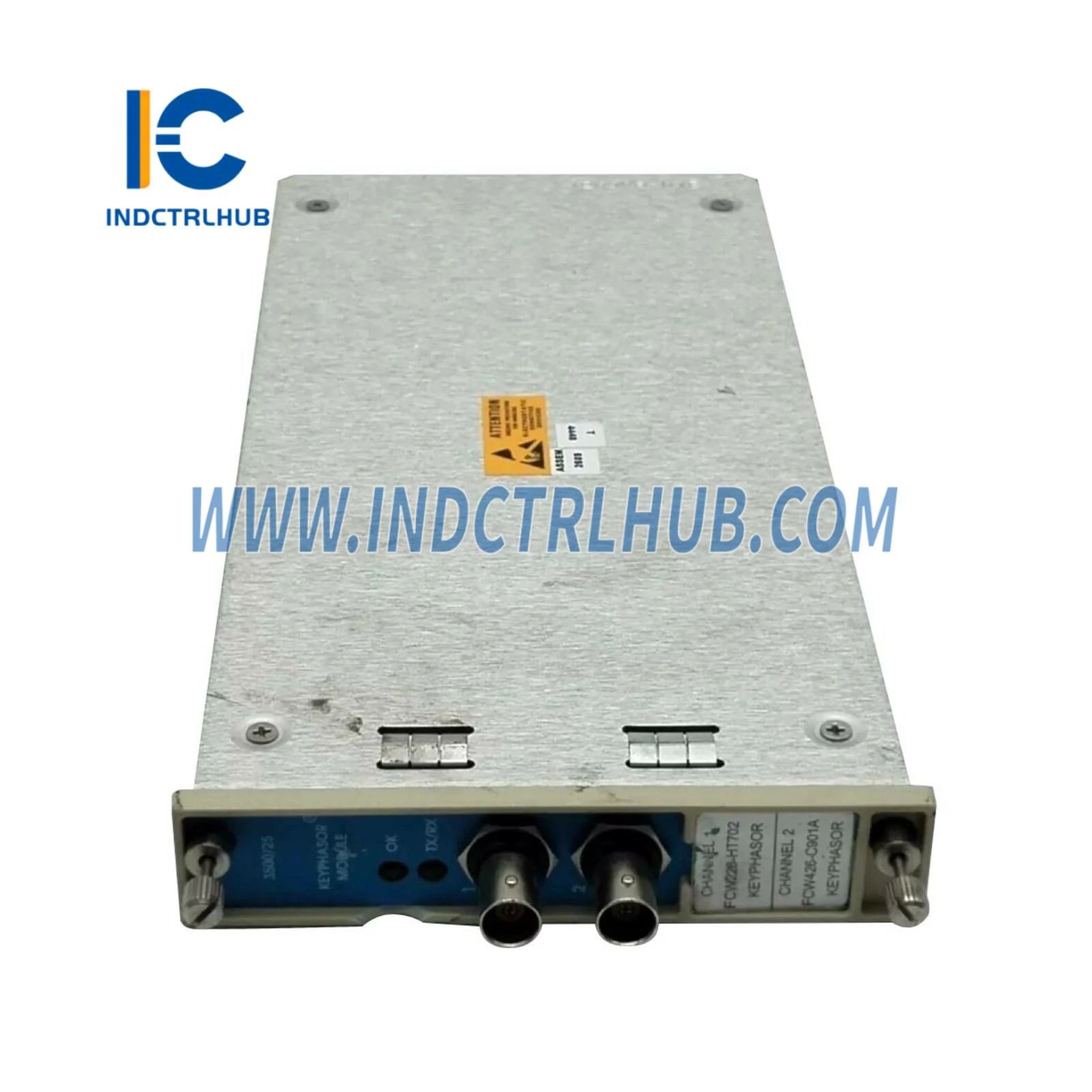

Bently Nevada 3500/25 125792-01 Enhanced Keyphasor Module

Bently Nevada 3500/25 125792-01 Enhanced Keyphasor Module

  • Manufacturer: Bently Nevada

  • Product No.: 125792-01

  • Condition:1000 in stock

  • Product Type: Enhanced Keyphasor Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 340g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer Bently Nevada
Model/Part Number 125792-01
Description 3500/25 Enhanced Keyphasor Module

Product Description

The Bently Nevada 3500/25 Enhanced Keyphasor Module is designed to process up to two transducer signals per module for high-precision shaft rotative speed and phase reference measurements. It supports various transducer types, including proximity probes and magnetic pickups, making it a versatile solution for industrial monitoring applications.

Specifications

Inputs

Parameter Description
Power Consumption 3.2 Watts (typical)
Signal Input Accepts up to two transducer signals per module:
- Input Range (Non-Isolated I/O): +0.8 V to -21.0 V
- Input Range (Isolated I/O): +5 V to -11 V
- Signals outside these ranges are limited internally.
- Passive magnetic pickups require shaft rotative speeds >200 rpm (3.3 Hz).
Input Impedance 21.8 kΩ minimum

Environmental Limits

Condition Temperature Range
Operating Temperature -30°C to +65°C (-22°F to +150°F) (with Keyphasor I/O Module, except Internal Barrier version)
0°C to +65°C (32°F to +150°F) (with Keyphasor Internal Barrier I/O Module)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity 95%, non-condensing

Physical Dimensions

Main Module:

Height Width Depth Weight
119.9 mm 24.4 mm 256.5 mm 0.34 kg (0.76 lbs.)

I/O Module:

Height Width Depth Weight
241.3 mm 24.4 mm 103.1 mm 0.46 kg (1.01 lbs.)

Ordering Information

Part Number Description
3500/25-AA-BB-CC Enhanced Keyphasor Module with configurable options

Configuration Options

  • A: Number of Channels

    • 01: Single half-height 2-channel Keyphasor card (2 channels)
    • 02: Two half-height 2-channel Keyphasor cards (4 channels)

  • B: Type of I/O Module

    • 01: I/O module with Internal Terminations
    • 02: I/O module with External Terminations
    • 03: Internal Barrier I/O with Internal Terminations
    • 04: Isolated I/O module with Internal Terminations (for Magnetic Pickups)
    • 05: Isolated I/O module with External Terminations (for Magnetic Pickups)

  • C: Agency Approval Option

    • 00: Not required
    • 01: cNRTLus (Class 1, Div 2)
    • 02: ATEX/IECEx/CSA (Class 1 Zone 2)
Check below popular items for more information in  Industrial Control Hub
Brand Description  Price (USD)  Stock Link
Bently Nevada 3500/15 Power Supply Module (133292-01)  1774-2774  500 Power Supply Module
Bently Nevada P1407030-00100 Proximity Probe  0-950  200 Proximity Probe
Bently Nevada 130118-0010-02 Electrical Cable Wire  44-1044  300 Electrical Cable Wire
Bently Nevada 21747-075-00 Probe Extension Cable  499-1499  200 Probe Extension Cable
Bently Nevada 3300/20 PLC Module Rack (12-01-01-00-00)  36-1036  400 PLC Module Rack
Bently Nevada 330103-00-13-10-12-00 3300 XL 8 mm Proximity Probes  0-920  500 3300 XL 8 mm Proximity Probes
Bently Nevada 330180-12-05 3300 XL Proximitor Sensor 724-1724 400 3300 XL Proximitor Sensor
Bently Nevada P1407030-02006 Proximity Probe  0-957  700 Proximity Probe
View full details

Product Description

Product Details

Manufacturer Bently Nevada
Model/Part Number 125792-01
Description 3500/25 Enhanced Keyphasor Module

Product Description

The Bently Nevada 3500/25 Enhanced Keyphasor Module is designed to process up to two transducer signals per module for high-precision shaft rotative speed and phase reference measurements. It supports various transducer types, including proximity probes and magnetic pickups, making it a versatile solution for industrial monitoring applications.

Specifications

Inputs

Parameter Description
Power Consumption 3.2 Watts (typical)
Signal Input Accepts up to two transducer signals per module:
- Input Range (Non-Isolated I/O): +0.8 V to -21.0 V
- Input Range (Isolated I/O): +5 V to -11 V
- Signals outside these ranges are limited internally.
- Passive magnetic pickups require shaft rotative speeds >200 rpm (3.3 Hz).
Input Impedance 21.8 kΩ minimum

Environmental Limits

Condition Temperature Range
Operating Temperature -30°C to +65°C (-22°F to +150°F) (with Keyphasor I/O Module, except Internal Barrier version)
0°C to +65°C (32°F to +150°F) (with Keyphasor Internal Barrier I/O Module)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity 95%, non-condensing

Physical Dimensions

Main Module:

Height Width Depth Weight
119.9 mm 24.4 mm 256.5 mm 0.34 kg (0.76 lbs.)

I/O Module:

Height Width Depth Weight
241.3 mm 24.4 mm 103.1 mm 0.46 kg (1.01 lbs.)

Ordering Information

Part Number Description
3500/25-AA-BB-CC Enhanced Keyphasor Module with configurable options

Configuration Options

  • A: Number of Channels

    • 01: Single half-height 2-channel Keyphasor card (2 channels)
    • 02: Two half-height 2-channel Keyphasor cards (4 channels)

  • B: Type of I/O Module

    • 01: I/O module with Internal Terminations
    • 02: I/O module with External Terminations
    • 03: Internal Barrier I/O with Internal Terminations
    • 04: Isolated I/O module with Internal Terminations (for Magnetic Pickups)
    • 05: Isolated I/O module with External Terminations (for Magnetic Pickups)

  • C: Agency Approval Option

    • 00: Not required
    • 01: cNRTLus (Class 1, Div 2)
    • 02: ATEX/IECEx/CSA (Class 1 Zone 2)
Check below popular items for more information in  Industrial Control Hub
Brand Description  Price (USD)  Stock Link
