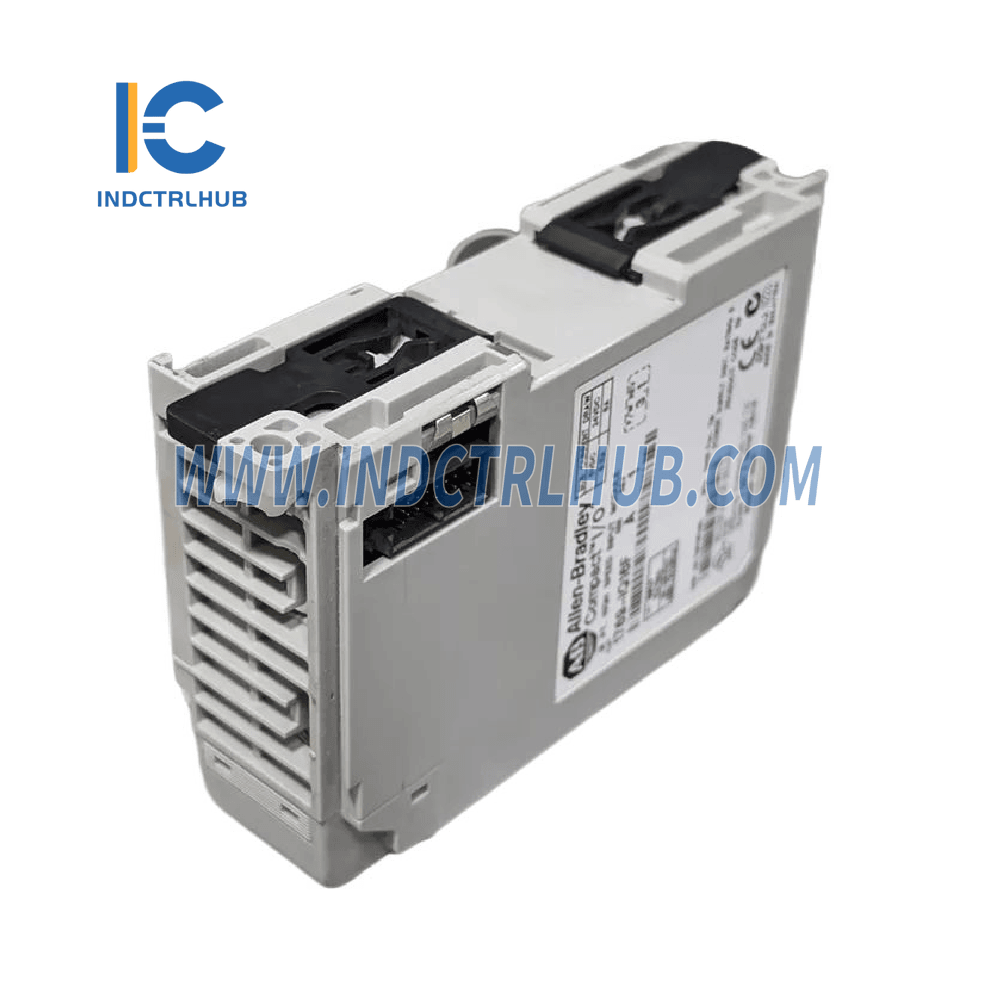

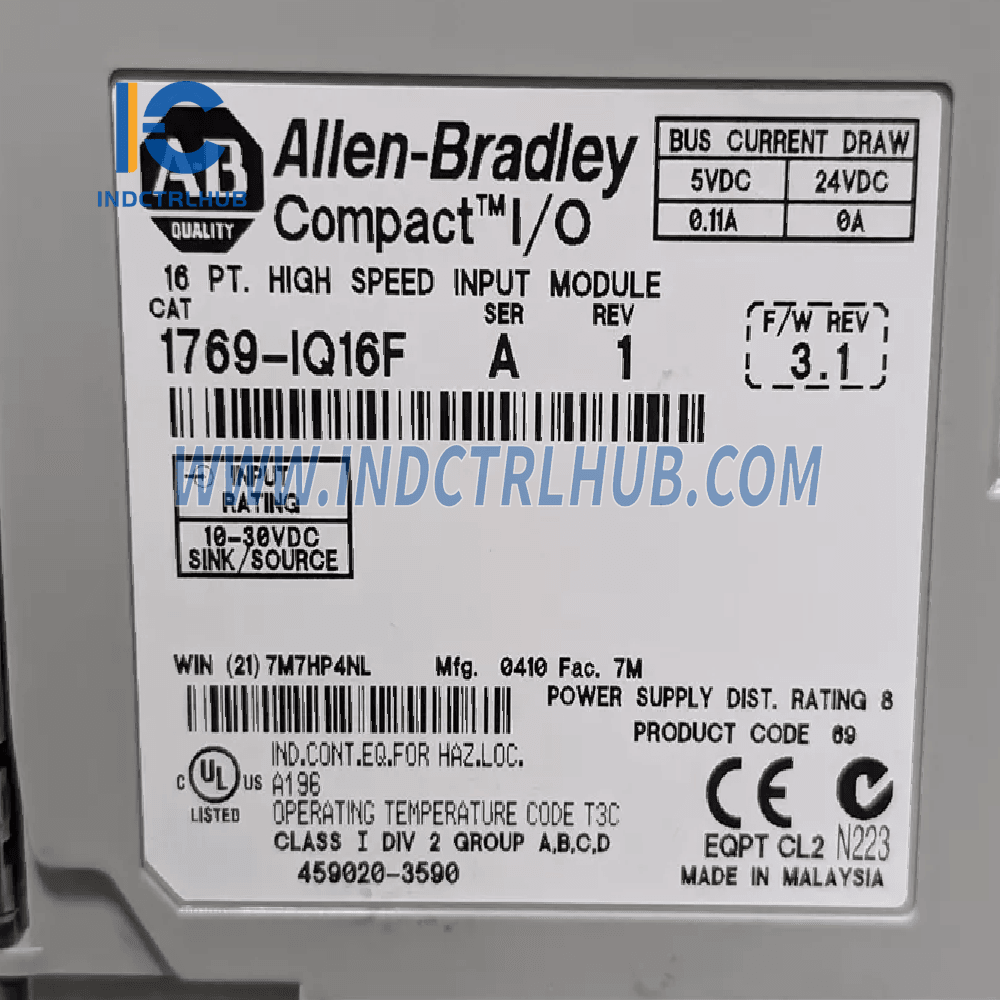

Allen-Bradley 1769-IQ16F Compact I/O Module
Manufacturer: Allen-Bradley
Model/Part Number: 1769-IQ16F
Description: Compact I/O Module for Industrial Automation Systems
Technical Specifications
| Attribute | Specification |
|---|---|
| Inputs | 16 (8 points/group) |
| Voltage Category | 24V DC sink/source |
| Operating Voltage Range | 10…30V DC @ 30°C (86°F), 10…26.4V DC @ 60°C (140°F) |
| Digital Filter (Off to On) | 0 s, 100 ms, 500 ms, 1 ms, 2 ms |
| Digital Filter (On to Off) | 0 s, 100 ms, 500 ms, 1 ms, 2 ms |
| Input Delay (Off to On) | 100 ms (typical), 300 ms (max) |
| Input Delay (On to Off) | 250 ms (typical), 1 ms (max) |
| Current Draw @ 5.1V | 110 mA |
| Heat Dissipation (max) | 3.55 W |
| Off-State Voltage (max) | 5V DC |
| Off-State Current (max) | 1.5 mA |
| On-State Voltage (min) | 10V DC |
| On-State Current (min) | 2 mA |
| Inrush Current (max) | 250 mA |
| Input Impedance (nom) | 3 kΩ |
| Isolation Voltage | Verified by one of these dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, input point to bus and group to group |
| Working Voltage (IEC Class II) | 75V DC |
| Weight | 270 g (0.60 lb) |
| Dimensions (HxWxD) | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) |
| Height with Mounting Tabs | 138 mm (5.43 in.) |
| Slot Width | 1 Module |
| Module Location | DIN rail or panel mount |
| Power Supply Compatibility | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Power Supply Distance Rating | 8 modules |
| Terminal Screw Torque | 0.68 N•m (6 lb•in) |
| Retaining Screw Torque | 0.46 N•m (4.1 lb•in) |
| Wire Size | Solid: 22…14 AWG, Stranded: 22…16 AWG |
| Wire Type | Cu-90°C (194°F) |
| IEC Input Compatibility | Type 1+ |
| Replacement Terminal Block | 1769-RTBN18 (1 per kit) |
| Replacement Door Label | 1769-RL1 (2 per kit) |
| Replacement Door | 1769-RD (2 per kit) |
| Vendor ID Code | 1 |
| Product Type Code | 7 |
| Product Code | 69 |
| Enclosure Type Rating | None (open-style) |
Environmental and Mechanical Specifications
| Attribute | Specification |
|---|---|
| Operating Temperature | 0…60°C (32…140°F) |
| Non-operating Temperature | -40…+85°C (-40…+185°F) |
| Relative Humidity | 5…95% non-condensing (IEC 60068-2-30 Test Db) |
| Vibration (Operating) | 5 g @ 10…500 Hz (IEC 60068-2-6 Test Fc) |
| Vibration (Relay Operating) | 2 g @ 10…500 Hz |
| Shock (Operating) | 30 g (panel mount), 20 g (DIN rail mount) (IEC 60068-2-27 Test Ea) |
| Shock (Relay Operating) | 7.5 g (panel mount), 5 g (DIN rail mount) (IEC 60068-2-27 Test Ea) |
| Shock (Non-operating) | 40 g (panel mount), 30 g (DIN rail mount) (IEC 60068-2-27 Test Ea) |
