Product Description
Product Overview

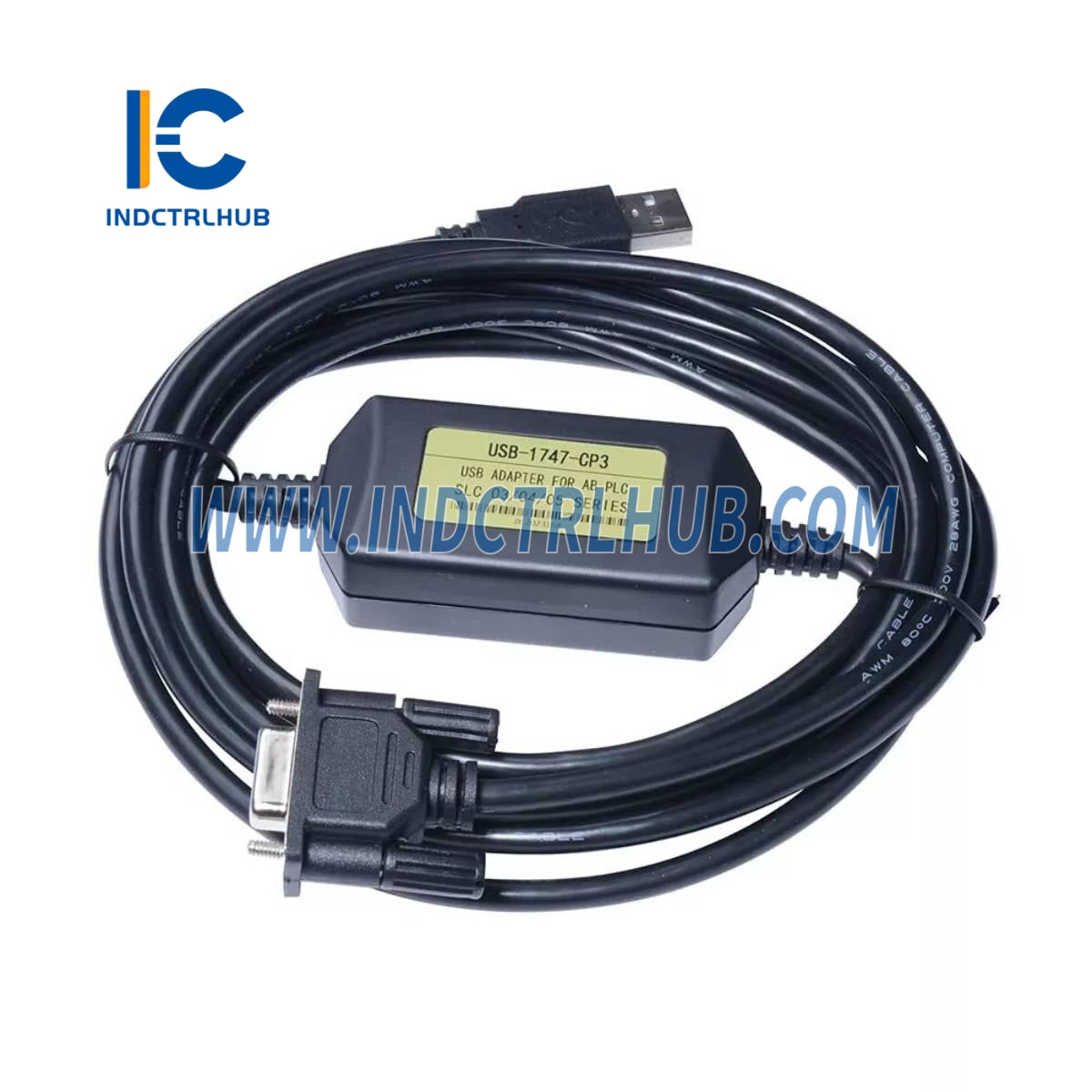

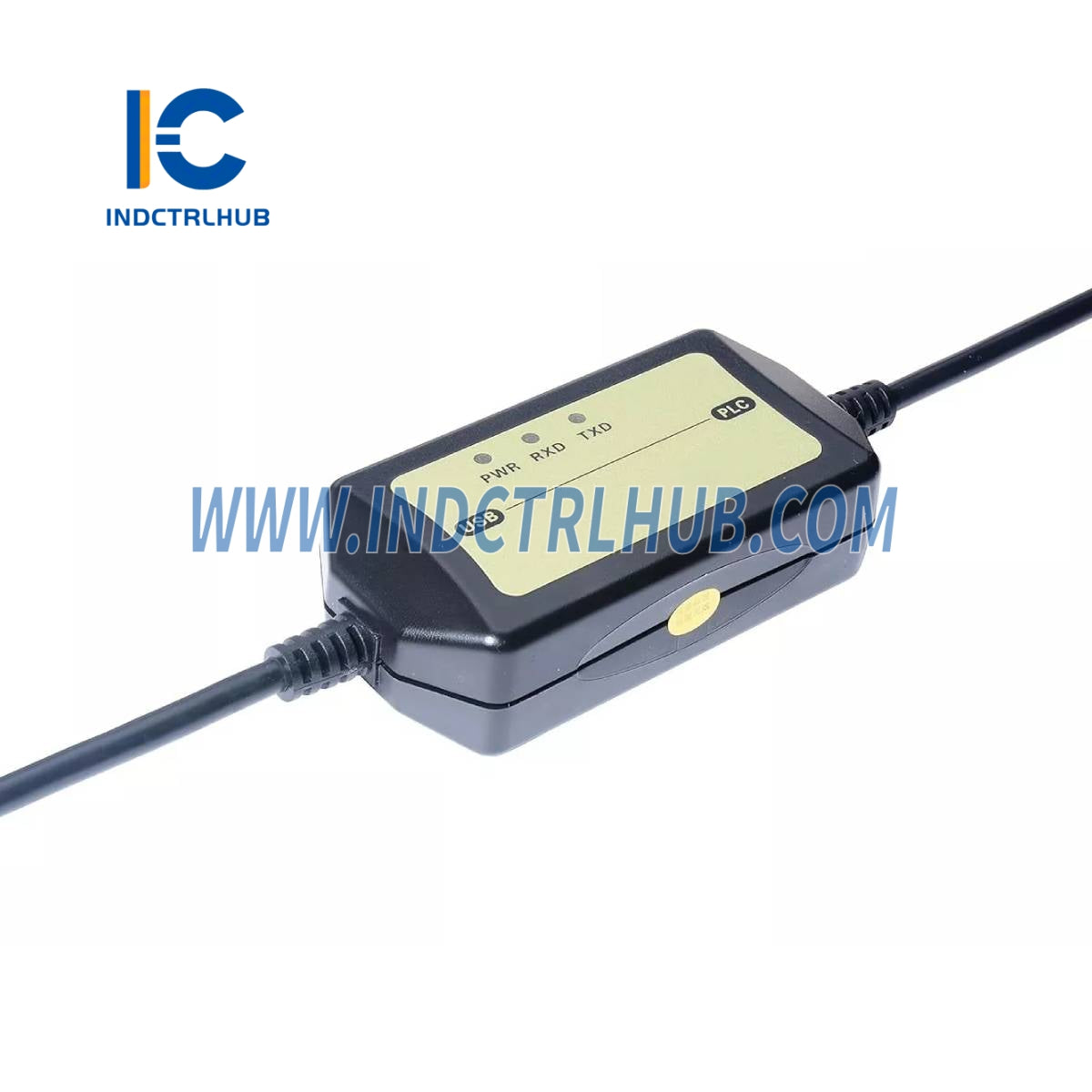

The Allen-Bradley 1747-CP3 is an SLC 500 Programmer Cable designed for industrial automation applications within Rockwell Automation systems. Manufactured by Allen-Bradley (a Rockwell Automation brand), this cable connects a personal computer’s serial port to an SLC 500 processor, enabling programming, configuration, and troubleshooting via software like RSLogix 500. It is built for reliable data transfer in environments such as manufacturing plants, process industries, and industrial machinery, serving as a critical accessory for SLC 500 system maintenance and development.
Technical Specifications
The 1747-CP3 has the following specifications based on supplier data from Rockwell Automation and industry sources:
| Item | Specification |
|---|---|
| Model/Part Number | 1747-CP3 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | SLC 500 Programmer Cable |
| Series | SLC 500 |
| Length | 9.8 ft (3 m) |
| Connector Types | 9-pin DB-9 female (to PC serial port), 9-pin DB-9 male (to SLC processor) |
| Communication | RS-232 serial, up to 19.2 kbaud |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.14 kg (0.31 lbs) |
Additional Details
The 1747-CP3 includes the following additional information based on supplier documentation:
| Category | Details |
|---|---|
| Function | Connects PC to SLC 500 processor for programming and diagnostics |
| Compatibility | SLC 5/03, 5/04, 5/05 processors (Channel 0), 1756-DHRIO, 1761-NET-AIC with adapter |
| Construction | Shielded cable with molded connectors |
| Features | Pre-assembled, right-angle DB-9 connector for space-saving connection |
| Certifications | CE, cULus |
