Product Description
🔹 General Information
|
Category |
Details |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model/Part Number |
1763-L16DWD |
|
Series |
MicroLogix 1100 |
|
Description |

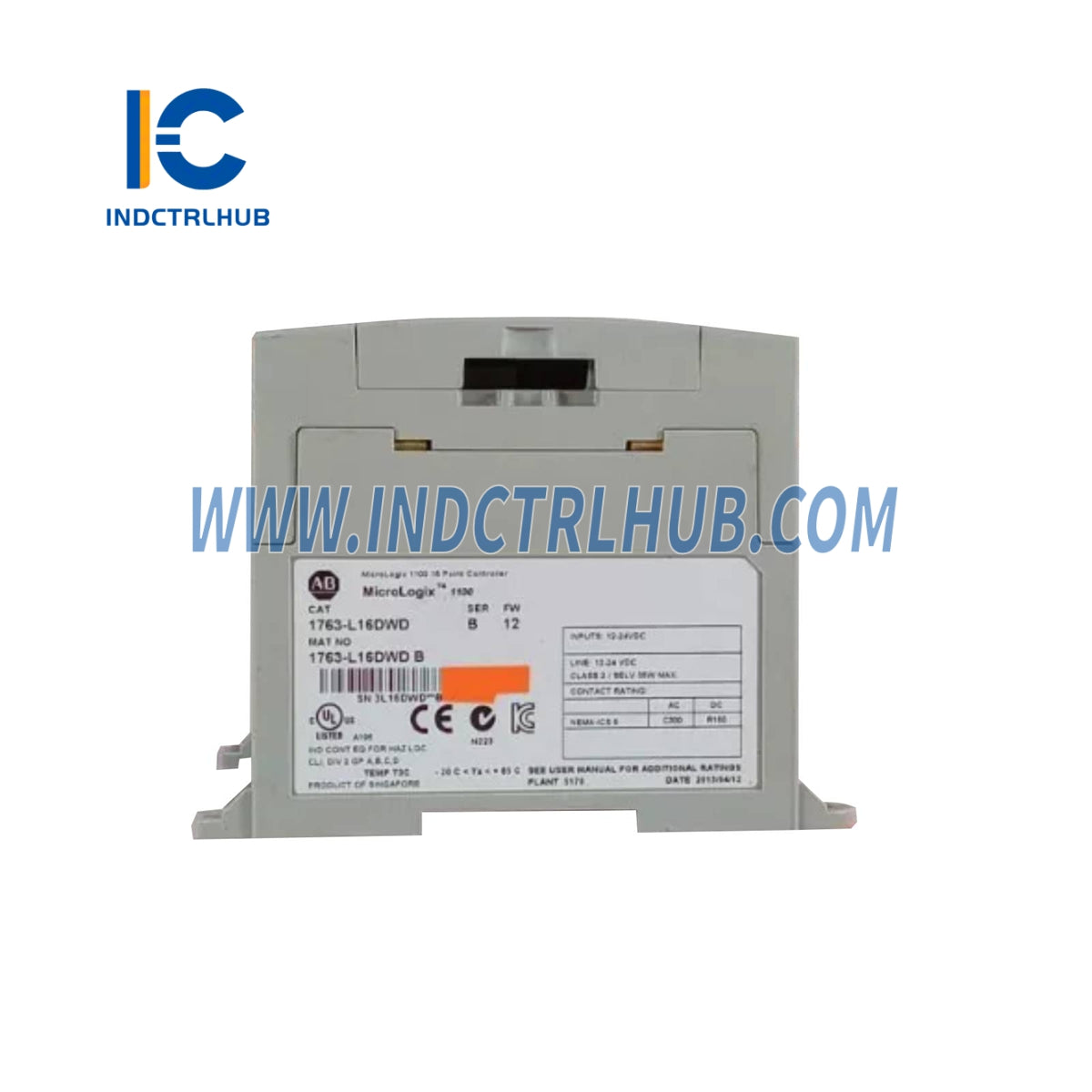

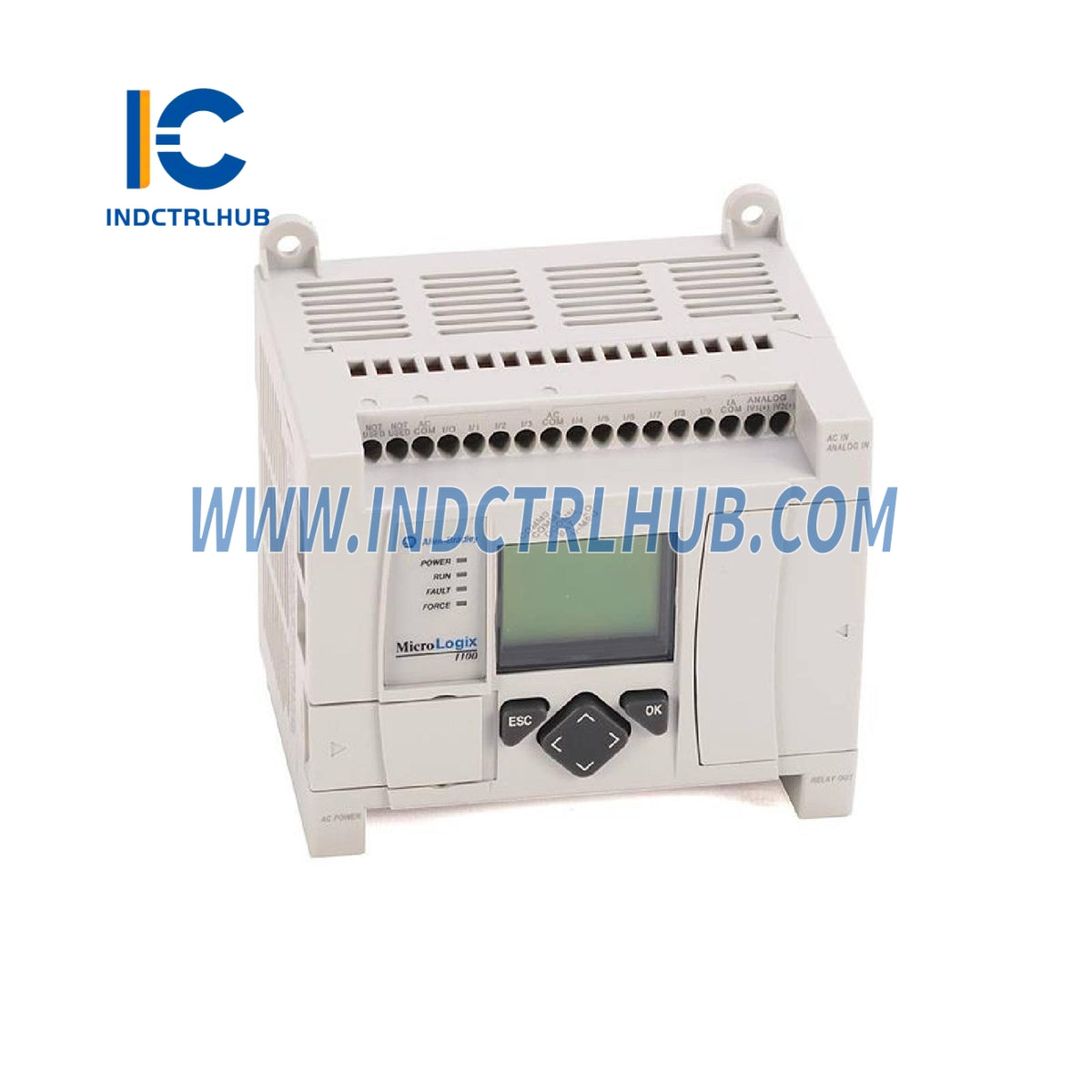

Compact MicroLogix PLC with 12/24V DC input, mixed relay & DC outputs, embedded Ethernet & LCD |

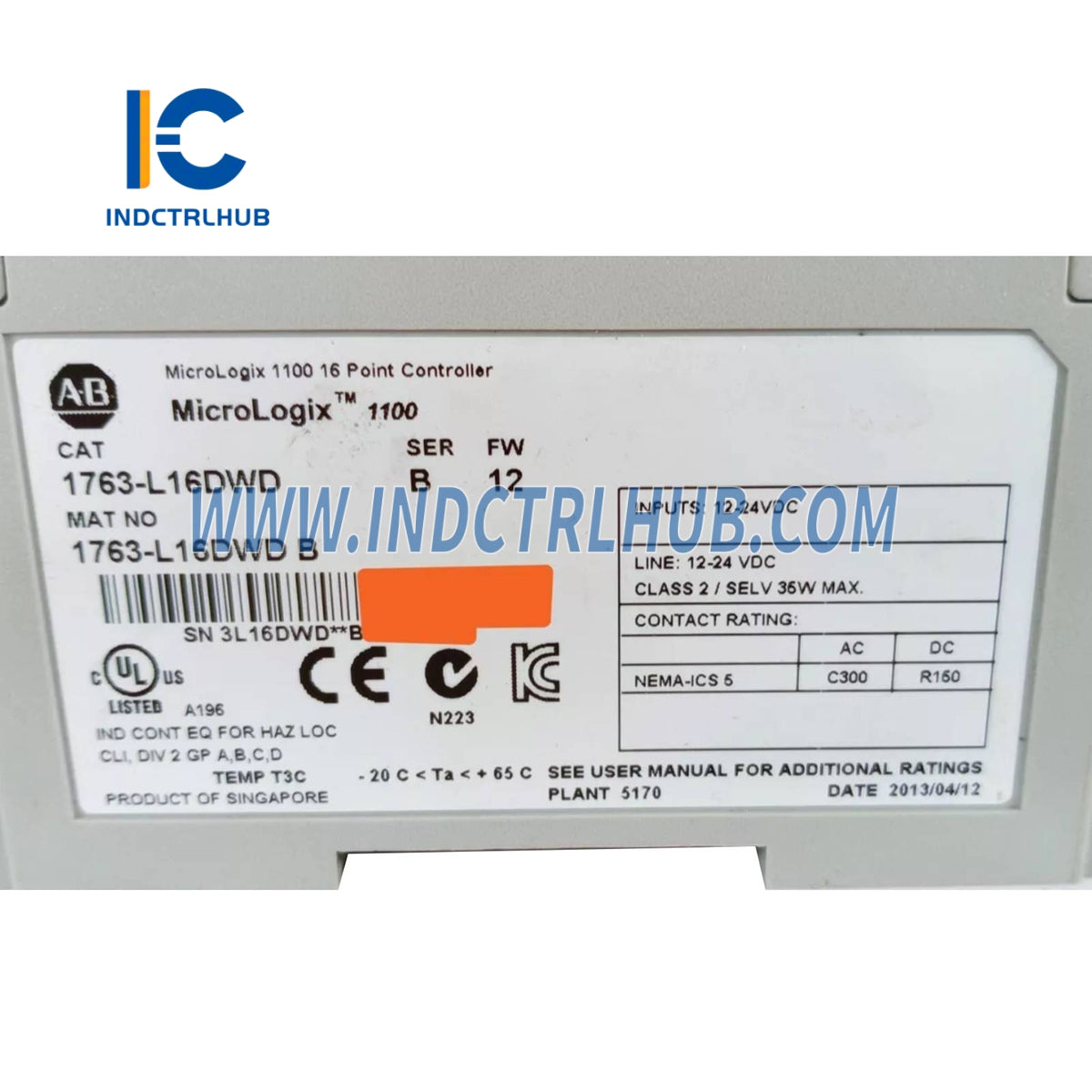

🔹 Technical Specifications
|
Attribute |
Details |
|---|---|
|
Input Power |
12V DC – 24V DC |
|
Memory |
Non-volatile, battery-backed RAM |
|
User Program/User Data |
4K / 4K |
|
Data Logging / Recipe Storage |
Up to 128 KB for data logging, up to 64 KB for recipe (shared memory space) |
|
Battery Backup |
Yes |
|
Backup Memory Module Support |
Yes |
|
Digital Inputs |
6 digital inputs (12V/24V DC), 4 fast inputs (12V/24V DC) |
|
Analog Inputs (Embedded) |
2 channels (local), expandable with 1762 analog modules |
|
Digital Outputs |
6 relay outputs |
|

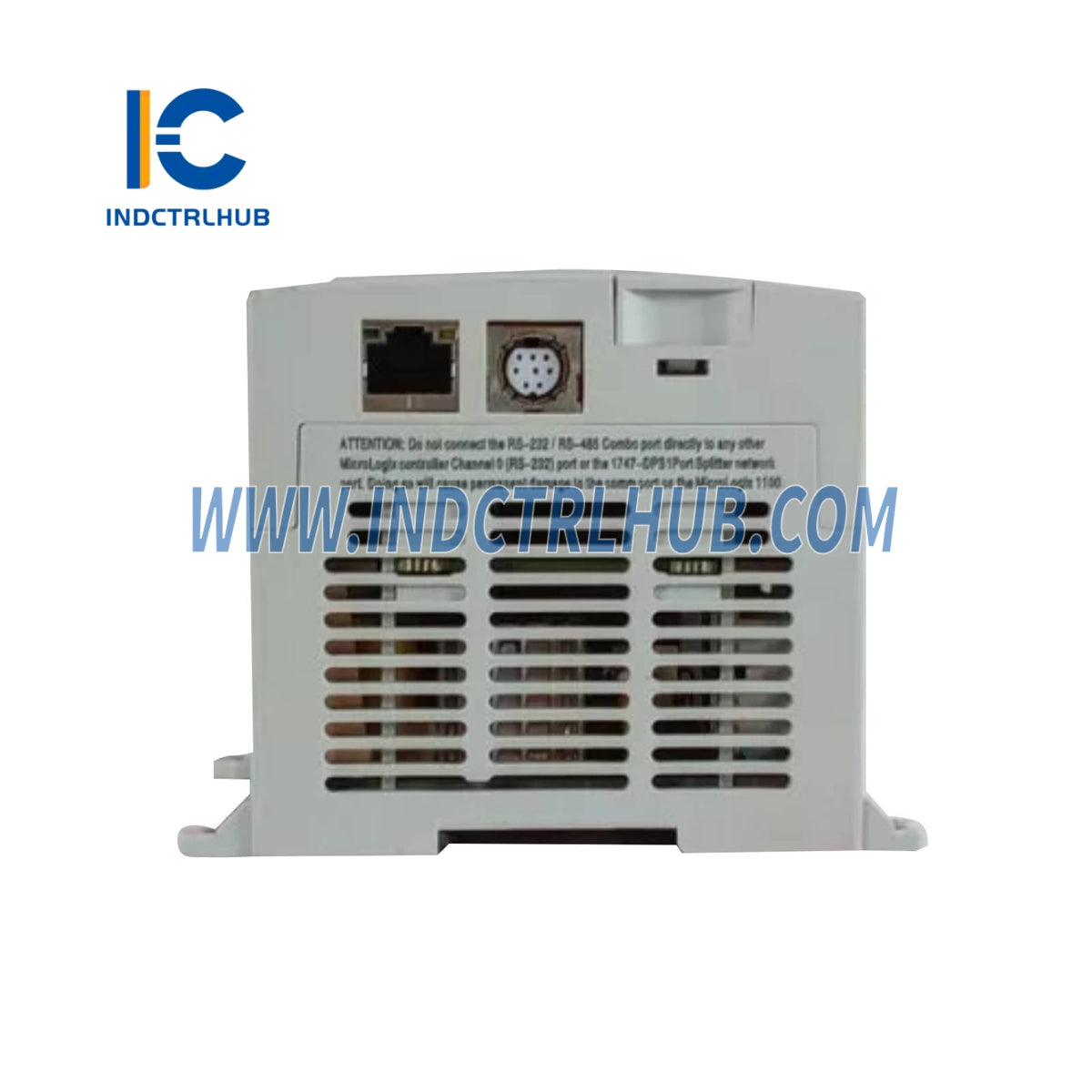

Serial Port |
1 x RS-232/RS-485 Combo Port |
|
Serial Protocols |
DF1 (Full Duplex, Half Duplex Master/Slave), DF1 Radio Modem, DH-485, Modbus RTU (Master/Slave), ASCII |
|
Ethernet Port |
1 x 10/100 Mbps Ethernet |
|
Ethernet Protocols |
EtherNet/IP (messaging only) |
|
Trim Potentiometers |
2 digital |
|
High-Speed Inputs (Pulse Catch) |
4 inputs @ 40 kHz (1 channel) |
|
Real-Time Clock |
Yes (embedded) |
|
PID Control |
Yes (multiple loops, limited by memory) |
|
PWM / PTO |
2 outputs @ 40 kHz |
|
Dual Axis Servo Control |
Via embedded PTO |
|
Embedded LCD Display |
Yes |
|
Floating Point Math Support |
Yes |
|
Online Editing |
Yes |
|
Operating Temperature |
-20°C to +65°C (-4°F to +149°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
