Product Description
Product Details

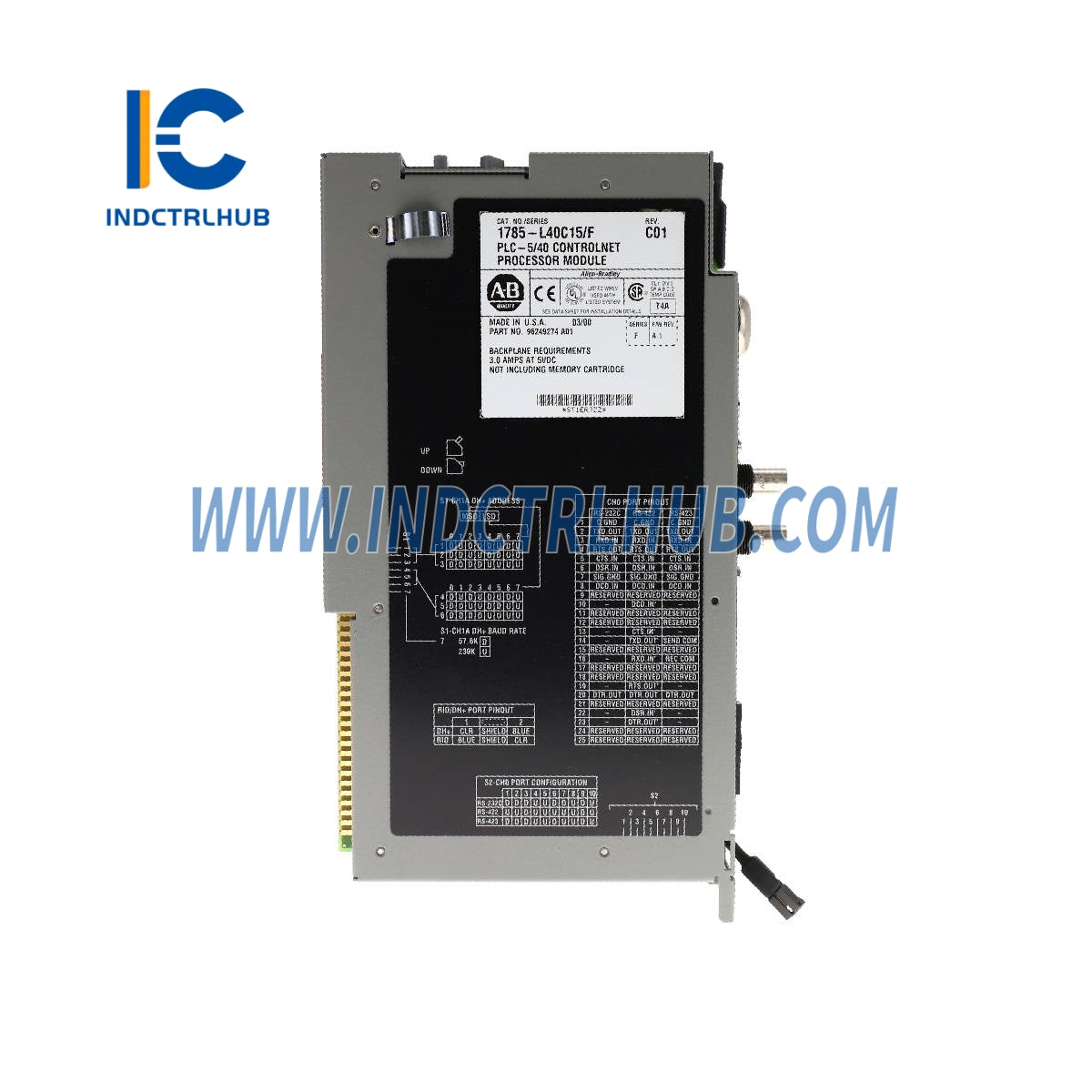

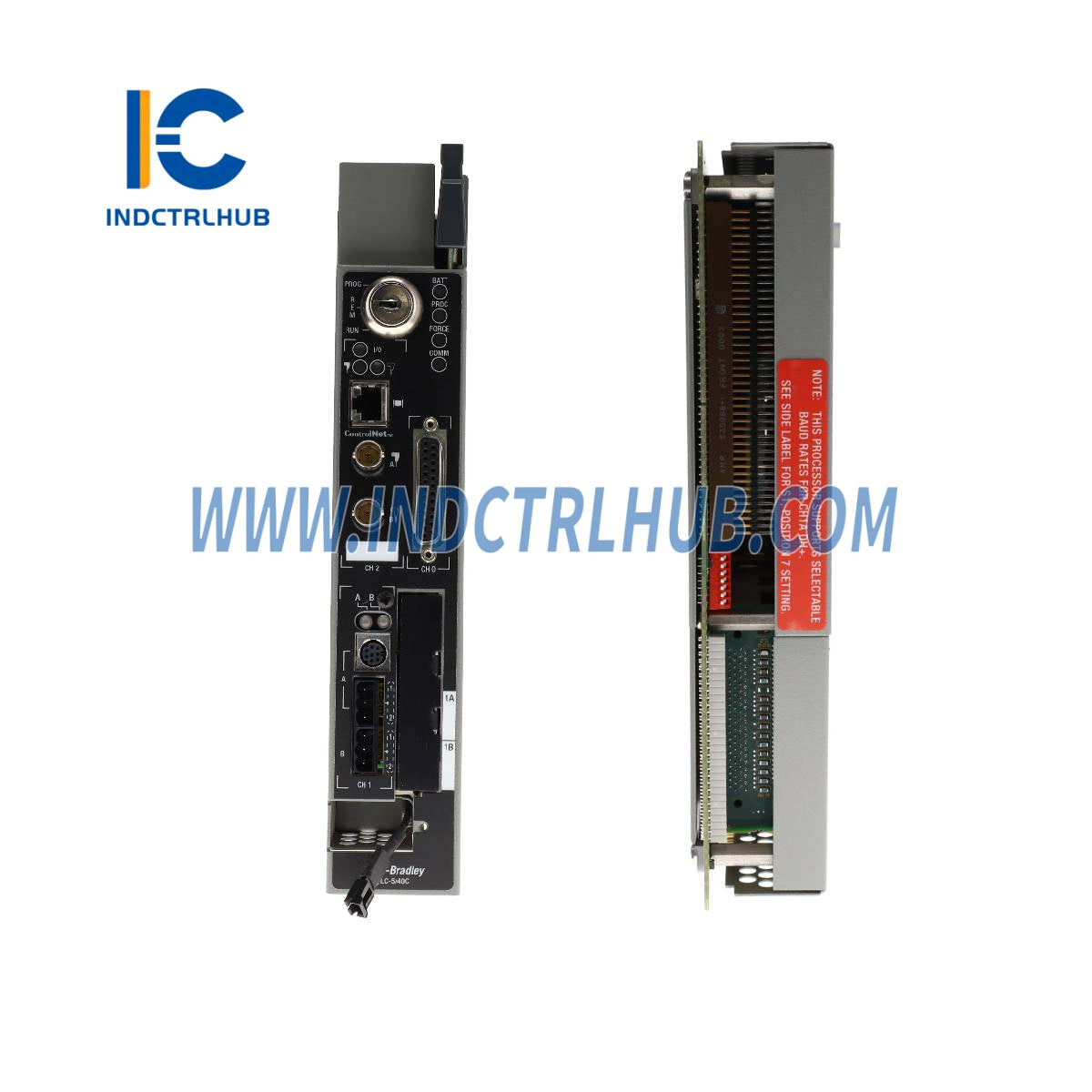

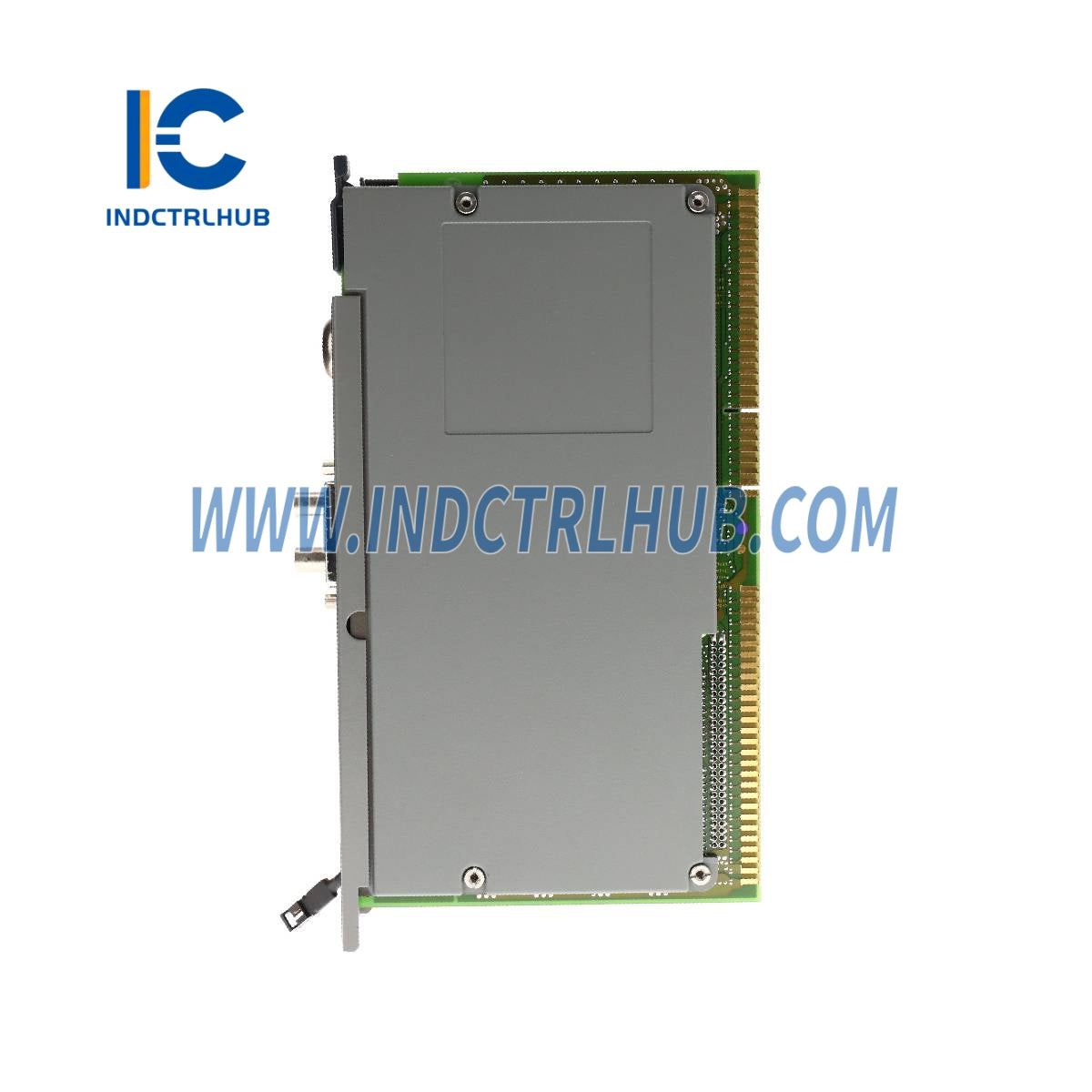

Manufacturer: Allen-Bradley
Model/Part Number: 1785-L40C15
Description: PLC-5 ControlNet 1.5 Processor
Processor Specifications
|
Attribute |
Value |
|---|---|
|
Backplane Current |
3.3A @ 5V DC |
|
Heat Dissipation |
59 BTU/hour |
|
Operating Temperature |
0 to 60°C (32 to 140°F) |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
|
Relative Humidity |
5–95% (non-condensing) |
|
Vibration Resistance |
2g @ 10–500Hz |
|
Shock Resistance |
Operating: 30g Non-operating: 50g |
|
Emissions Compliance |
CISPR 11: Group 1, Class A |
|
ESD Immunity |
4kV contact discharges |
|
Radiated RF Immunity |
10V/m, 3V/m Broadcast Bands, with 1kHz sine-wave 80% AM (30MHz to 1000MHz) |
|
EFT/B Immunity |
+2kV at 5kHz on communications ports |
|
Surge Transient Immunity |
+2kV line-earth (CM) on signal ports |
|
Conducted RF Immunity |
10Vrms with 1kHz sine-wave 80% AM (150kHz to 30MHz) |
|
Enclosure Type Rating |
None (open style) |
|
Time-of-Day Clock/Calendar |
± 5 min per month at 60°C ± 20 s per month at 20°C Timing Accuracy: 1 program scan |
|
Available Cartridges |
1785-CHBM ControlNet Hot Backup Cartridge (for hot backup systems) 1785-RC Relay Cartridge |
|
Battery |
Allen-Bradley 1770-XYC |
|
Memory Modules |
1785-ME32 1785-ME64 1785-M100 |
|
Compatible I/O Modules |
Bulletin 1771 I/O, 1794 I/O, 1746 I/O, and 1791 I/O (8-, 16-, 32-pt, and intelligent modules) |
