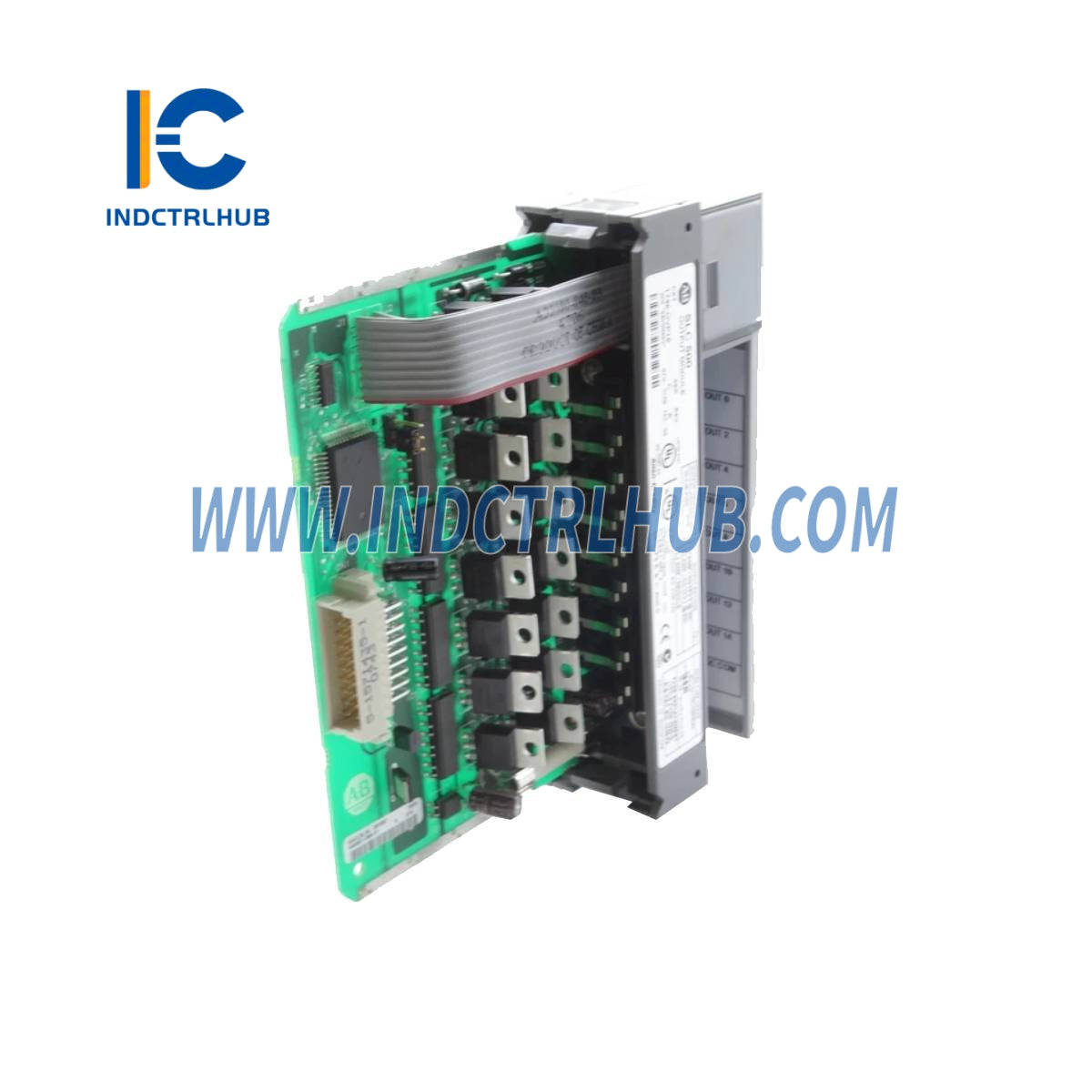

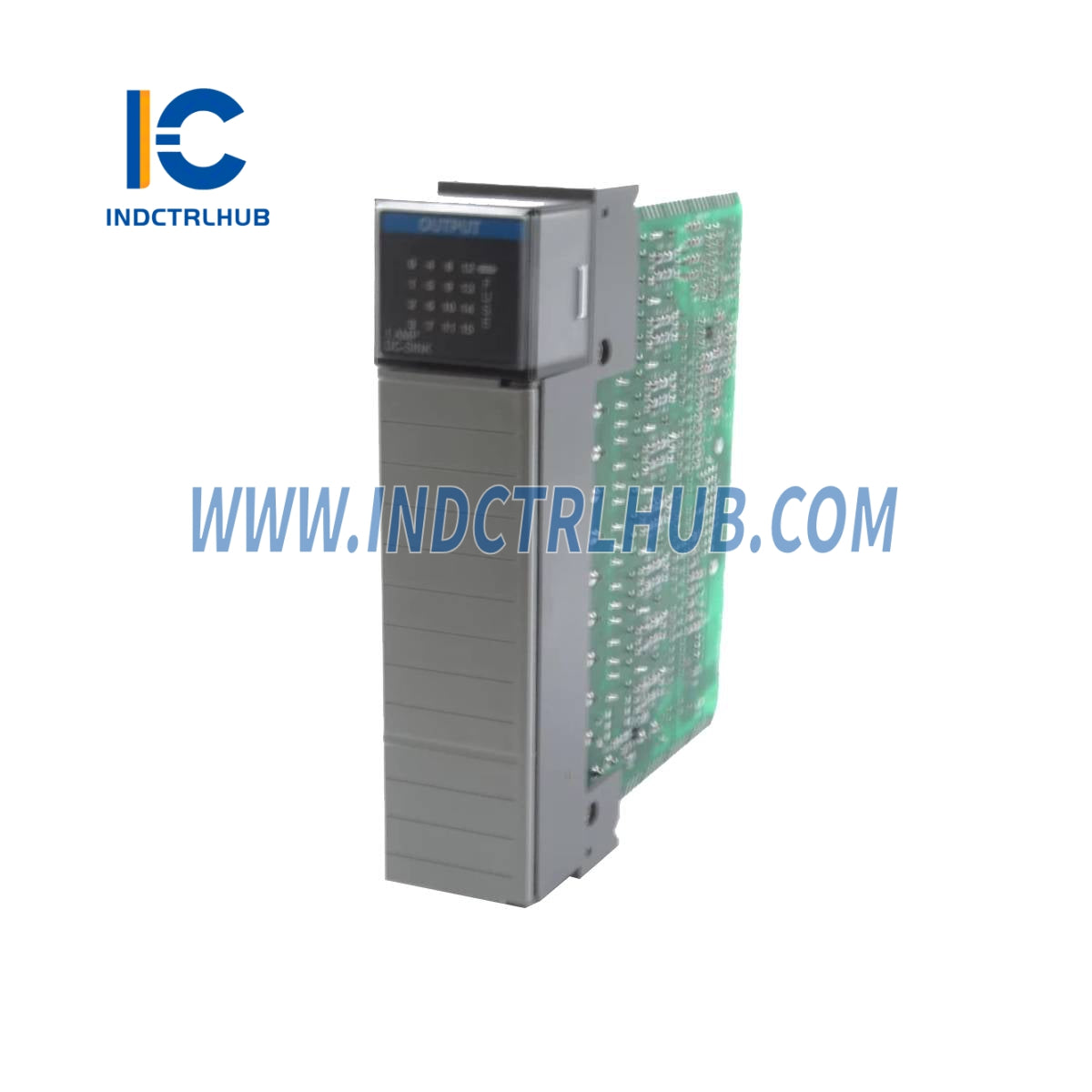

Product Description

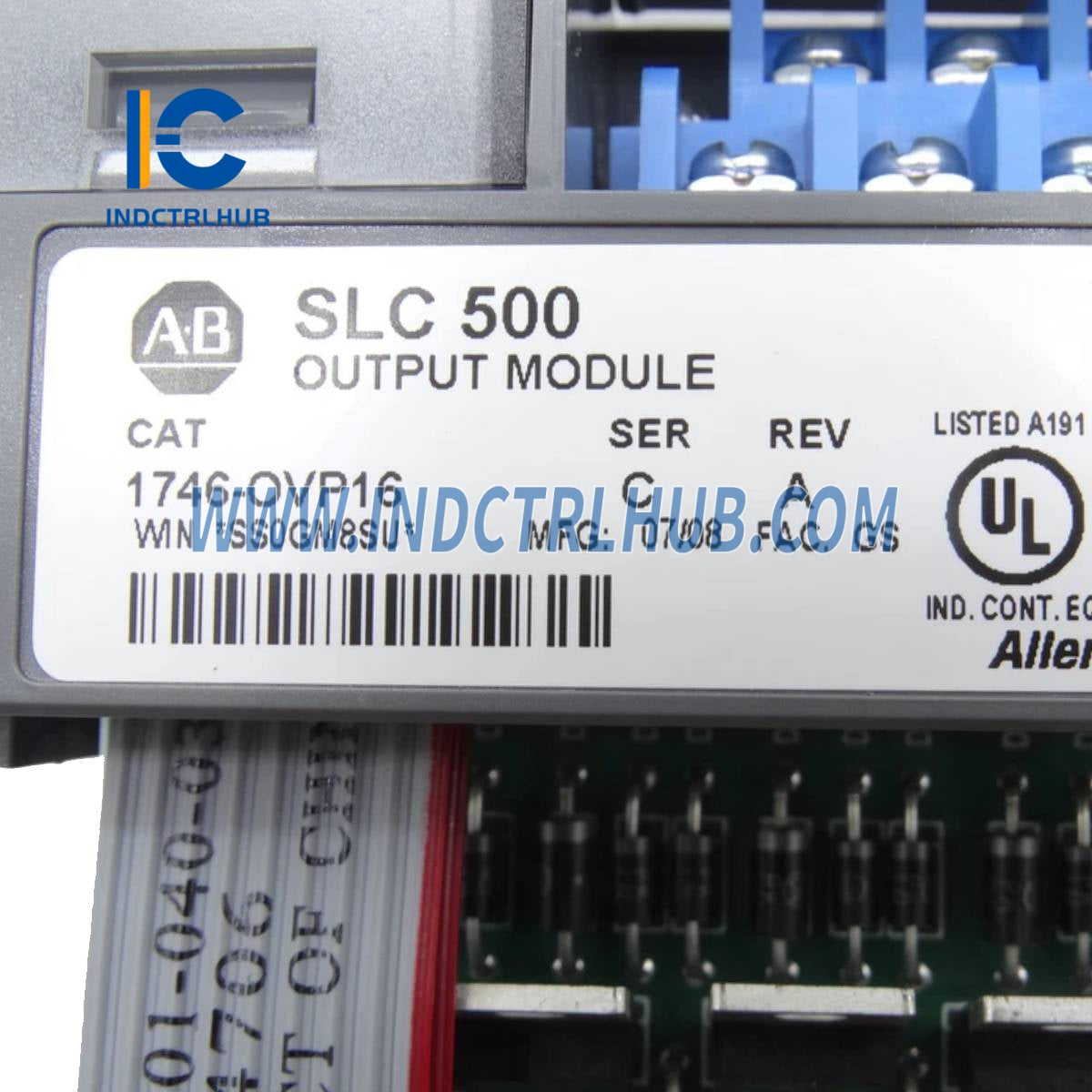

🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1746-OVP16 |
|
Description |
16-Point DC Output Module (Sink) with Fused Common |
|
Product Series |
SLC 500 |
|
Certification |
Class 1, Division 2 (CSA Certified) |
|
Special Features |
Fused common with blown fuse LED indicator |
🔹 Specifications
Electrical Specifications
|
Attribute |
Specification |
|---|---|
|
Voltage Category |
24V DC Signal Output (Sink) |
|
Number of Outputs |
16 |
|
Points per Common |
16 |
|
Voltage, Operating Range |
20.4V - 26.4V DC (Sink) |
|
Backplane Current Consumption (5V DC) |
0.250 A |
|
Backplane Current Consumption (24V DC) |
0.0 A |
|
Signal Delay (Max. Resistive Load) |
On = 0.1 ms, Off = 1.0 ms |
|
Off-State Leakage (Max.) |
1 mA |
|
Load Current (Min.) |
1 mA |
|
Continuous Current per Point |
1.5 A @ 30°C (86°F) / 1.0 A @ 60°C (140°F) |
|
Continuous Current per Module (Max.) |
6.4 A (0-60°C) |
|
On-State Voltage Drop (Max.) |
1.0V @ 1.0 A |
|
Surge Current per Point |
4.0 A for 10 ms |
