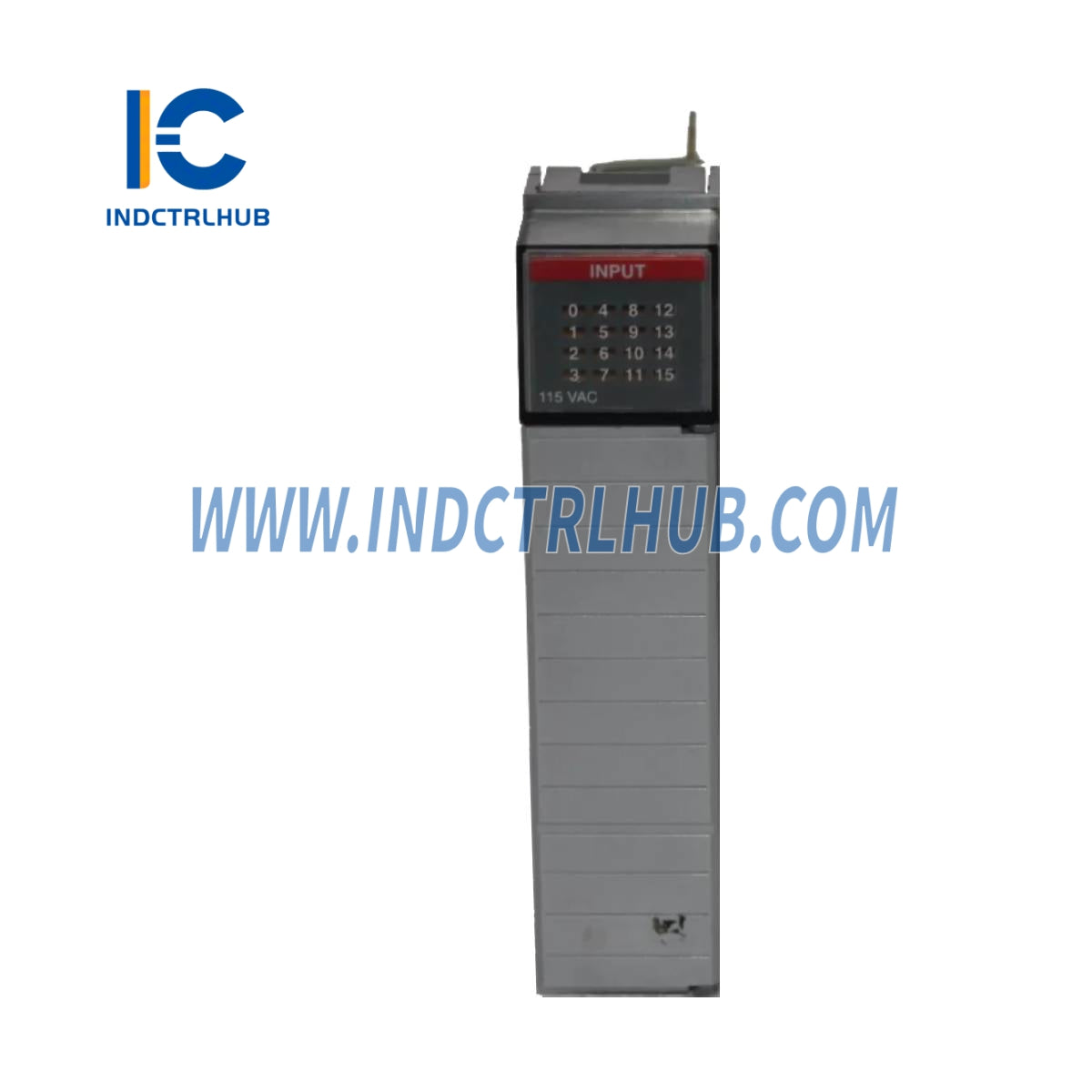

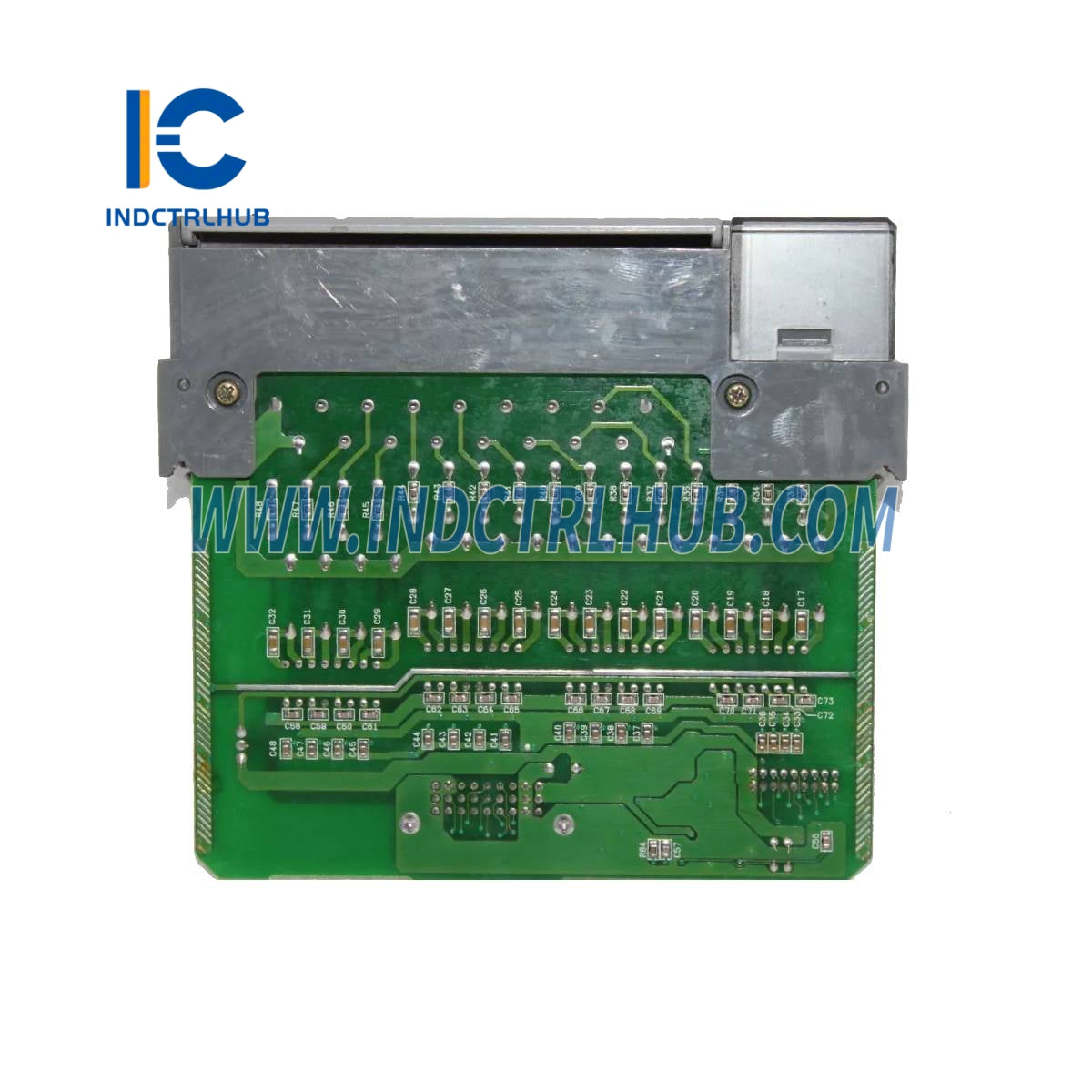

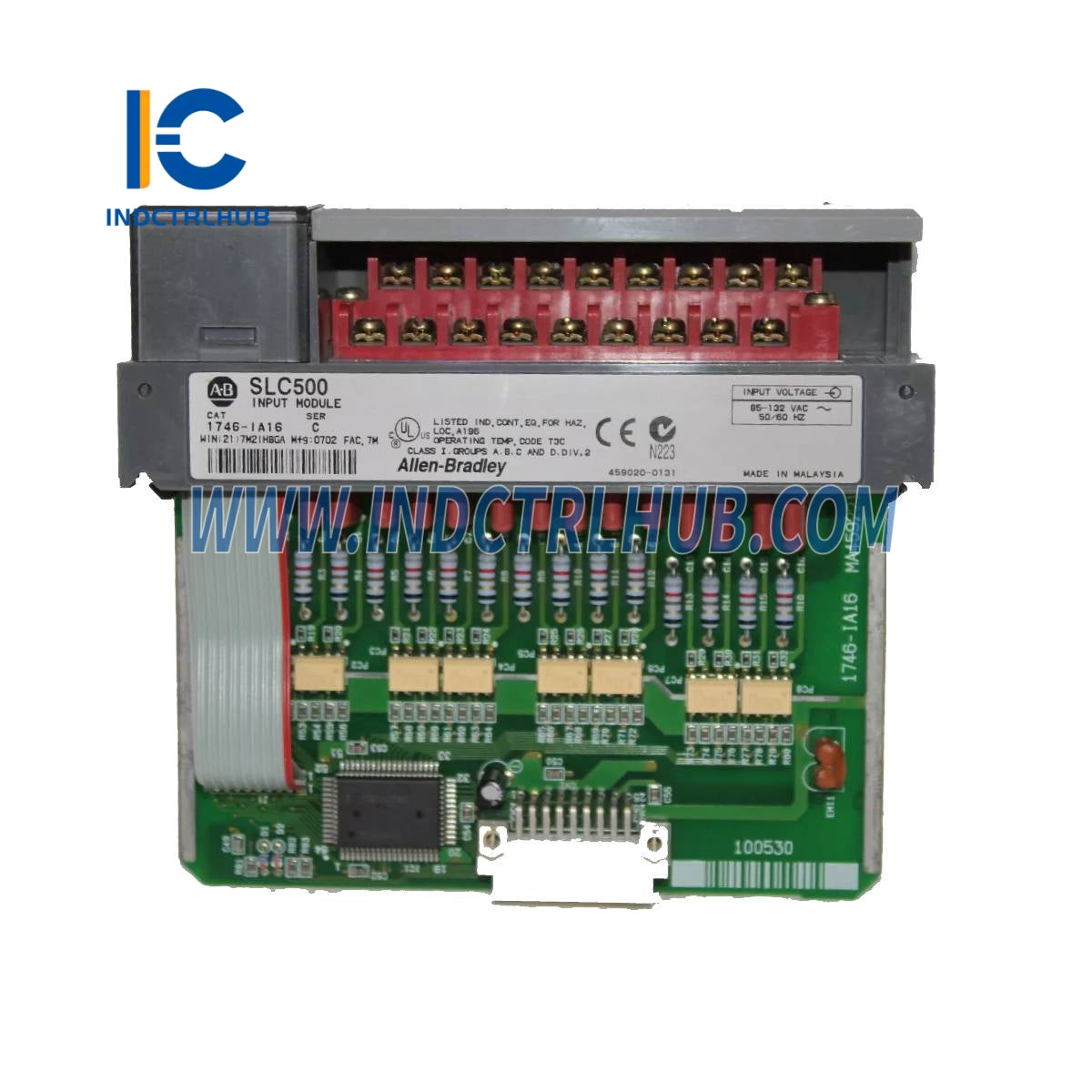

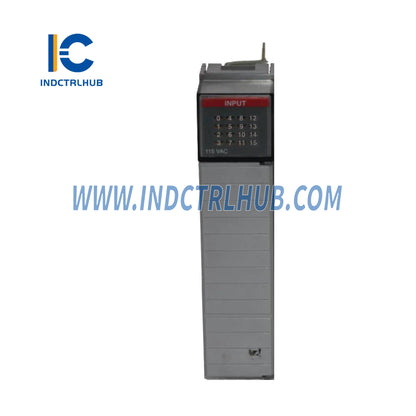

Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1746-IA16/C |
|
Description |
AC Input Module |
🔹 Electrical Specifications
|
Attribute |
Specification |
|---|---|
|
Voltage Category |
100/120V AC Signal Input |
|
Number of Inputs |
16 |
|
Points per Common |
16 |
|
Operating Voltage Range |
85…132V AC @ 47…63 Hz |
|
Backplane Current Consumption |
5V DC: 0.085 A 24V DC: 0.0 A |
|
Signal Delay (Max.) |
On: 35 ms Off: 45 ms |
|
Off-State Voltage (Max.) |
30V AC |
|
Off-State Current (Max.) |
2 mA |
|
Input Current (Nominal) |
12 mA @ 120V AC |
|
Inrush Current (Max.) |
0.8 A |
|
Inrush Current Time Duration (Max.) |
0.5 ms |
