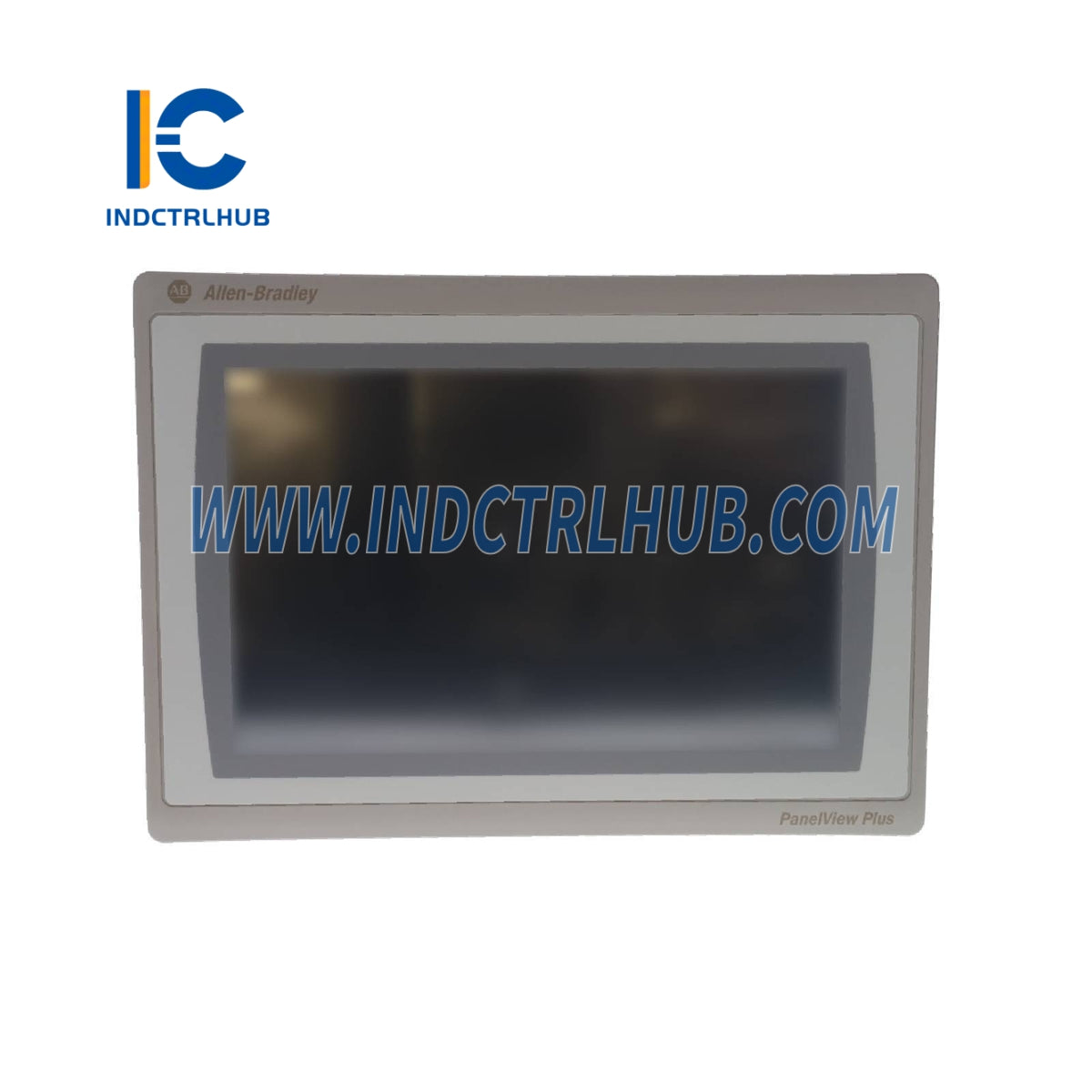

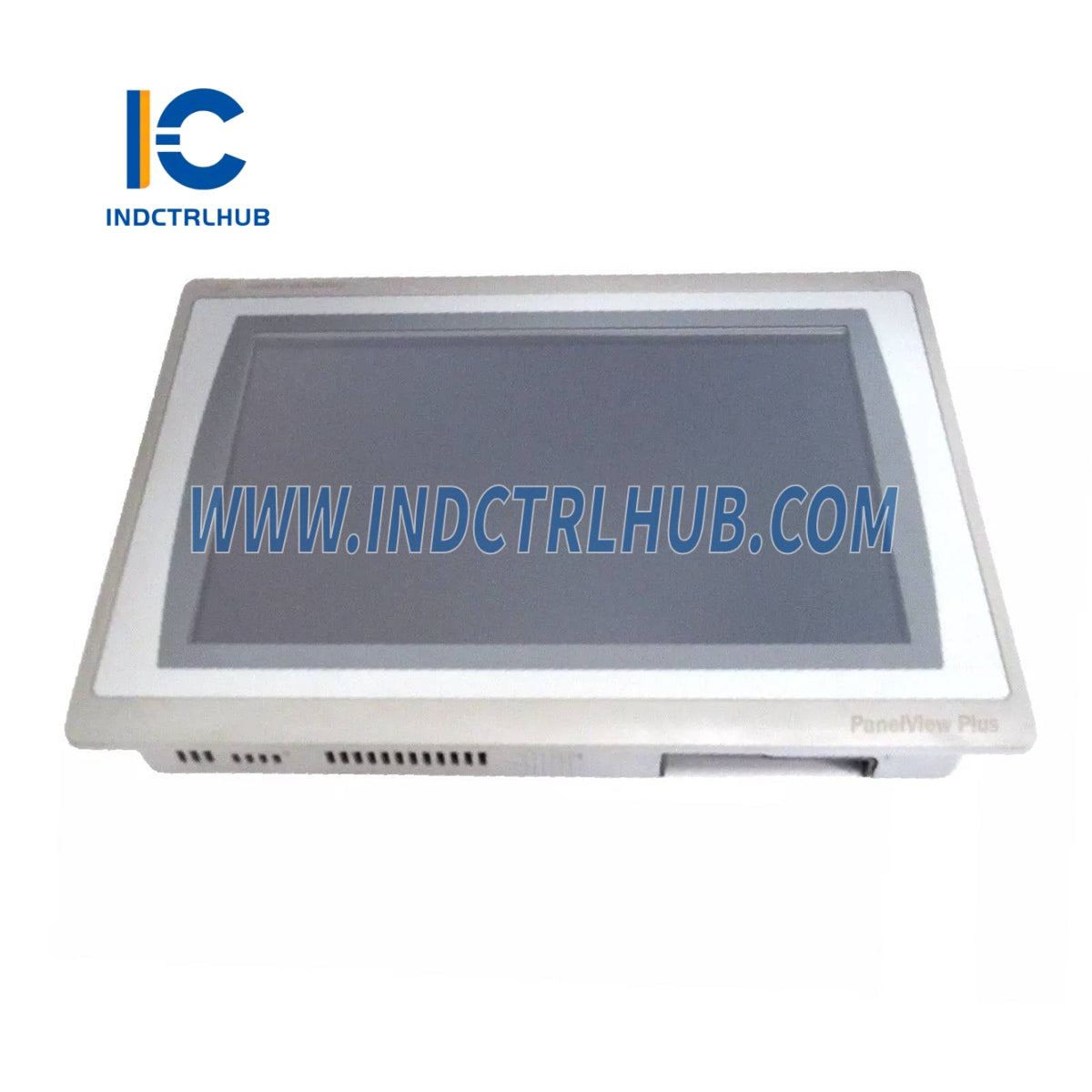

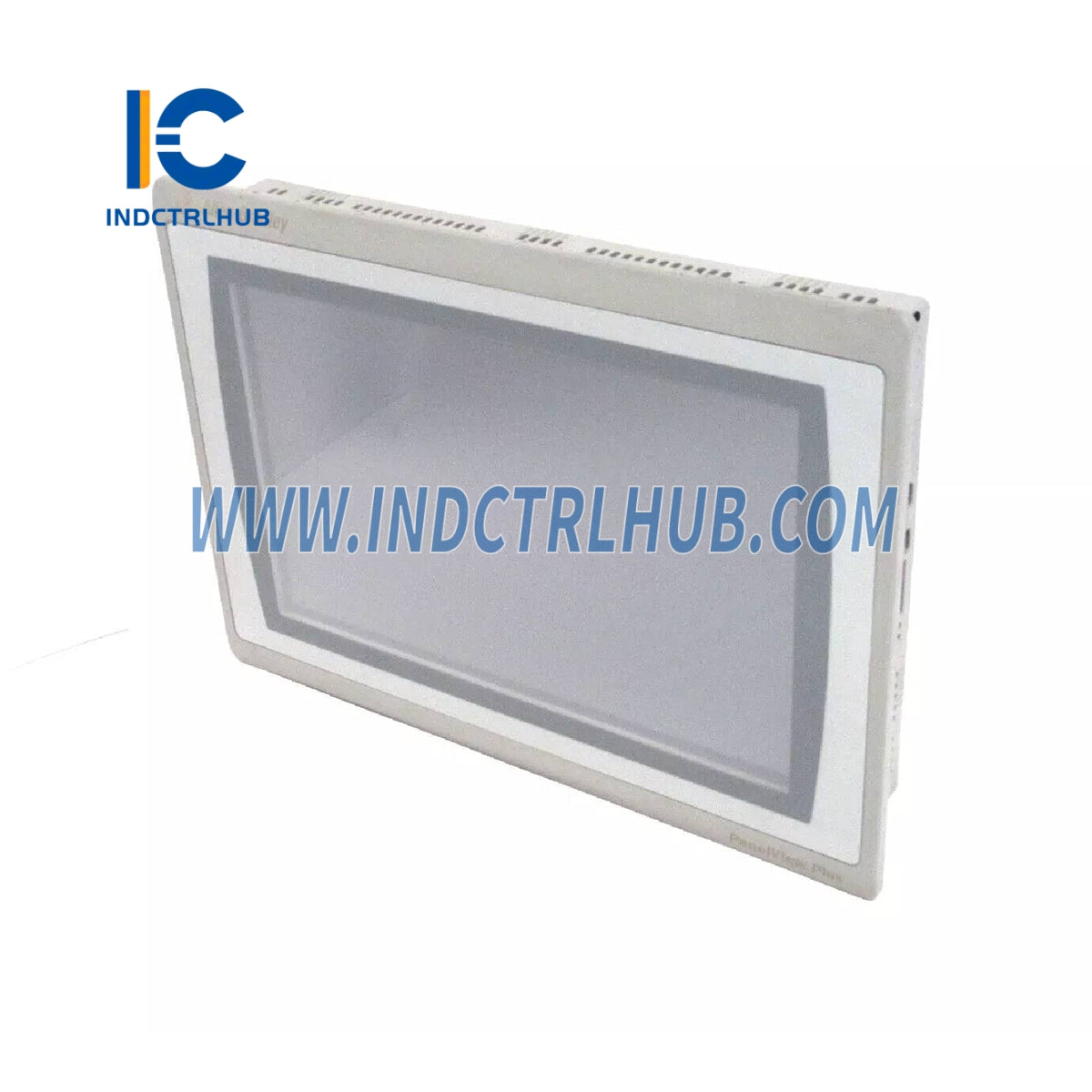

Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model Number |
2711P-T12W22D8S |
|
Series |
PanelView Plus 7 Standard |
|
Operator Input |
Touchscreen |
|
Display Type |
Color TFT LCD |
|
Display Size |
12.1 in. widescreen |
|
Description |
Standard graphic terminal for HMI applications, supporting FactoryTalk View ME, with high-resolution widescreen display and multiple communication options. |
_
_
Technical Specifications
|
Attribute |
Specification |
|---|---|
|
Viewing Area (W x H) |
261 x 163 mm |
|
Display Resolution |
1280 x 800 WXGA, 18-bit color graphics |
|
Aspect Ratio |
5:3 |
|
Brightness (Typical) |
300 nits |
|
Backlight Life |
50,000 hours (minimum at 40°C to half-brightness); not replaceable |
|
Touchscreen Type |
Analog resistive |
|
Actuation Rating |
1 million presses |
|
Operating Force |
100 grams |
|
Battery (RTC Backup) |
CR2032 lithium coin cellAccuracy: ±2 min/monthLife: 4+ years @ 25°C |
|
Memory - System / User |
512 MB RAM and 512 MB storage / 80 MB nonvolatile for applications |
|
SD Card Slot |
1 slot; supports 1784-SD1 (1GB), SD2 (2GB), SDHC8 (8GB), SDHC32 (32GB) |
|

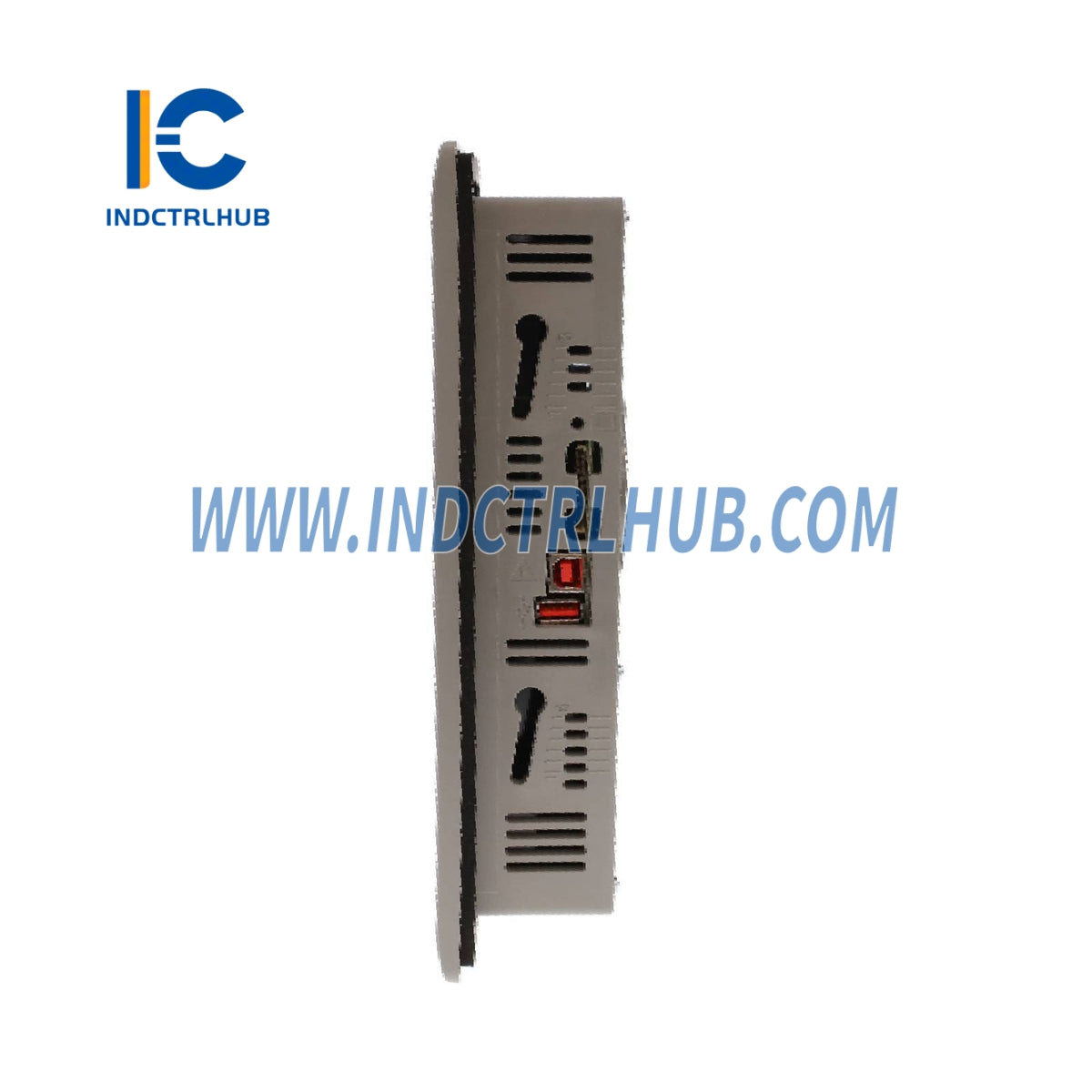

USB Ports |
1 USB 2.0 high-speed host (Type A)1 USB 1.0 device port (Type B) |
|
Ethernet Ports |
2 x 10/100Base-T (Auto MDI/MDI-X) with star, linear, or DLR topology support |
|
Operating System |
Windows CE with FTP, VNC client/server, ActiveX, PDF reader, 3rd-party support |
|
Firmware Compatibility |
Series D requires version 13.x firmware or later |
|
Software Support |
FactoryTalk View Studio ME v8.0+, ViewPoint v2.6+ |
_
_

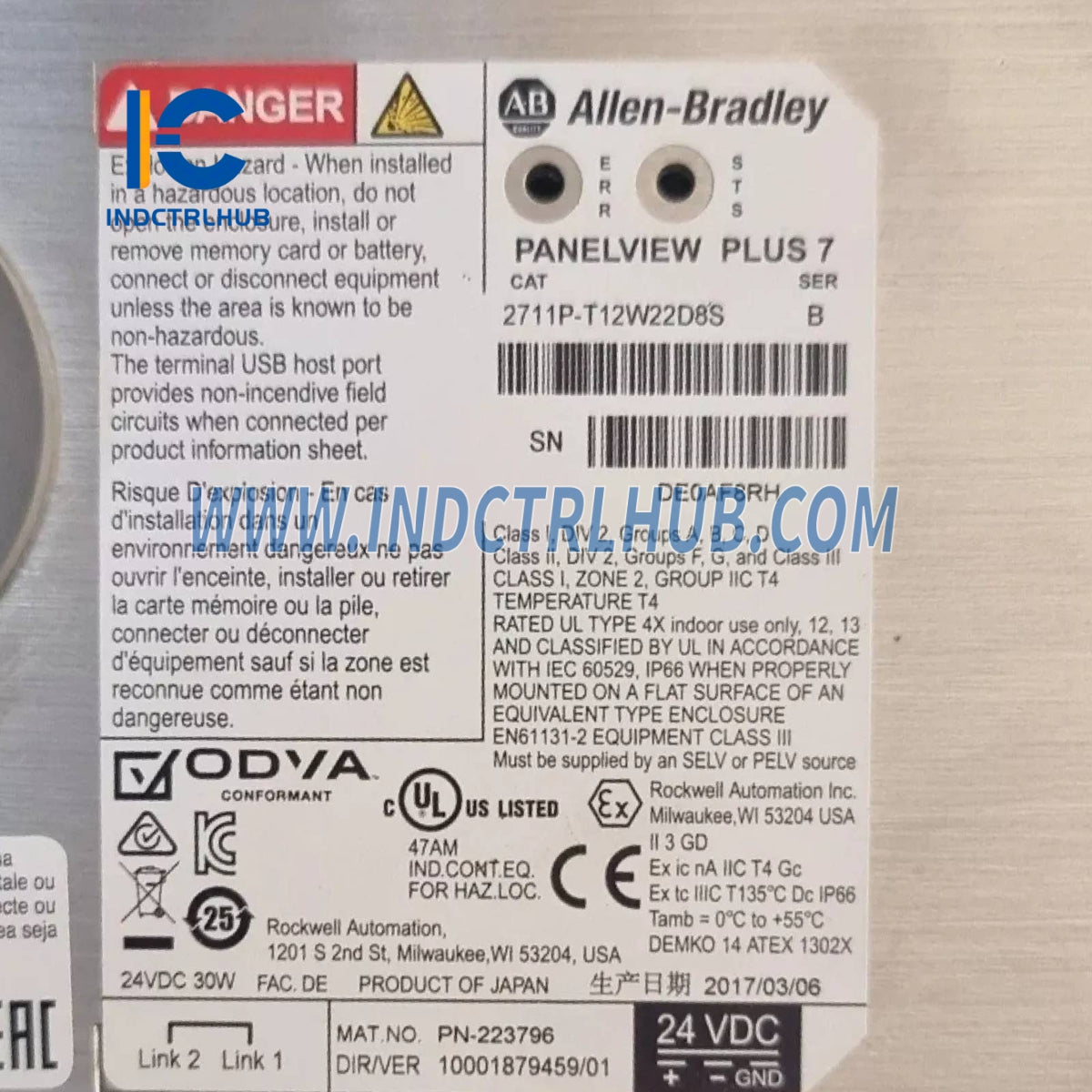

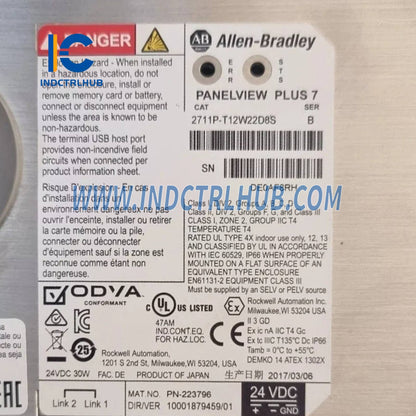

Electrical Specifications
|
Attribute |
Specification |
|---|---|
|
Input Voltage (DC) |
24V DC nominal (range: 18_30V DC), non-isolated |
|
Power Consumption (DC) |
50 W max (2.1 A @ 24V DC) |
|
Power Supply |
DIN-rail, AC-to-DC (85_265V AC, 47_63 Hz) |
|
Recommended Power Supply |
2711P-RSACDIN |
_
_

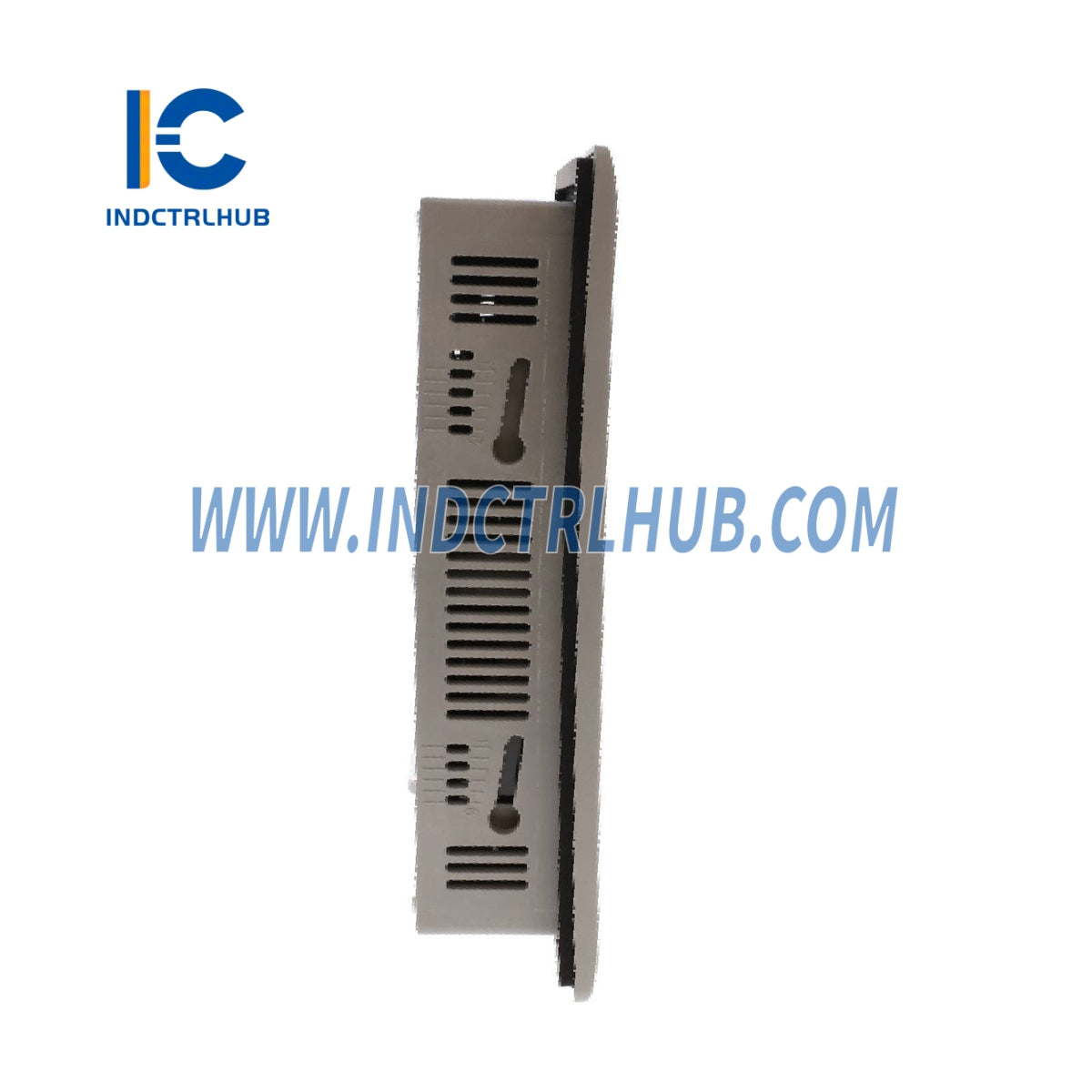

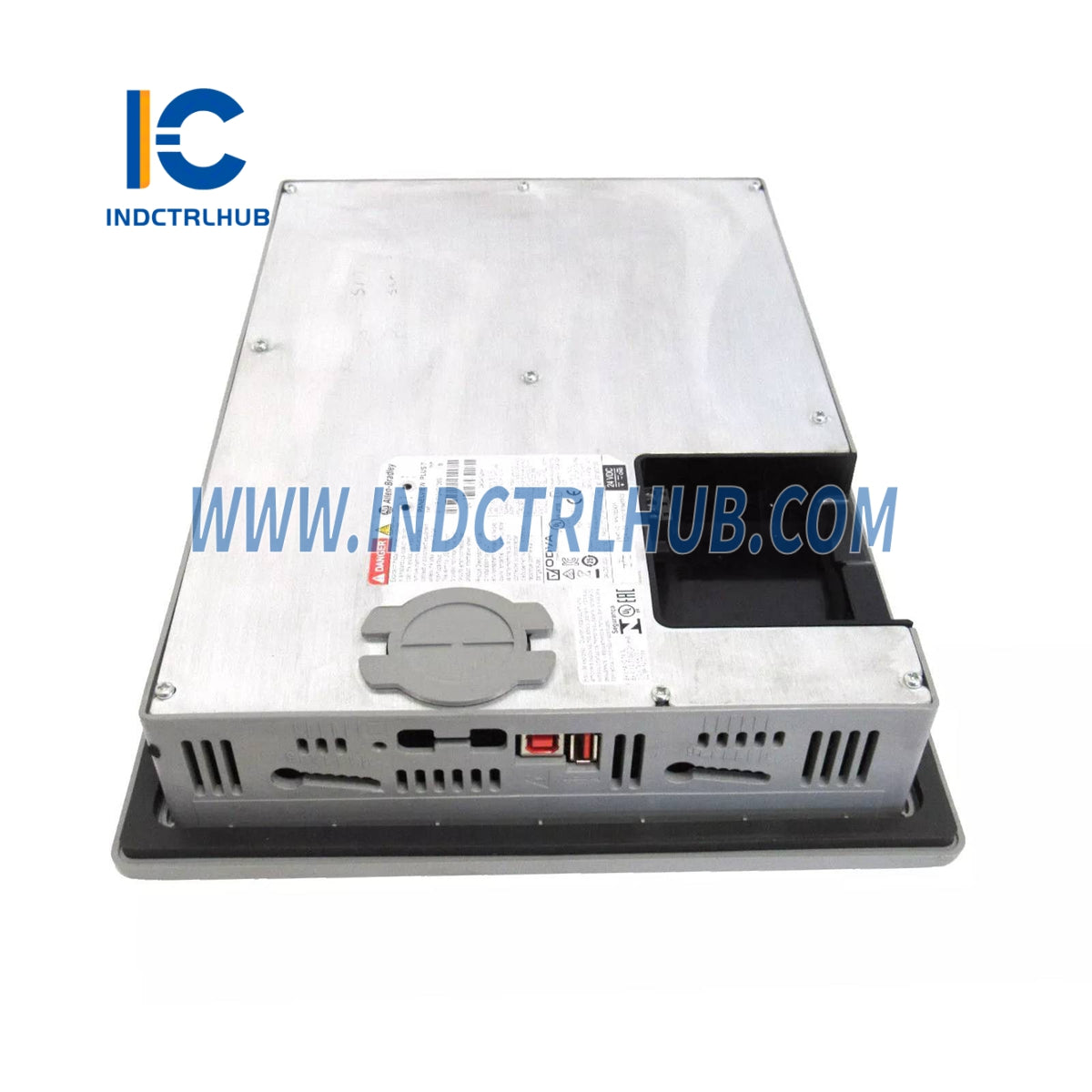

Mechanical Specifications
|
Attribute |
Specification |
|---|---|
|
Weight (Approx.) |
1.95 kg (4.29 lb) |
|
Dimensions (H x W x D) |
246 x 340 x 56.5 mm (9.69 x 13.39 x 2.22 in.) |
|
Cutout Dimensions (H x W) |
218 x 312 mm (8.58 x 12.28 in.) |
