Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1747-SCNR |
|
Description |

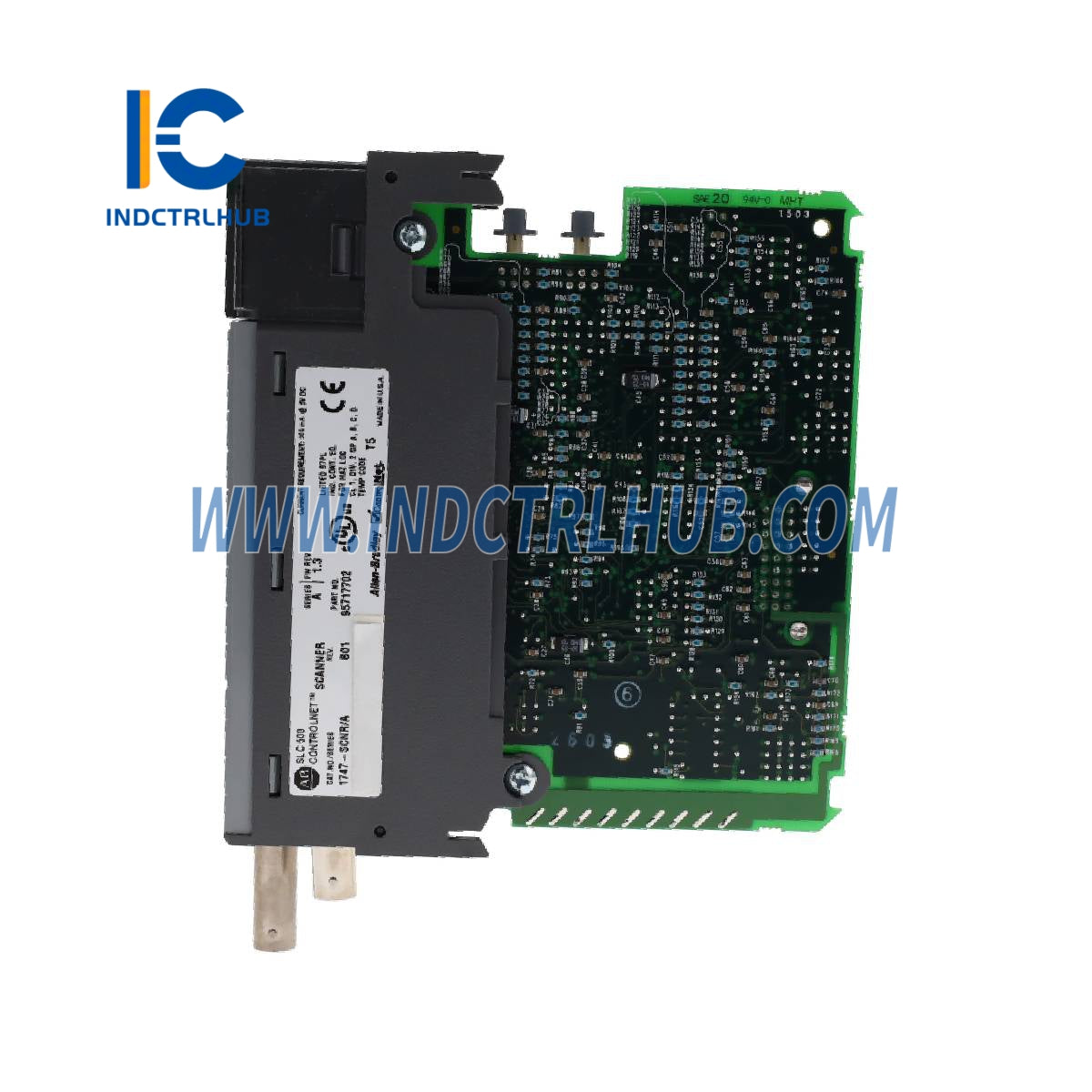

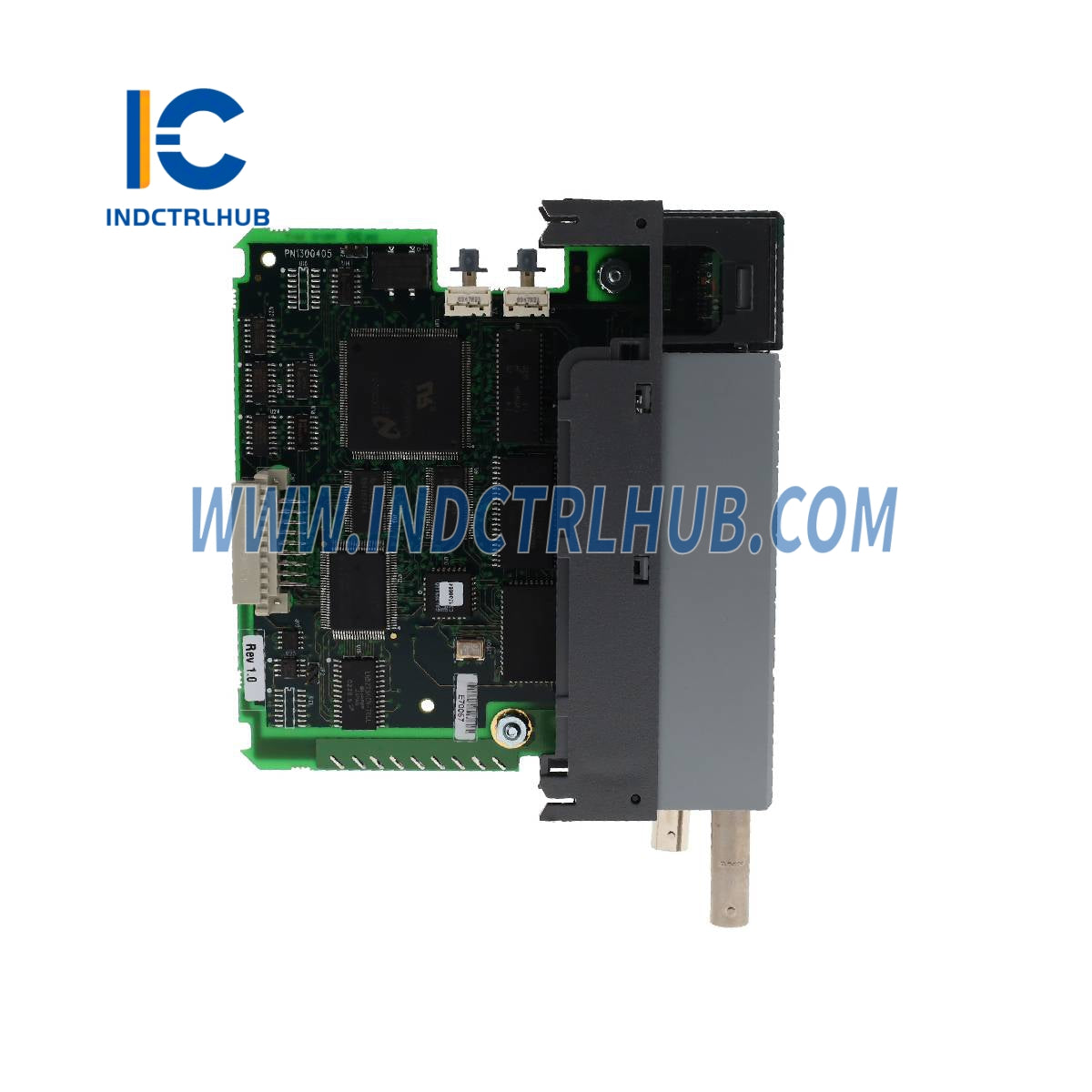

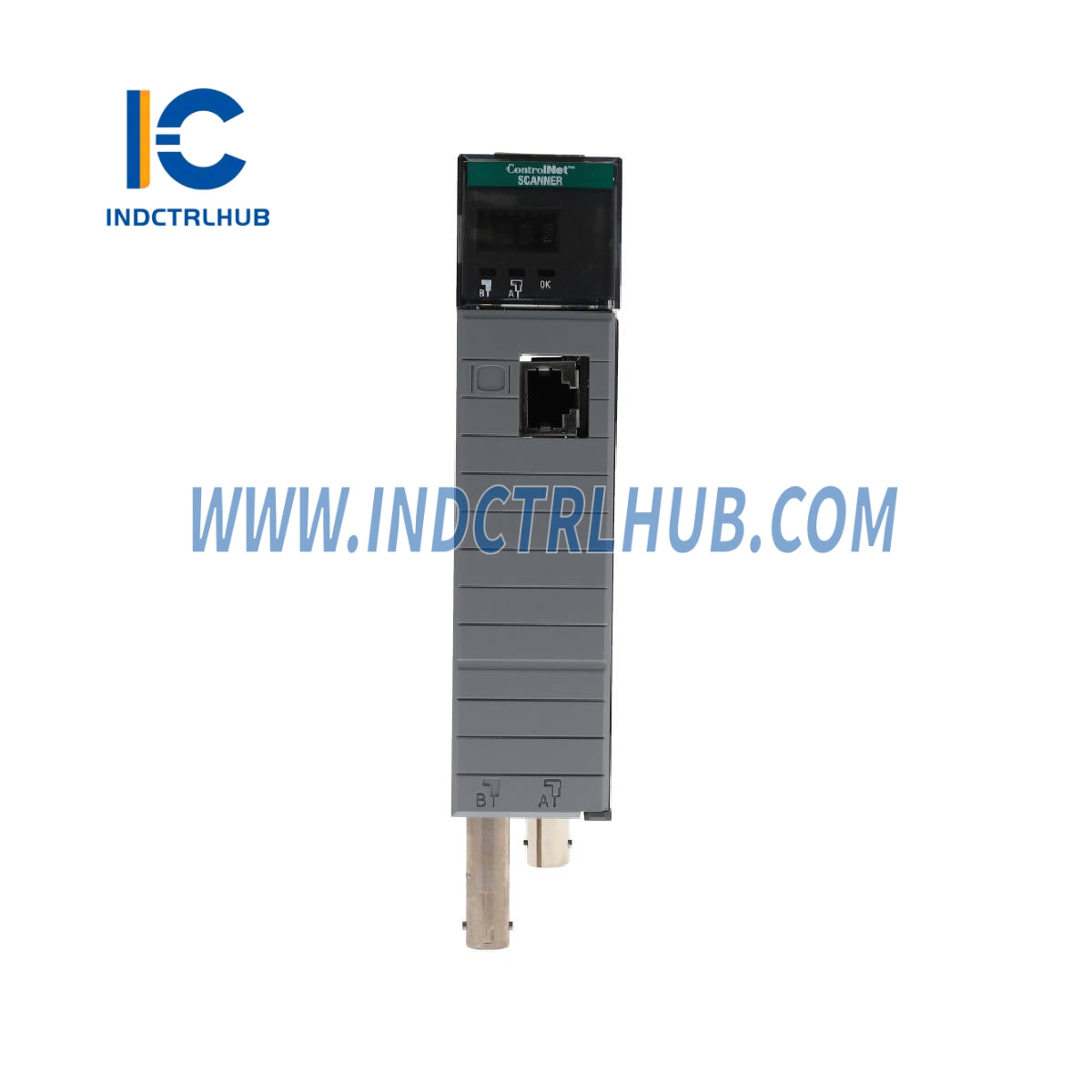

SLC ControlNet Scanner Module |
🔹 Specifications
Module & Power Requirements
|
Specification |
Value |
|---|---|
|
Module Location |
Slot 1 or above |
|
Node Address (Default) |
00 |
|
Maximum Backplane Current |
900 mA @ 5V dc |
|
Isolation Voltage |
Optical Isolation between backplane and ControlNet |
|
Resistor from ControlNet Channel to Chassis |
1 Megohm |
Environmental Conditions
|
Specification |
Value |
|---|---|
|
Operational Temperature |
0 to 60°C (32 to 140°F) |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
|
Relative Humidity |
5% to 95% without condensation |
Mechanical Characteristics
|
Specification |
Value |
|---|---|
|
Shock Resistance (Unpackaged) |
30g (Operational), 50g (Non-operational) |
|
Vibration Resistance (Unpackaged) |
5g from 10-150Hz |
Immunity & Radiated Fields
|
Specification |
Value |
|---|---|
|
Immunity |
Radiated Fields 10 V/m |
|
Frequency Range |
27 MHz - 1000 MHz |
