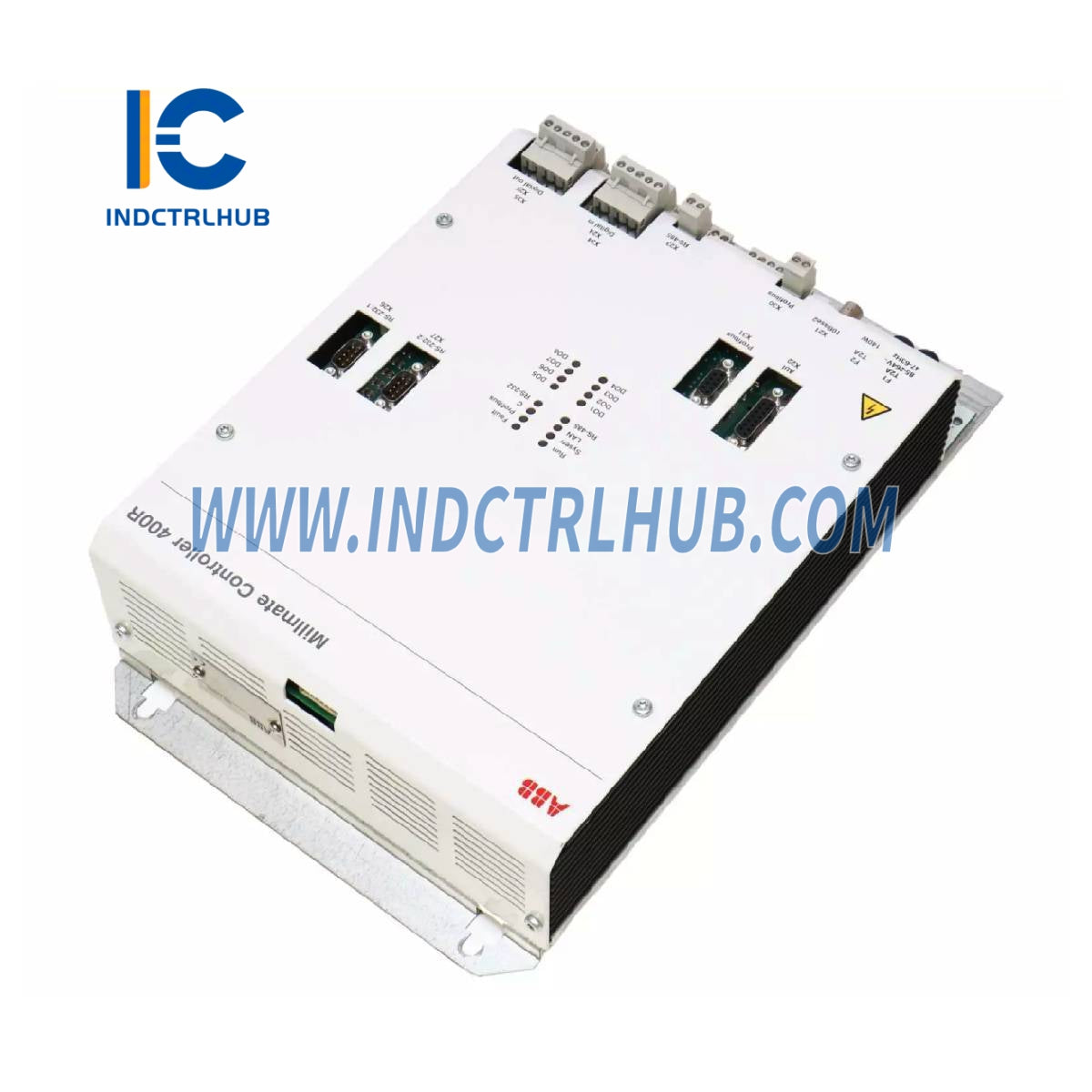

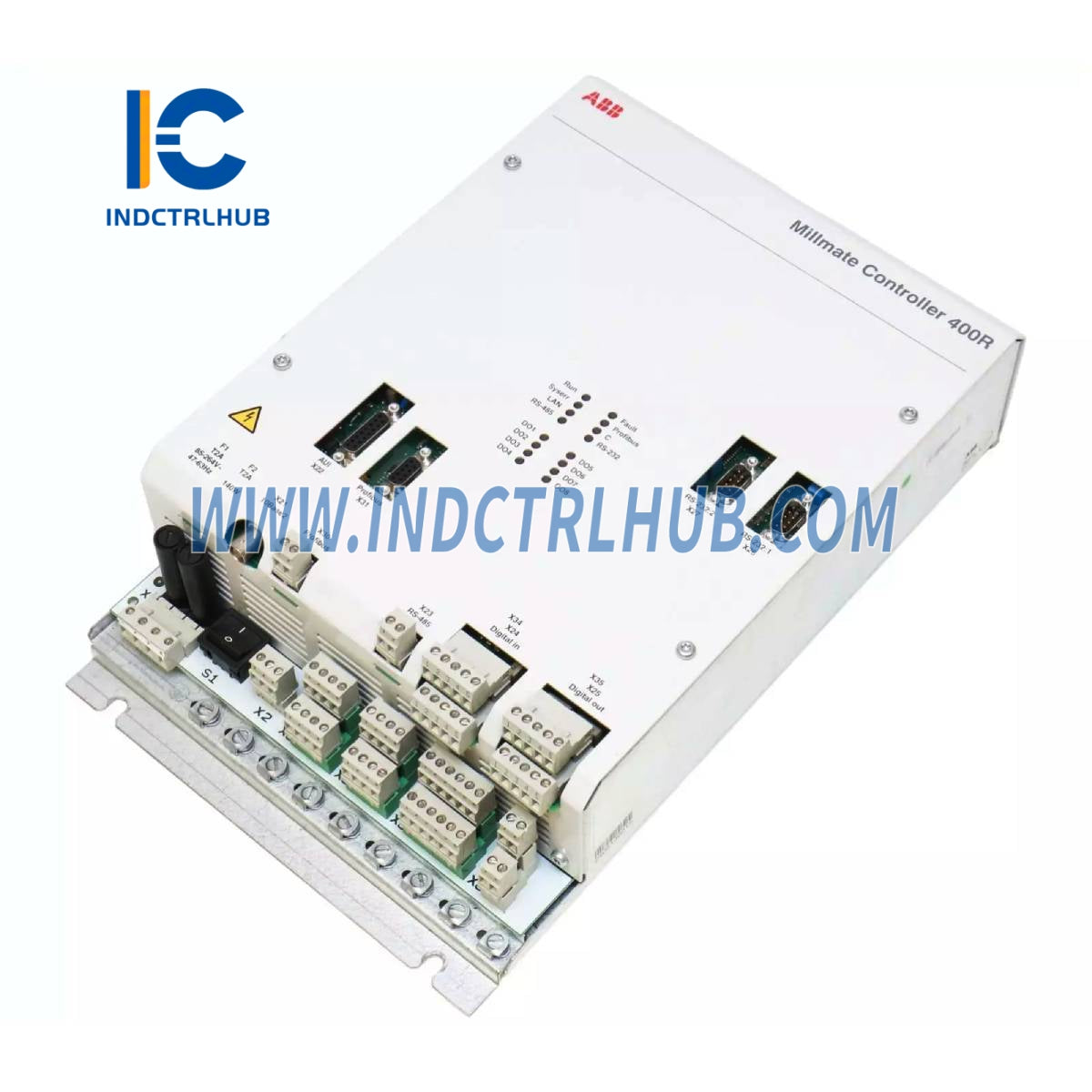

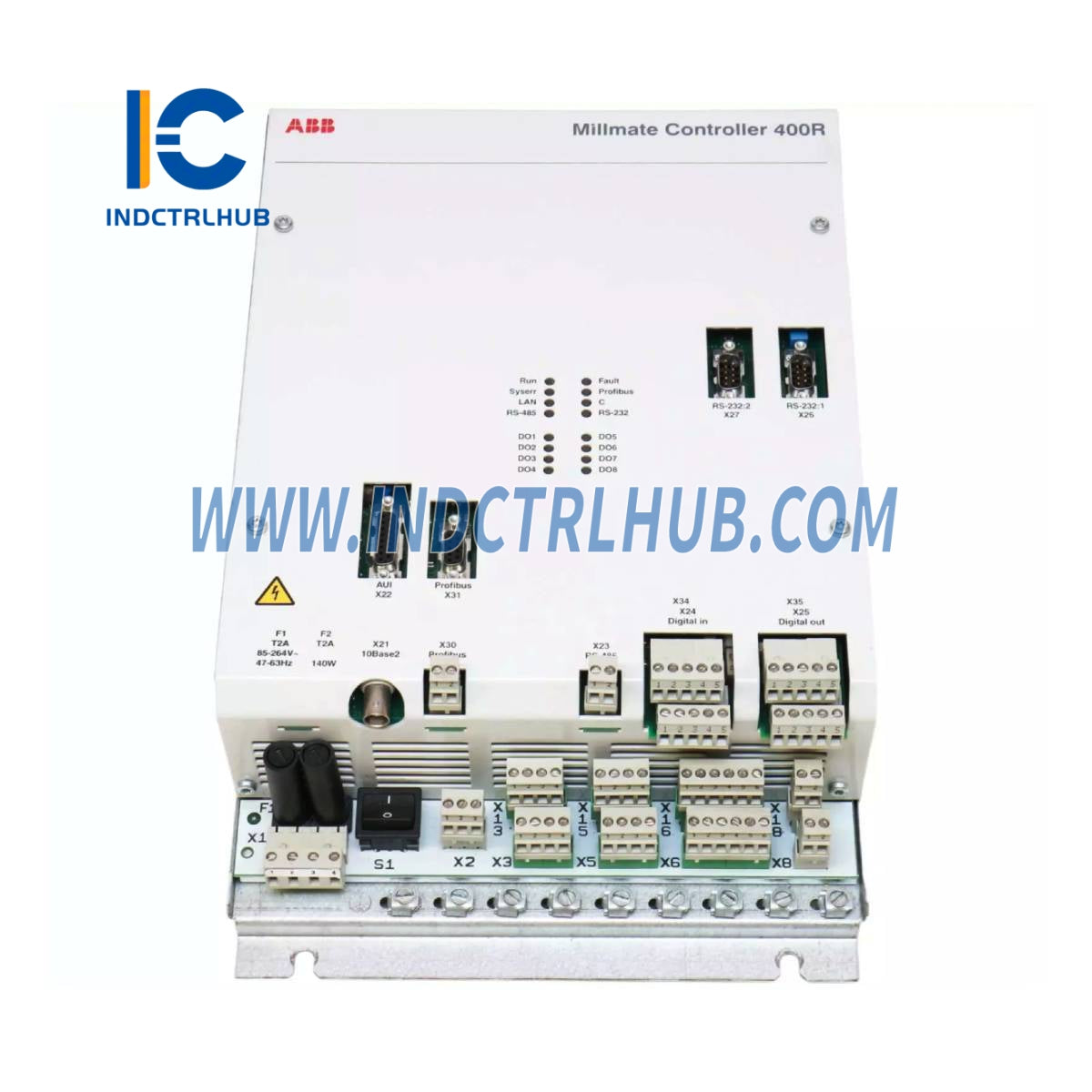

Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |
PFXA 401SF |
|
Product ID |
3BSE024388R4 |
|
ABB Type Designation |
PFXA 401SF |
|
Catalog Description |
PFXA 401SF Control Unit |
|
Country of Origin |
United States, Sweden |
|
Product Type |
Control Unit |
Ordering Information
|
Parameter |
Value |
|---|---|
|
Customs Tariff Number |
85389091 |
|
Dangerous Goods UN Classification |
Class 9: Miscellaneous Dangerous Substances and Articles, Including Environmentally Hazardous Substances |
|
Dangerous Goods UN Number |
UN3091-PI970 |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Made To Order |
No |
|
Quote Only |
No |
|
Selling Unit of Measure |
Piece |
|
Stocked At (Warehouses) |
Malmö, Sweden |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Gross Volume |
8 dm³ |
|
Gross Weight |
5 kg |
|
Package Level 1 Gross Weight |
5 kg |
|
Package Level 1 Units |
1 piece |
|
Product Net Weight |
5 kg |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Analog Inputs |
4 |
|
Profibus Compatibility |
Yes |
|
Angle Compensation |
For Load Cell QGPR 102/104 (max. 2 MN) |
|
Load Cell Compatibility |
PFBL 101/141 (Max 2 × 400 kN) |
|
Backup Battery |
Lithium battery, 3BSC790006R1 |
|
Fuse |
2A 250V, 3BSC770001R17 |
Connection Terminals:
|
Terminal |
Type |
Part Number |
|---|---|---|
|
Power |
4-pole screw terminal |
2664197-4 |
|
Sync |
3-pole screw terminal |
2664177-3 |
|
Disconnectable |
4-pole screw terminal |
2664177-4 |
|
Disconnectable |
2-pole screw terminal |
2664177-2 |
Compliance & Environmental Information
|
Parameter |
Value |
|---|---|
|
UNSPSC |
39120000 |
|
WEEE Category |
Product Not in WEEE Scope |
