Product Description
Product Overview

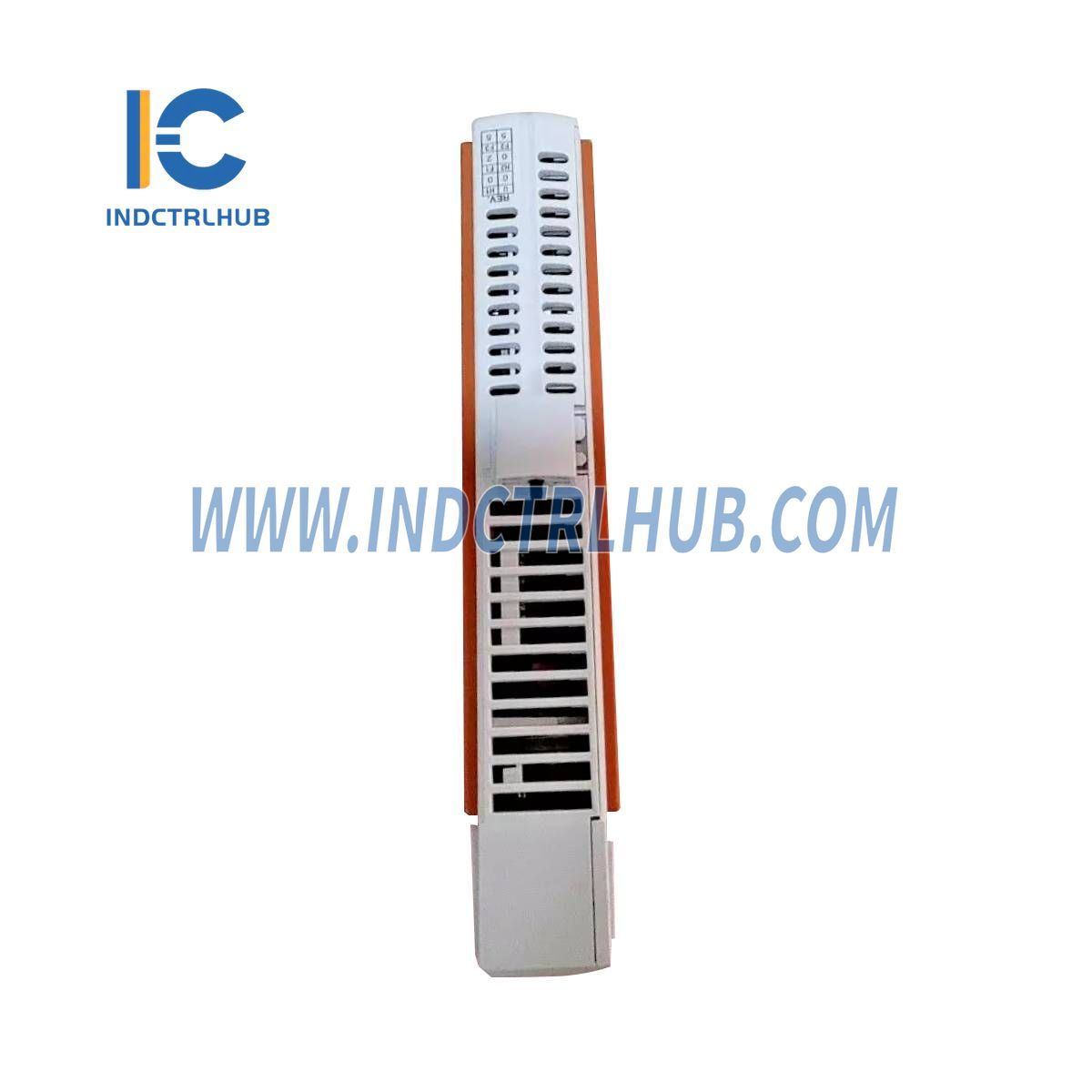

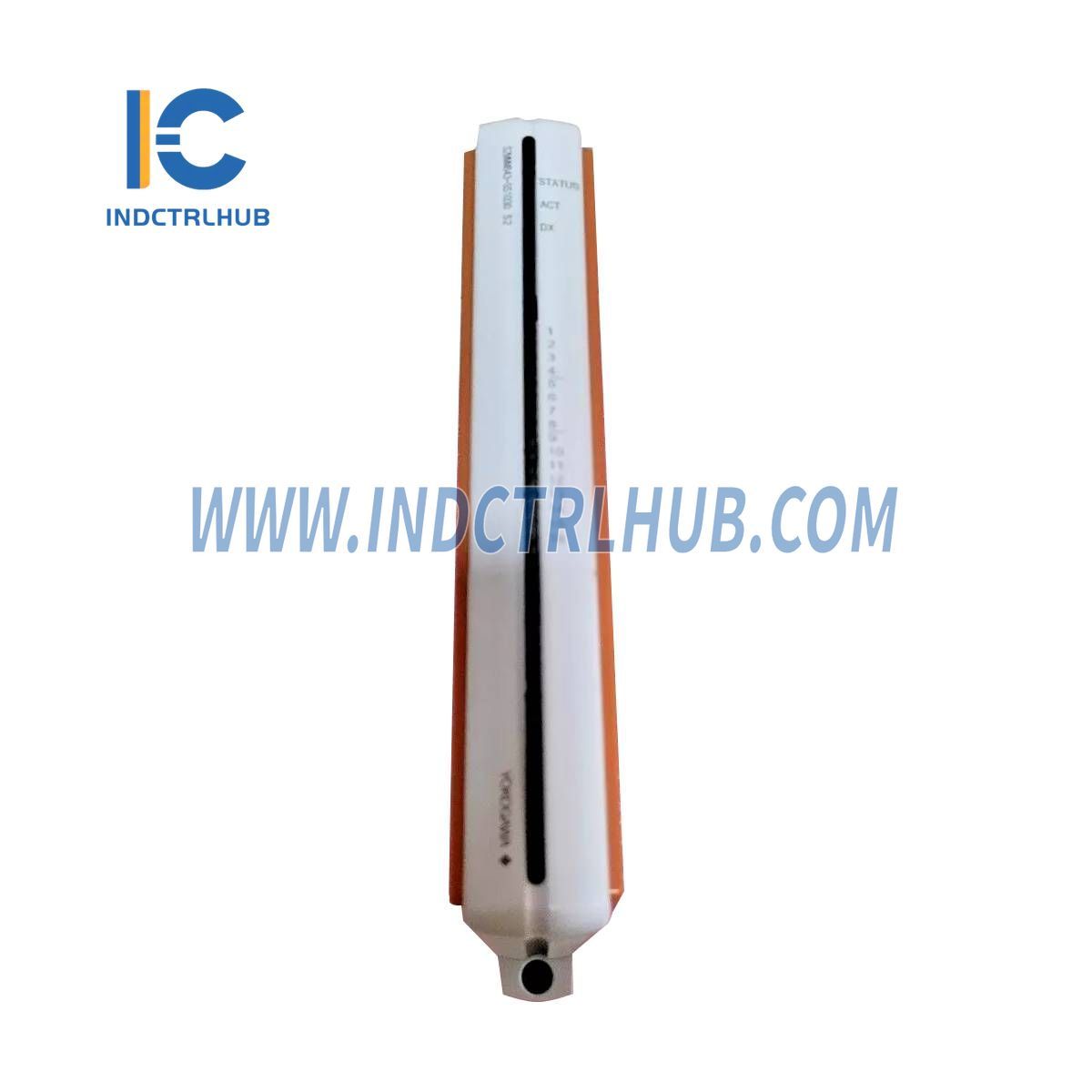

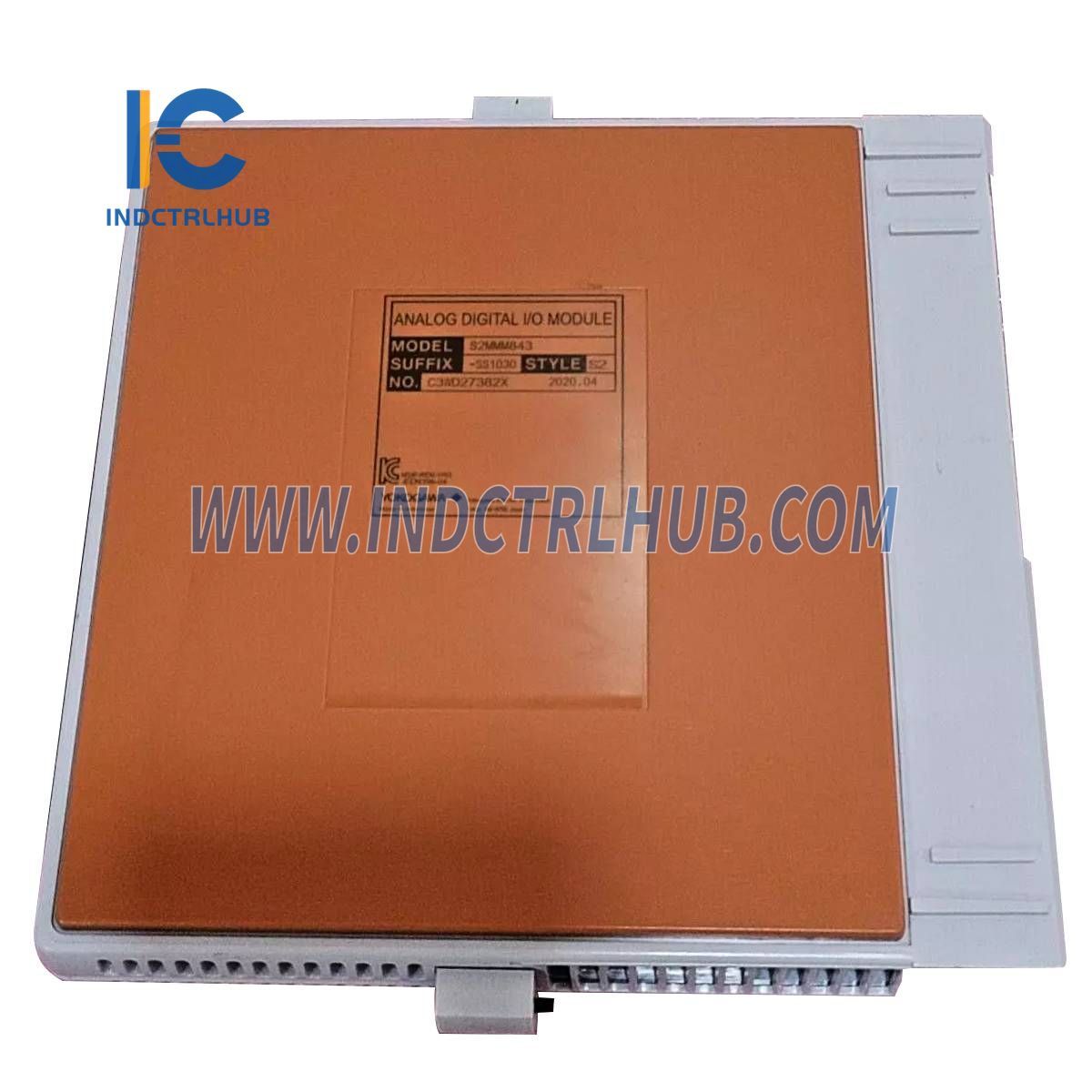

The Yokogawa S2MMM843-SS1030 is an Analog Digital I/O Module designed to provide both analog and digital I/O functions across 16 isolated channels. Each channel can be configured via software to switch between analog input, analog output, digital input, or digital output, offering flexibility. It supports dual-redundant mounting, making it a versatile and reliable solution for industrial control systems.
Technical Specifications
The S2MMM843-SS1030 Analog Digital I/O Module has the following common specifications:
| Item | Specification |
|---|---|
| Model | S2MMM843 |
| Number of Channels | 16 (isolated) (*3) |
| Maximum Current Consumption |
System Power Supply: 600 mA (24 V DC) (*4) Field Power Supply: 11 A (24 V DC) (*5) |
| Field Power Supply Input Voltage Range | 24 V -10 %/+20 % |
| Withstanding Voltage (*1) (*2) | Between input/output and system: 1500 V AC for 1 minute 42 V DC, continuous |
| Weight | Approx. 0.64 kg |
Model and Suffix Codes
The S2MMM843-SS1030 includes the following configuration details:
| Category | Details |
|---|---|
| Model | S2MMM843 Analog Digital I/O Module (16-channel, module Isolated) |
| Suffix Codes |
|
