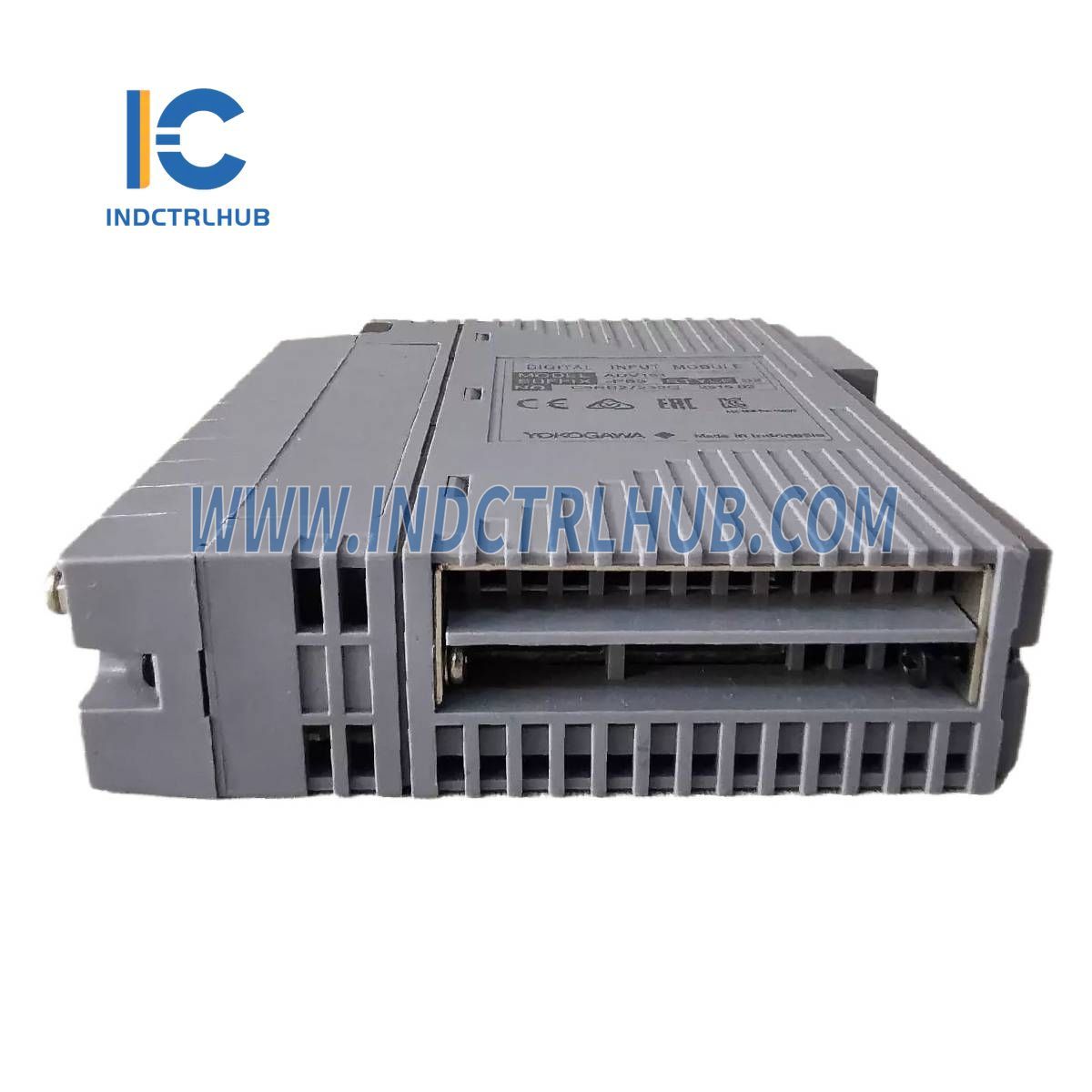

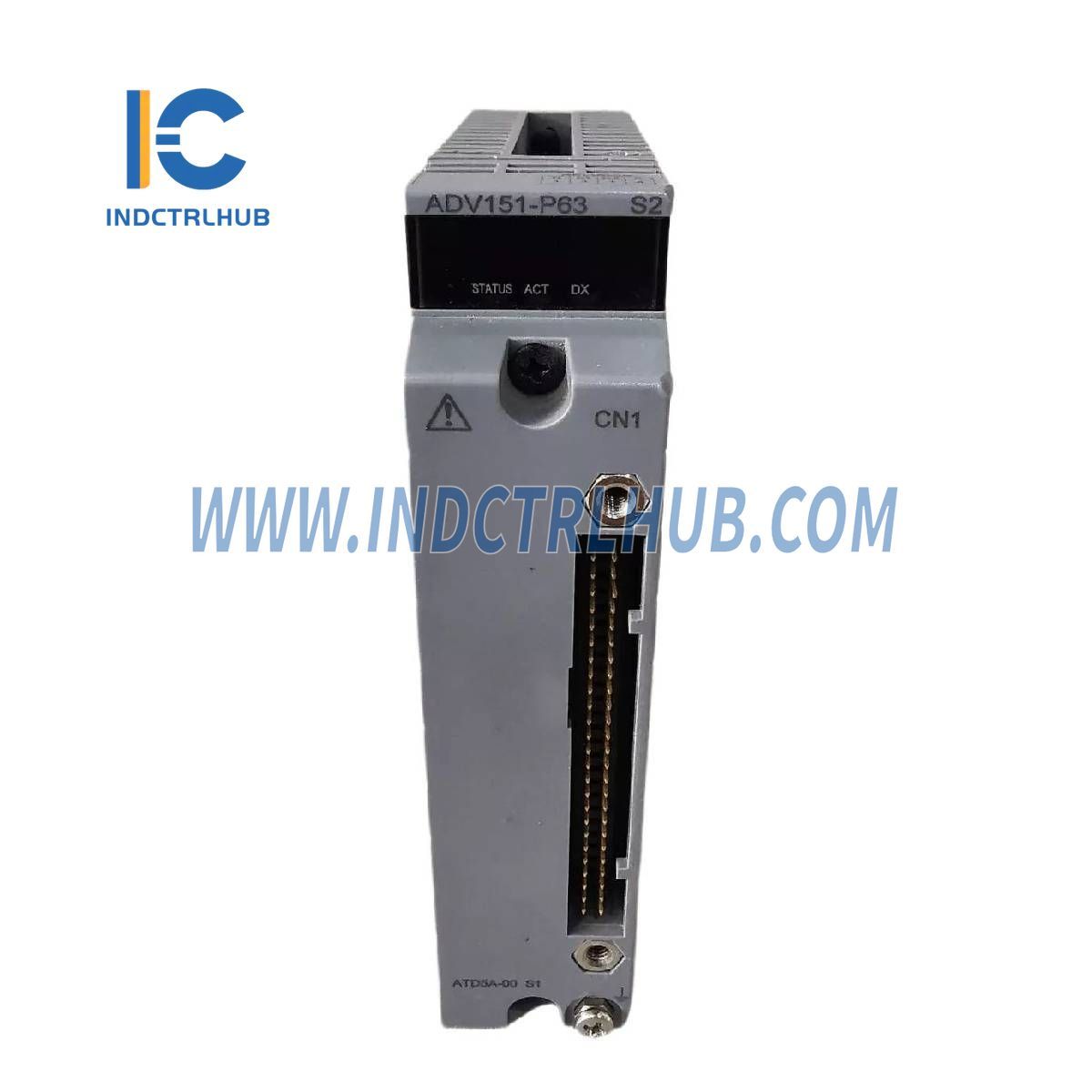

Yokogawa ADV151-P63/D5A00 Digital Input Module

Yokogawa ADV151-P63/D5A00 Digital Input Module

  • Manufacturer: Yokogawa

  • Product No.: ADV151-P63/D5A00

  • Condition:1000 in stock

  • Product Type: Digital Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Yokogawa ADV151-P63/D5A00 is a Digital Input Module designed to receive 32-channel 24 V DC ON/OFF signals. It supports dual-redundant configuration and includes pushbutton input functionality, an extended temperature range, and a KS Cable Interface Adapter, making it a robust solution for industrial control applications.

Technical Specifications

The ADV151-P63/D5A00 Digital Input Module has the following specifications (specific to ADV151-P unless otherwise noted):

Item Specification
Model ADV151-P
Number of Input Channels 32
Rated Input Voltage (*2) 24 V DC (sink/source)
Input ON Voltage 18 to 26.4 V DC
Input OFF Voltage 5.0 V DC or less
Input Current (at rated input voltage) 4.1 mA ±20 % / channel
Maximum Allowable Input Voltage 30.0 V DC
Withstanding Voltage Between input signal and system: 2 kV AC, for 1 minute
Between commons: 500 V AC, for 1 minute, common every 16-channel (*3)
Functions Status Input: Function for detecting ON/OFF status
Pushbutton Input: Function for counting the pushbutton edges
Input Response Time 8 ms or less (for status input)
Minimum ON Detection Time 20 ms (for pushbutton input)
Maximum ON/OFF Cycle 25 Hz (for pushbutton input)
Maximum Current Consumption 500 mA (5 V DC)
Weight Approx. 0.30 kg
External Connection Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable

Model and Suffix/Option Codes

The ADV151-P63/D5A00 includes the following configuration details:

Category Details
Model ADV151 Digital Input Module (32-channel, 24 V DC, Isolated)
Suffix Codes
  • -P: With pushbutton input
  • 6: With status display; with no explosion protection
  • 3: With ISA Standard G3 option and temperature (-20 to 70 °C) option
Option Code
  • /D5A00: With KS Cable Interface Adapter for 32-channel digital [Model: ATD5A-00]
