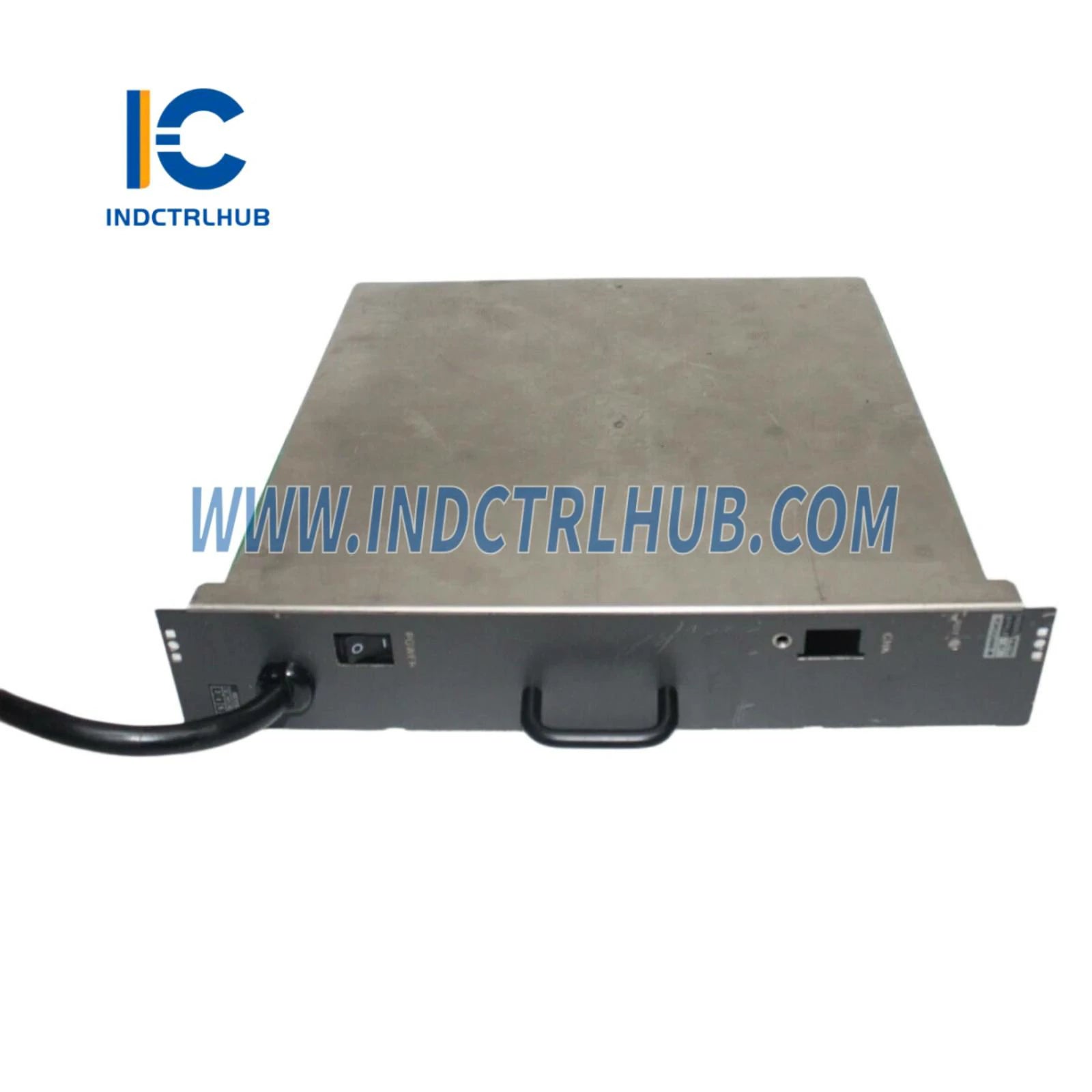

Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model/Part Number | PW702 |
| Description | Power Supply Module designed for Yokogawa CENTUM series Distributed Control Systems, providing stable DC power to Field Control Stations and other DCS components |
| Key Features | Compact plug-in design, reliable power delivery, supports redundant configuration, compatible with CENTUM CS 3000 and VP, high efficiency |
Technical Specifications
| Specification | Details |
|---|---|
| Model | PW702 |
| Product Type | Power Supply Module |
| Series | CENTUM (CS 3000, VP) |

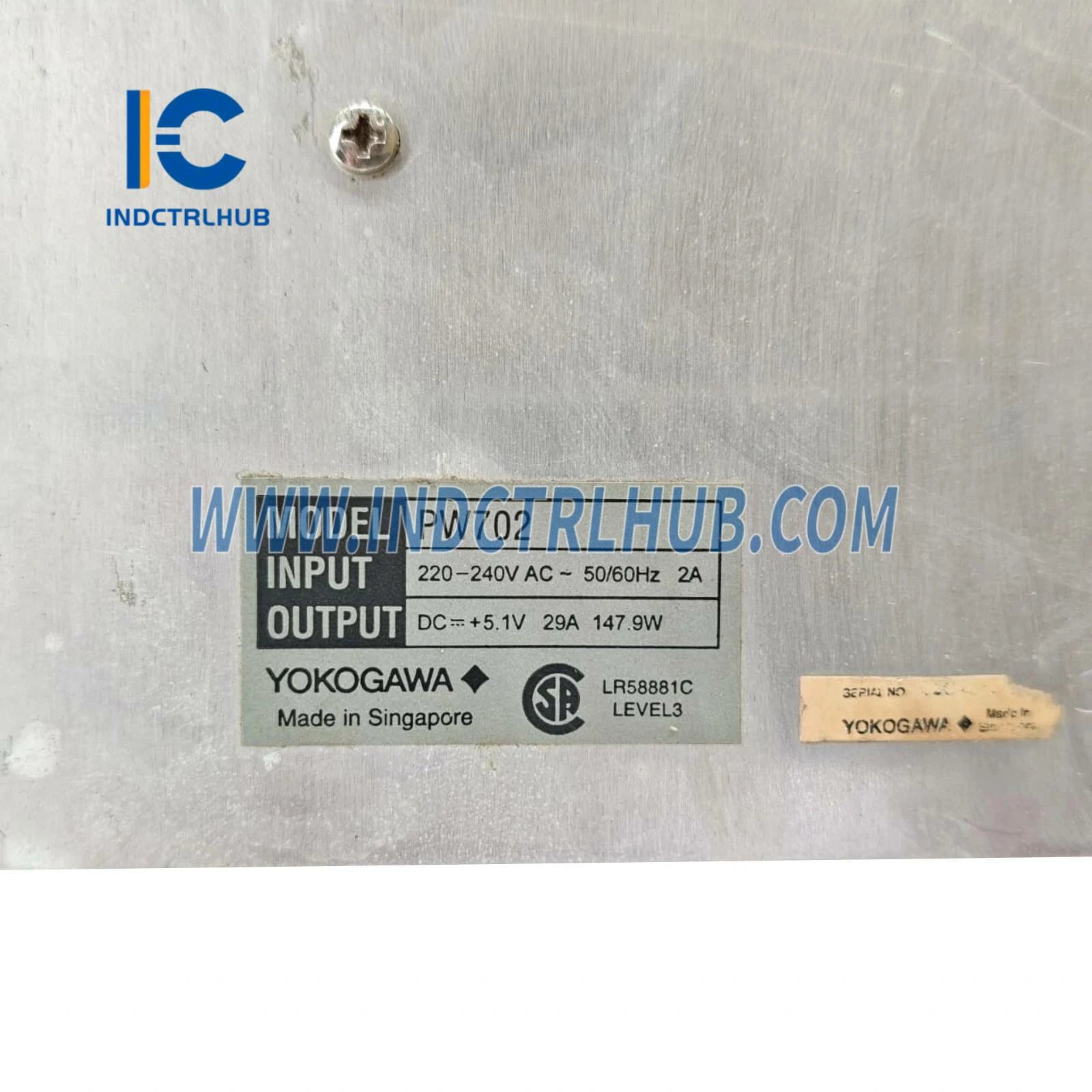

| Input Voltage | 220-240 VAC, 50/60 Hz |
| Output Voltage | 5.1 VDC |
| Output Current | 29 A |
| Dimensions | Approx. 254 x 76 x 279 mm (10 x 3 x 11 in) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | Approx. 2 kg (4.4 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Terminal blocks for power input/output, integrates with CENTUM Field Control Station (FCS) backplane |
Functional Features
| Feature | Details |
|---|---|
| Redundancy | Supports redundant configuration for uninterrupted power supply |
| Installation | Plug-in module for easy installation and replacement |
| Reliability | Ensures stable power to critical DCS components |

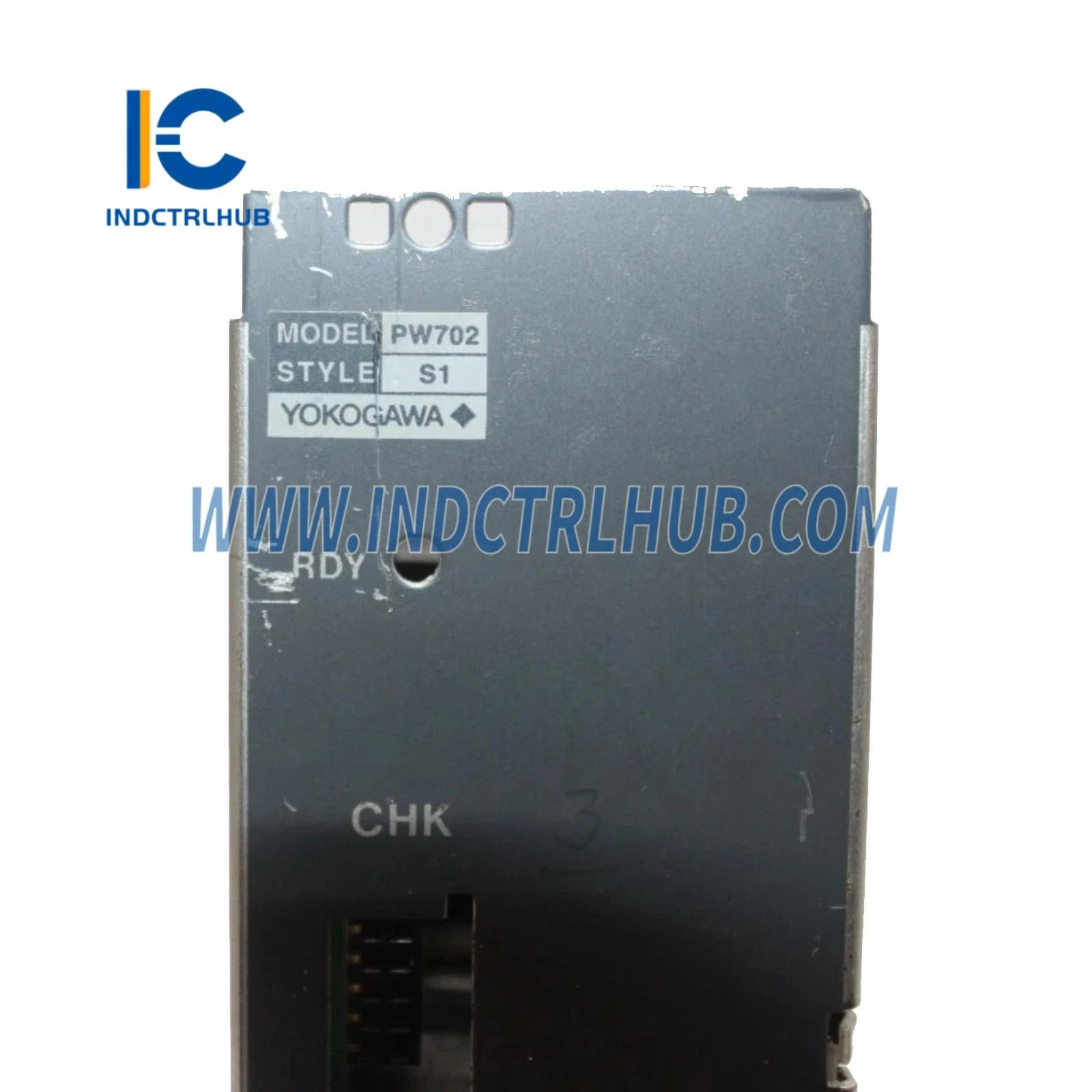

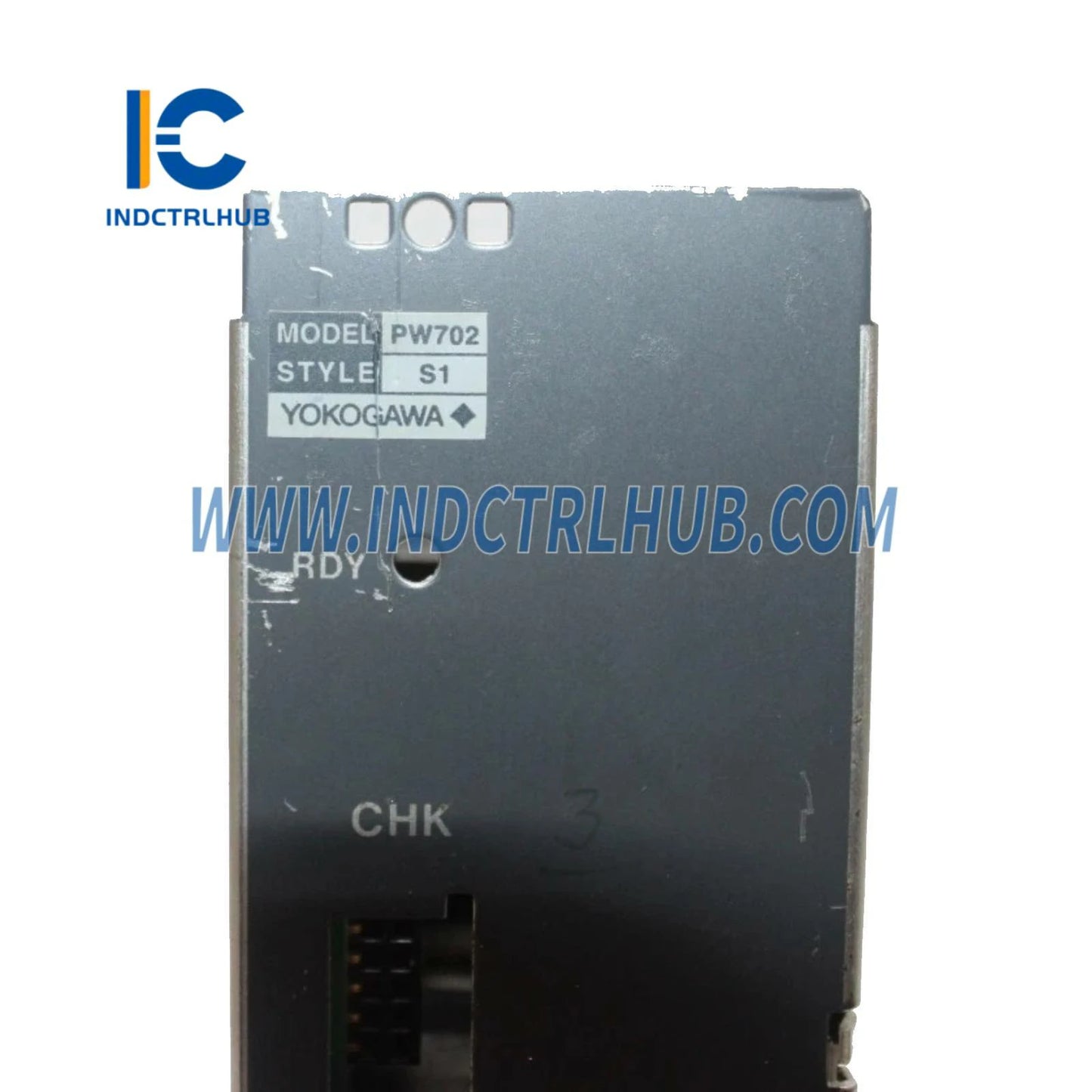

| Monitoring | Status indicators for operational diagnostics |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | PW702 |
| Configuration | Standard type for CENTUM DCS power supply |
