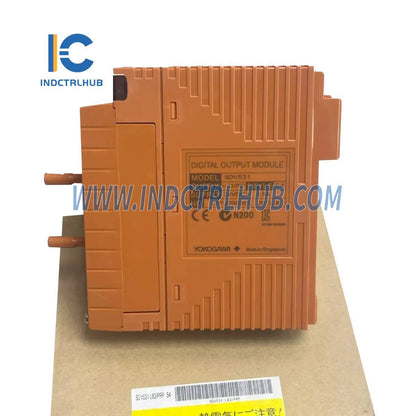

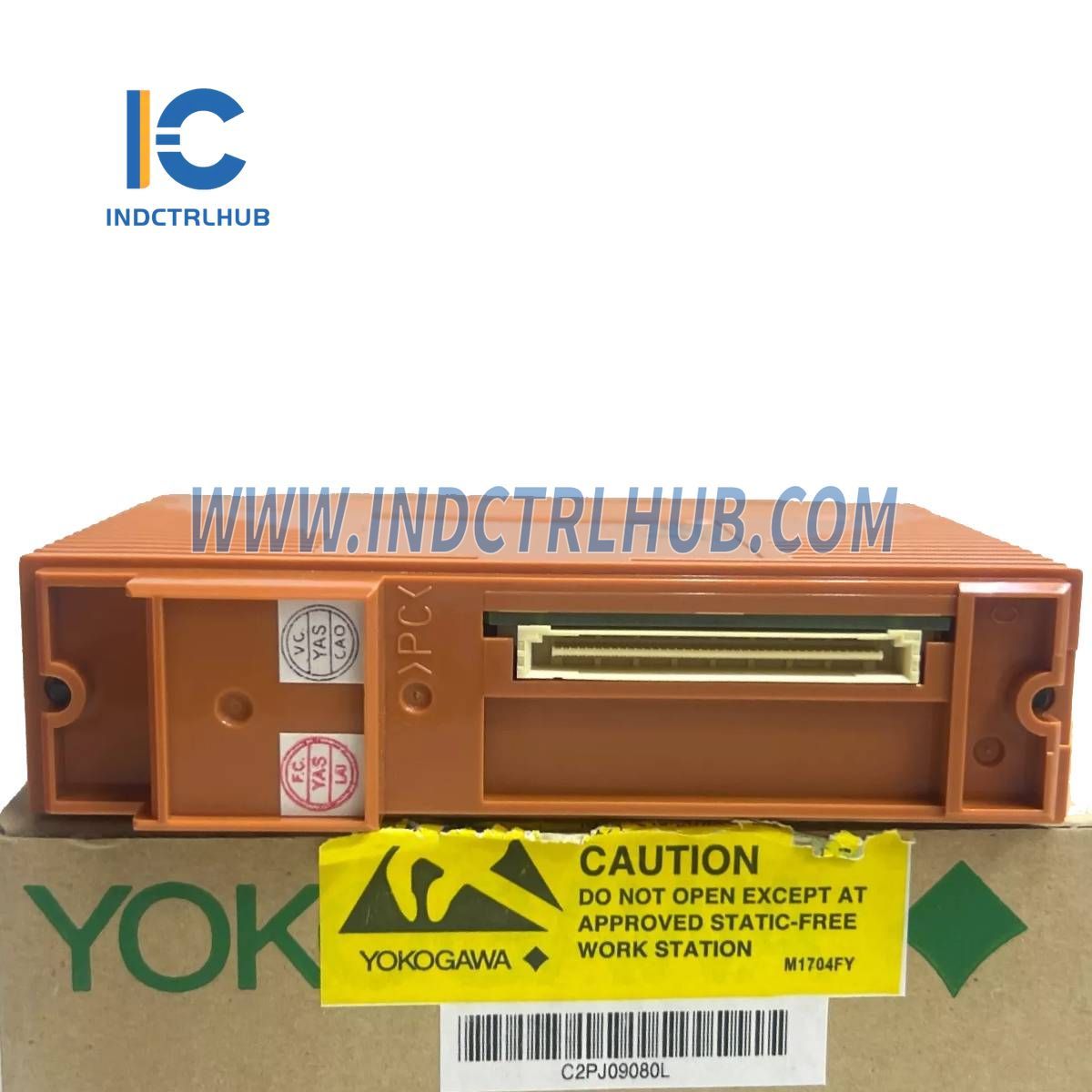

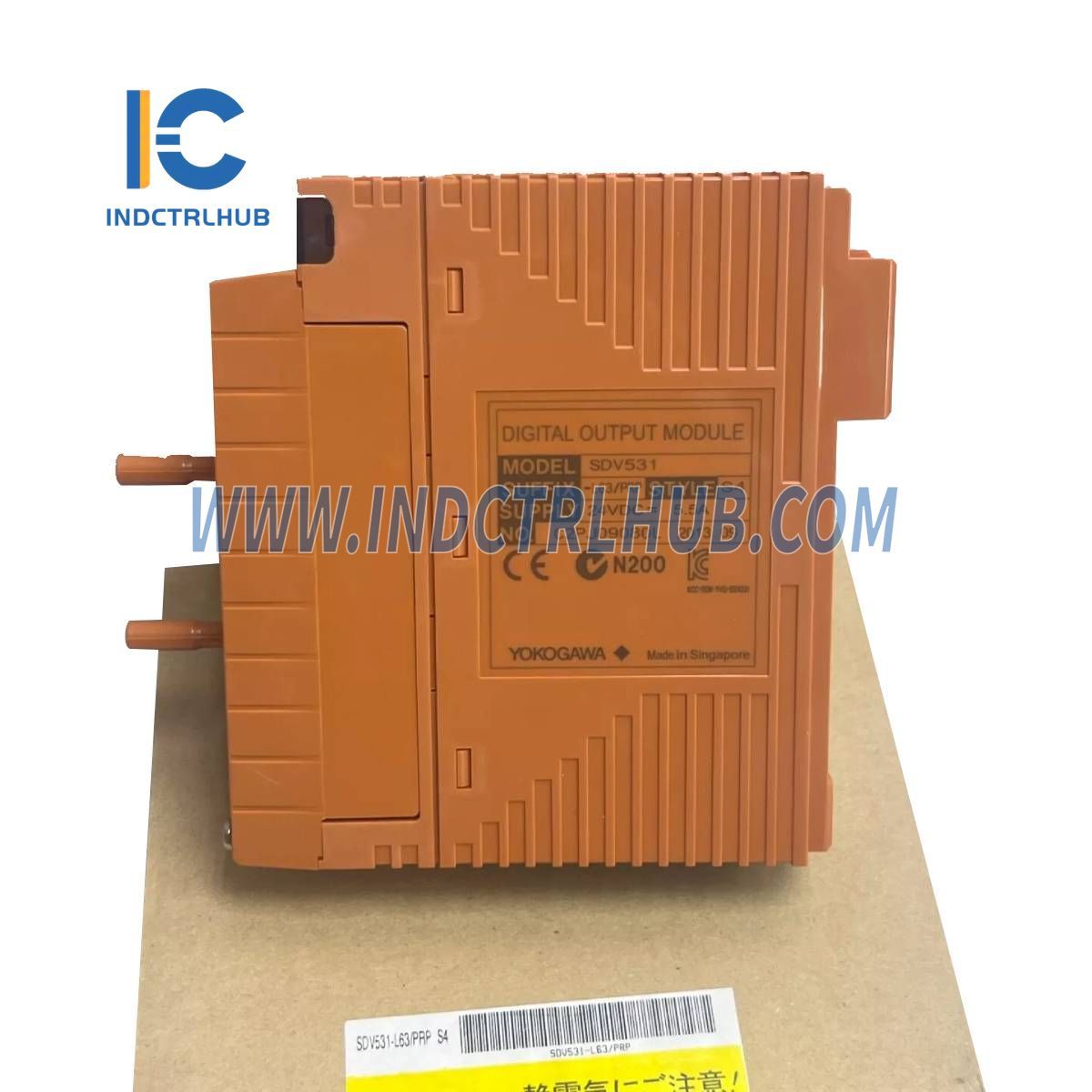

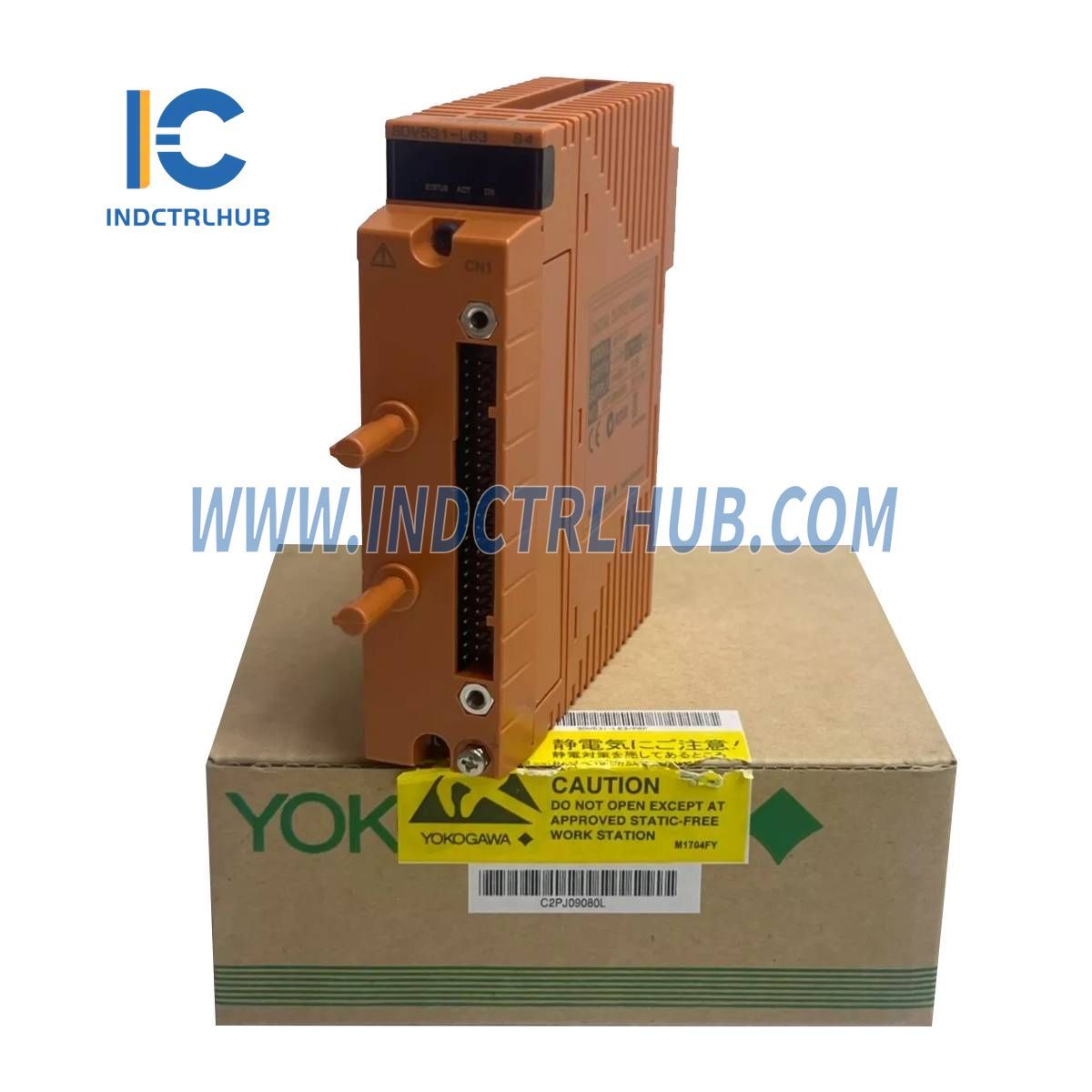

Yokogawa SDV531-L63/PRP Digital output module

Yokogawa SDV531-L63/PRP Digital output module

  • Manufacturer: Yokogawa

  • Product No.: SDV531-L63/PRP

  • Condition:1000 in stock

  • Product Type: Digital output module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 360g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Yokogawa SDV531-L63/PRP is a Digital Output Module designed for reliable on/off signal output to field equipment in industrial safety systems. Part of the digital I/O modules series mountable on Safety Node Units and Safety Control Units, this module features 8 isolated channels and supports dual-redundant configurations. With built-in field wiring diagnostic functions and a prevention pin to avoid false insertion, it ensures robust and safe operation, as detailed in this General Specification (GS).

Technical Information

Item Specifications
Manufacturer Yokogawa
Model/Part Number SDV531-L63/PRP
Description Digital Output Module
Number of Outputs 8-channel, module isolation (*3)
Output Voltage 24 V DC
Output Voltage Drop 1 V maximum
External Power Supply Rating 24 V DC, 5 A minimum
External Power Supply 24 V DC +20 % / -10 % (*4), Current capacity: 5 A
Maximum Leak Current at Output Off Status 1.6 mA
Output Format Current source
Maximum Load Current 0.6 A/output line (4.8 A total output lines) (*3) (*5)
Minimum Load Current 35 mA
Load Resistance Range 40 to 685 Ω (*6)
Output Response Time 30 ms maximum
Withstand Voltage (*1) (*2) 2 kV AC between output signal lines and system for 1 minute, 8-point input lines collectively connected (negative lines) (*7)
Current Consumption 280 mA maximum (5 V DC)
140 mA maximum (24 V DC)
Weight Approx. 0.28 kg (For pressure clamp terminal block or MIL cable)
Approx. 0.34 kg (With dedicated signal cable interface adapter)
External Connection Pressure clamp terminal, MIL cable, Dedicated signal cable (AKB331, AKB651 (*8))

General Information

  • This General Specification (GS) provides the hardware specifications of digital I/O modules installable in Safety Node Units and Safety Control Units.
  • Output modules output on/off status signals to field equipment, support dual-redundant configurations, and include field wiring diagnostic functions, eliminating the need for separate wiring diagnosis elements.

Model and Suffix Codes

  • Model: SDV531 Digital Output Module (8-channel, 24 V DC, module isolation)
  • Suffix Codes:
    • -L: Long distance type
    • -S: Standard type
    • 5: For pressure clamp terminal block or MIL cable with no explosion protection
    • 6: With signal cable interface adapter and no explosion protection (*1)
    • E: For pressure clamp terminal block or MIL cable with explosion protection
    • F: With signal cable interface adapter and explosion protection (*1)
    • 3: With ISA Standard G3 and temperature (-20 to 70 °C)
    • C: With ISA Standard G3 and high-density installation (-20 to 70 °C) (*4)
  • Option Codes:
    • /B4S00: With pressure clamp terminal block for digital output (without surge absorber) [Model: STB4S-00]
    • /B4S10: With pressure clamp terminal block for digital output (with surge absorber) [Model: STB4S-10]
    • /B4D00: With dual-redundant pressure clamp terminal block for digital output (without surge absorber) (*2) [Model: STB4D-00]
    • /B4D10: With dual-redundant pressure clamp terminal block for digital output (with surge absorber) (*2) [Model: STB4D-10]
    • /PRP: With prevention pin of false insertion (*3)
    • /CCC01: With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01]
    • /CCC02: With connector cover for MIL cable (for discrete wire) [Model: SCCC02]

Specific Configuration

  • Model/Part Number: SDV531-L63/PRP
  • Configuration Details:
    • -L: Long distance type
    • 6: With signal cable interface adapter and no explosion protection (*1)
    • 3: With ISA Standard G3 and temperature (-20 to 70 °C)
    • /PRP: With prevention pin of false insertion (*3)
