Product Description
Product Overview

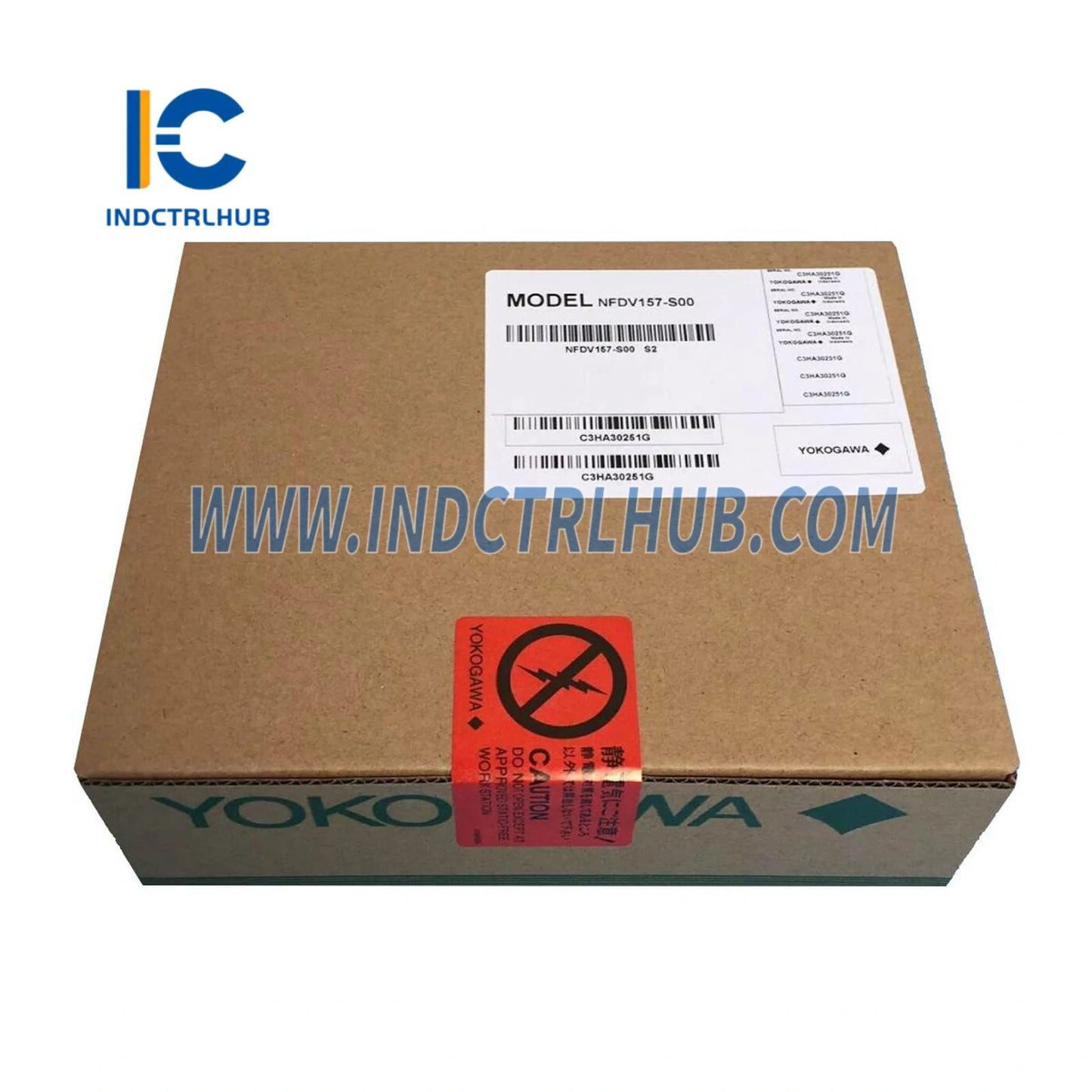

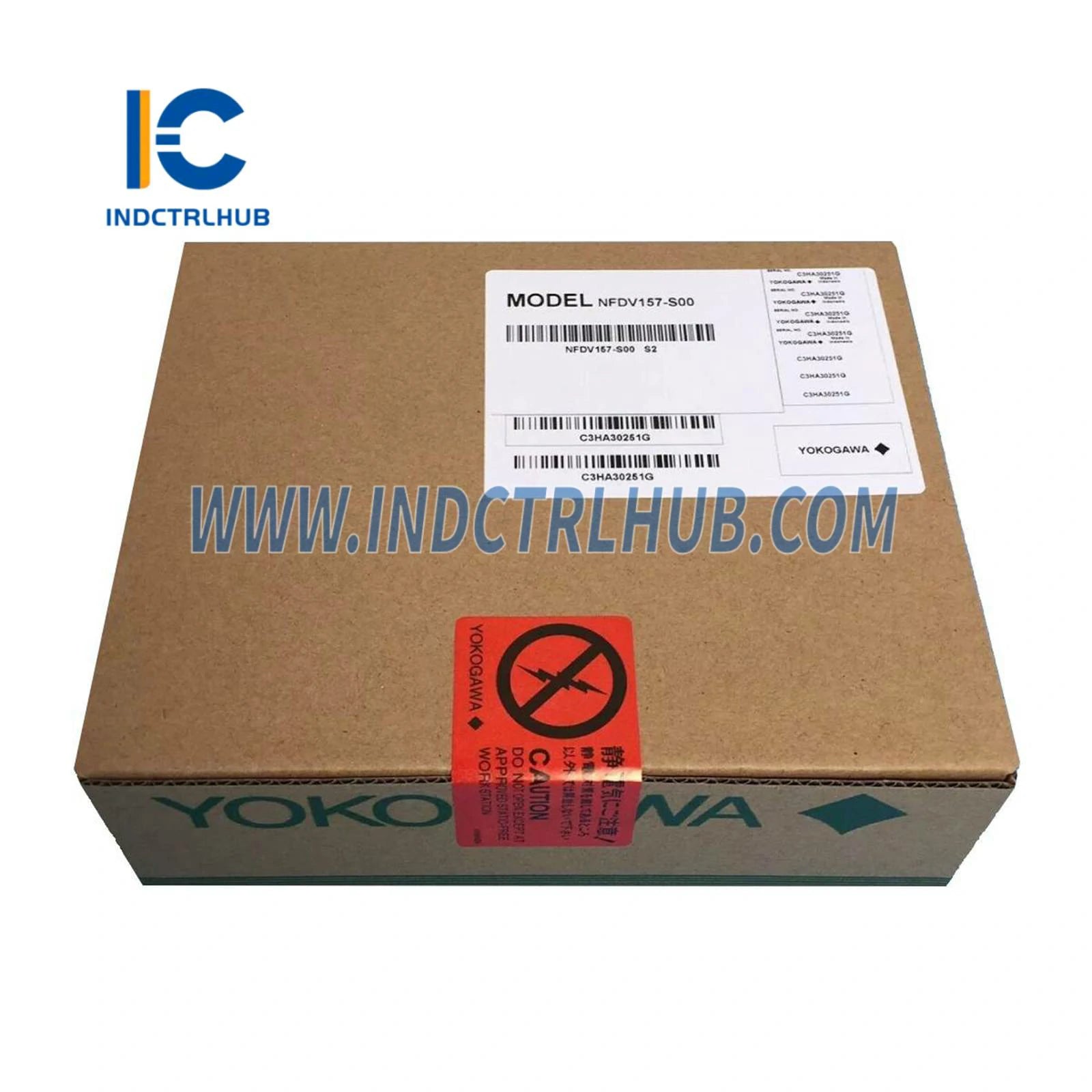

The Yokogawa NFDV157-S00 is a Digital Output Module designed for use in Yokogawa’s STARDOM autonomous control system, specifically for the FCN-RTU (Remote Terminal Unit). This module provides 32 channels of digital output, delivering 24 V DC signals to field devices such as actuators, valves, or relays. It is engineered for industrial automation applications in oil & gas, water treatment, and small-scale power generation, offering reliable performance in distributed control environments.
Technical Specifications
The NFDV157-S00 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | NFDV157-S00 |
| Manufacturer | Yokogawa |
| Description | Digital Output Module (32-channel, 24 V DC) |
| Series | STARDOM (FCN-RTU) |
| Number of Outputs | 32 channels |
| Rated Output Voltage | 24 V DC |
| External Power Supply | 24 V DC ± 20% |
| Maximum Load Current | 100 mA per channel |
| Output Response Time | 10 ms maximum |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Weight | Approximately 0.3 kg (0.66 lbs) |
Additional Details
The NFDV157-S00 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Controls field devices by transmitting 32-channel 24 V DC signals |
| Mounting | Installed in FCN-RTU base module (e.g., NFBU200) |
| Compatibility | STARDOM FCN-RTU systems |
| Connection Options | Pressure clamp terminal block |
| Features | High reliability, compact design, supports distributed control |
| Certifications | Meets industrial standards (e.g., CE) |
| Part Type | New, surplus, or refurbished |
