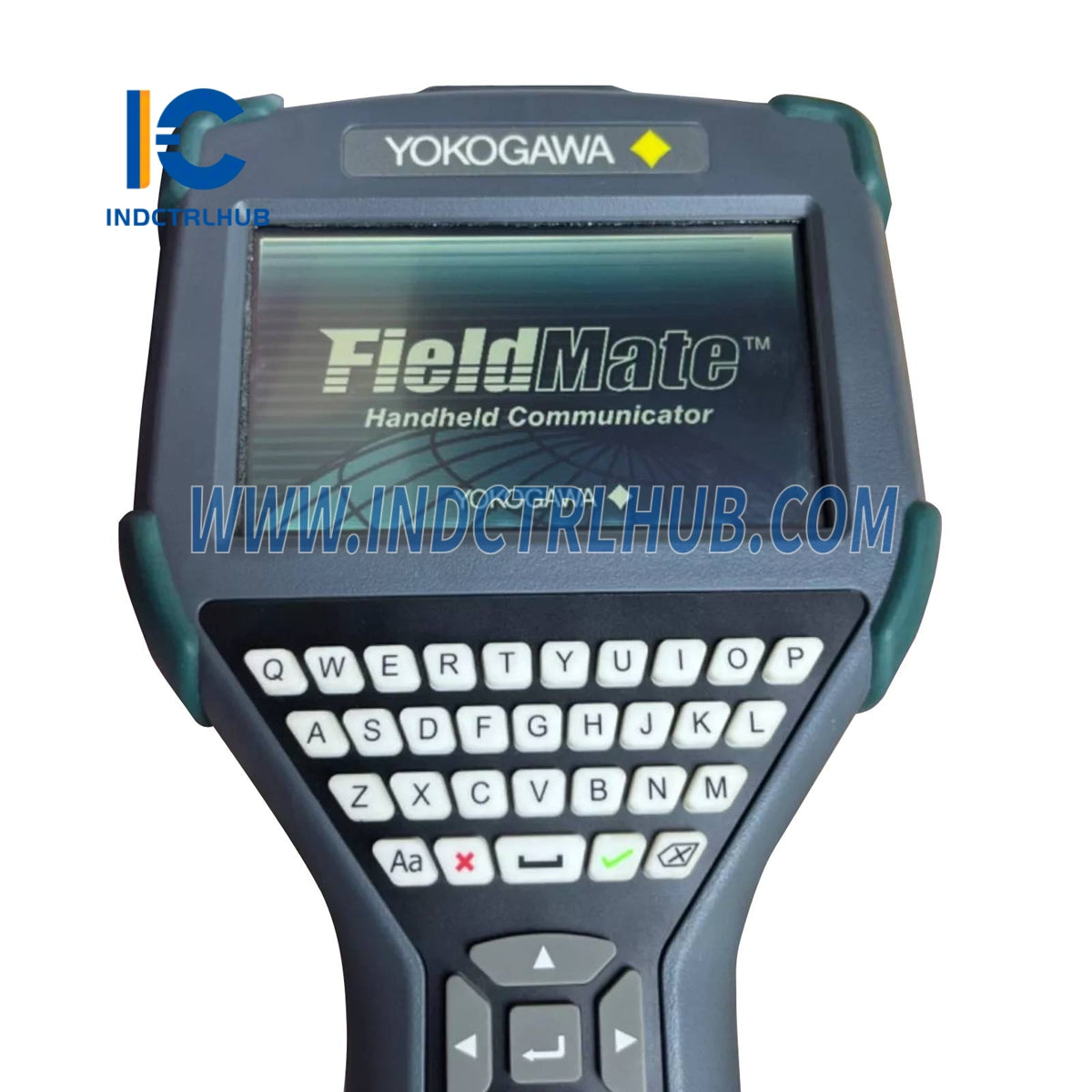

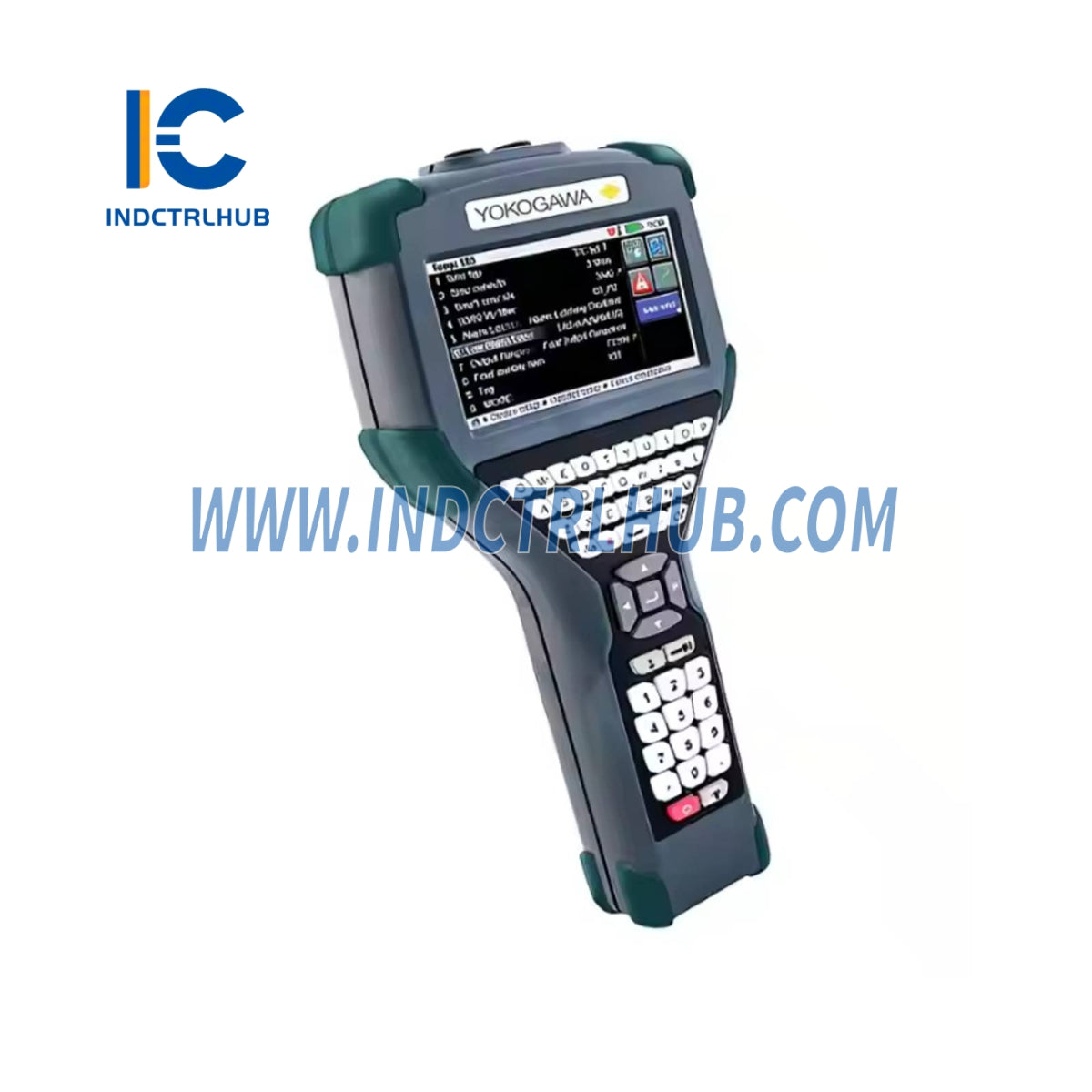

Yokogawa YHC5150X FieldMate Handheld Communicator
Yokogawa YHC5150X FieldMate Handheld Communicator
Manufacturer: Yokogawa
Product No.: YHC5150X
Condition:1000 in stock
Product Type: FieldMate Handheld Communicator
Product Origin: Japan
Payment: T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
YHC5150X |
|
Description |
FieldMate Handheld Communicator (Intrinsically Safe HART® Communicator) |
_
_
__ Technical Specifications
|
Category |
Specification |
|---|---|
|
Processor |
1 GHz Microprocessor |
|
Memory |
512 MB internal flash, 256 MB RAM, 4 GB SD card installed (supports up to 64 GB) |
|
Display |
4.3_ (10.9 cm) color transflective touchscreen, ¼ VGA (480 x 272 px), anti-glare |
|
Keypad |
52-key QWERTY + numeric, membrane type with tactile feedback |
|
Size |
303 _ 142 _ 48 mm (11.9 _ 5.6 _ 1.9 in) |
|
Weight |
Approx. 2.1 lbs (0.91 kg) with battery |
_
_
__ Power Supply
|
Item |
Specification |
|---|---|
|
Battery |
Rechargeable Lithium-Ion power module |
|
Battery Life |
10 hrs continuous use, 20 hrs typical, 100 hrs standby/hibernate |
|
Battery Charger Input |
100_240 VAC, 50/60 Hz, with adapters for Asia, US, EU, UK |
_
_
__ Connectivity
|
Interface |
Specification |
|---|---|
|
HART® |
Two 4mm banana plugs (one common to HART®) |
|
USB |
Supports up to 115 kbps |
|

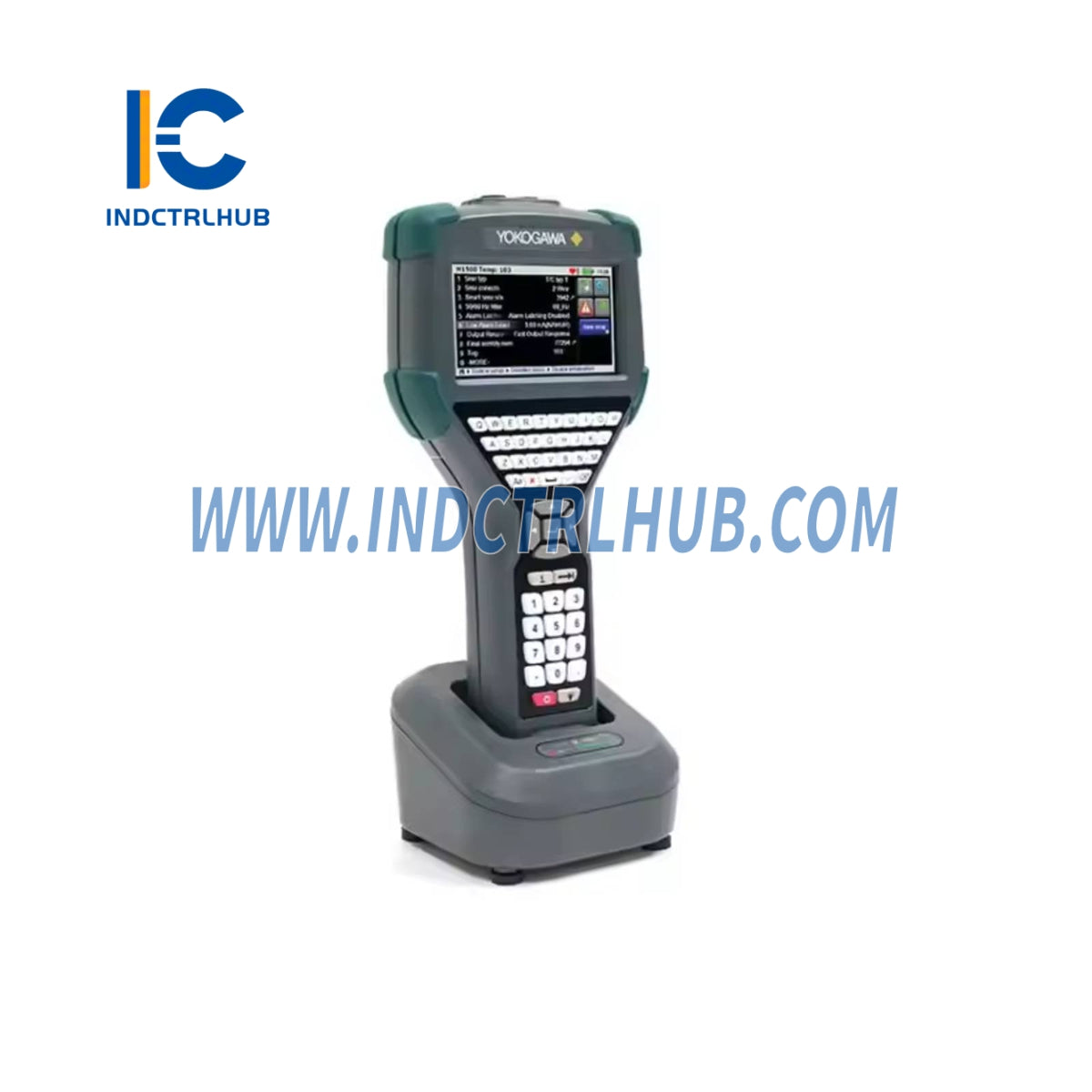

Battery Cradle |
Provided |
_
_
__ Environmental Specifications
|
Condition |
Specification |
|---|---|
|
Operating Temperature |
-10°C to +50°C (+14°F to +122°F) |
|
Operating Humidity |
0%_95% RH (non-condensing) from 0°C to +50°C |
|
Charging Temperature |
+10°C to +40°C (+50°F to +104°F) |
|
Storage Temperature |
With batteries: -20°C to +55°C (-4°F to +131°F)__Without batteries: -20°C to +60°C (-4°F to +150°F) |
|
Enclosure Rating |
IP51 (protection against dust & vertical water drops) |
|
Drop Test |
Survives 1-meter drop onto concrete |
_
_

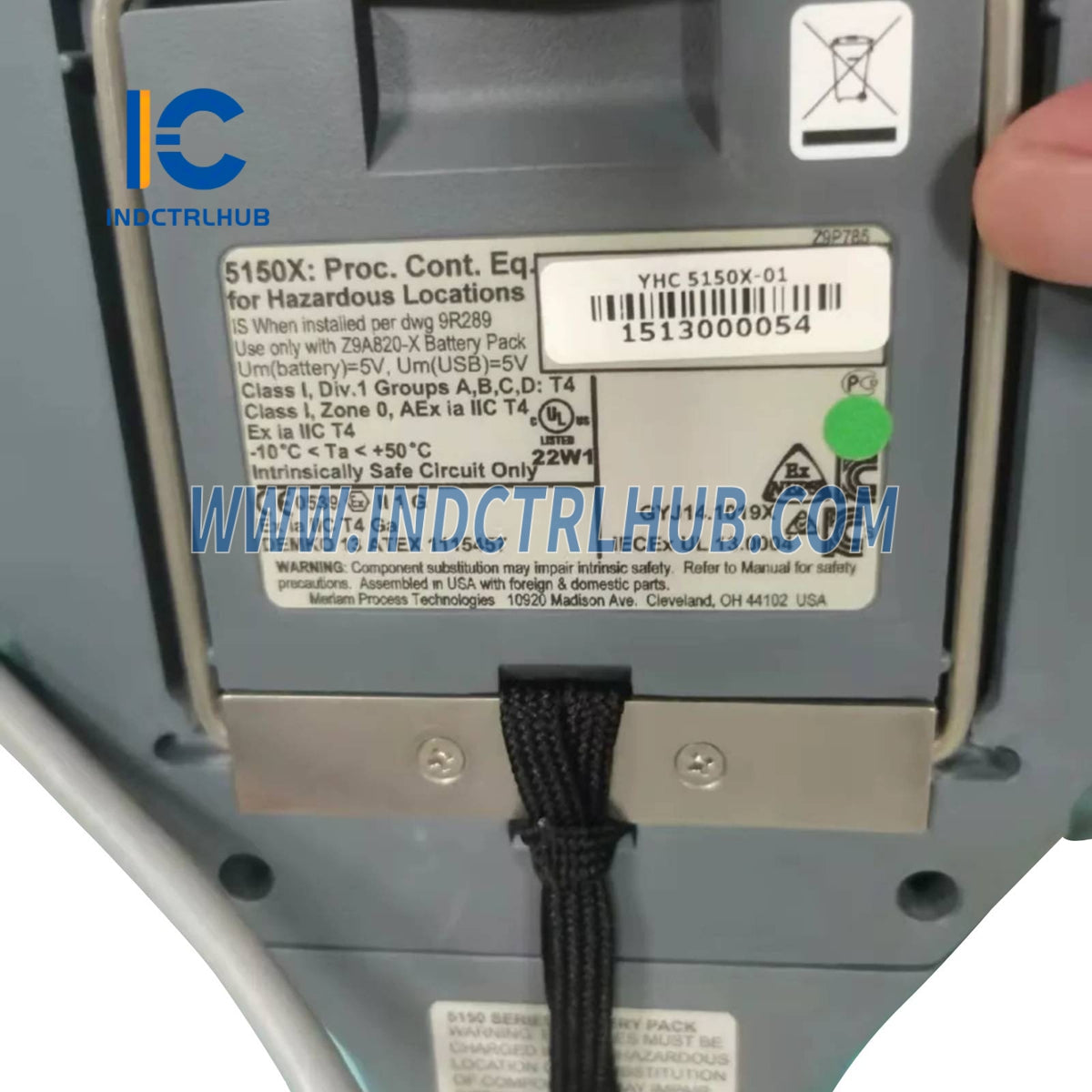

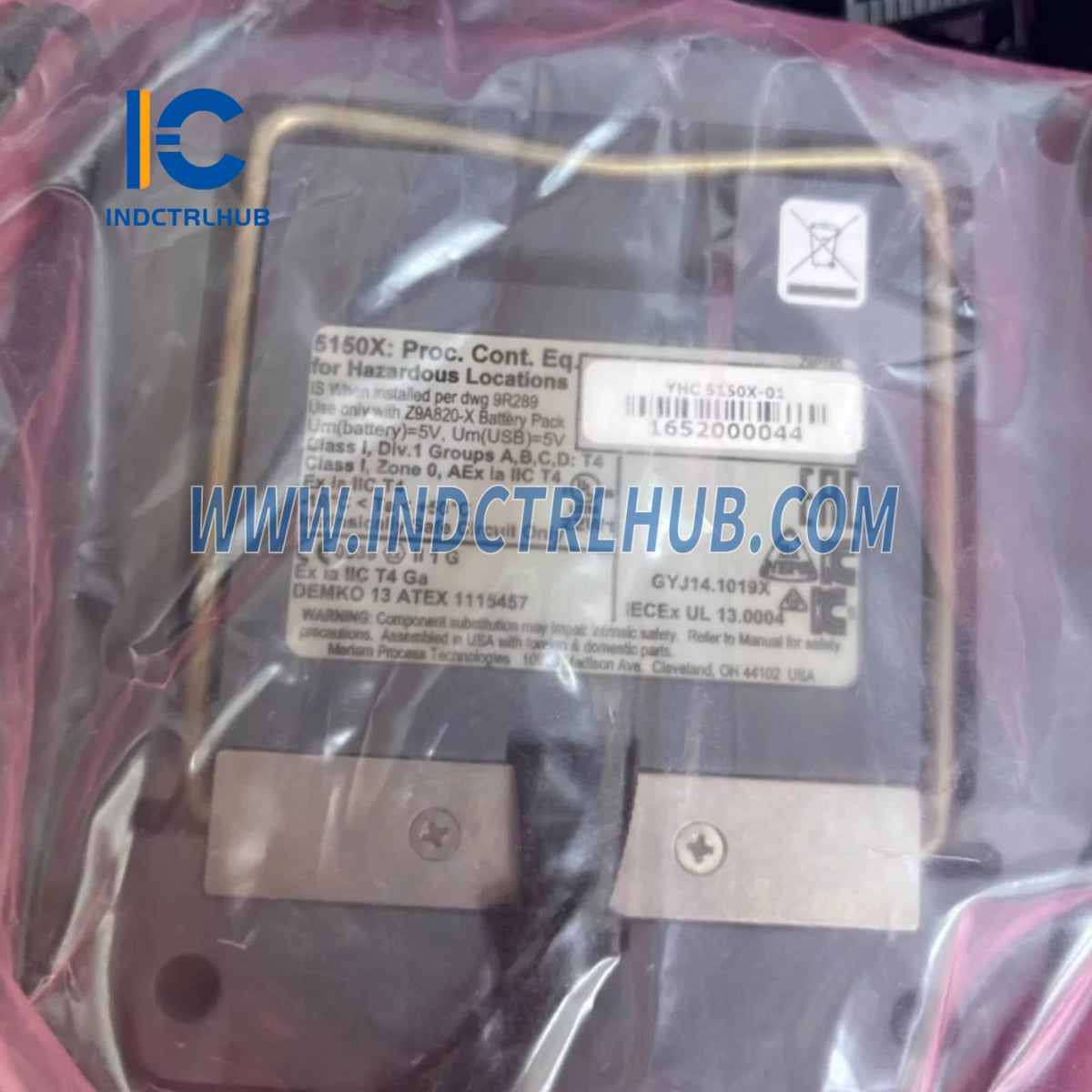

__ Certifications
|
Region/Standard |
Details |
|---|---|
|
US / ANSI/ISA / UL |
Class I, Div 1, Groups A, B, C, D; UL913 Ed7; UL60079-0/-11 AEx ia IIC T4 |
|
Canada / CSA |
CSA-C22.2 Class I, Zone 0, Ex ia IIC T4 |
|
Europe / ATEX |
EN60079-0:2012 II 1 G Ex ia IIC T4 Ga |
|
IECEx (Global) |
IEC60079-0:2011 Ed6, Ex ia IIC T4 |
_
_
_
_
