Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa |

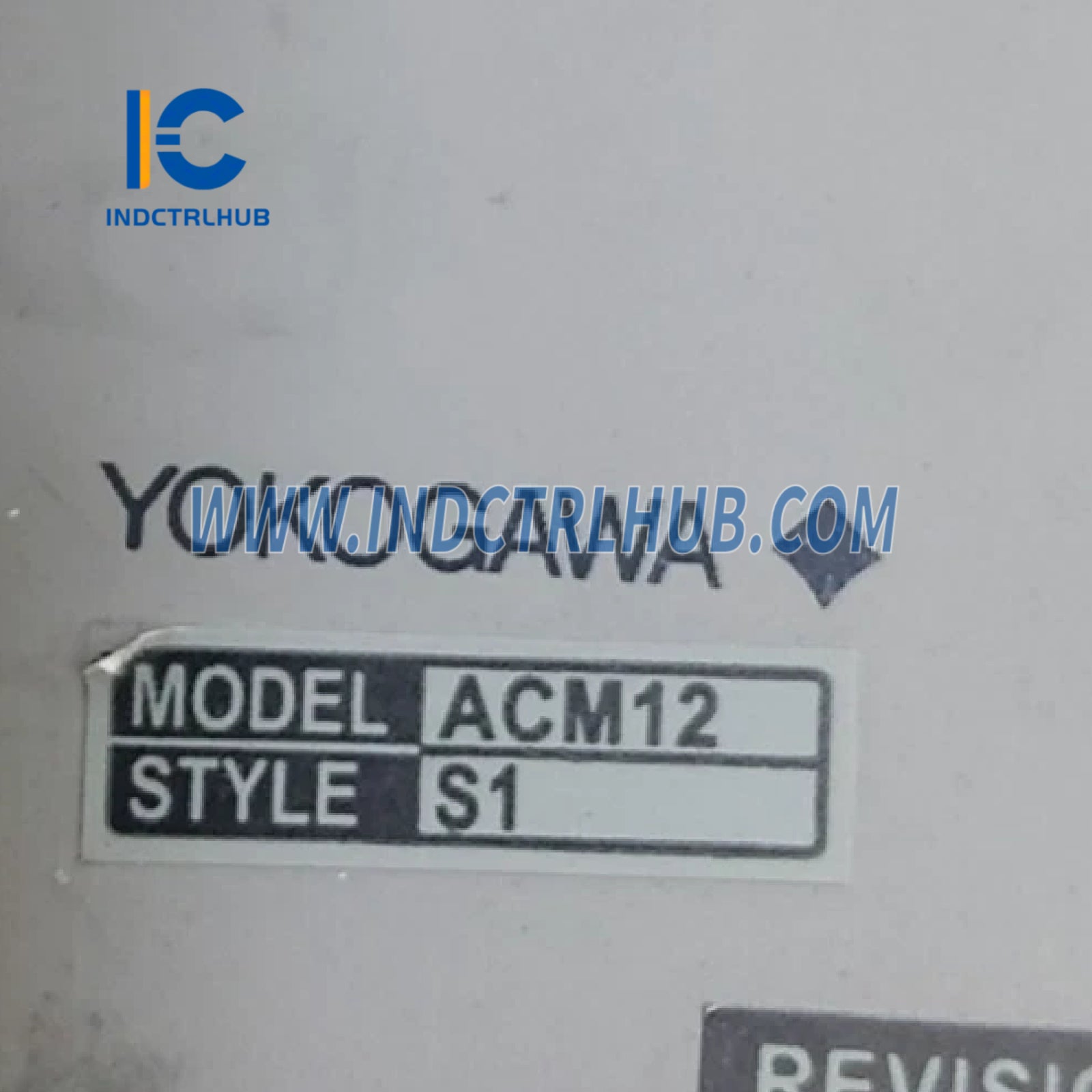

| Model/Part Number | ACM12/ZCT |
| Description | Communication Module designed for Yokogawa CENTUM series Distributed Control Systems, enabling serial communication (e.g., Modbus) with external devices using RS-422/485 interface |
| Key Features | Supports Modbus protocol, RS-422/485 serial communication, integrates with CENTUM CS and CS 3000, high reliability, ZCT suffix for specific configuration |
Technical Specifications
| Specification | Details |
|---|---|

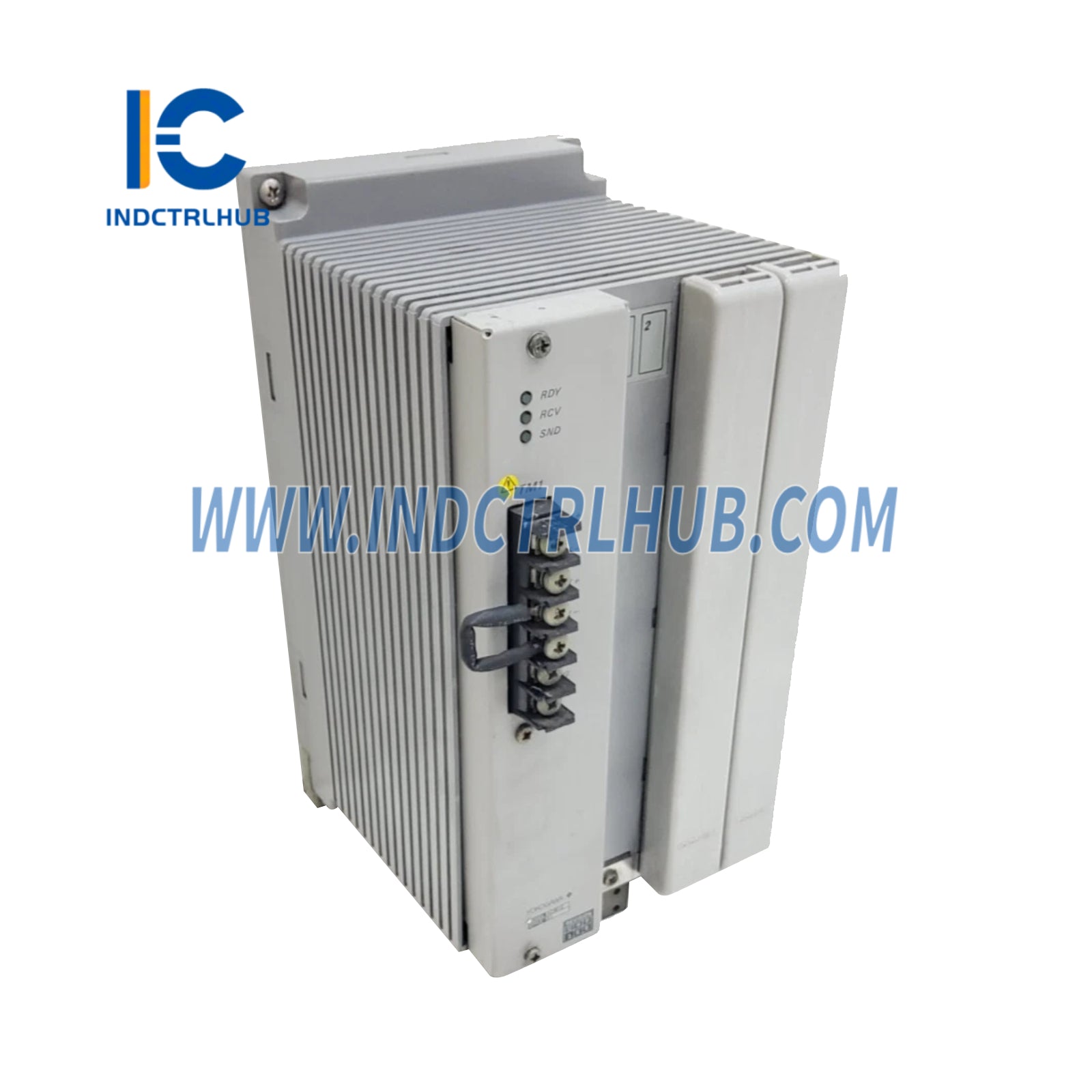

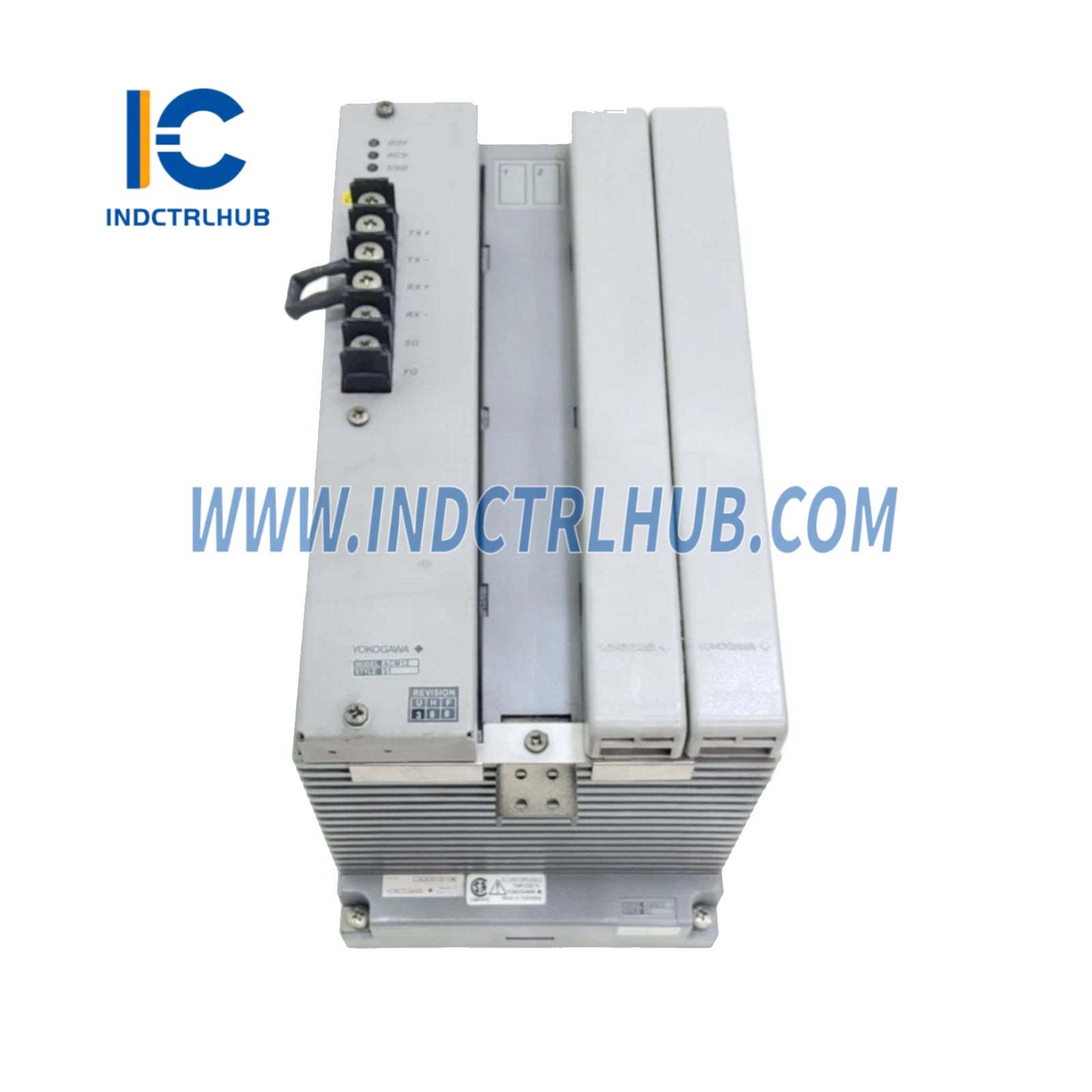

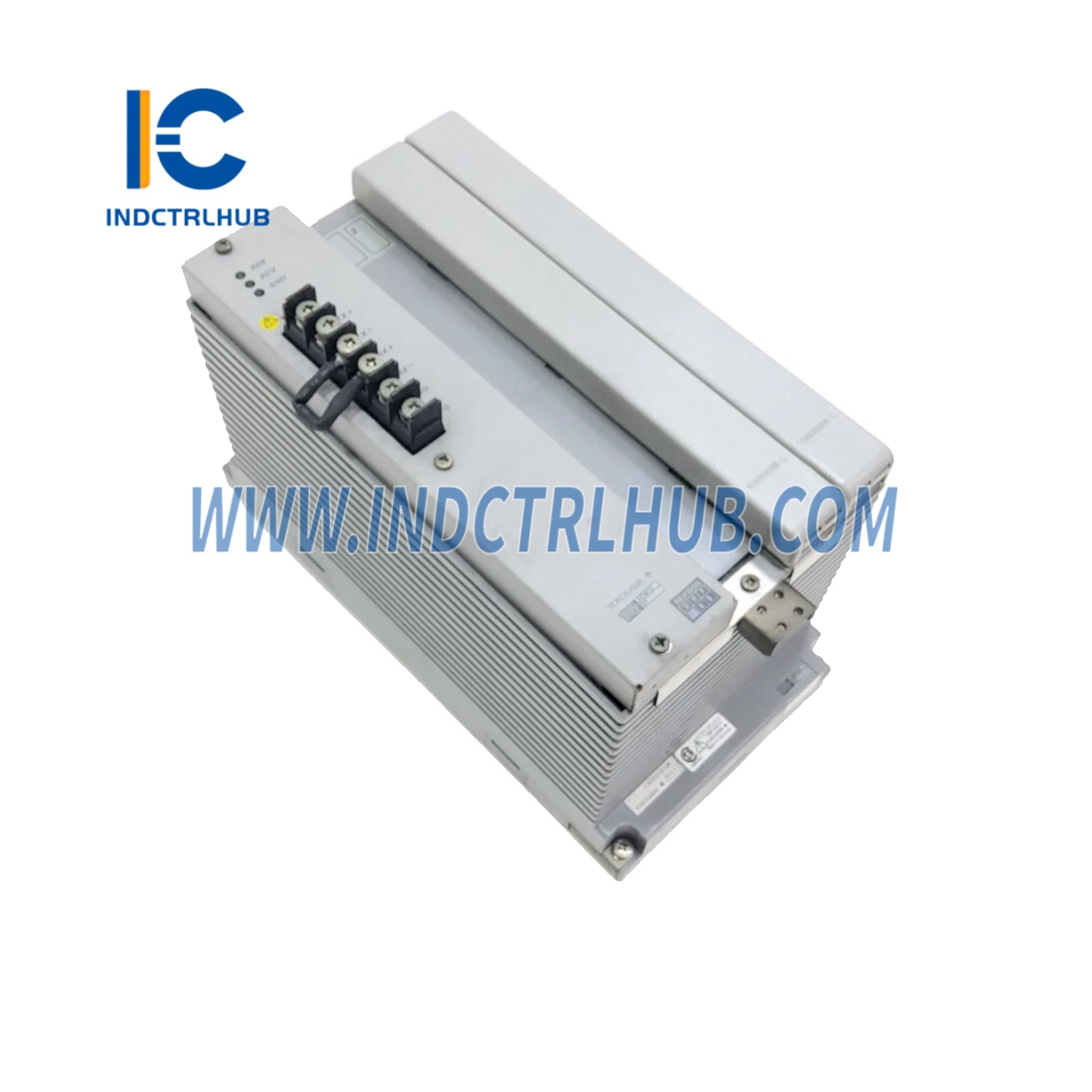

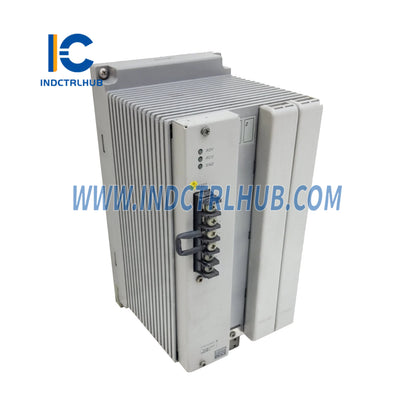

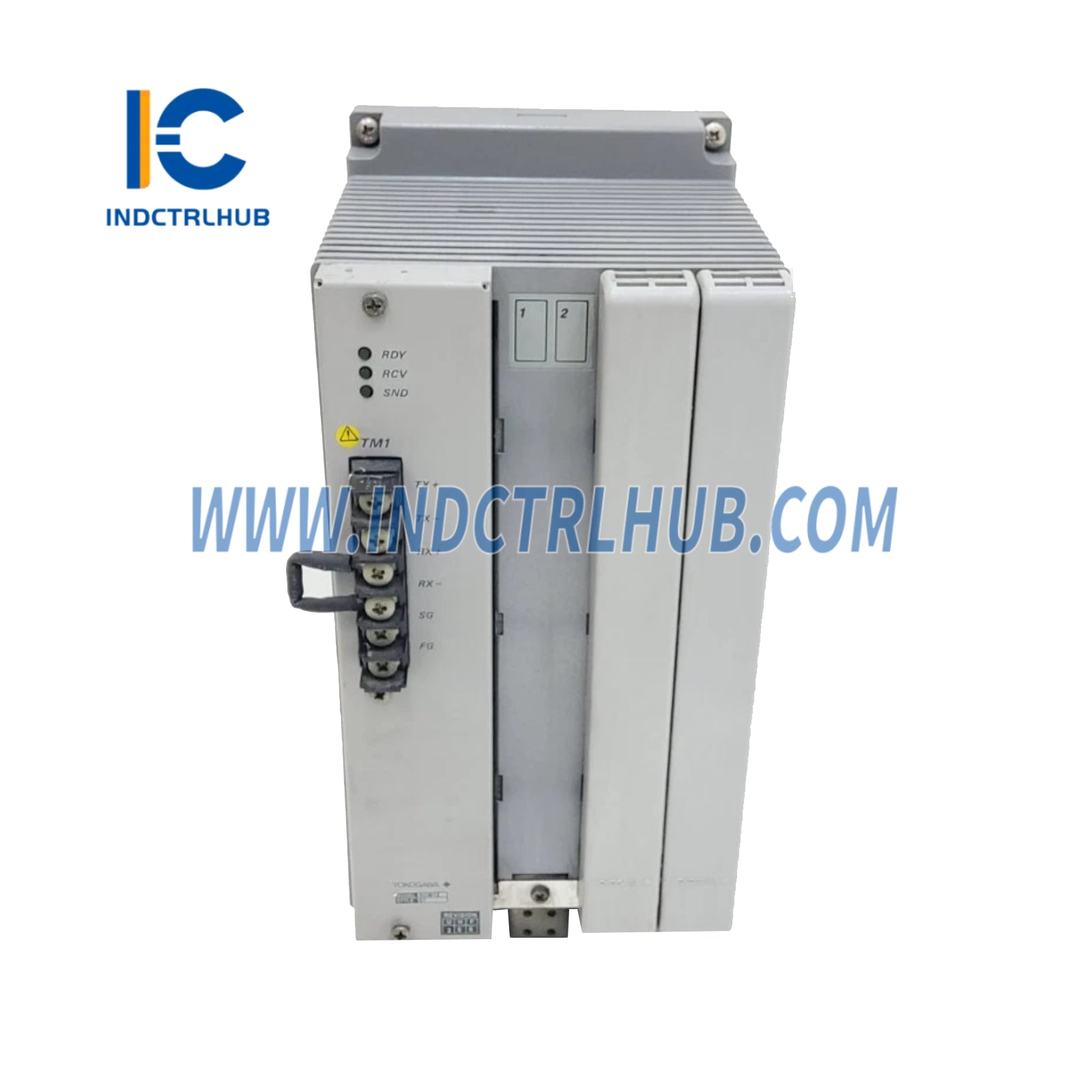

| Model | ACM12/ZCT |
| Product Type | Communication Module |
| Series | CENTUM (CS, CS 3000) |
| Communication Interface | RS-422/485 |
| Protocol | Modbus (RTU/ASCII), others configurable |
| Power Supply | 24 VDC (via system backplane) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | Approx. 0.3-0.5 kg (0.66-1.1 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | RS-422/485 serial ports for external device communication, integrates with CENTUM Field Control Station (FCS) |
Functional Features
| Feature | Details |
|---|---|
| Data Exchange | Facilitates communication between CENTUM DCS and external systems via Modbus or other serial protocols |
| Compatibility | Seamlessly integrates with CENTUM CS and CS 3000 systems |
| Reliability | Designed for stable operation in industrial environments |
| Configuration | ZCT variant tailored for specific communication requirements |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | ACM12 |
| Configuration | ZCT: Specific variant, likely indicating enhanced features or compliance (e.g., zero current transformer or configuration-specific) |
