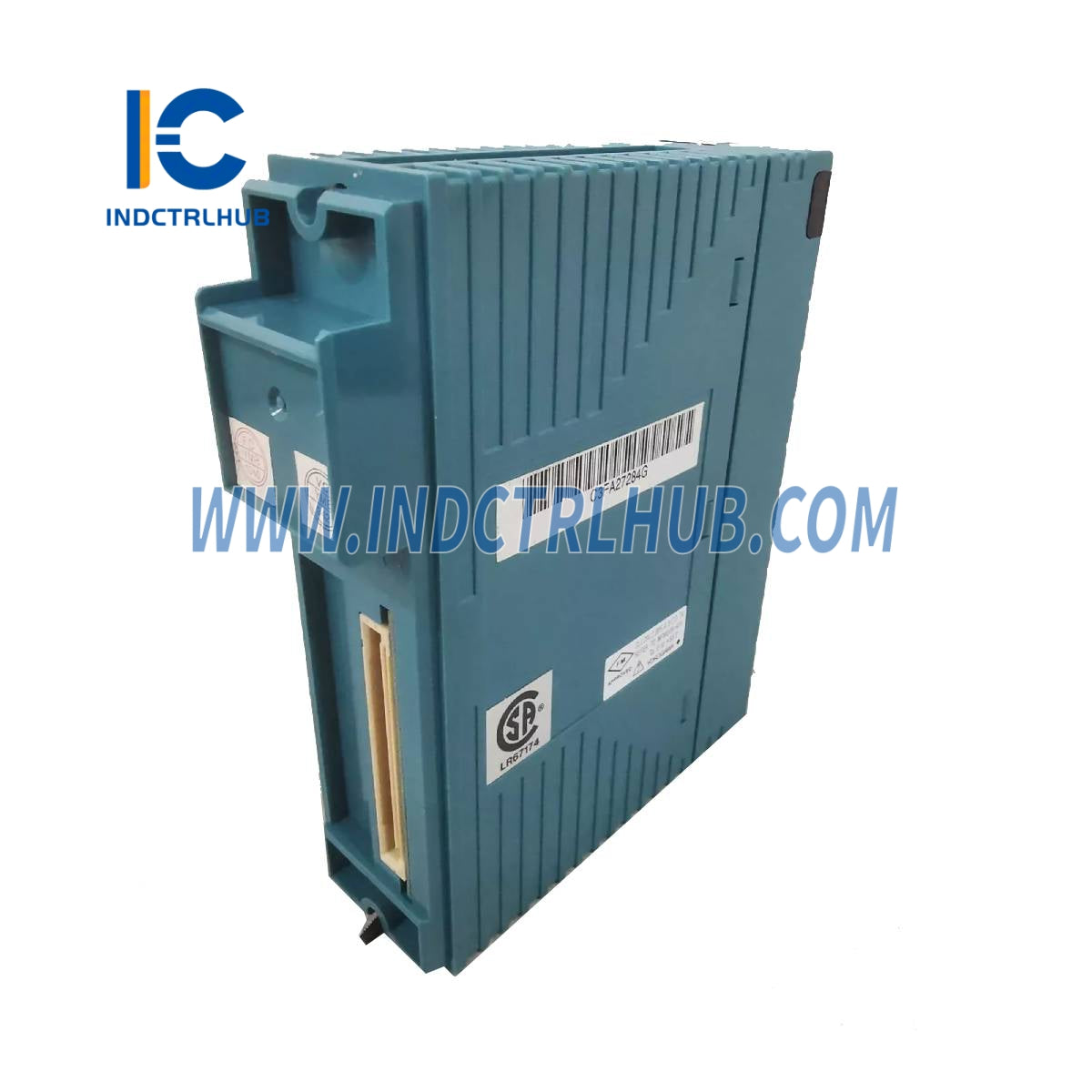

Yokogawa NFDR541-T Relay Output Module
Yokogawa NFDR541-T Relay Output Module
Manufacturer: Yokogawa
Product No.: NFDR541-T
Condition:1000 in stock
Product Type: Relay Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
NFDR541-T |
|
Description |
Relay Output Module (16-channel, Isolated, RoHS Compliant) |
_
_
__ Description Summary
The_NFDR541-T_is a 16-channel relay output module designed to switch both DC and AC loads. It supports resistive and inductive loads with reliable isolation and fallback functionality. The module is RoHS-compliant and built for applications where robust electrical isolation and multiple output channels are required.
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Number of Output Channels |
16 |
|
Rated Applied Voltage |
24_125 V DC, 100_240 V AC (50/60 Hz) |
|
Maximum Load Current (Resistive) |
2.0 A @ 24 V DC1.0 A @ 48 V DC0.3 A @ 110/125 V DC2.0 A @ 100/220 V AC |
|
Maximum Load Current (Inductive) |
0.6 A @ 24 V DC0.3 A @ 48 V DC0.1 A @ 110 V DC2.0 A @ 100 V AC1.0 A @ 220 V AC |
|
Withstanding Voltage |
Output__ystem: 2000 V AC (1 min)Between commons: 1350 V AC (1 min), every 8-ch |
|
Output Functions |
ON/OFF Status Output, Output Fallback (HOLD/OFF/NO) |
|
Output Response Time |
_ 12 ms (status output) |
|
Maximum Current Consumption |
780 mA (5 V DC) |
|
Weight |
Approx. 0.3 kg |
|
External Connection |
Pressure clamp terminal |
_
_
__ Model and Suffix Code Breakdown
|
Model |
NFDR541__ Relay Output Module (16-channel, Isolated) |
|---|---|
|
-T |
Standard type (24_125 V DC / 100_240 V AC), RoHS Compliant |
|
5 |
General-purpose, no explosion protection |
|
E |
With explosion protection |
|
0 |
Basic type |
|
1 |
With ISA Standard G3 option |
_
_
__ Optional Accessories
|
Option Code |
Description |
|---|---|
|
/C4S70 |
Pressure Clamp Terminal Block for Digital Input [Model: NFTC4S-70] |
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | SEC401-51 ESB Bus Coupler Module for Network Integration | 714_1714 | 740 | SEC401-51 ESB Bus Coupler Module |
| YOKOGAWA | CP401-10 S1 Processor Module for CENTUM VP Systems | 500_1500 | 510 | CP401-10 S1 Processor Module |
| YOKOGAWA | AAI143-H50 S1/ ATK4-00 S1 Analog Input Module for 4-20mA Signals | 1286_2286 | 870 | AAI143-H50 S1 Analog Input Module |
| YOKOGAWA | NFAI143-H50-S1 Analog Input Module for Current Signals | 2357_3357 | 430 | NFAI143-H50-S1 Analog Input Module |
| YOKOGAWA | EB401-10 S1 ER Bus Interface Master Module for DCS | 571_1571 | 690 | EB401-10 S1 ER Bus Interface Module |
| YOKOGAWA | AAI135-H50/13S00 Analog Input Module for Current Signals | 1786_2786 | 320 | AAI135-H50/13S00 Analog Input Module |
| YOKOGAWA | SAI143-H33 Analog Input Module for 4-20mA Signals | 1214_2214 | 760 | SAI143-H33 Analog Input Module |
