Product Description
š¹ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAI841-H00/CCC01 |
|
Description |
Analog I/O Module (8-channel input/8-channel output, Non-Isolated) |
Ā
Ā
š¹ Description

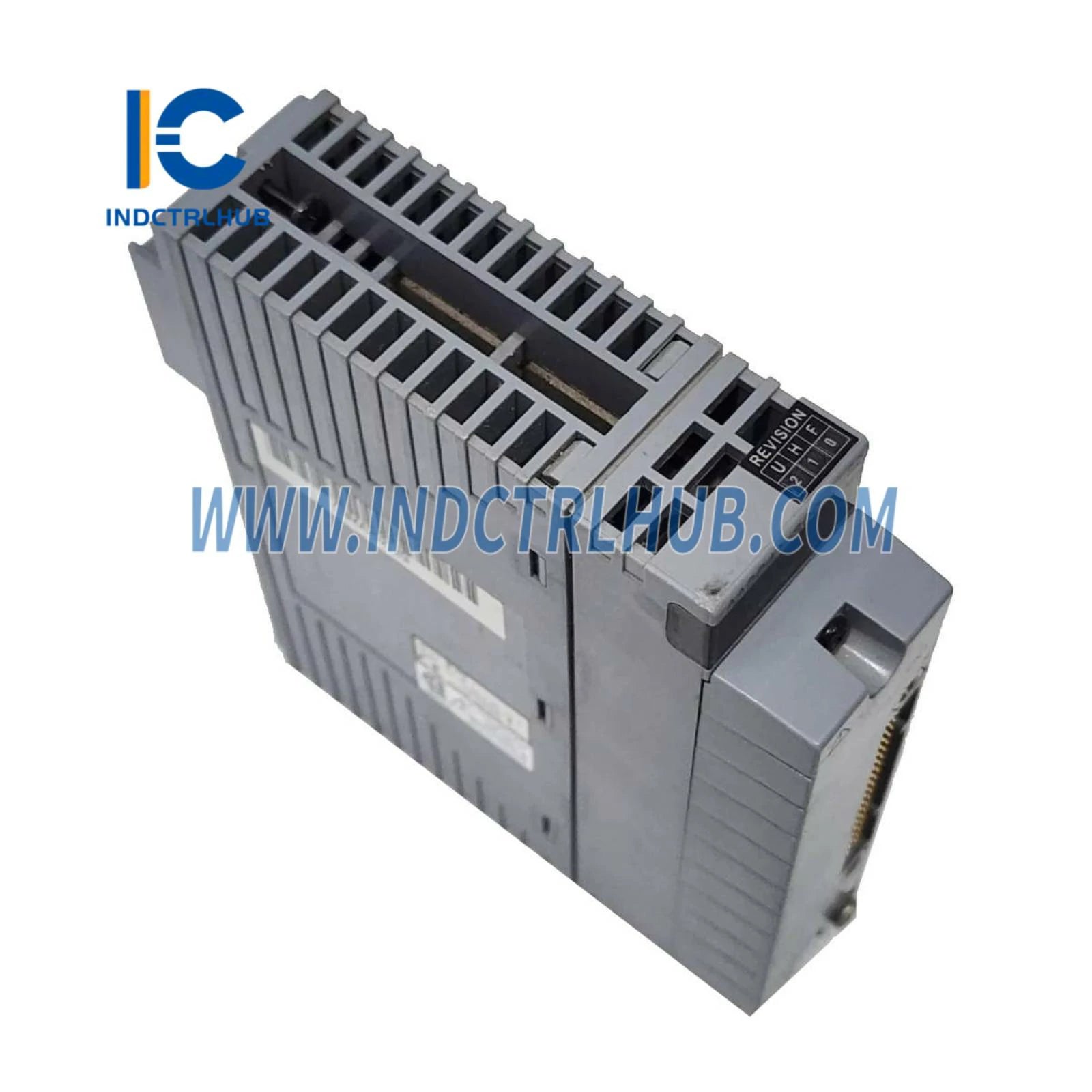

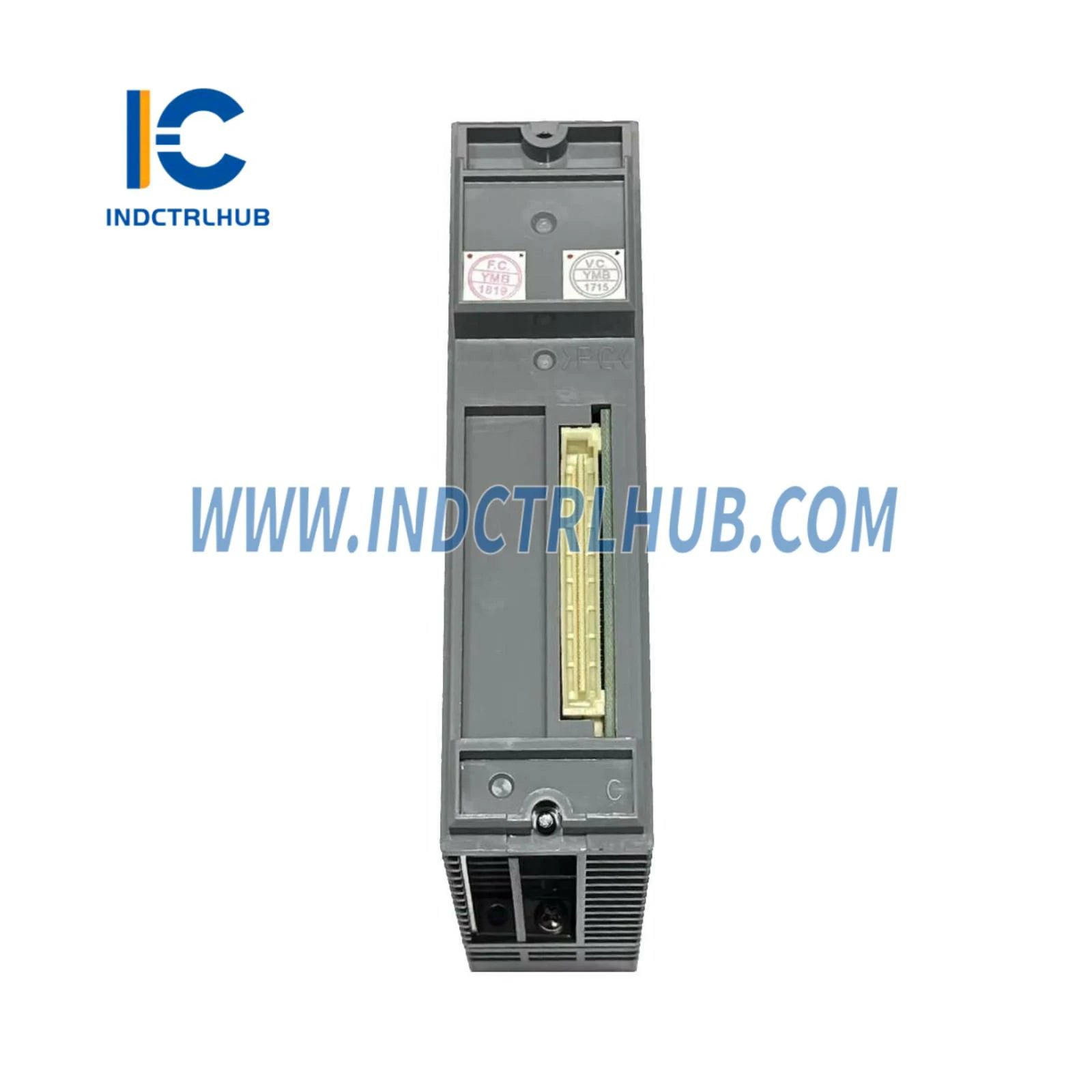

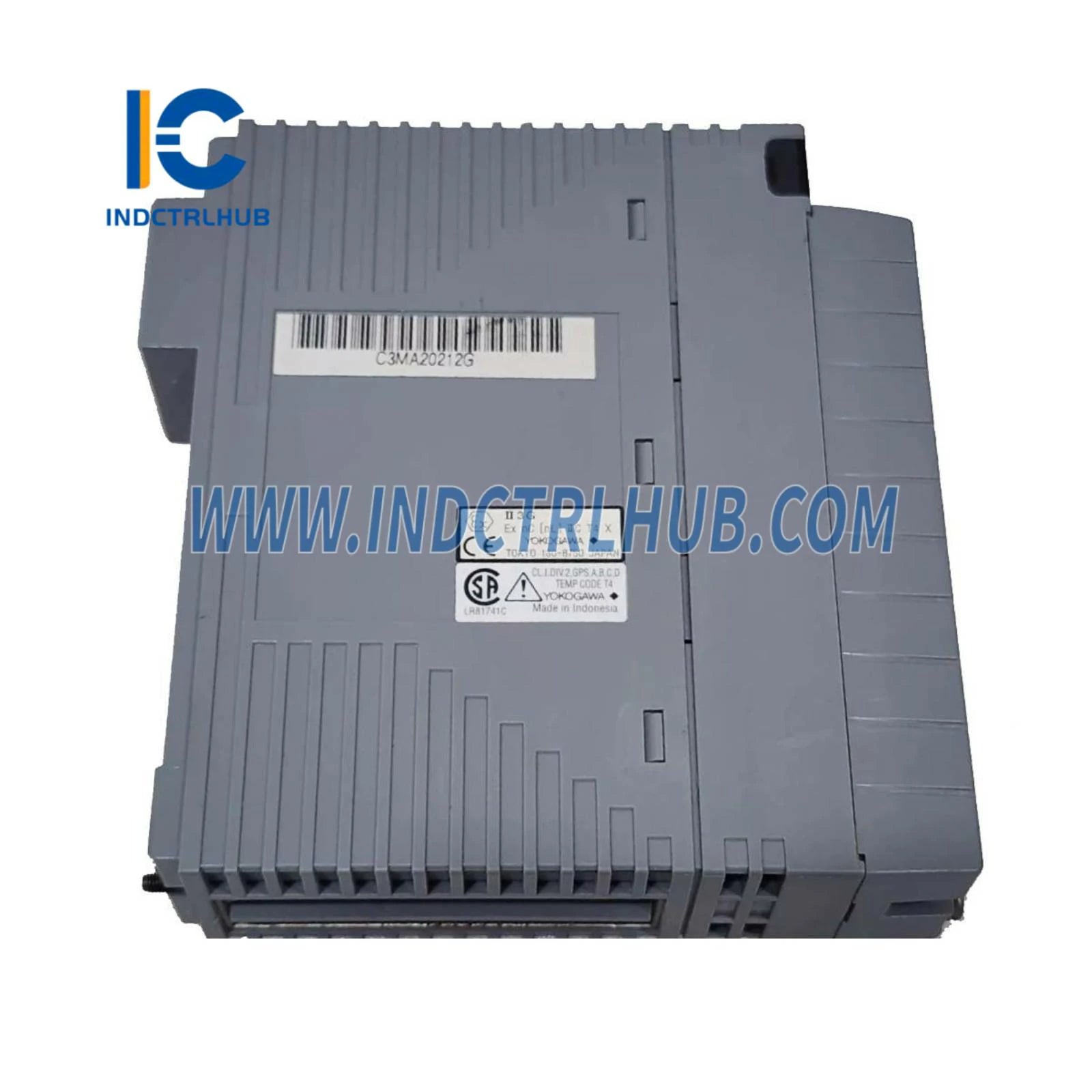

TheĀ AAI841-H00/CCC01Ā is anĀ Analog I/O ModuleĀ offeringĀ 8 channels of inputĀ andĀ 8 channels of output, both non-isolated. This module is designed for use withĀ current (4ā20 mA)Ā andĀ voltage (1ā5 V)Ā inputs, making it suitable for a wide range of industrial applications. It supportsĀ dual-redundant configurationsĀ for enhanced reliability.
This module featuresĀ HART communicationĀ for digital communication, providing better integration with control systems.
Ā
Ā
š¹ Technical Specifications
|
Specification |
Details |
|---|---|
|
Model Base |
AAI841 |
|
Input Channels |
8 (Non-isolated) |
|
Output Channels |
8 (Non-isolated) |
|
Signal Type |
Input: 4 to 20 mA, Output: 4 to 20 mA |
|
Allowable Input Current |
25 mA |
|
Allowable Input Voltage |
Ā±7.5 V (Voltage Input) |
|
Withstanding Voltage |
Not specified |
|
Input Resistance (Power ON) |
400 ā¦ (at 20 mA), 1000 ā¦ (at 4 mA) |
|
Input Resistance (Power OFF) |
ā„500 kā¦ |
|
Allowable Load Resistance |
0 to 750 ā¦ |
|
Circuit-open Detection (Output) |
Less than 0.65 mA |
|
Accuracy |
Input: Ā±16 ĀµA, Output: Ā±48 ĀµA |
|
Data Update Period |
10 ms |
|
Input Step Response Time |
100 ms |
|
Output Step Response Time |
40 ms |
|
Transmitter Power Supply |
14.8 V or more (20 mA), 26.4 V or less (0 mA) |
|
Temperature Drift |
Ā±0.1 %/10 Ā°C |
|
Maximum Current Consumption |
310 mA (5 V DC), 500 mA (24 V DC) |
|
Weight |
0.3 kg |
|
External Connections |
Pressure clamp terminal, KS cable, MIL connector cable |
|
HART Communication |
Available (at Current Input and Output) |
Ā
Ā
š¹ Model & Suffix Code Breakdown
|
Code |
Meaning |
|---|---|
|
-S |
Standard type |
|
-H |
With digital communication (HART protocol) |
|
5 |
No explosion protection |
|
0 |
Basic type (no special temperature/coating options) |
Ā
Ā
š¹ Optional Accessories
|
Option Code |
Description |
|---|---|
|
/K4A00 |
KS Cable Interface Adapter [Model: ATK4A-00] |
|
/A4S00 |
Pressure Clamp Terminal Block for Analog [Model: ATA4S-00] |
|
/A4S10 |
Pressure Clamp Terminal Block for Analog (with surge absorber) [Model: ATA4S-10] |
|
/A4D00 |
Dual Pressure Clamp Terminal Block for Analog [Model: ATA4D-00] |
|
/A4D10 |
Dual Pressure Clamp Terminal Block for Analog (with surge absorber) [Model: ATA4D-10] |
|
/CCC01 |
Connector Cover for MIL Cable [Model: ACCC01] |
