Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa (Yokogawa Electric Corporation) |
| Model/Part Number | AMN12 |

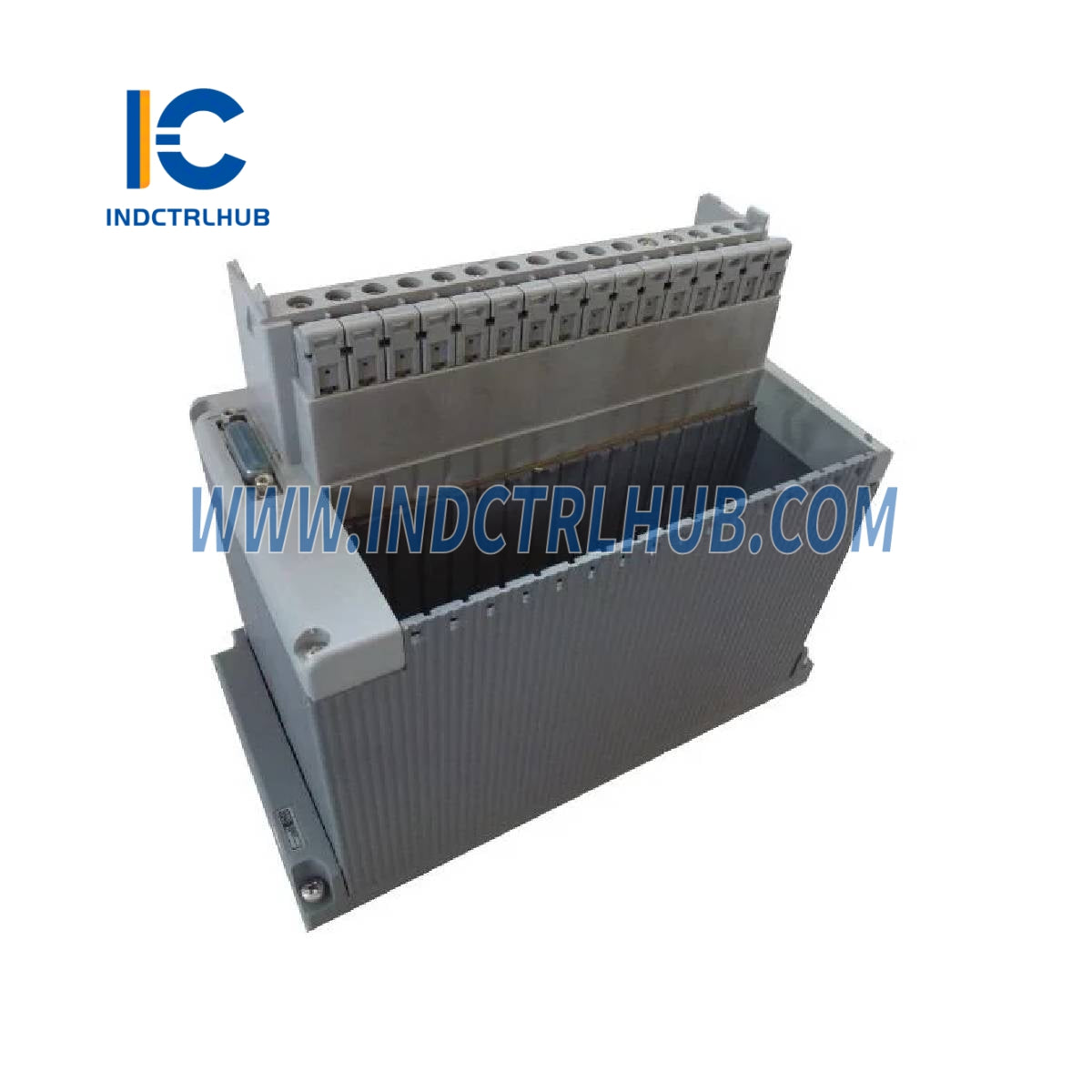

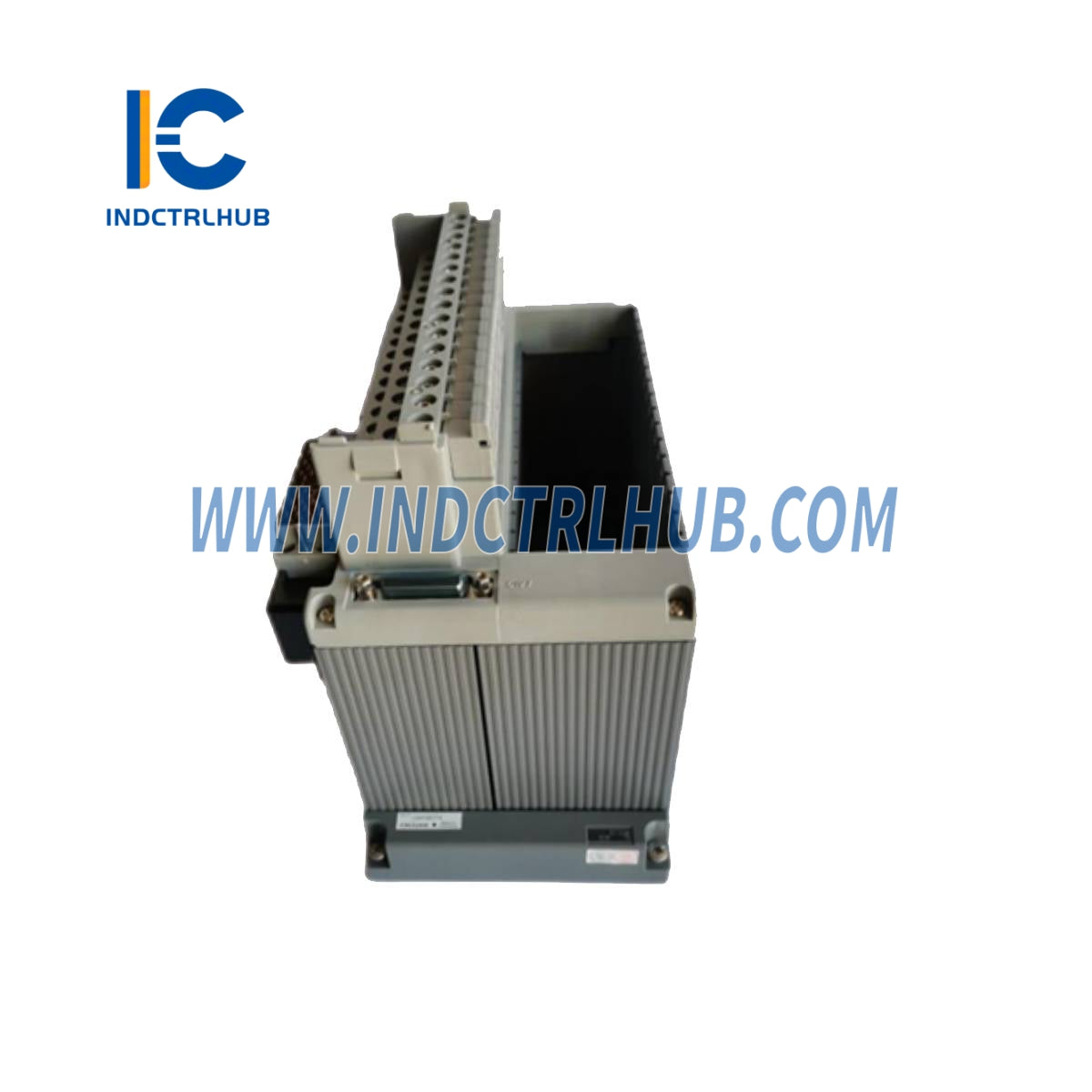

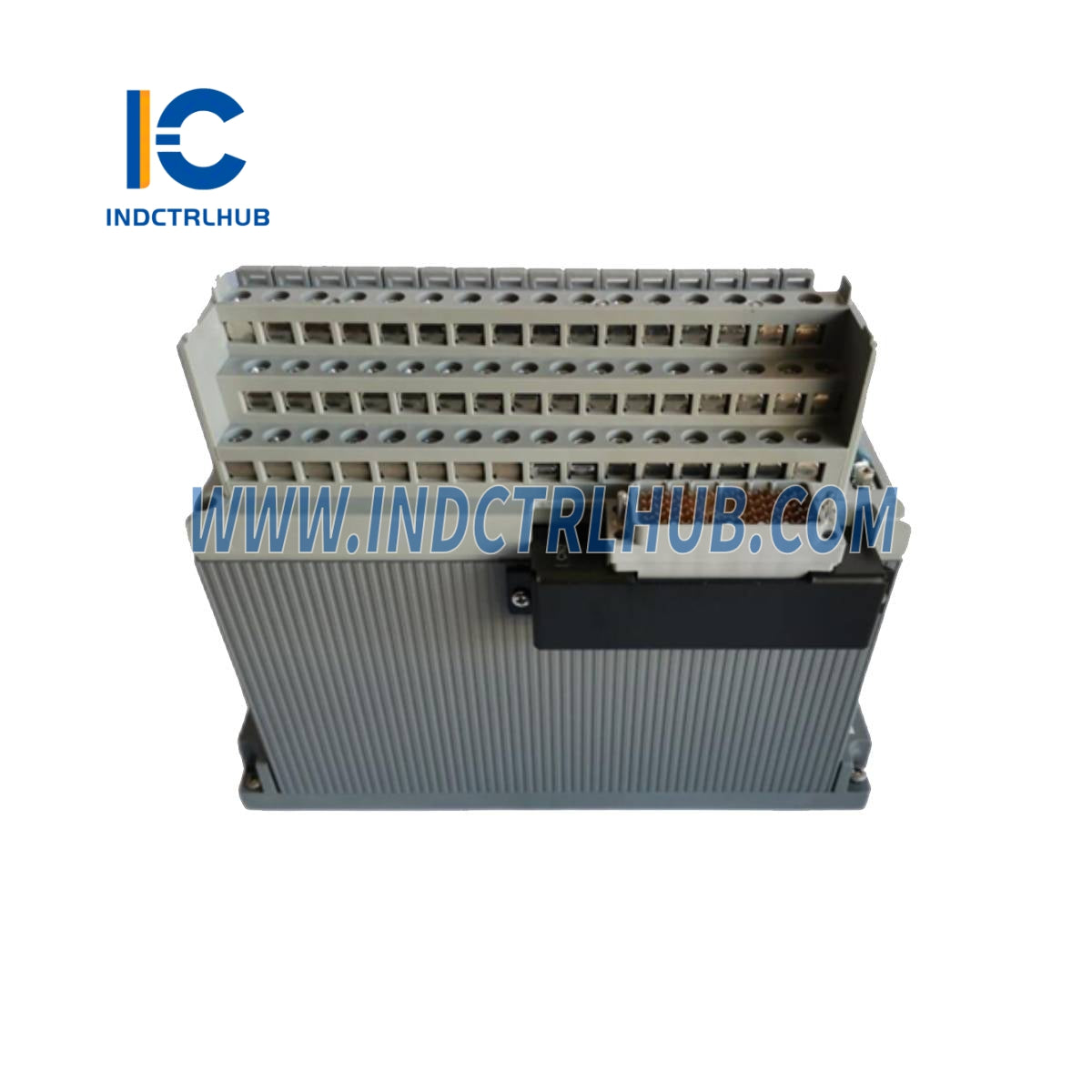

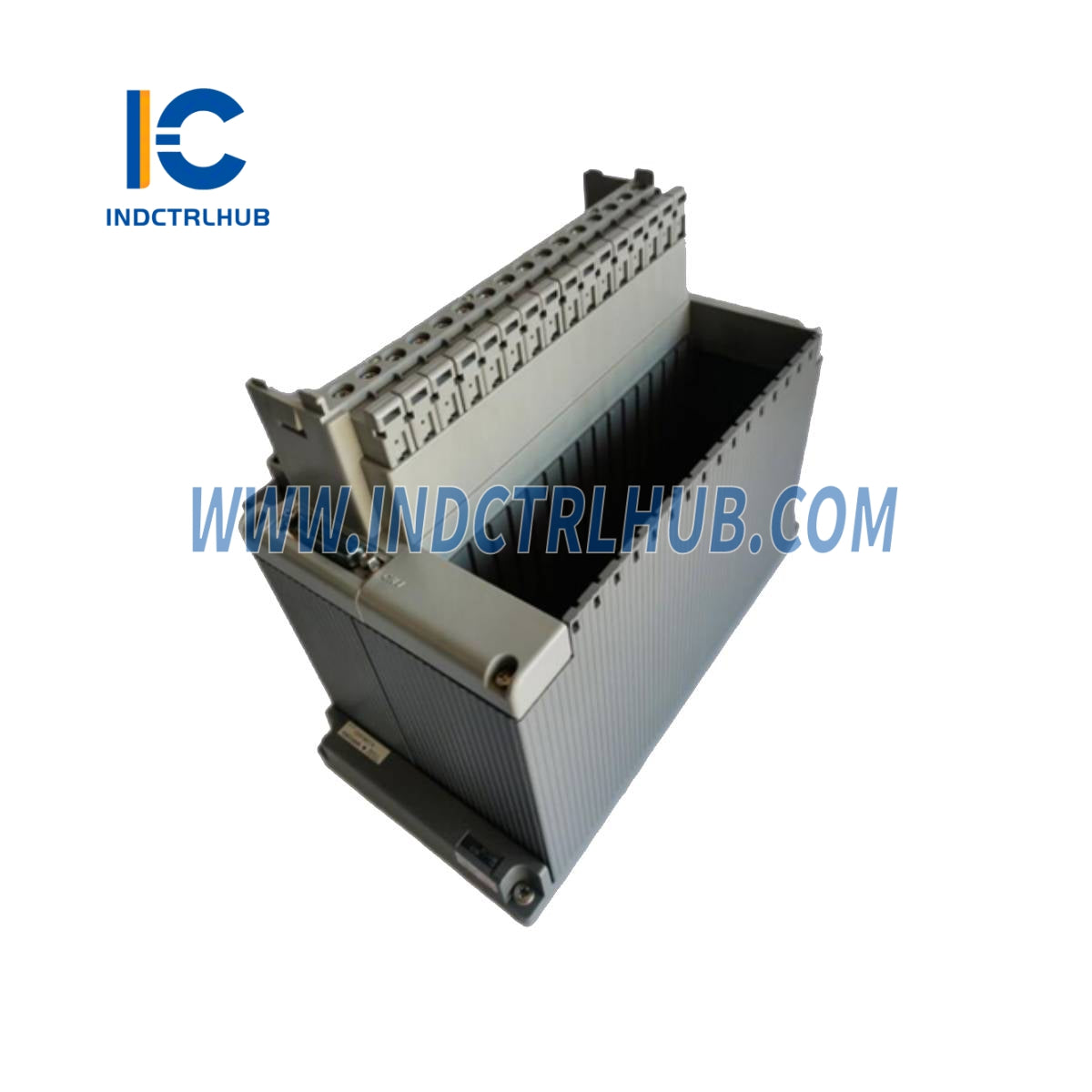

| Description | High-Speed Nest for Analog I/O Modules, designed to house and connect analog input/output modules in Yokogawa CENTUM distributed control systems |
| Key Features | High-speed data transfer, modular design, compatible with CENTUM CS and later systems, robust construction for industrial environments |
Technical Specifications
| Specification | Details |
|---|---|
| Model | AMN12 |
| Product Type | High-Speed Nest for Analog I/O Modules |
| Compatibility | CENTUM CS, CENTUM CS 3000, CENTUM VP |
| Module Capacity | Supports multiple analog I/O modules (e.g., AAI series) |
| Power Supply | Powered via FCS backplane (typically 24 VDC) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | Approx. 1.5 kg (3.3 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Connects to Field Control Station (FCS) via internal bus; interfaces with field devices through I/O module terminals |
Functional Features
| Feature | Details |
|---|---|
| I/O Housing | Provides a mounting platform for analog I/O modules (e.g., AAI135, AAI143) |
| Data Transfer | Facilitates high-speed communication between I/O modules and FCS |
| Modularity | Allows easy replacement or addition of I/O modules |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | AMN12 (High-Speed Nest for Analog I/O Modules) |
| Configuration | Installed within FCS cabinet; configured via CENTUM engineering tools |
