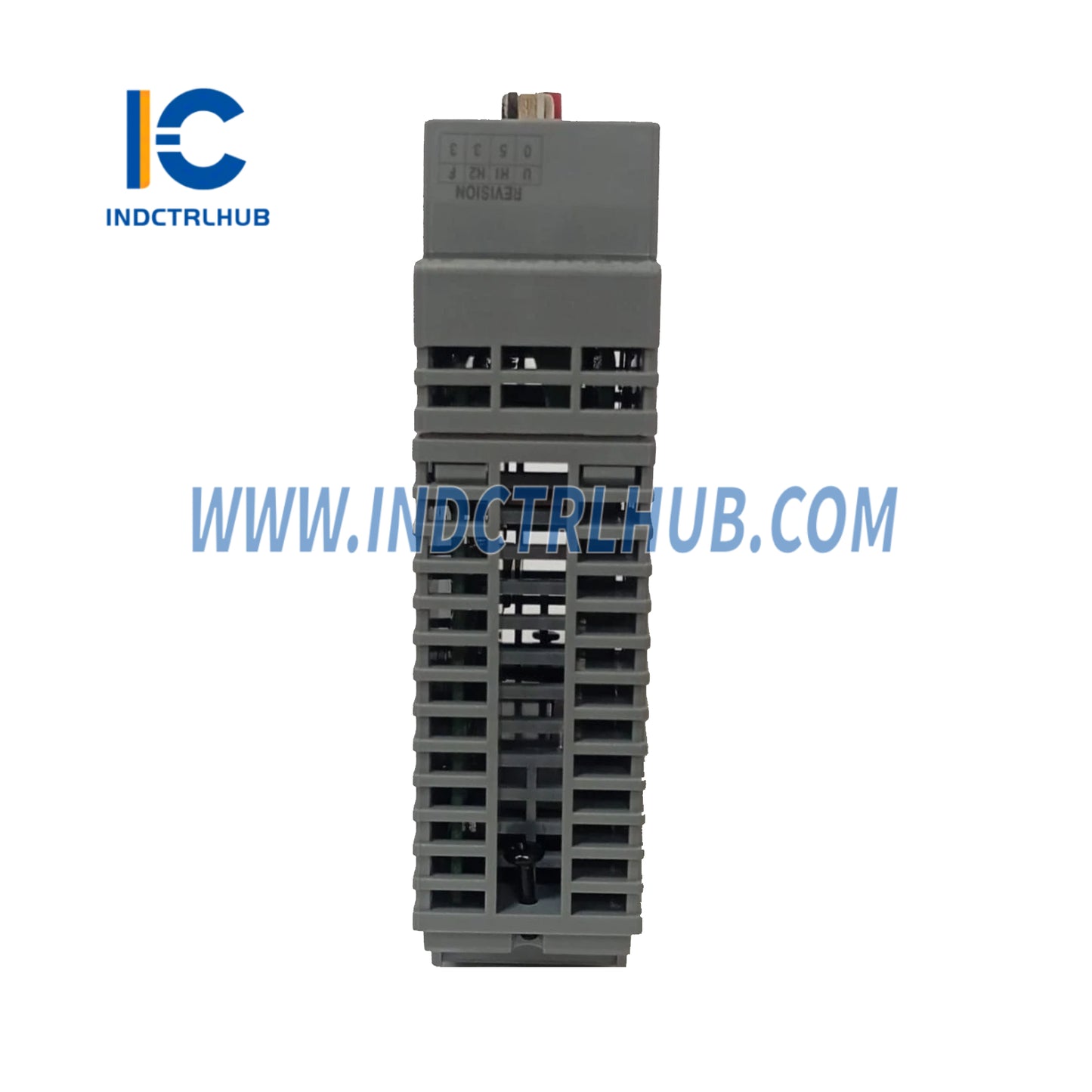

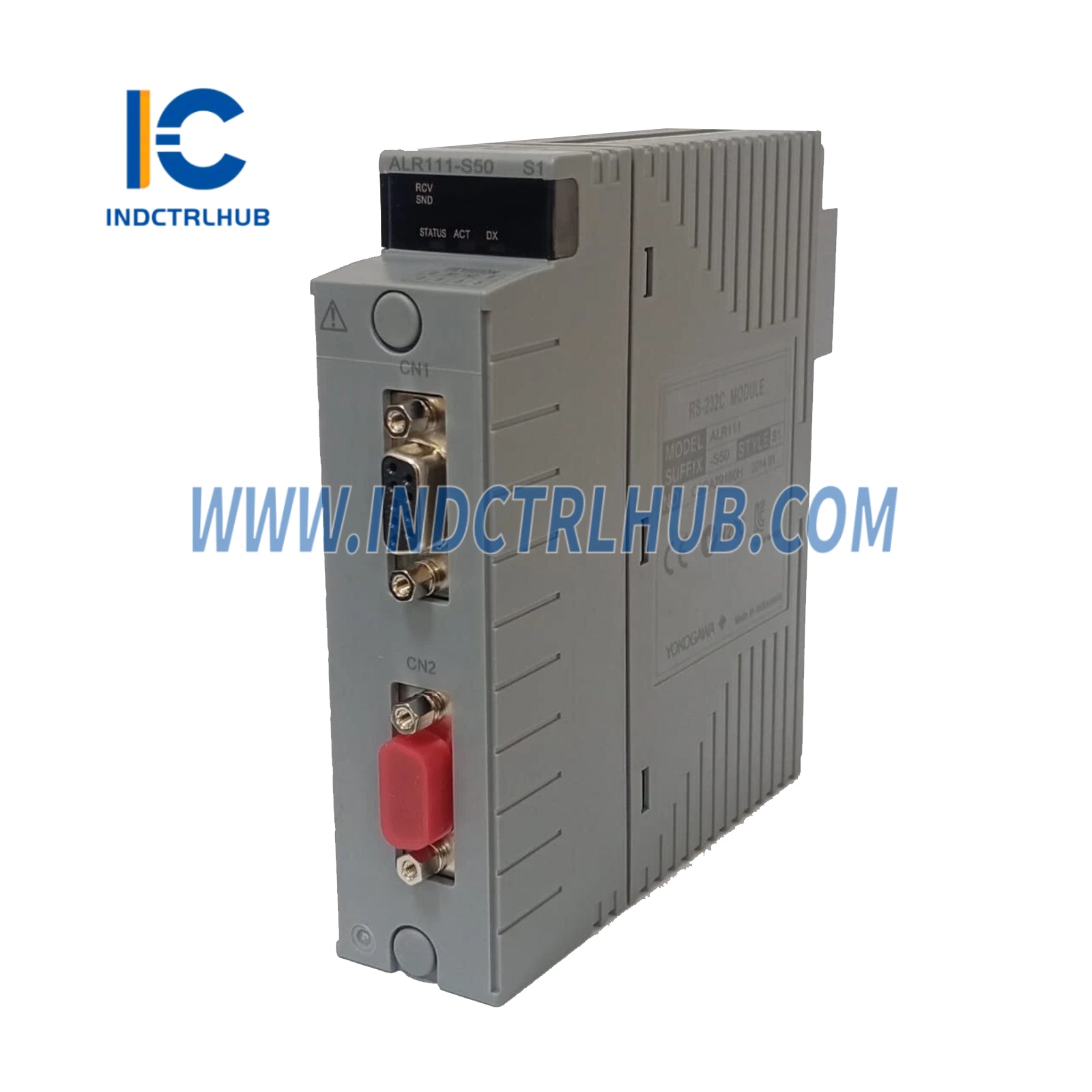

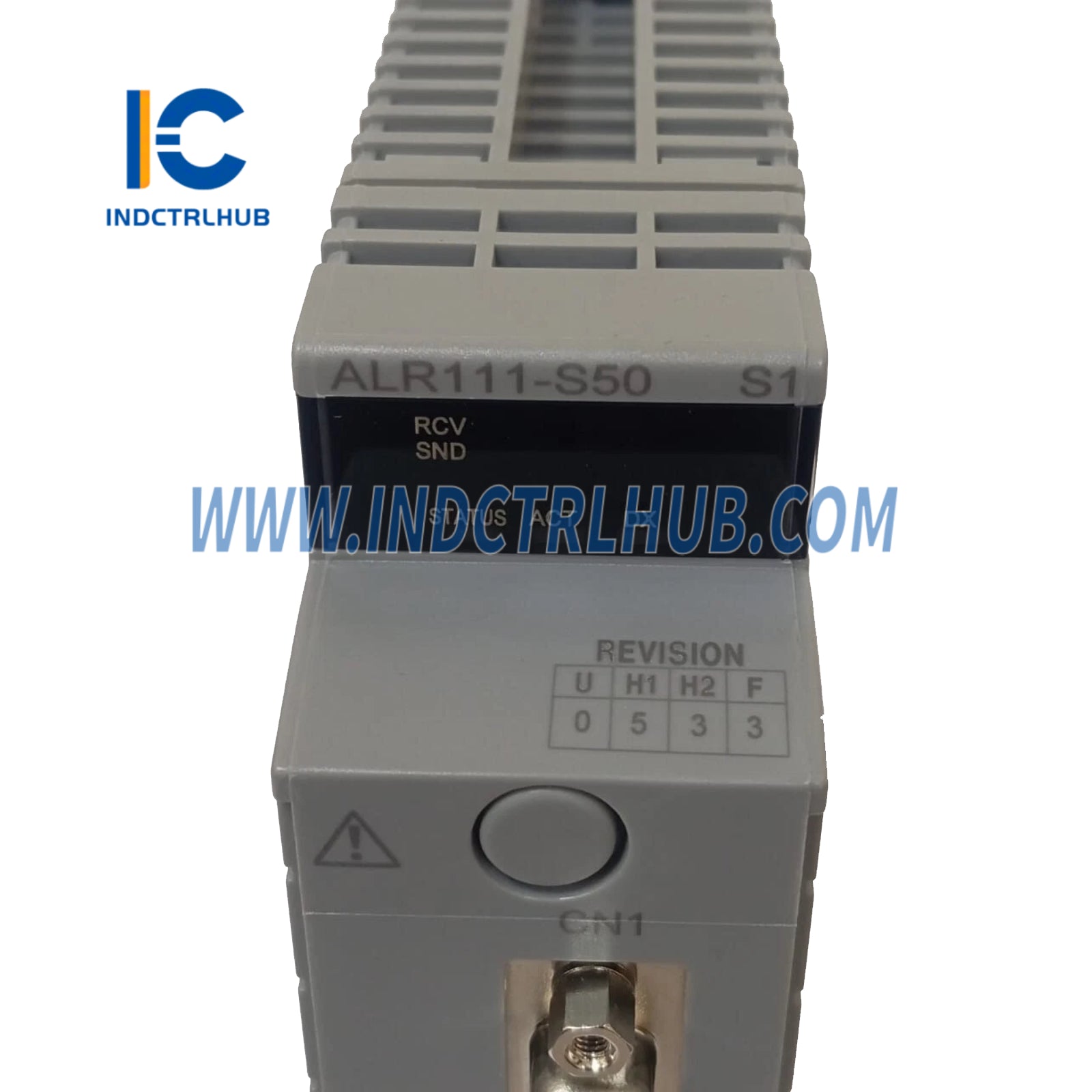

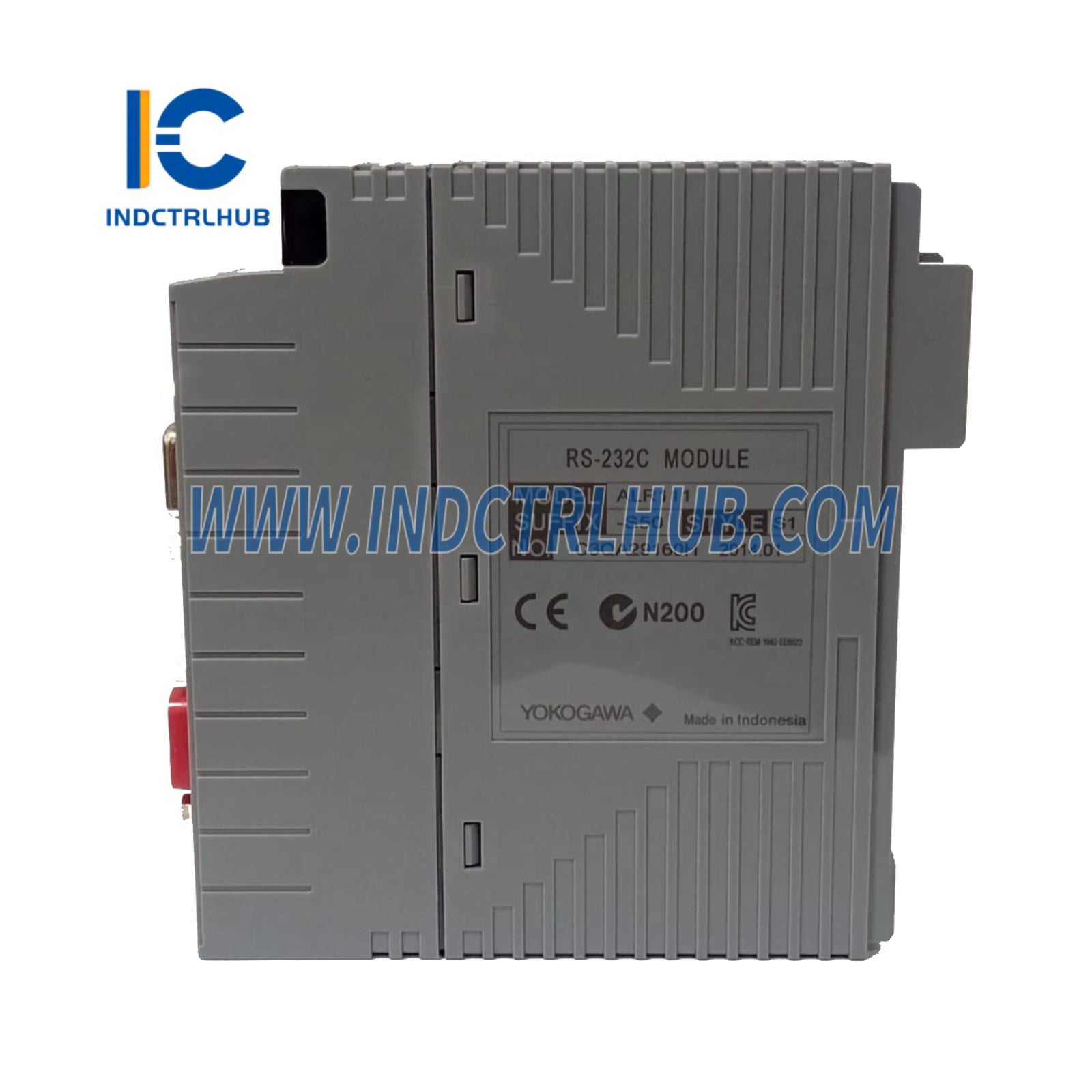

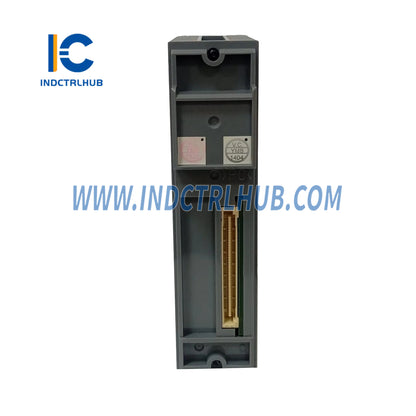

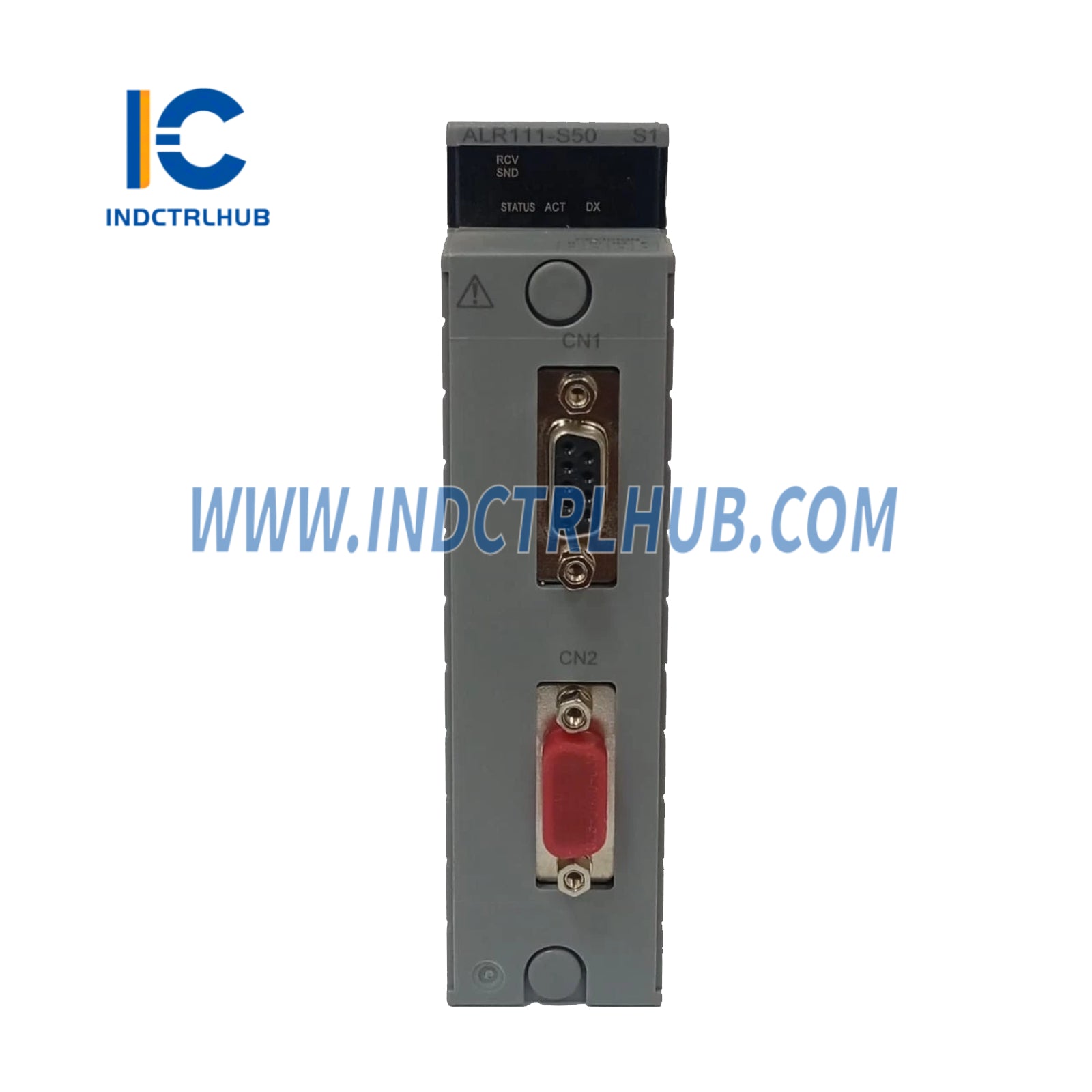

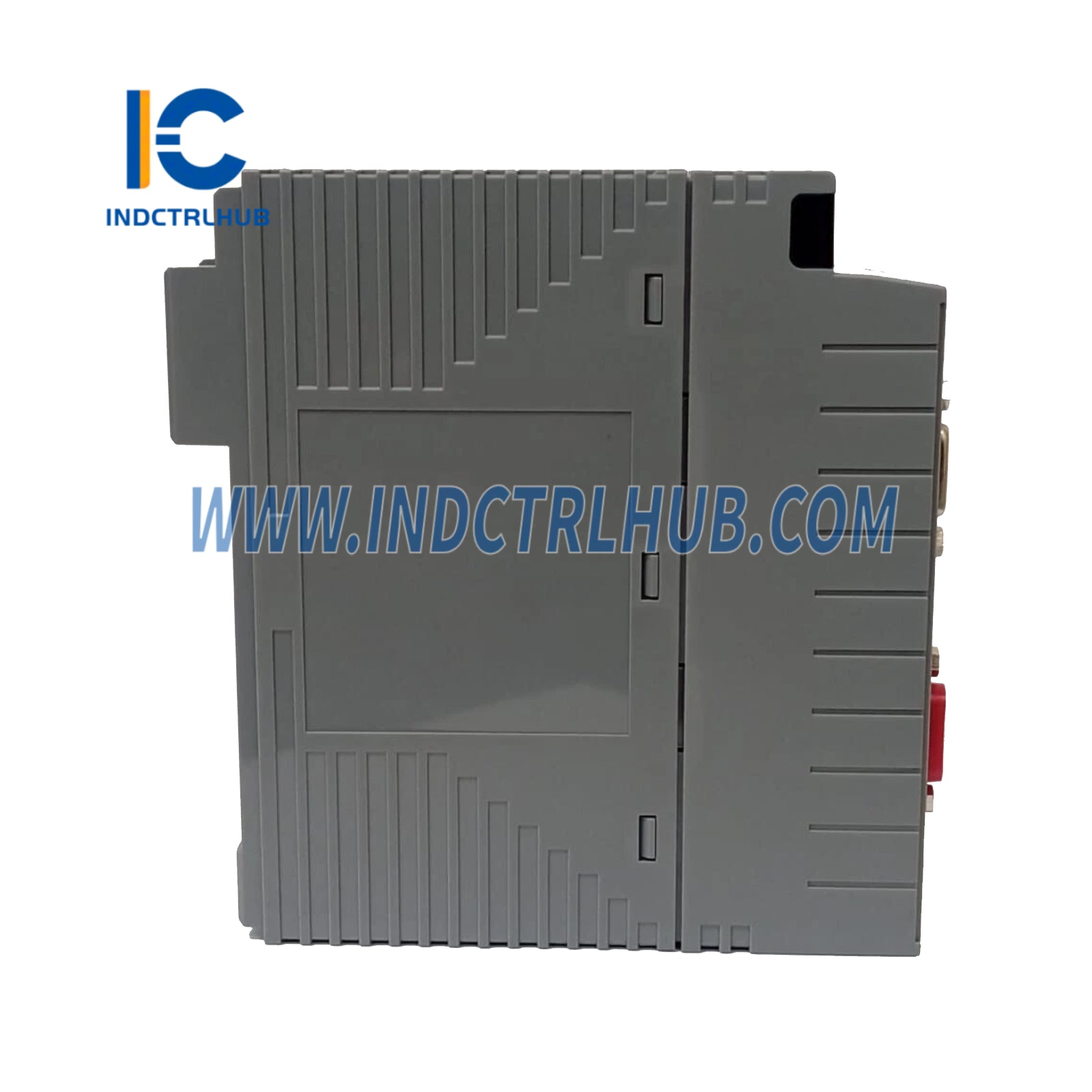

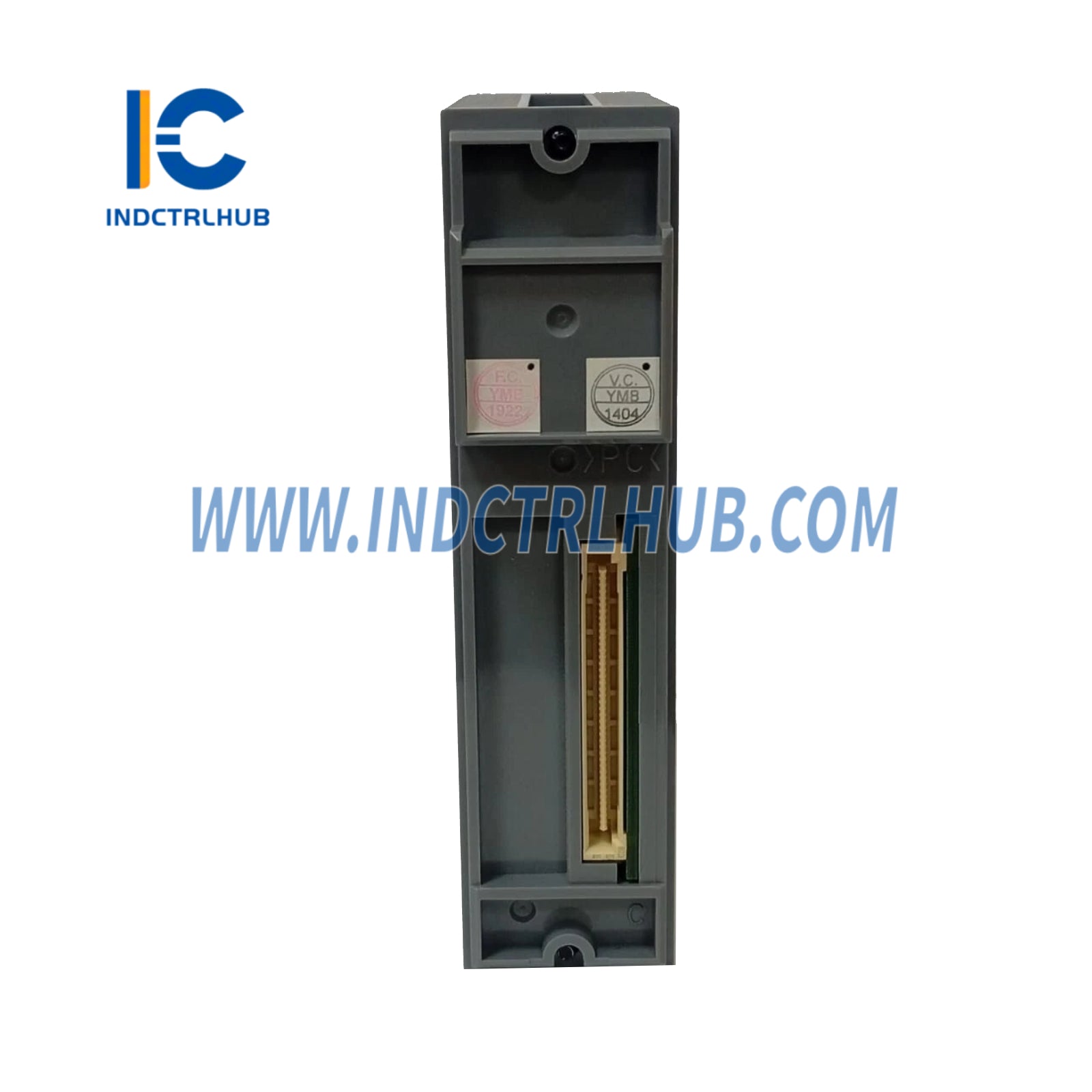

Yokogawa ALR111-S50 Serial Communication Module
Yokogawa ALR111-S50 Serial Communication Module
Manufacturer: Yokogawa
Product No.: ALR111-S50
Condition:1000 in stock
Product Type: Serial Communication Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ALR111-S50 |
|
Description |
Serial Communication Module (RS-232C, 2 ports) |
_
_
__ Description Summary
The_ALR111-S50_is a_serial communication module_with an_RS-232C_interface designed for_point-to-point communication. It supports flexible baud rates, ASCII/binary transmission, and various parity and stop bit configurations. The_S50 suffix_indicates:
_
-
Standard type (-S)
-
No explosion protection (5)
-
Basic type (0)
_
__ Hardware Specifications
|
Item |
Specification |
|---|---|
|
Interface |
RS-232C |
|
Communication Method |
Point-to-point |
|
Communication Function |
Half-duplex |
|
Synchronization Method |
Start-stop synchronization |
|
Transmission Speeds |
1200 / 2400 / 4800 / 9600 / 19200 / 38400 bps |
|
Transmission Code |
ASCII / Binary |
|
Character Length |
7 or 8 bits |
|
Stop Bit Length |
1 or 2 bits |
|
Parity Check |
None / Even / Odd |
|
Lag Time (Tx to Rx switching) |
1 ms |
|
Transmission Distance |
Max. 15 m |
|
Installation Method |
Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40 |
|
I/O Wiring Options |
AKB131, AKB132, AKB133, AKB134 cables, etc. |
|
Cable Type |
3-pair shield cable, AKB161, AKB162 |
|
Connection Type |

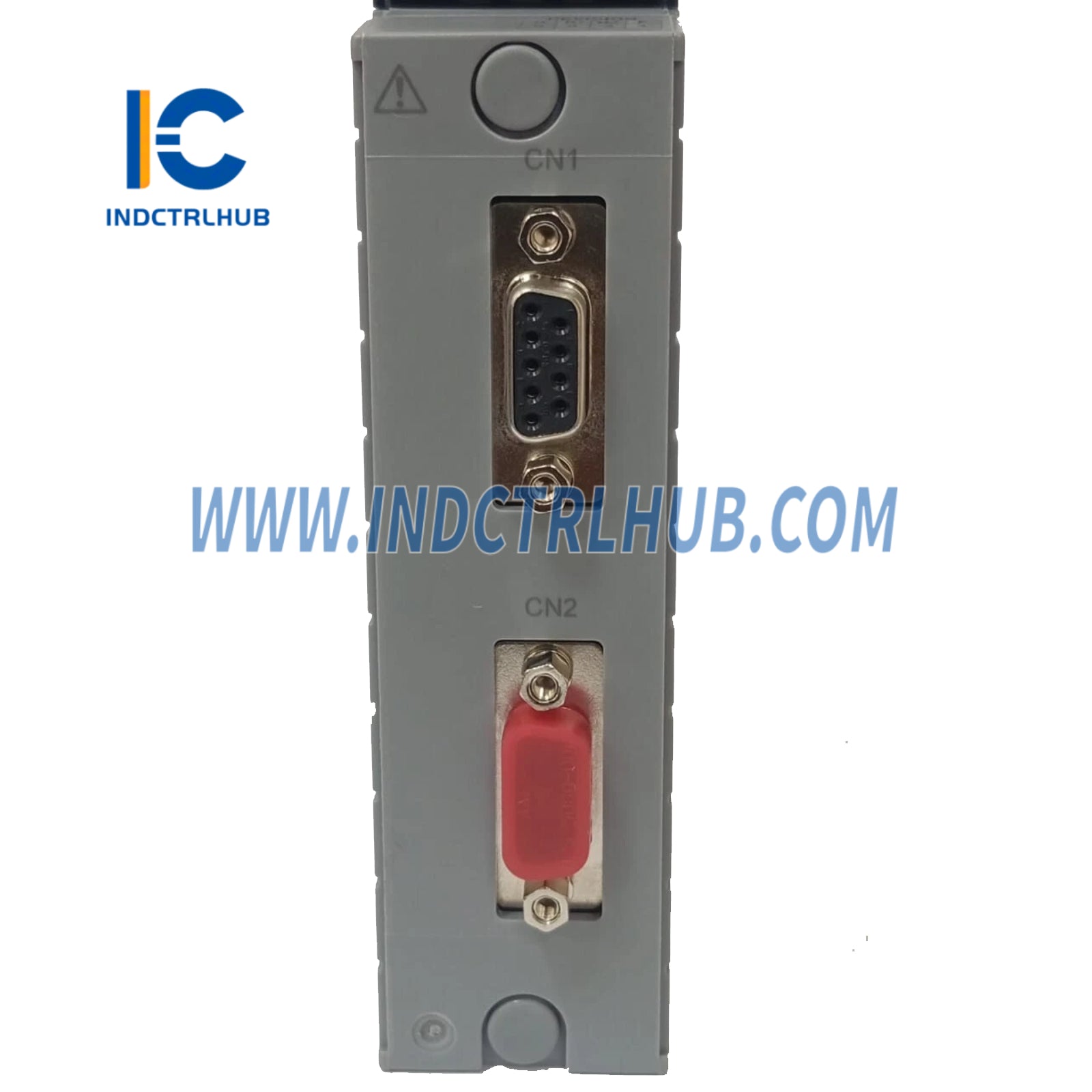

D-sub-9-pin (female _ 2) |
|
Current Consumption |
0.5 A |
|
Weight |
Approx. 0.3 kg |
_
_
__ Model and Suffix Code Breakdown
|
Model |
ALR111__ Serial Communication Module (RS-232C, 2 ports) |
|---|---|
|
-S |
Standard type |
|
5 |
No explosion protection |
|
0 |
Basic type |
_
