Product Description
Product Information
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | AIP831-111 |
| Description | Operation Keyboard for Eight-loop Simultaneous Operation |
General Description

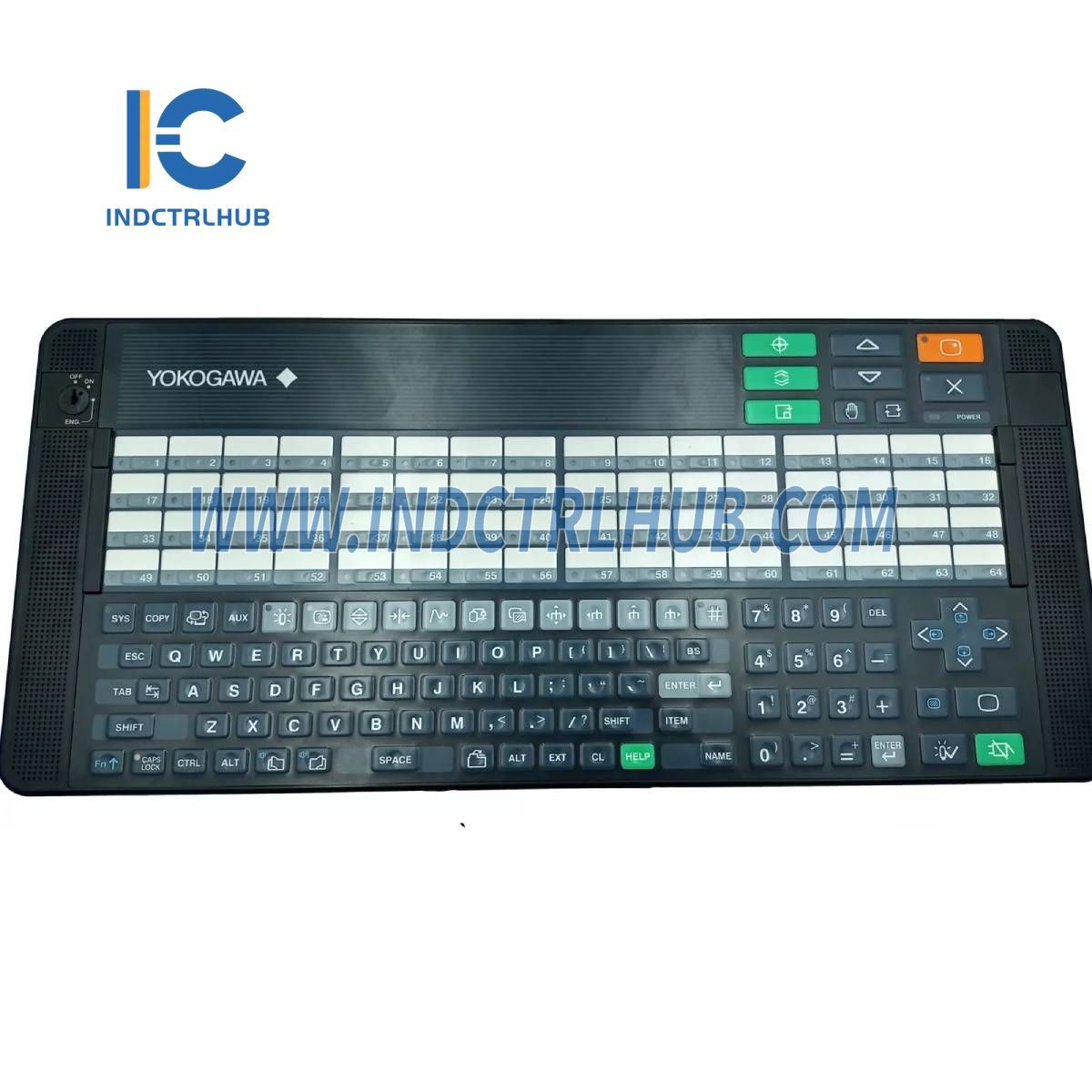

The AIP831 is an operation keyboard designed for Eight-loop Simultaneous Operation for CENTUM VP’s Desktop Type HIS. The keyboard features 8-loop control keys that include touch sensors, which are used for the "Instrument Faceplate Highlight" function of the Desktop Type HIS.
Hardware Specifications
| Type | Flat keyboard with sound function (USB speaker) |
|---|---|
| PC Interface | - Interface Connector: USB A type x2 - USB standard conformable |
| Operation Keyboard Function | USB 2.0 (Full-speed, Bus-powered) |
| Sound Function | USB 1.1 (Full-speed, Bus-powered) |
| Input Voltage | 5V ± 5% (supplied from USB port of PC) |
| Maximum Current Consumption | 1A |
| Weight | - 2.0 kg (Without VESA Bracket) - 2.5 kg (With VESA Bracket) |
| Chassis Color | Black (Munsell No. N1.5) |
| Installation Category | IEC 61010-1, Class I (not directly connected with main power supply) |
Operating Environment
| Ambient Temperature | - Normal operation: 5 to 40 °C <br> - Storage and transportation: -20 to 60 °C |
|---|---|
| Ambient Humidity | 20% to 80% RH (Non-condensing) |
Touch Sensor
- The touch sensor only responds to touch by the bare hand.
Model and Suffix Codes
| Model | AIP831 - Operation Keyboard for Eight-loop Simultaneous Operation |
|---|---|
| Suffix Codes | - -0 Without Mode selection switch - -1 With Mode selection switch |
| Operation Confirmation Key Type | - 0 Type A - 1 Type B |
| Options | - /VESA With VESA Bracket - /EIM With English Instruction Manual - /JIM With Japanese Instruction Manual |
