Product Description
Product Overview

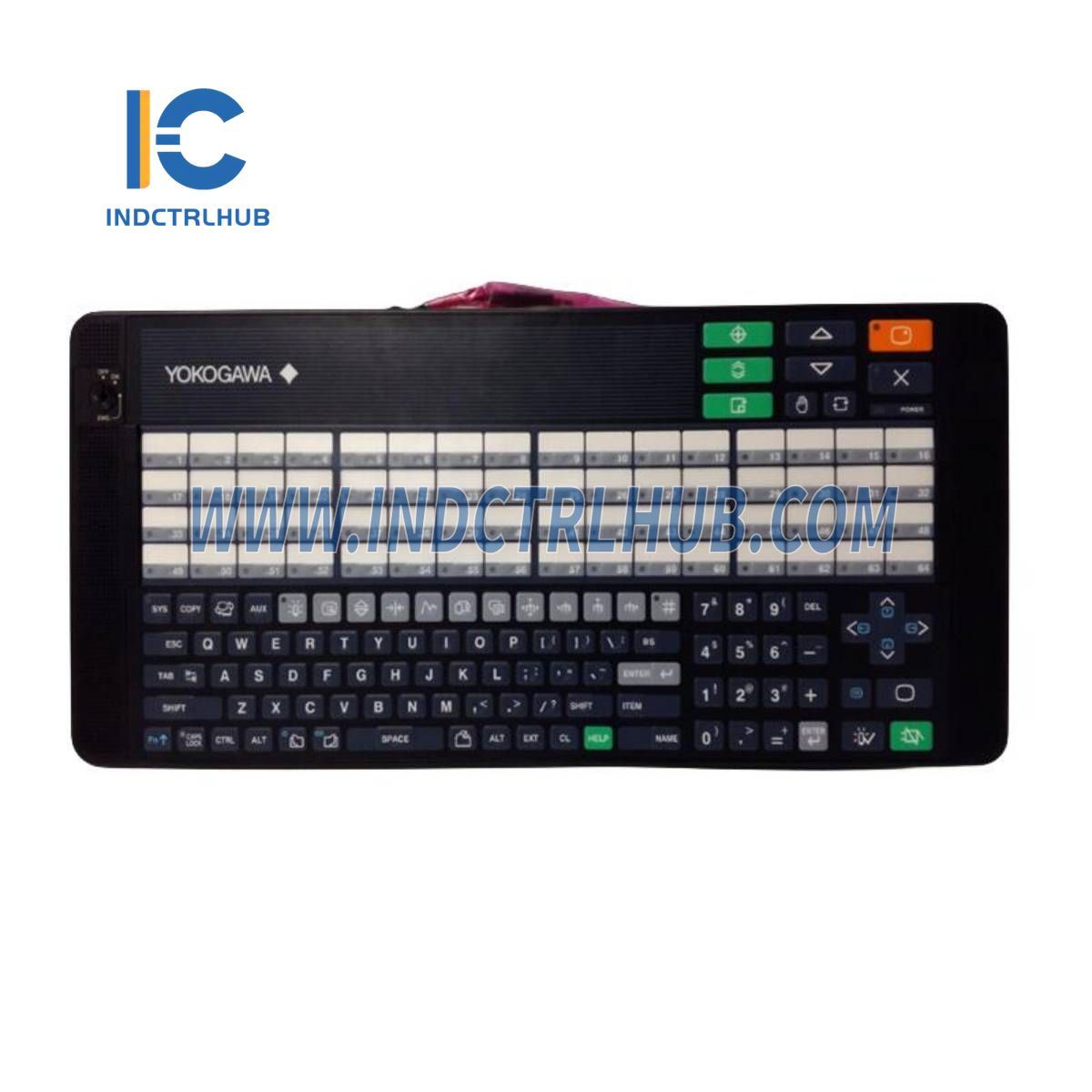

The Yokogawa AIP831-011/EIM is an Operation Keyboard designed for eight-loop simultaneous operation in industrial control systems. This flat keyboard integrates a sound function via USB speakers and connects to a PC through USB interfaces. It is tailored for ergonomic use, featuring a touch sensor responsive only to barehand contact, and is available with optional VESA mounting and language-specific instruction manuals.
Technical Information
| Item | Specifications |
|---|---|
| Type | Flat keyboard (Sound Function: USB Speaker) |
| PC Interface | Interface Connector: USB A type x2 (*1) Conformable USB standard: - Operation Keyboard Function: USB 2.0 (Full-speed, Bus-powered) - Sound Function: USB 1.1 (Full-speed, Bus-powered) |
| Input Voltage | 5V ±5% (Supplied from USB Port of PC) |
| Maximum Consumption Current | 1 A |
| Weight | 2.0 kg (Without VESA Bracket) 2.5 kg (With VESA Bracket) (*2) |
| Chassis Color | Black (Munsell No. N1.5) |
| IEC Classification | Belongs to IEC 61010-1 installation category Class I (A device not directly connected with the main power supply) |
| Operating Environment | Ambient Temperature: - 5 to 40 °C (for normal operation) - -20 to 60 °C (in storage and transportation) Ambient Humidity: - 20 to 80 %RH (Non-condensing) |
| Touch Sensor | A touch only by the bare hand is sensed |
Model and Suffix Codes
- Model: AIP831 Operation Keyboard for Eight-loop Simultaneous Operation
- Suffix Codes:
- -0: Without Mode selection switch
- -1: With Mode selection switch
- 0: Operation confirmation key Type A
- 1: Operation confirmation key Type B
- 1: Always 1
- Option Codes:
- /VESA: With VESA Bracket
- /EIM: With English Instruction Manual
- /JIM: With Japanese Instruction Manual
Additional Notes
- For installation specifications and environmental conditions common to the systems, refer to “System Overview” (GS 33K01A10-50E, GS 33K01A20-50E).
- (*1) Indicates specific details about the USB A type x2 connectors, not elaborated in the provided text.
- (*2) Weight varies depending on the inclusion of the VESA Bracket.
