Product Description
š¹ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |

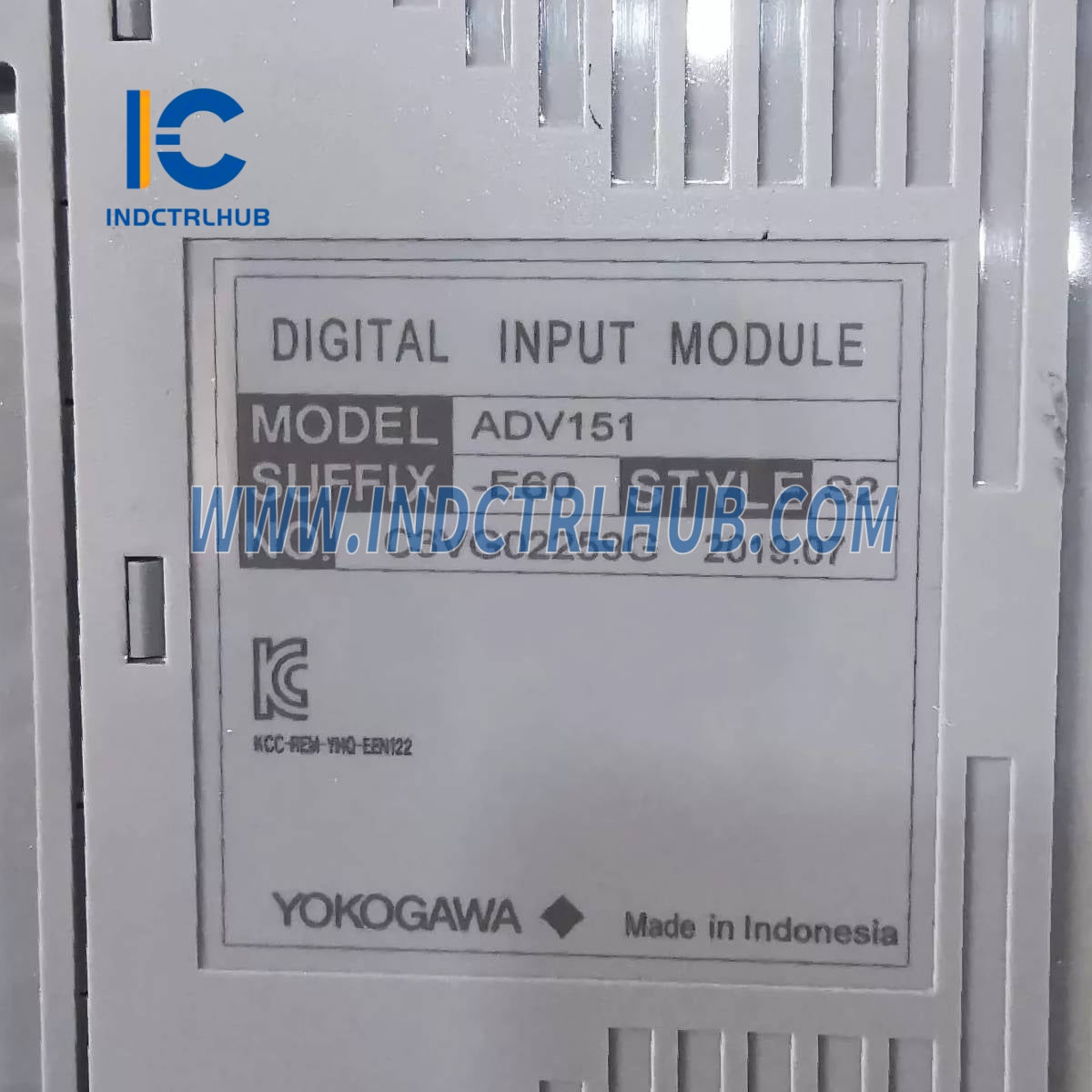

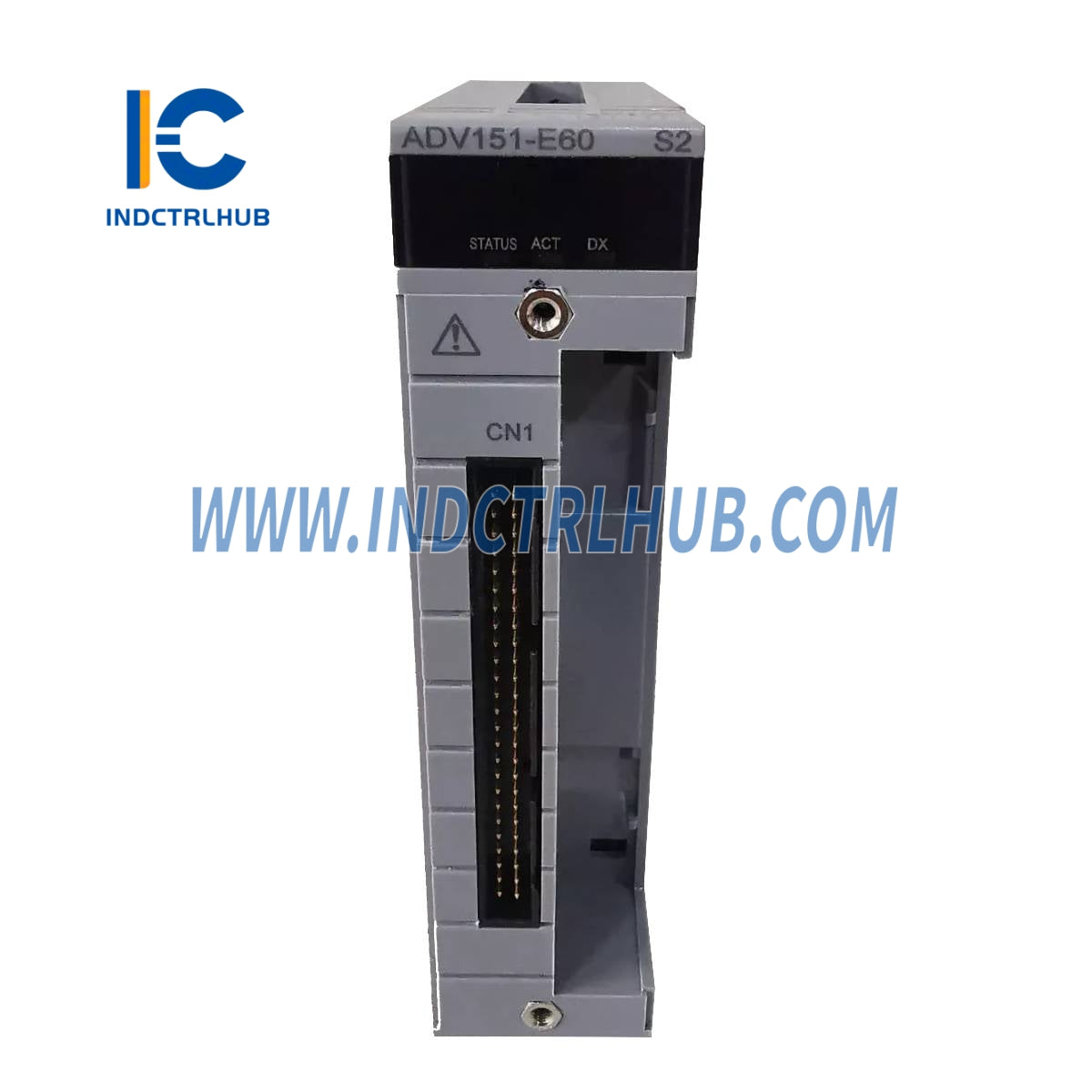

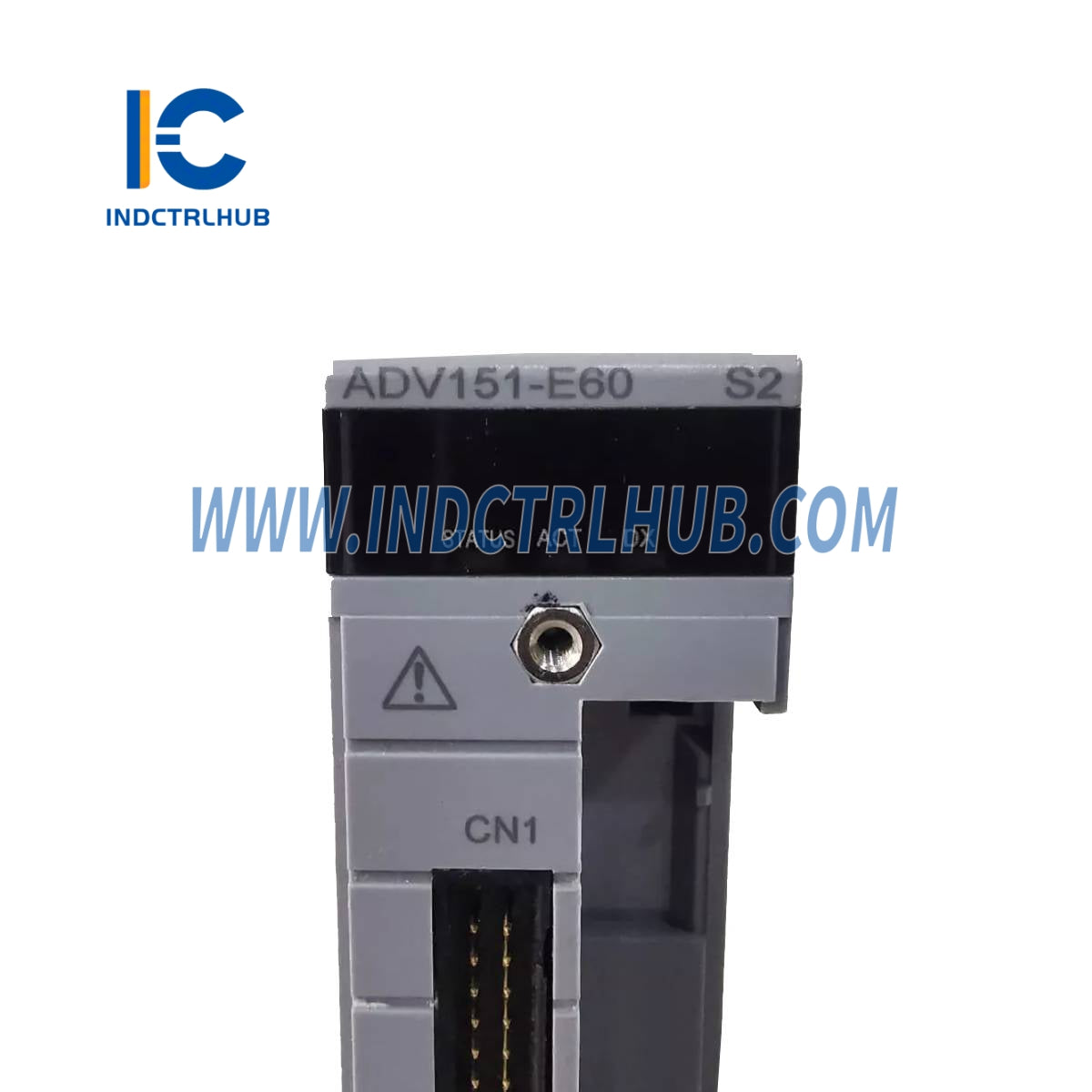

ADV151-E60 S2 |
|
Description |
32-channel Digital Input Module with SOE capture, status display, G3 coating |
Ā
Ā
š¹ Functional Description
TheĀ ADV151Ā is a 32-channelĀ 24 V DC isolated Digital Input ModuleĀ designed to detect ON/OFF states. It supportsĀ dual-redundant configuration, and in this configuration, theĀ āEāĀ suffix indicates SOE (Sequence of Events) functionality. TheĀ ā6āĀ in the code means it has aĀ status display, and theĀ ā0āĀ is for theĀ basic type, whileĀ āS2āĀ likely refers to a system-specific or firmware version variant.
Ā
Ā
š¹ Technical Specifications
|
Item |
ADV151-E60Ā Specification |
|---|---|
|
Number of Input Channels |
32 channels |
|
Rated Input Voltage |
24 V DC (sink/source) |
|
Input ON Voltage |
18 to 26.4 V DC |
|
Input OFF Voltage |
5.0 V DC or less |
|
Input Current (@ rated voltage) |
4.1 mA Ā±20% per channel |
|
Max Allowable Input Voltage |
30.0 V DC |
|
Withstanding Voltage |
Input ā System: 2 kV AC (1 min); Between commons: 500 V AC (1 min, every 16 channels) |
|
SOE Input Function |
Available (for event timestamping) |
|
Status Input Function |
Detects ON/OFF states |
|
Pushbutton Input |
Supported (edge detection, 25 Hz max) |
|
Input Response Time |
ā¤ 8 ms |
|
Min ON Detection Time |
20 ms |
|
Max ON/OFF Cycle |
25 Hz |
|
Max Current Consumption |
500 mA (5 V DC) |
|
Weight |
Approx. 0.30 kg |
|
External Connections |
Pressure clamp terminal, MIL connector cable, or dedicated cable (AKB331) |
Ā
Ā
š¹ Model and Suffix Code Breakdown
|
Model |
Details |
|---|---|
|
ADV151 |
Digital Input Module (32-channel, 24 V DC, Isolated) |
|
-E |
With SOE capture capability |
|
6 |
With status display |
|
0 |
Basic type |
|
S2 |
Likely a system-specific variant (e.g., firmware or installation-specific customization) |
Ā
Ā
š¹ Optional Accessories
|
Option Code |
Description |
|---|---|
|
/D5A00 |
KS Cable Interface Adapter for 32-channel DI [ATD5A-00] |
|
/B5S00 |
Pressure Clamp Terminal Block [ATB5S-00] |
|
/B5S10 |
Pressure Clamp Terminal Block with Surge Absorber [ATB5S-10] |
|
/B5D00 |
Dual Pressure Clamp Terminal Block [ATB5D-00] |
|
/B5D10 |
Dual Pressure Clamp Terminal Block with Surge Absorber [ATB5D-10] |
|
/CCC01 |
Connector Cover for MIL Cable [ACCC01] |
