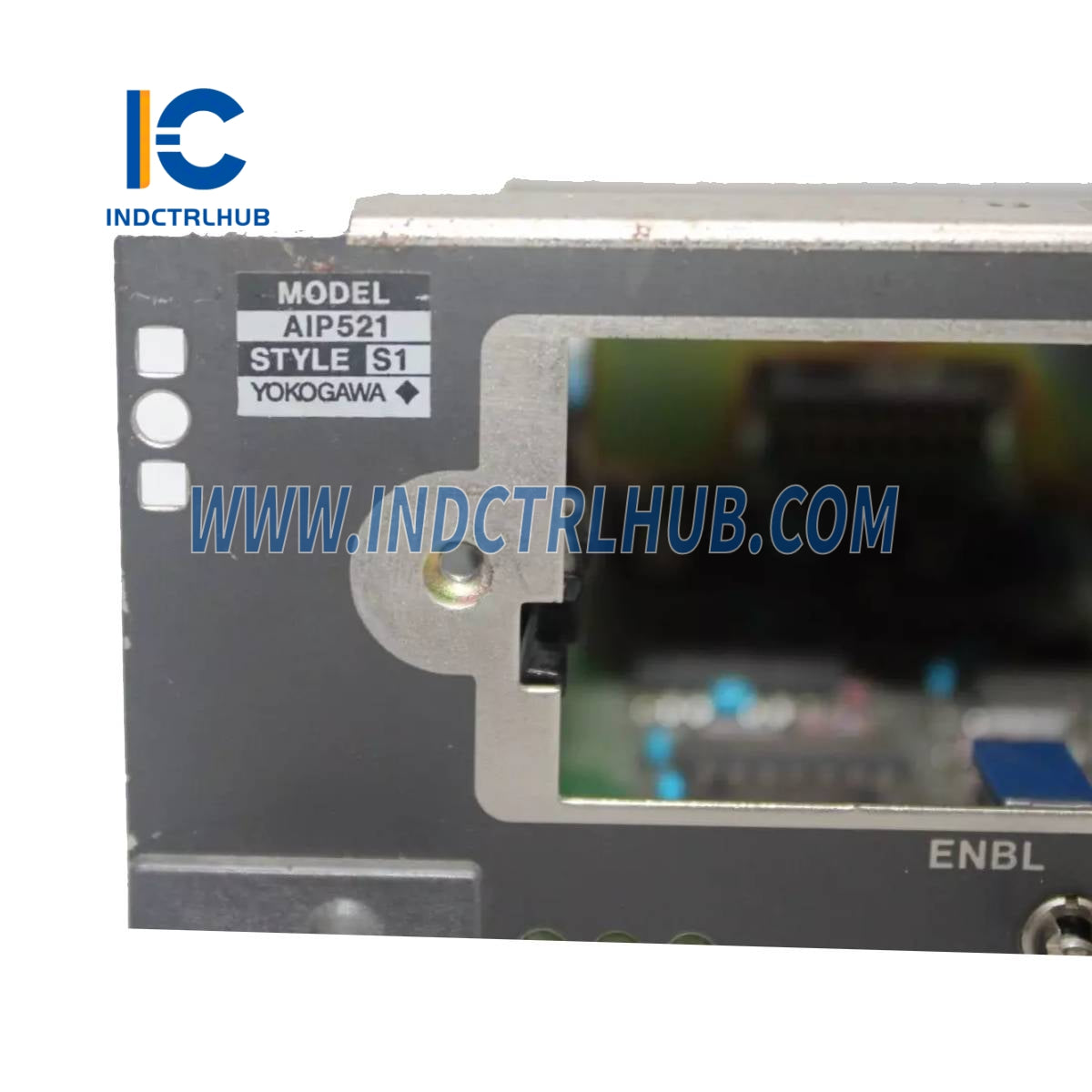

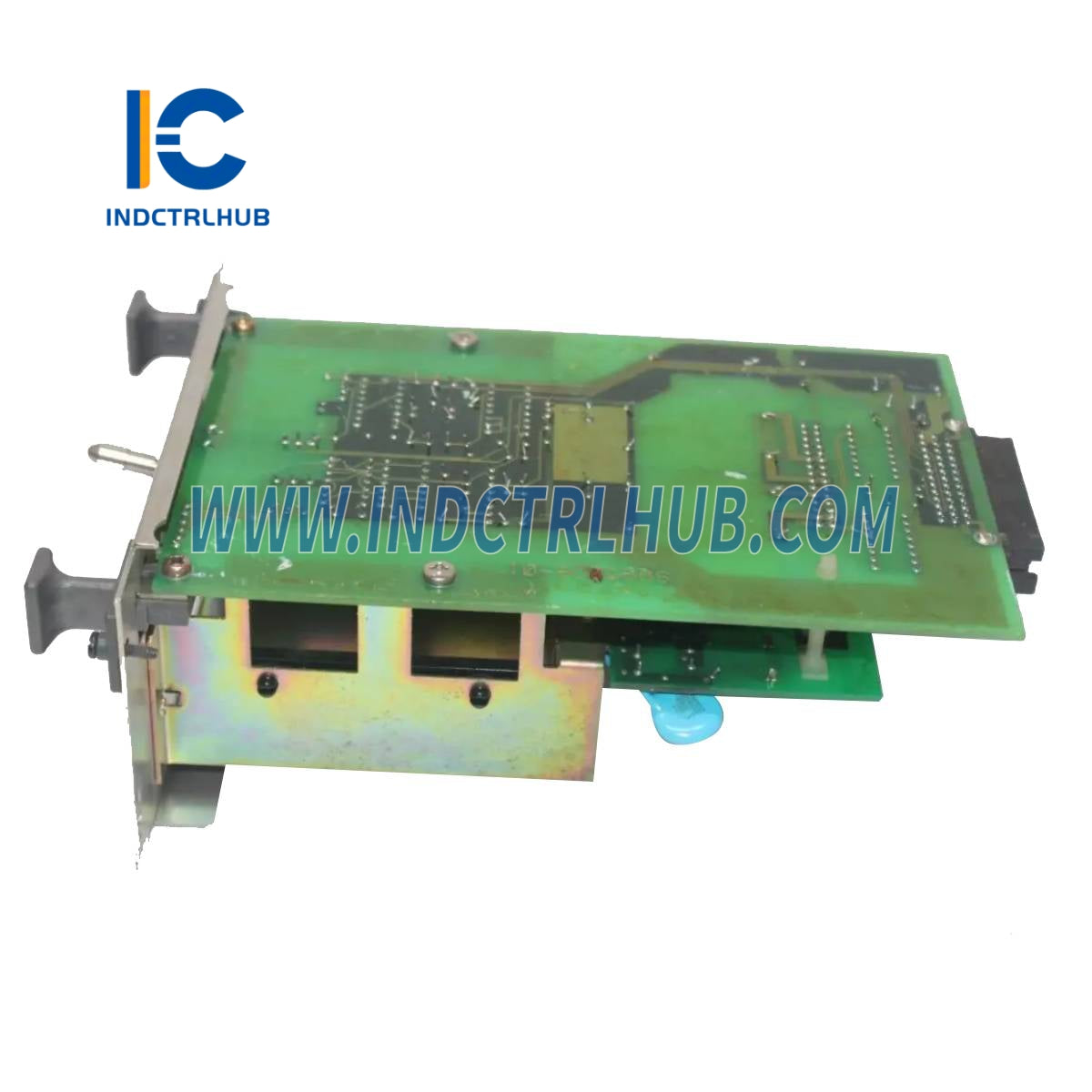

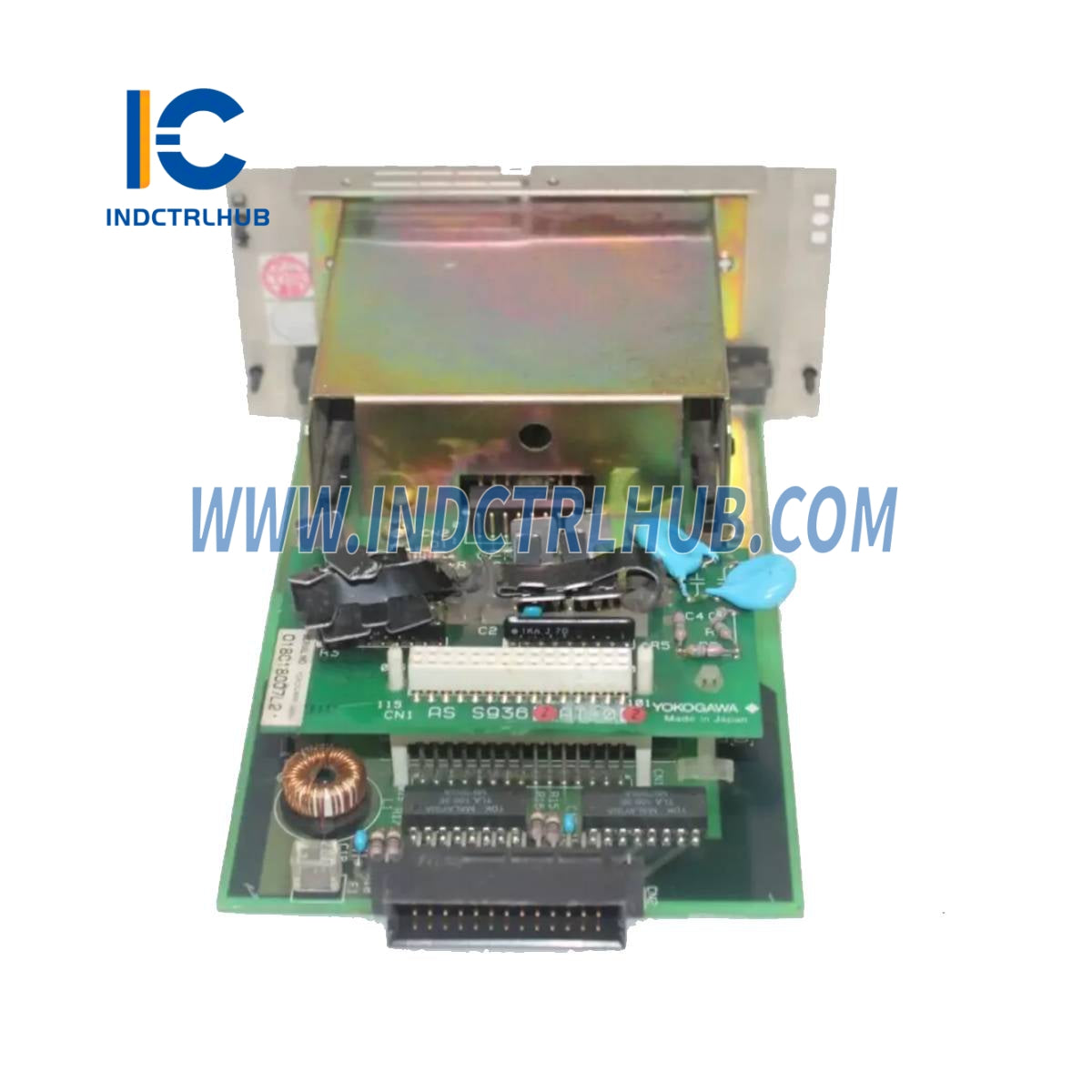

Yokogawa AIP521 Control Bus Coupler Module
Yokogawa AIP521 Control Bus Coupler Module
Manufacturer: Yokogawa
Product No.: AIP521
Condition:1000 in stock
Product Type: Control Bus Coupler Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model/Part Number | AIP521 |
| Description | Control Bus Coupler Module designed for Yokogawa CENTUM series Distributed Control Systems, facilitating communication between Field Control Stations and field devices via VL-NET or Vnet protocols |
| Key Features | Supports VL-NET and Vnet protocols, compatible with Modbus, Profibus, DeviceNet, rugged design, high-speed data transmission, integrates with CENTUM CS 3000 and VP |
Technical Specifications
| Specification | Details |
|---|---|
| Model | AIP521 |
| Product Type | Control Bus Coupler Module |
| Series | CENTUM (CS 3000, VP) |
| Communication Protocols | VL-NET, Vnet, Modbus, Profibus, DeviceNet |
| Data Transmission Speed | Up to 1 Mbps |
| Power Supply | 24 VDC (via system backplane) |
| Dimensions | Approx. 152 x 51 x 229 mm (6 x 2 x 9 in) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | Approx. 0.5 kg (1.1 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Connects to field devices (sensors, actuators, valves) via control bus, integrates with CENTUM Field Control Station (FCS) backplane |
Functional Features
| Feature | Details |
|---|---|
| Communication | Acts as a bridge for data exchange between FCS and field devices |
| Protocol Support | Multi-protocol compatibility for flexible integration |
| Reliability | Rugged design withstands harsh industrial environments |
| Maintenance | Easy installation and minimal maintenance requirements |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | AIP521 |
| Configuration | Standard type for control bus coupling |
