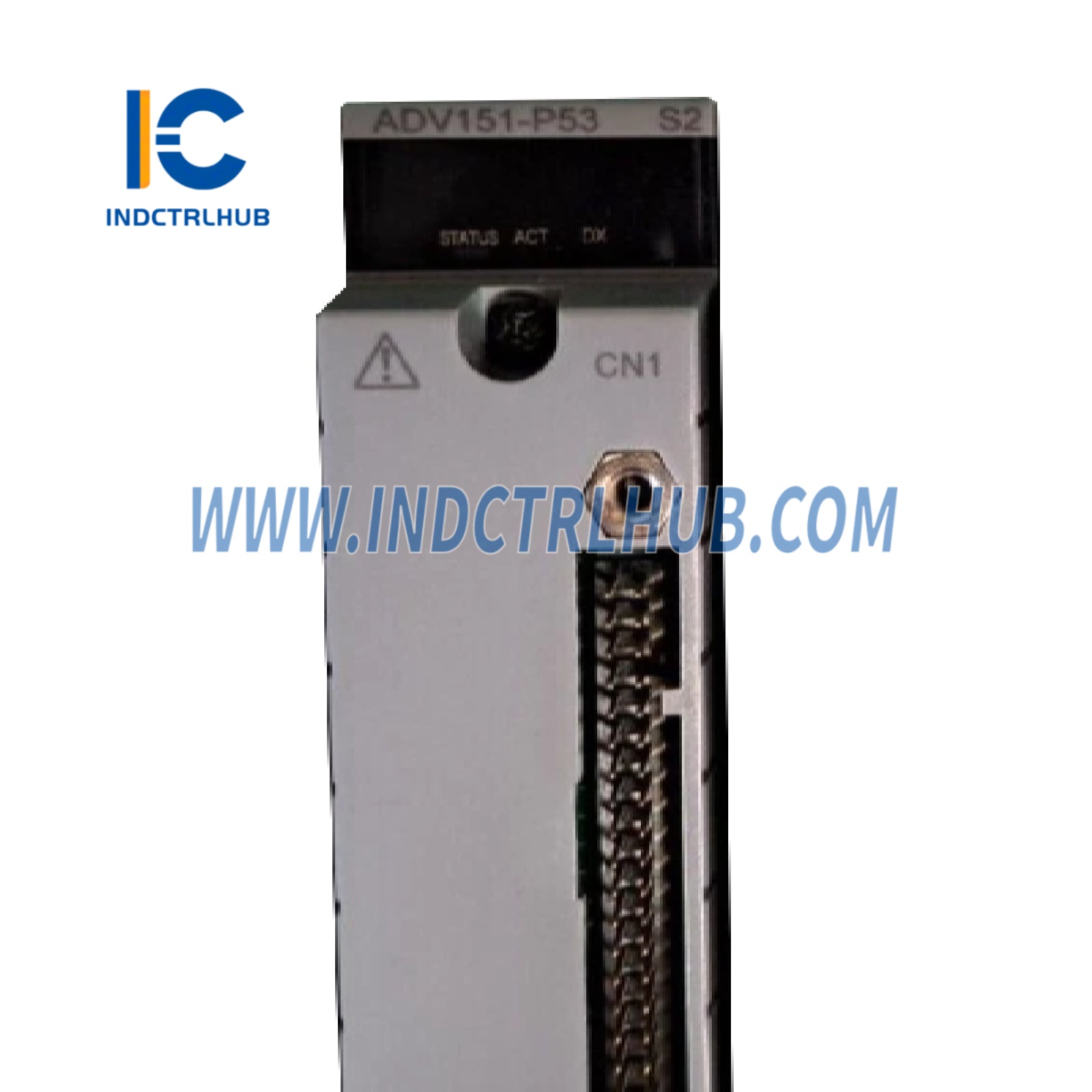

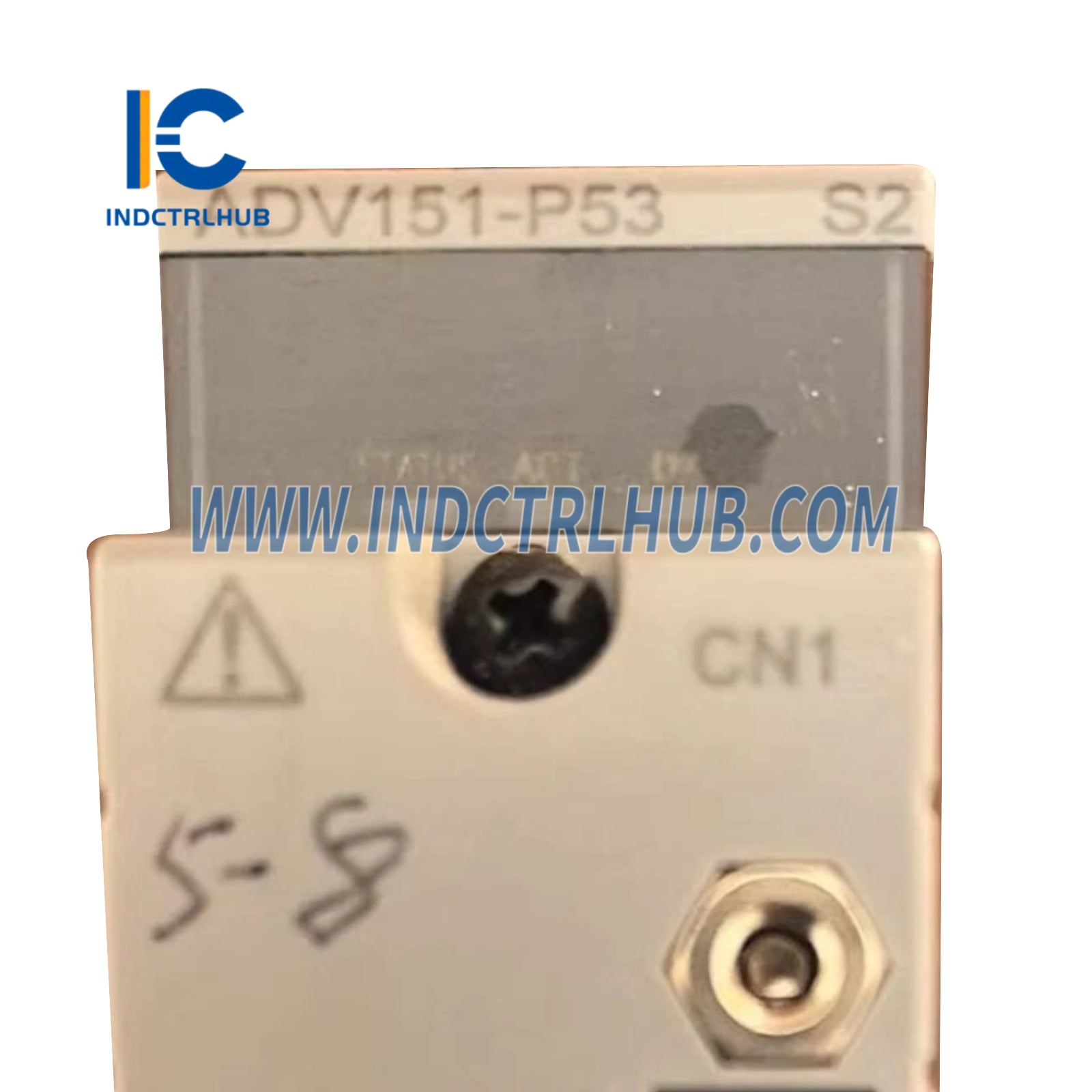

Yokogawa ADV151-P53/D5A00 32-channel Digital Input Module
Yokogawa ADV151-P53/D5A00 32-channel Digital Input Module
Manufacturer: Yokogawa
Product No.: ADV151-P53/D5A00
Condition:1000 in stock
Product Type: 32-channel Digital Input Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ADV151-P53/D5A00 |
|
Description |
32-channel Digital Input Module (24 V DC, with pushbutton input, no status display, no explosion protection) + KS Cable Interface Adapter (ATD5A-00) |
_
_
__ Product Overview
The_ADV151-P53/D5A00_is a_digital input module_from Yokogawa, designed to interface with 32 discrete 24 V DC ON/OFF signals. It includes_pushbutton input support_and is equipped with a_KS cable interface adapter (ATD5A-00). The __53_ suffix indicates_pushbutton input,_no status display, and_no explosion protection, making it suitable for standard industrial environments.
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
ADV151 |
|
Input Channels |
32 |
|
Rated Input Voltage |
24 V DC (sink/source compatible) |
|
Input ON Voltage Range |
18 to 26.4 V DC |
|
Input OFF Voltage |
_ 5.0 V DC |
|
Input Current (typical) |
4.1 mA ±20% per channel |
|
Max Allowable Input Voltage |
30.0 V DC |
|
Withstanding Voltage |
2 kV AC (input to system), 500 V AC (between commons, per 16 ch) |
|
Status Input Function |
Supported |
|
Pushbutton Input Function |
Supported |
|
SOE Input Function |
Not supported |
|
Input Response Time |
_ 8 ms (status input) |
|
Minimum ON Detection Time |
20 ms (pushbutton input) |
|
Max ON/OFF Cycle |
25 Hz (pushbutton input) |
|
Maximum Current Consumption |
500 mA (5 V DC) |
|
Weight |
Approx. 0.30 kg |
|
External Connection |
KS Cable Interface Adapter (ATD5A-00) |
_
_
__ Suffix & Option Code Breakdown
_
Suffix Codes in ADV151-P53
|
Code |
Meaning |
|---|---|
|
P |
Pushbutton input |
|
5 |
No status display, no explosion protection |
|
3 |
With ISA Standard G3 coating and -20 to 70 °C temperature range |
_
Option Code in /D5A00
|
Code |
Description |
|---|---|
|
/D5A00 |
KS Cable Interface Adapter for 32-channel Digital Input [Model: ATD5A-00] |
_
_
