Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ADV151-E63/D6A00 |
|
Description |
32-channel Digital Input Module (24 V DC, SOE capture, status display, explosion protection) |
🔹 Product Overview

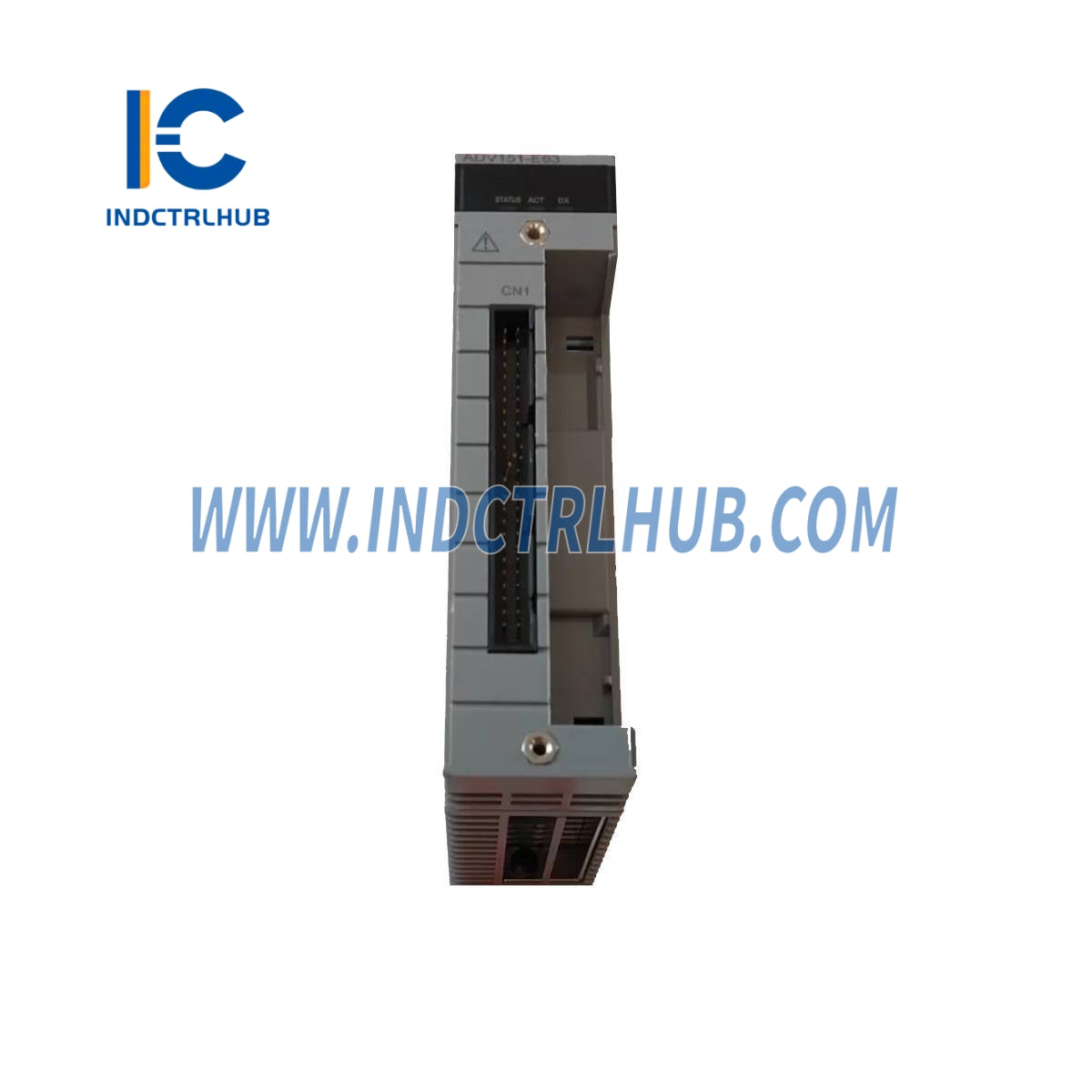

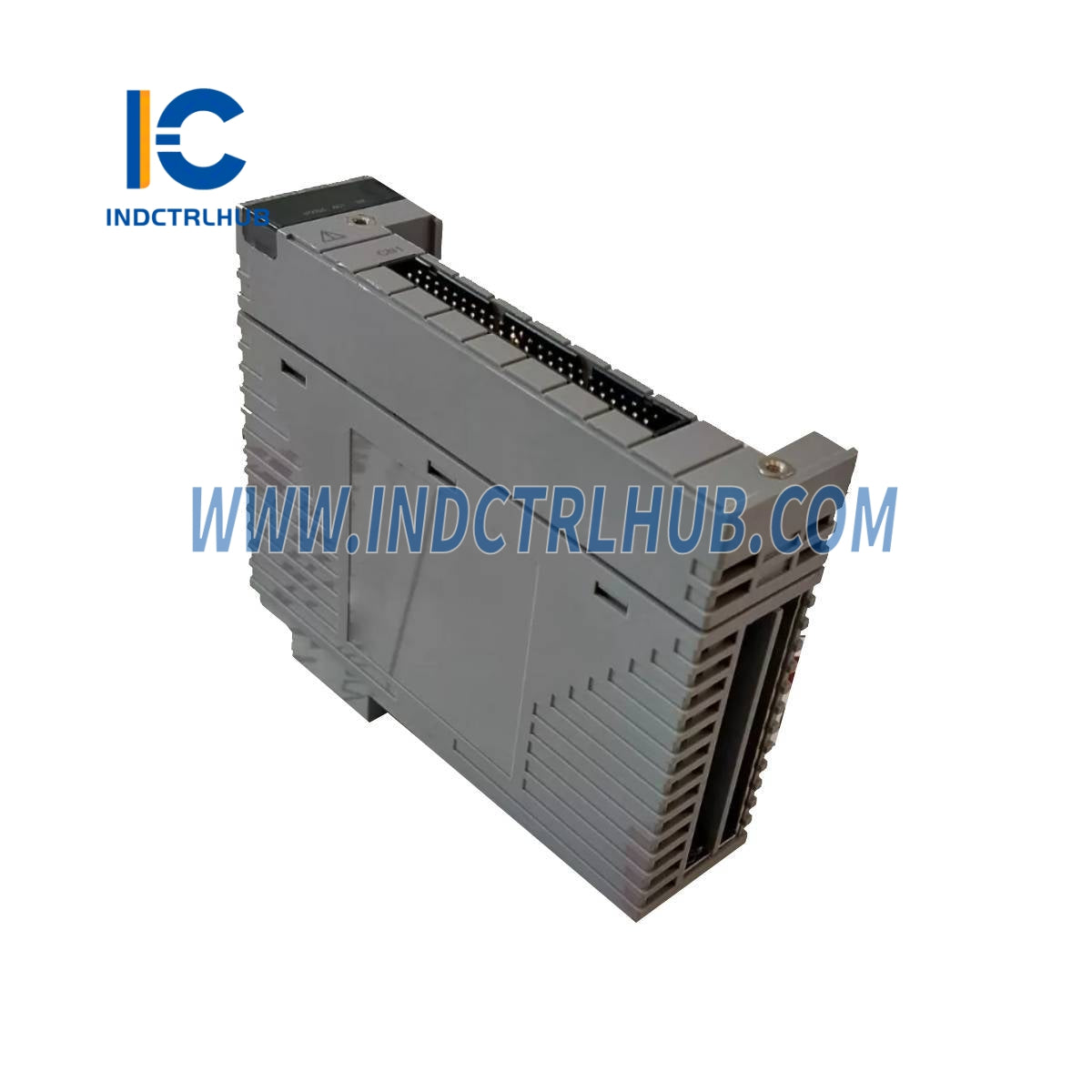

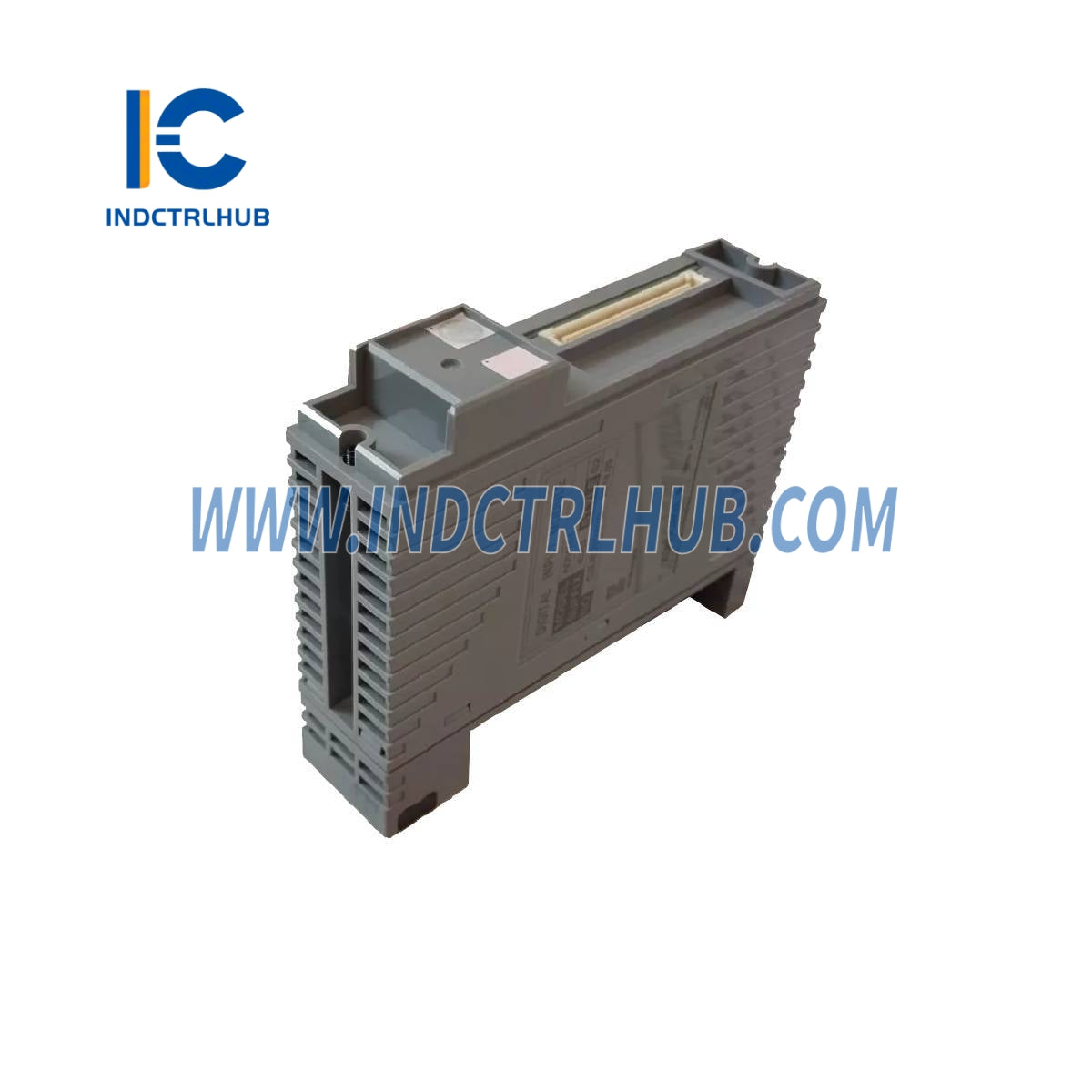

The ADV151-E63/D6A00 is a 32-channel isolated digital input module designed to receive 24 V DC ON/OFF signals. It supports sink/source-type inputs and includes functionality for status monitoring, pushbutton edge detection, and Sequence of Events (SOE) data capture. This model is explosion-protected, comes with status display, and is designed for use in ISA G3 harsh environments. It also includes a KS Cable Interface Adapter (ATD6A-00) for flexible wiring.
🔹 Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
ADV151 |
|
Input Channels |
32 |
|
Input Signal Type |
24 V DC (sink/source compatible) |
|
Input ON Voltage |
18 to 26.4 V DC |
|
Input OFF Voltage |
5.0 V DC or less |
|
Input Current (typical) |
4.1 mA ±20% per channel |
|
Max Allowable Input Voltage |
30.0 V DC |
|
Withstanding Voltage |
2 kV AC (input to system), 500 V AC between commons (per 16 ch) |
|
Status Input Function |
Supported (detect ON/OFF status) |
|
Pushbutton Input Function |
Supported (edge detection, up to 25 Hz) |
|
SOE Input Function |
Supported |
|
Input Response Time |
8 ms or less |
|
Min ON Detection Time |
20 ms (pushbutton input) |
|
Max Current Consumption |
500 mA (5 V DC) |
|
Weight |
Approx. 0.30 kg |
|
External Connection Options |
Pressure clamp terminal, MIL connector, KS cable via adapter |
🔹 Suffix & Option Code Breakdown
Suffix Codes in ADV151-E63
|
Code |
Meaning |
|---|---|
|
E |
SOE capture function enabled |
|
6 |
With status display |
|
3 |
ISA Standard G3 option and extended temp range (-20 to 70 °C) |
Option Code in /D6A00
|
Code |
Description |
|---|---|
|
/D6A00 |
KS Cable Interface Adapter for 32-channel Digital Input [Model: ATD6A-00] |
