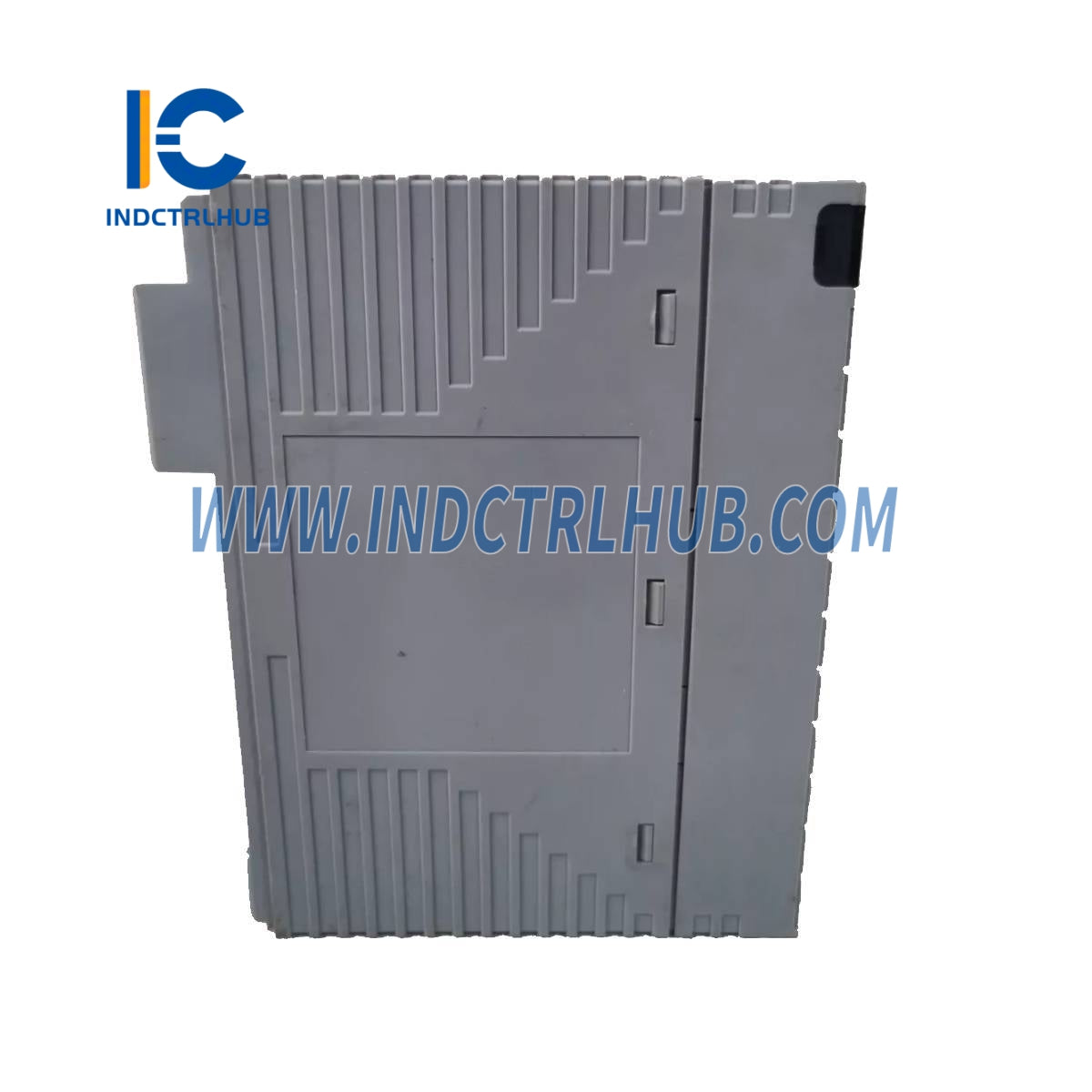

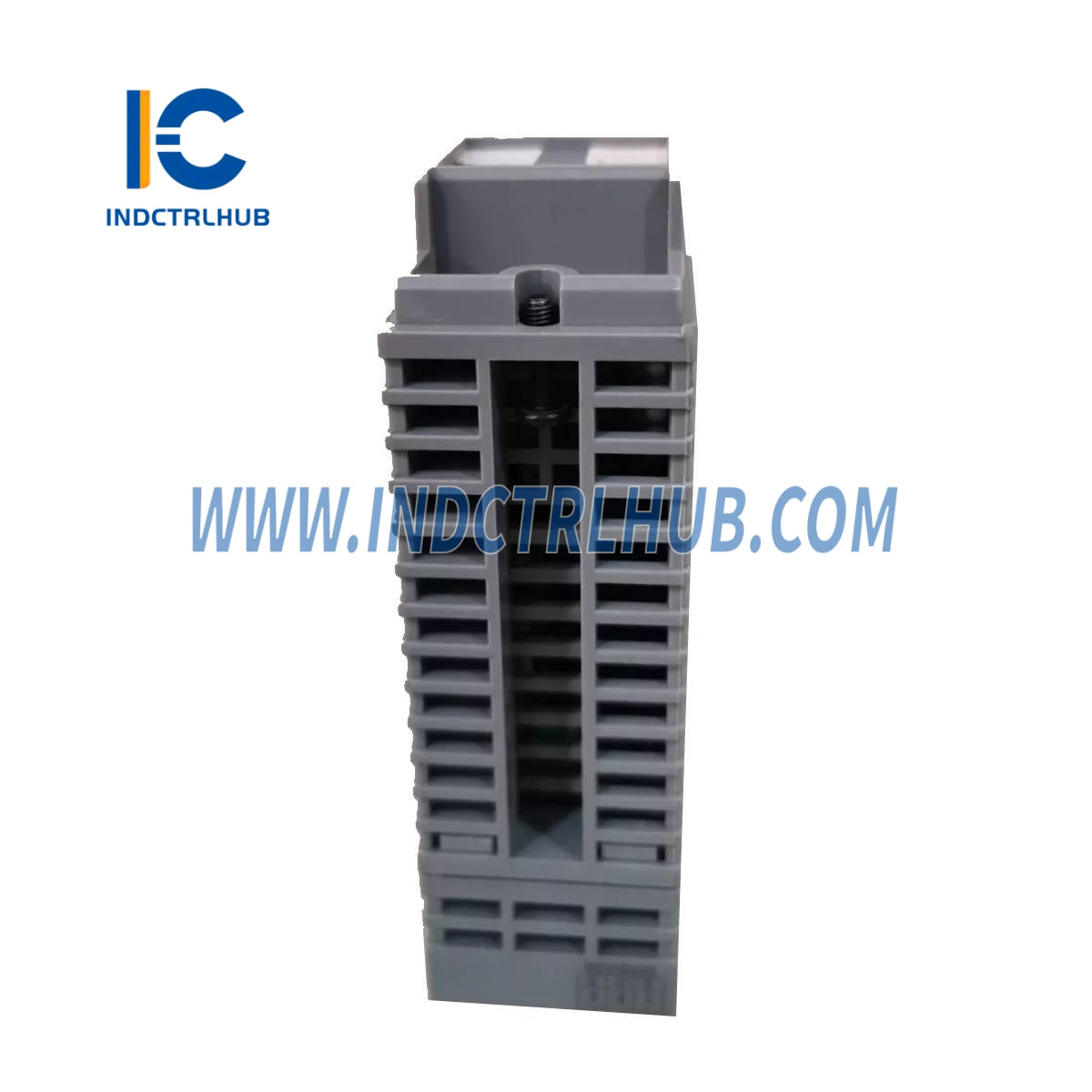

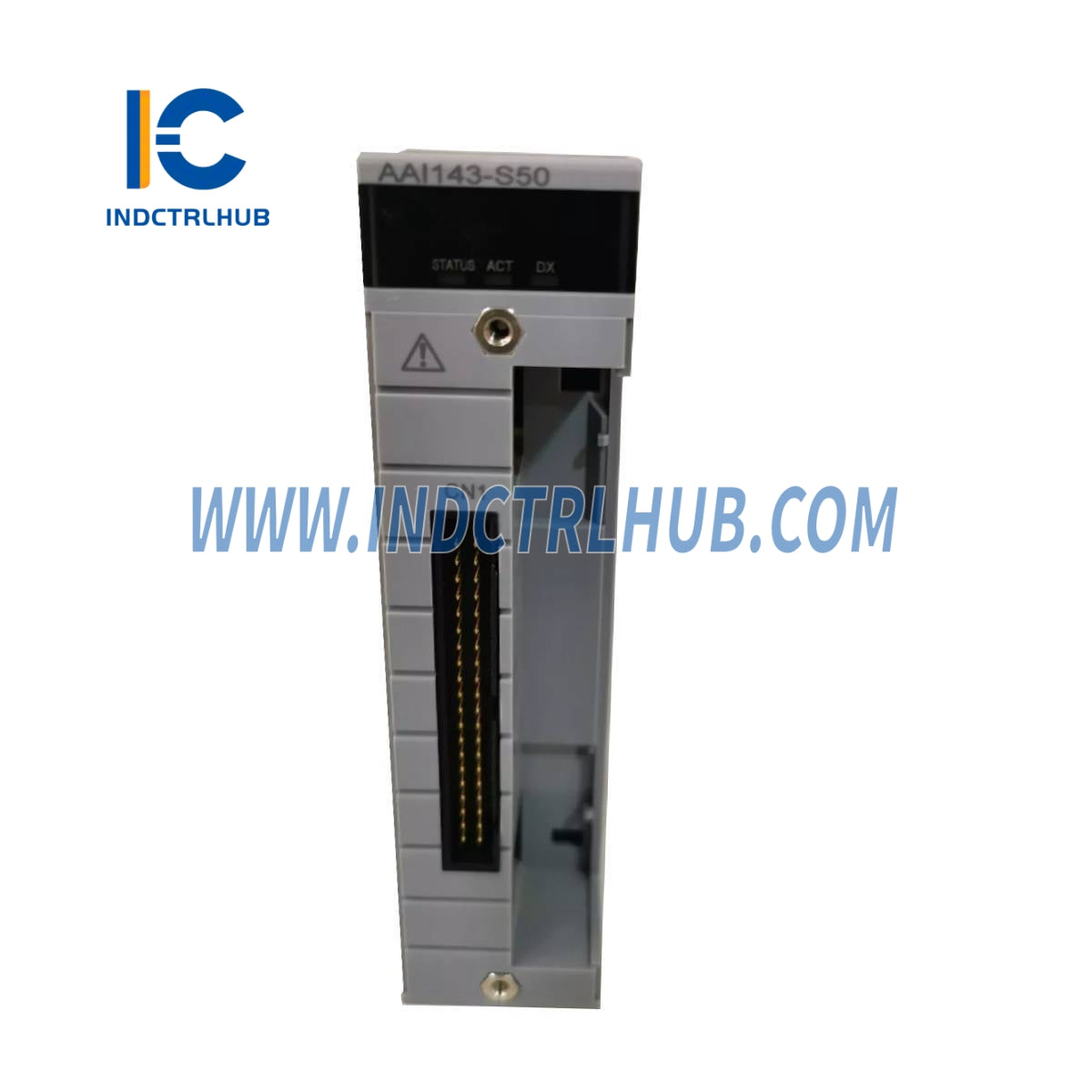

Yokogawa AAI143-S50/ATA4S-00 Analog Input Module
Yokogawa AAI143-S50/ATA4S-00 Analog Input Module
Manufacturer: Yokogawa
Product No.: AAI143-S50/ATA4S-00
Condition:1000 in stock
Product Type: Analog Input Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
ï½__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAI143-S50/ATA4S-00 |
|
Description |
Analog Input Module (4 to 20 mA, 16-channel, Isolated) with Pressure Clamp Terminal Block |
_
_
__ Description
The_AAI143-S50/ATA4S-00_is a_16-channel isolated analog input module_designed to receive_4 to 20 mA_current signals. This model includes a_pressure clamp terminal block_for straightforward field wiring. It supports_dual-redundant configurations_and_2-wire or 4-wire transmitter support, selectable per channel. It also features optional HART communication (not included in this standard -S version).
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
AAI143 |
|
Type |
Analog Input Module |
|
Number of Channels |
16, isolated |
|
Input Signal |
4 to 20 mA |
|
Allowable Input Current |
24 mA |
|
Withstanding Voltage |
1500 V AC for 1 minute (between input and system) |
|
Input Resistance (Power ON) |
270 _ (at 20 mA) to 350 _ (at 4 mA) |
|
Input Resistance (Power OFF) |
_500 k_ |
|
Accuracy |
±16 µA |
|
Data Update Period |
10 ms |
|
Transmitter Power Supply |
19.0 V or higher @ 20 mA, max 25.5 V @ 0 mA (25 mA limit) |
|
2-wire/4-wire Support |
Selectable per channel by setting pin |
|
Temperature Drift |
±16 µA per 10 °C |
|
Max Current Consumption |
230 mA @ 5 V DC, 540 mA @ 24 V DC |
|
Weight |
Approx. 0.3 kg |
|
External Connection |
Pressure clamp terminal block (ATA4S-00), MIL connector cable, KS1 cable |
|
HART Communication |
Available (requires_-H_suffix) __Not included in this model |
_
_
__ Model Configuration
|
Model Code |
Details |
|---|---|
|
AAI143-S50 |
Standard module, no explosion protection, basic type |
|
/ATA4S-00 |
Option for Pressure Clamp Terminal Block [Model: ATA4S-00] |
_
_
