Product Description
š¹ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ADV151-E50/B5S00 |
|
Description |
32-channel Digital Input Module (24 V DC, SOE capture, no status display, non-explosion-proof) with pressure clamp terminal block |
Ā
Ā
š¹ Product Overview

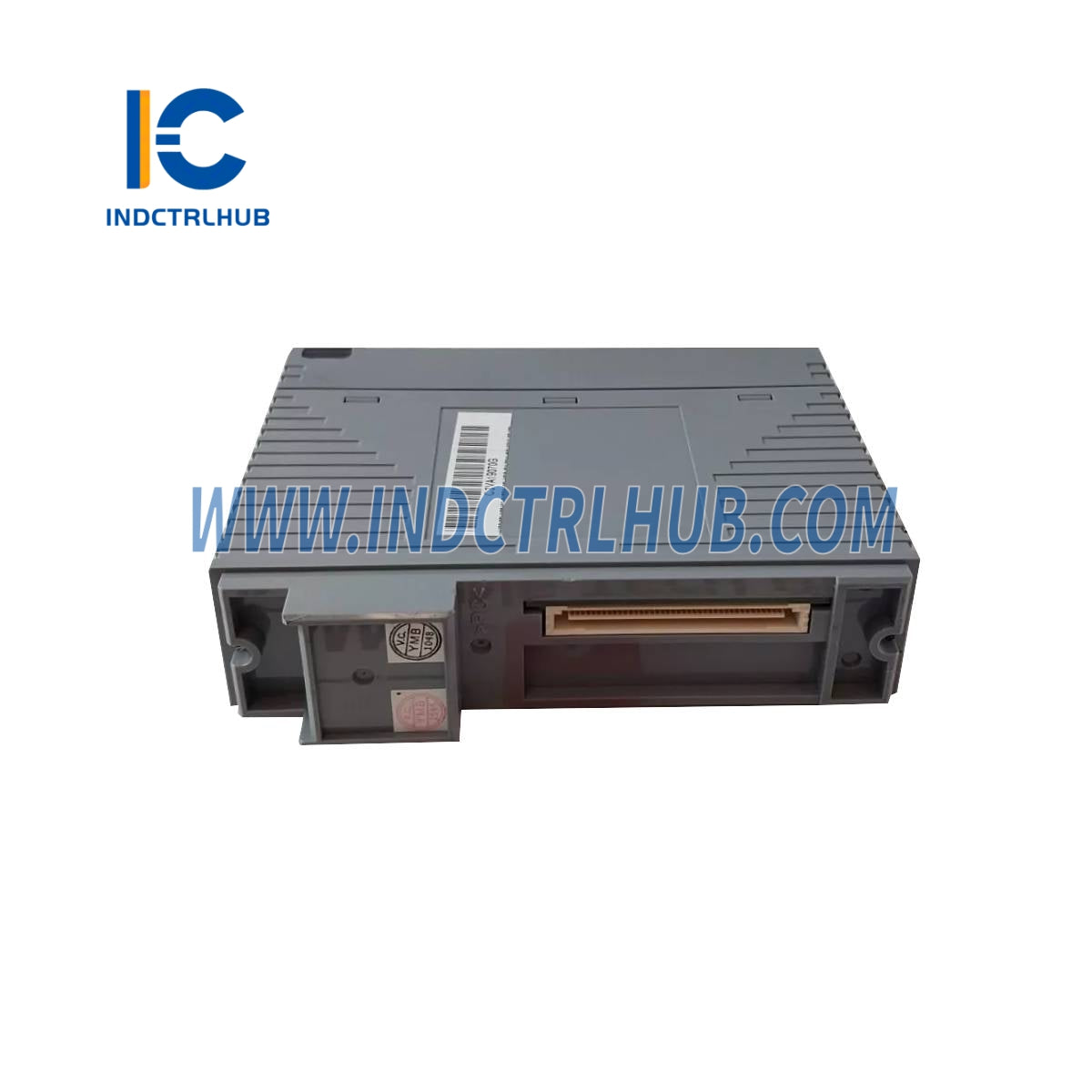

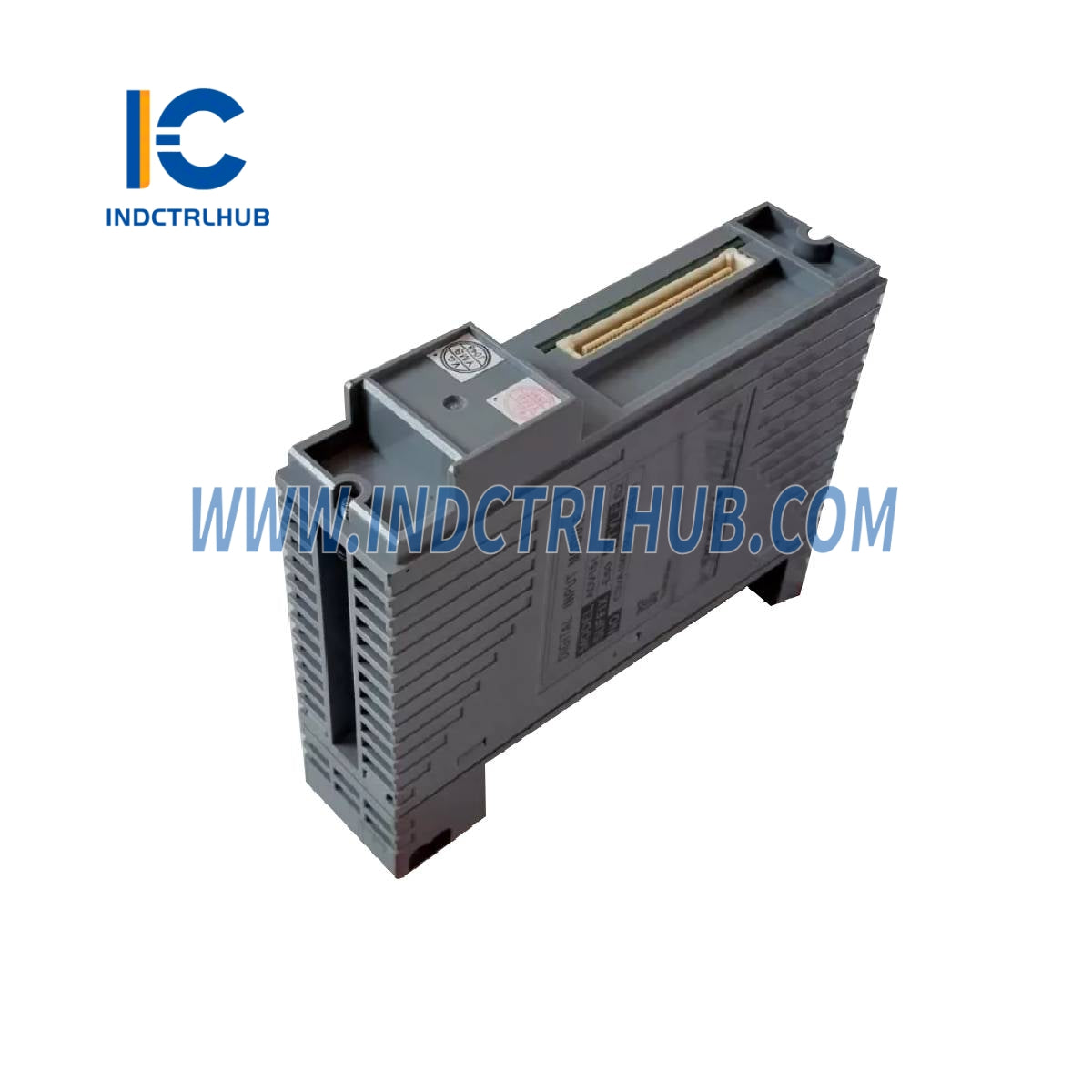

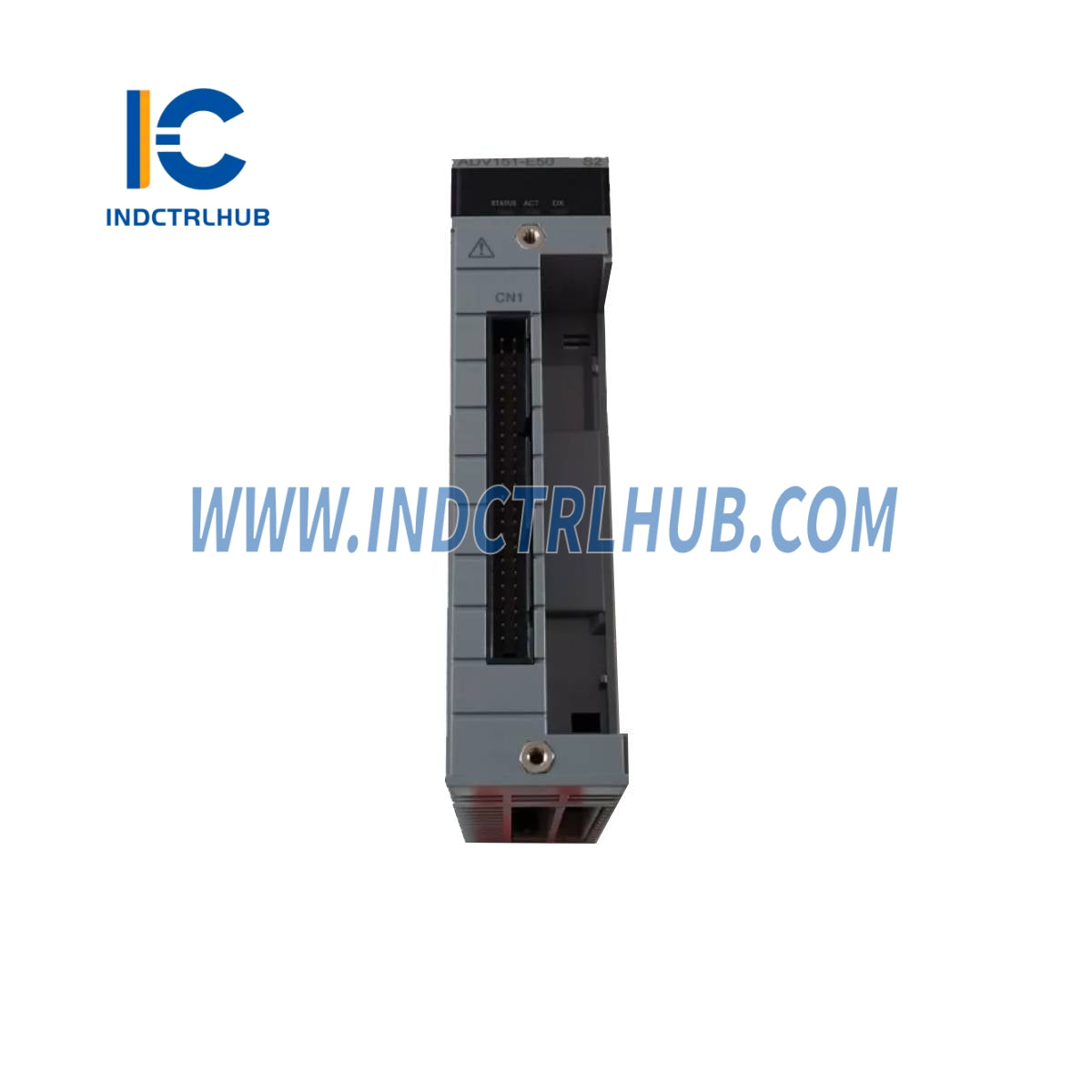

TheĀ ADV151-E50/B5S00Ā is aĀ 32-channel isolated digital input moduleĀ designed to handle 24 V DC ON/OFF signals. It featuresĀ SOE (Sequence of Events) data captureĀ capability and comes with aĀ Pressure Clamp Terminal Block (ATB5S-00)Ā for field wiring. This version doesĀ not include a status displayĀ and isĀ not explosion-protected, making it suitable for standard environments.
Ā
Ā
š¹ Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
ADV151 |
|
Input Channels |
32 |
|
Input Signal Type |
24 V DC (sink/source compatible) |
|
Input ON Voltage |
18 to 26.4 V DC |
|
Input OFF Voltage |
5.0 V DC or less |
|
Input Current (typical) |
4.1 mA Ā±20% per channel |
|
Max Allowable Input Voltage |
30.0 V DC |
|
Withstanding Voltage |
2 kV AC (input to system), 500 V AC between commons (per 16 ch) |
|
Status Input Function |
Supported (detect ON/OFF status) |
|
Pushbutton Input Function |
Not included (no ā-Pā suffix) |
|
SOE Input Function |
Supported |
|
Input Response Time |
8 ms or less |
|
Min ON Detection Time |
20 ms (pushbutton input, if present) |
|
Max Current Consumption |
500 mA (5 V DC) |
|
Weight |
Approx. 0.30 kg |
|
External Connection |
Pressure Clamp Terminal Block (ATB5S-00) |
Ā
Ā
š¹ Suffix & Option Code Breakdown
Ā
Suffix Codes in ADV151-E50
|
Code |
Meaning |
|---|---|
|
E |
SOE capture function enabled |
|
5 |
No status display, no explosion protection |
|
0 |
Basic type |
Ā
Option Code in /B5S00
|
Code |
Description |
|---|---|
|
/B5S00 |
Pressure Clamp Terminal Block for Digital Input [Model: ATB5S-00] |
Ā
